2006 BMW 525XI TOURING trip computer

Cockpit
12
Instrument cluster
1Indicator lamps for turn signals
2Speedometer
3Indicator and warning lamps13
4Displays for active cruise control
*70
5Tachometer74
6Energy Control75
7Display for
>Clock/date74
>Outside temperature74
>Indicator and warning lamps79
>Speed of cruise control
*66
>Desired speed for active cruise
control
*678Displays for
>Odometer and trip odometer74
>Computer75
>Date and remaining travel distance
for service requirements77
>Automatic transmission with
Steptronic
*63
>SMG Sequential Manual
Transmission
*61
>HDC Hill Descent Control
*88
>High-beam assistant
*103
> Check Control message present79
9Fuel gauge75
10Resetting trip odometer74

iDrive
20
Status information
1Display for:
>Entertainment:
Radio, CD
>Telephone
* in "Communication":
Name of linked mobile phone, network
search or no network
>"BMW Assist"
*:
Existing voice connection with a service
from BMW Assist
2Entertainment sound output off
3Display for:
> New entries present in "Missed calls"
*
> Roaming active
4 Telephoning
* possible if the mobile
phone is logged-on in the vehicle
Mobile phone network with strong
reception, display dependent on mobile
phone
5Time
Other displays:
The status information is temporarily hidden
when there are Check Control instructions or
inputs via the voice command system
*.
Assistance window*
Additional information can be displayed in the
assistance window:
>The computer or the trip computer
*
>The arrow or map view with a navigation
system
*
>The current position
Selecting display
1.Move the controller to the right to change to
the assistance window and press the con-
troller.
2.Select a menu item.
3.Press the controller.

Controls
75Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Energy Control
Displays the current fuel consumption. This
allows you to see whether your current driving
style is conducive to fuel economy with mini-
mum exhaust emissions.
Fuel gauge
Fuel tank capacity: approx. 18.5 gallons/
70 liters. You will find information on refueling
on page194.
If the tilt of the vehicle varies for a longer period,
when you are driving in mountainous areas, for
example, the indicator may fluctuate slightly.
Reserve
After the reserve quantity has been reached, a
message briefly appears on the Control Display;
the remaining range is shown in the computer.
Below a range of approx. 30 miles/50 km, the
message remains on the Control Display.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur.<
Computer
Displays in instrument cluster
To display the information, press the BC button
in the turn signal lever from radio readiness.
The following information is displayed in the
specified order:
>Cruising range
>Average speed
>Average fuel consumption
Cruising range
Displays the estimated cruising range available
with the remaining fuel. The range is projected
based on the driving style over the last 20 miles/
30 km.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur.<
Average speed
Periods with the vehicle parked and the engine
switched off are not included in the calculations
of average speed.
To reset average speed: press BC button on
turn signal lever for approx. 2 seconds.
Average fuel consumption
The average fuel consumption is calculated for
the time during which the engine is running.
You can use the Control Display to view your
fuel consumption rate over two different dis-
tances, refer to Displays on Control Display or
Trip computer
*.

Everything under control
76 To reset average fuel consumption: press BC
button on turn signal lever for approx. 2 sec-
onds.
Displays on Control Display
You can also call up the computer via the iDrive.
For explanation of principle, refer to page16.
1.Press the button.
This opens the start menu.
2.Move the controller to the right to open
"Navigation".
Without navigation system
*:
Open "Car Data".
3.Select "Car Data" and press the controller.
4.Select "Onboard info" and press the con-
troller.
>Estimated time of arrival at destination:
>Entering a distance manually in the com-
puter, see below.
>Entering a destination in the navigation
system
*, refer to page133.
>Cruising range>Distance to destination:
>Entering a distance manually in the com-
puter, see below.
>Entering a destination in the navigation
system
*, refer to page133.
>Average speed
>Average fuel consumption
Resetting values
You can reset the values for the average speed
and average fuel consumption:
1.Select the respective menu item and press
the controller.
2.To confirm your selection, press the con-
troller again.
Entering a distance manually
1.Select "Distance to dest." and press the
controller.
2.Turn the controller to select the distance to
your destination. If needed, hold it against a
slight resistance to enter a larger differ-
ence.
3.Press the controller to apply the setting.
The distance is automatically preset during the
destination guidance of the navigation sys-
tem
*.
Trip computer*
The trip computer is suitable, for example, for a
vacation trip.
1.Open the start menu.
2.Open "Navigation".
Without navigation system
*:
Open "Car Data".

Controls
77Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
3.Select "Car Data" and press the controller.
4.Select "Trip computer" and press the con-
troller.
>Departure time
>Driving time
>Distance traveled
>Average speed
>Average fuel consumption
Starting or stopping the trip computer, or reset-
ting all values:
1.Select "Set" and press the controller.
2.Select the desired menu item.
3.Press the controller.
Display options
You can display the computer or the trip com-
puter in the assistance window.
1.Move the controller to the right to change to
the assistance window and press the con-
troller.
2.Select "Onboard info" or "Trip computer".3.Press the controller.
Service requirements
The remaining driving distance and the date for
the next maintenance are displayed briefly with
the ignition switched on.
Your BMW Service Advisor can deter-
mine your vehicle's current service
requirements by reading out the data stored in
the remote control.<
Additional information
You can select a display of more detailed infor-
mation on the maintenance scope on the Con-
trol Display. For explanation of principle, refer to
page16.
1.Open the start menu.
2.Press the controller to open the menu.
3.Select "Service" and press the controller.

Reference 231
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Short commands of voice command
system
With short commands you can carry out certain
functions directly, regardless of which menu item is selected. Here are the important short
commands for the voice command system.
Assistance window
Communication
*
FunctionCommand
To open the assistance window20{Assistance window}
To select the display in the assistance window20{Assistance window map facing north},
{Assistance window map direction of travel},
{Assistance window arrow display},
{Assistance window perspective},
{Assistance window current position},
{Assistance window trip computer} or
{Assistance window onboard info}
To change scale in assistance window146{Assistance window scale ... feet} or
{Assistance window scale ... miles}
FunctionCommand
To open phone175{Phone}
To dial phone number179{Dial number}
To display phone book179{A to Z}
To select from the phone book179{Call ...} or
{Dial name}
To display "Top 8"180{Top 8}
To redial179{Redial}
To display "Received calls"180{Received calls}
To display "Missed calls"180{Missed calls}
To display "Bluetooth"176{Bluetooth}
To open BMW Assist189{BMW Assist}
To open "BMW Service"189{BMW Service}
To open "BMW Contact"181{BMW Contact}
To open "BMW Contact Numbers"181{BMW Contact numbers}

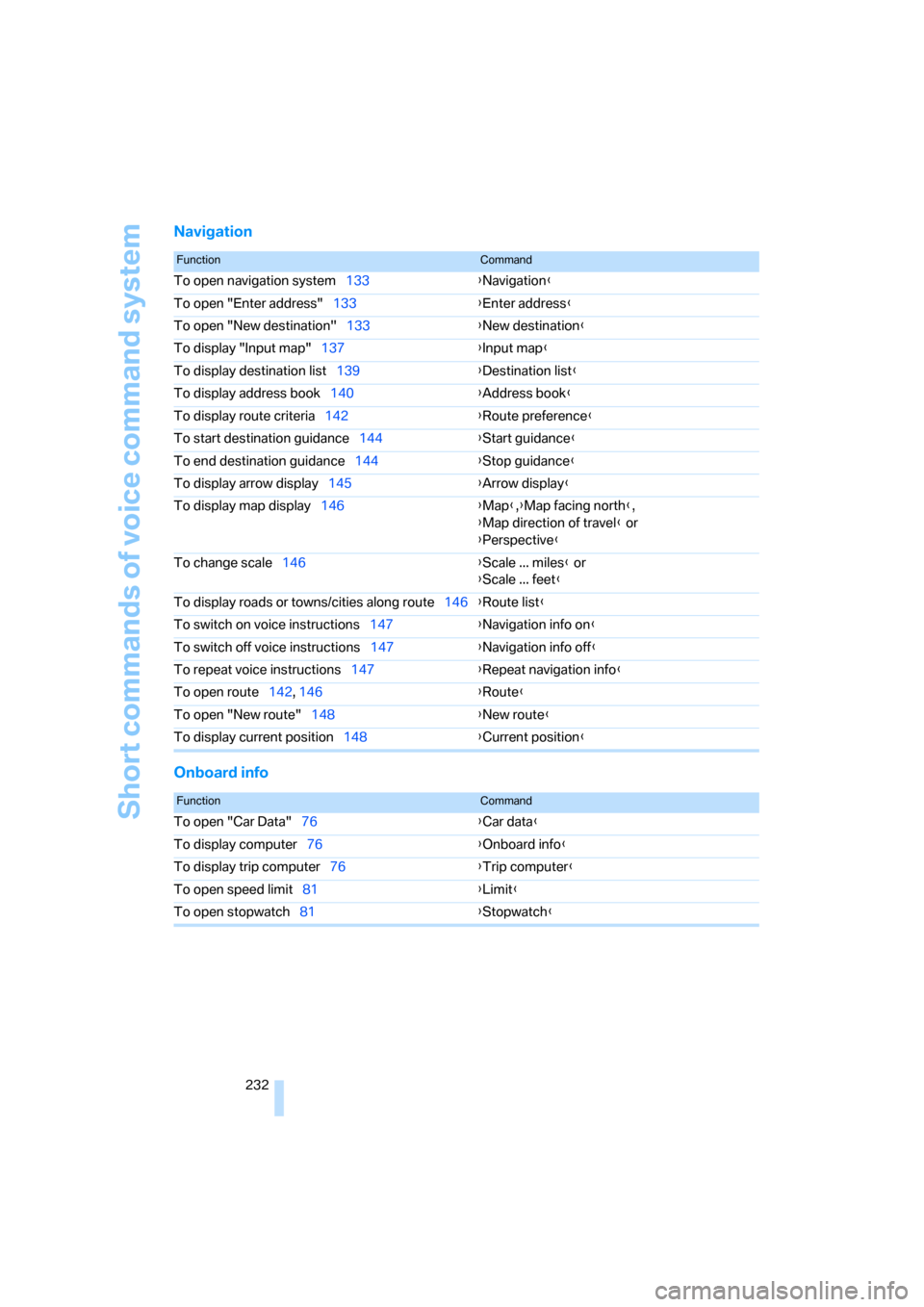

Short commands of voice command system
232
Navigation
Onboard info
FunctionCommand
To open navigation system133{Navigation}
To open "Enter address"133{Enter address}
To open "New destination"133{New destination}
To display "Input map"137{Input map}
To display destination list139{Destination list}
To display address book140{Address book}
To display route criteria142{Route preference}
To start destination guidance144{Start guidance}
To end destination guidance144{Stop guidance}
To display arrow display145{Arrow display}
To display map display146{Map},{Map facing north},
{Map direction of travel} or
{Perspective}
To change scale146{Scale ... miles} or
{Scale ... feet}
To display roads or towns/cities along route146{Route list}
To switch on voice instructions147{Navigation info on}
To switch off voice instructions147{Navigation info off}
To repeat voice instructions147{Repeat navigation info}
To open route142, 146
{Route}
To open "New route"148{New route}
To display current position148{Current position}
FunctionCommand
To open "Car Data"76{Car data}
To display computer76{Onboard info}
To display trip computer76{Trip computer}
To open speed limit81{Limit}
To open stopwatch81{Stopwatch}

Reference 249
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Route142
– bypassing sections148
– changing142,148
– displaying145
– displaying arrow display145
– displaying map146
– displaying town146
– list146
– selecting142
– selecting criteria142
Route map, refer to Map
display146
"Route preference",
changing142
Route selection142
RSC, refer to Run-flat
tires201
Run-flat tires201
– continuing driving with a
damaged tire90,93
– flat tire90,93
– new wheels and tires201
– tire inflation
pressure90,93,196
– tire replacement201,202
S
Safety5
Safety belts49
– damage50
– sitting safely45
– warning lamp49
Safety belt tensioners
– refer to Airbags94
– refer to Safety belts49
Safety systems
– ABS Antilock Brake
System86
– airbags94
– DSC Dynamic Stability
Control86
– safety belts49
Satellite radio161
– enabling channel162
– selecting channel162
– storing channel162"SAT" with radio152,162
"Save current
destination"142
"Scan"
– sampling stations157
– sampling tracks167
Scan
– CD changer167
– CD player167
– radio157
"Scan all" in audio mode167
"Scan directory" in audio
mode167
Screen, refer to iDrive16
Screw thread for tow
fitting222
SDARS, refer to Satellite
radio161
"Seat heater distribution"50
Seats46
– active backrest width
adjustment47
– adjusting the seats46
– comfort seat46
– easy entry/exit47
– heating50
– lumbar support46
– memory, refer to Seat, mirror
and steering wheel
memory47
– sitting safely45
– storing the setting47
– thigh support46
– ventilation, refer to Active
seat ventilation51
Securing load
– refer to Securing cargo128
– with ski bag, refer to
Securing cargo120
"Select as destination"139
"Select current speed"81
Selecting audio sources, refer
to Operation via iDrive152
Selecting distance for active
cruise control69
Selecting frequency
manually157
Selecting menu items19Selecting new scale for
navigation146
Selecting route142
Selection options with
navigation system142
Selector lever
– automatic transmission with
Steptronic63
– SMG Sequential Manual
Transmission61
Selector lever interlock, refer
to Shiftlock
– automatic transmission with
Steptronic63
– SMG Sequential Manual
Transmission61
Selector lever positions
– automatic transmission with
Steptronic63
– SMG Sequential Manual
Transmission61
Self-leveling suspension89
Separation net118
Sequential Manual Trans-
mission SMG61
"Service"77,188,205
Service, refer to Roadside
Assistance220
Service and Warranty Infor-
mation Booklet for US
models209
Service interval indicator, refer
to Service requirements77
"Service notification"189
"Service Request"182,190
"Service
requirements"78,188,206
Service requirements77
– also refer to CBS Condition
Based Service209
"Service Status"188
"Set"
– in audio mode152
– on trip computer77
"Set date"83
"Set service date"78
"Set time"83
