2006 BMW 330CI IDRIVE COUPE air filter

Controls
99Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
2Use the knurled wheel to smoothly open
and close the air vents
3Use the lever to change the direction of the
airflow
Microfilter/activated-charcoal filter
The microfilter traps dust and pollen in the
incoming air. The activated-charcoal filter pro-
vides additional protection by filtering gaseous
pollutants from the outside air. Your BMW cen-
ter replaces this combined filter during routine
maintenance.
You can call up further information in the service
requirements display, refer to page71.
Parked car ventilation
The concept
The parked car ventilation/heating provides
ventilation to the passenger compartment and
lowers its temperature, if necessary. It is ready
for use at any outside temperature, as of radio
readiness.
The parked car ventilation/heating remains
switched on for 30 minutes. Two different
switch-on times can be preselected. The sys-
tem can also be switched on and off directly.
Due to its high power consumption, it should
not be switched on twice in a row without driv-
ing in between to allow the battery to recharge.
The air emerges from the air vents for the upper
body area in the instrument panel. The air vents
must therefore be open.
The parked car ventilation system is operated
via iDrive.
Switching on/off directly
iDrive, for operating principle refer to page16.
1.Open the start menu.
2.Move the controller to the left to call up "Cli-
mate".
3.Select "Parked car operation" and press the
controller.
4.Select "Automatic ventilation" and press
the controller.5.Select "Parked car ventilation" and press
the controller.
The parked car ventilation/heating is
switched on.
The symbol on the automatic climate control
display flashes.
Preselecting switch-on times
iDrive, for operating principle refer to page16.
1.Open the start menu.
2.Move the controller to the left to call up "Cli-
mate".
3.Select "Parked car operation" and press the
controller.
4.Select "Activation time" and press the con-
troller.
5.Move the controller to the left or right to
select "Timer 1" or "Timer 2".
ba8_E9293_US.book Seite 99 Freitag, 5. Mai 2006 1:02 13

Maintenance
196
Maintenance
BMW Maintenance System
The BMW Maintenance System supports the
preservation of the traffic and operating safety
of your BMW. The service schedule also
includes operations related to the vehicle's
comfort and convenience features, such as
replacement of the filters for the inside air. The
objective is to optimize efforts with respect to
minimal vehicle maintenance costs.
If and when you come to sell your BMW, a com-
prehensive record of servicing will prove a sig-
nificant benefit.
CBS Condition Based Service
Sensors and special algorithms take the differ-
ent driving conditions of your BMW into
account. Condition Based Service uses this to
determine the current and future service
requirements. By letting you define a service
and maintenance regimen that reflects your
own individual requirements, the system builds
the basis for trouble-free driving.
On the Control Display, you can have the
remaining times or distances for selected main-
tenance tasks and any legally prescribed dates
displayed, refer to page71:
>Engine oil
>Brake pads: separately for front and rear
>Microfilter/activated-charcoal filter
>Brake fluid
>Spark plugs
>Vehicle check>Legally mandated inspections depending
on local regulations
Service data in the remote control
Your vehicle continuously stores service-
requirement information in the remote control
while you are driving. Your BMW Service Advi-
sor can read out this data from the remote con-
trol unit, and propose an optimized mainte-
nance approach. Whenever you take your car in
for servicing you should therefore hand your
BMW Service Advisor the remote control unit
that you last used.
Make sure that the date is always set cor-
rectly, refer to page74; otherwise the
effectiveness of Condition Based Service CBS
is not assured.<
Service and Warranty Information
Booklet for US models and Warranty
and Service Guide Booklet for
Canadian models
Please consult your Service and Warranty Infor-
mation Booklet for US models and Warranty
and Service Guide Booklet for Canadian models
for additional information on service require-
ments.
BMW recommends that you have service
and repair operations performed at your
BMW center.
Take the time to ensure that these service pro-
cedures are confirmed by entries in your vehi-
cle's Service and Warranty Information Booklet
for US models and Warranty and Service Guide
Booklet for Canadian models. These entries
verify that your vehicle has received the speci-
fied regular maintenance.<
ba8_E9293_US.book Seite 196 Freitag, 5. Mai 2006 1:02 13

Mobility
199Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

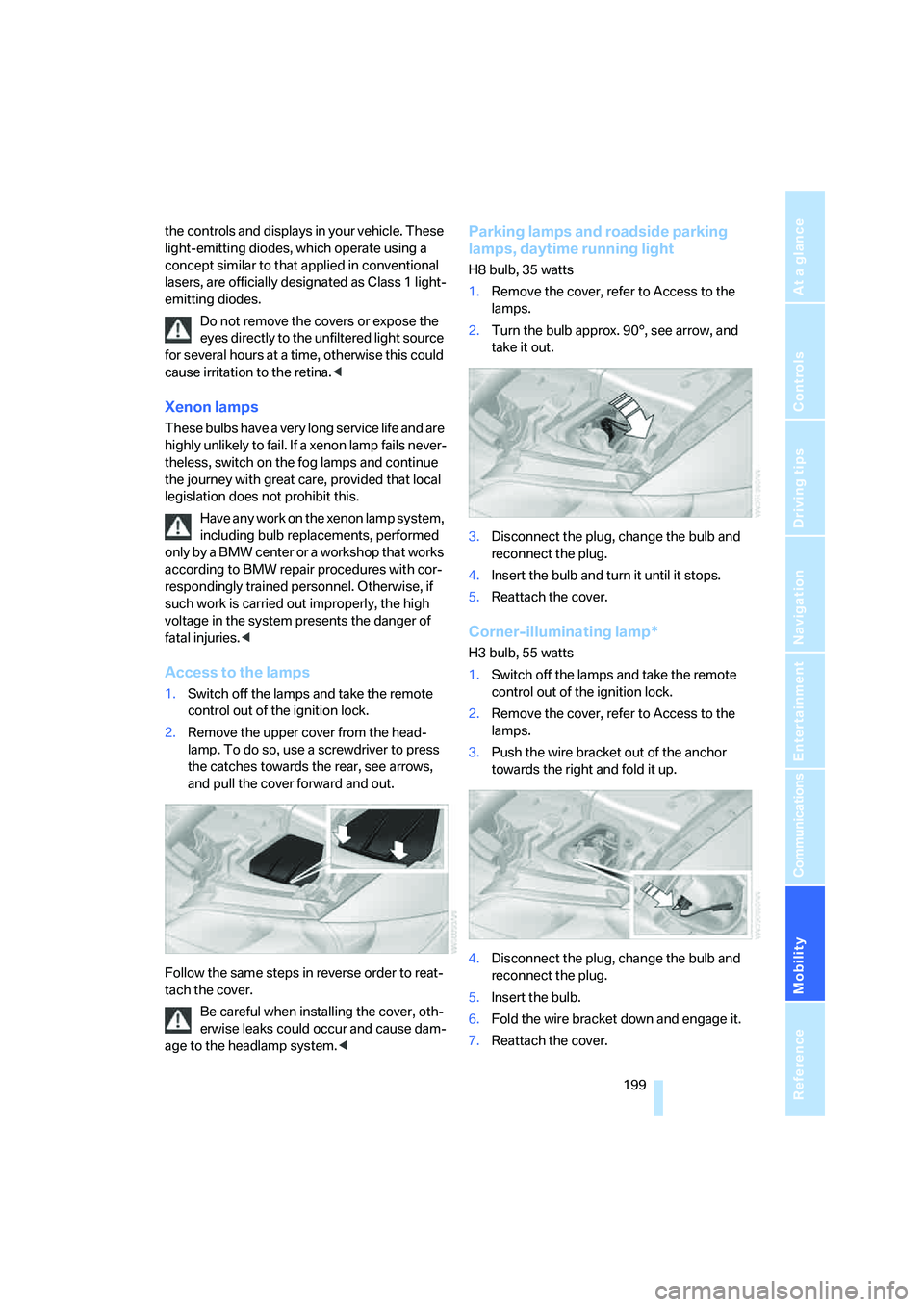

the controls and displays in your vehicle. These
light-emitting diodes, which operate using a
concept similar to that applied in conventional
lasers, are officially designated as Class 1 light-
emitting diodes.
Do not remove the covers or expose the
eyes directly to the unfiltered light source
for several hours at a time, otherwise this could
cause irritation to the retina.<
Xenon lamps
These bulbs have a very long service life and are
highly unlikely to fail. If a xenon lamp fails never-
theless, switch on the fog lamps and continue
the journey with great care, provided that local
legislation does not prohibit this.
Have any work on the xenon lamp system,
including bulb replacements, performed
only by a BMW center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel. Otherwise, if
such work is carried out improperly, the high
voltage in the system presents the danger of
fatal injuries.<
Access to the lamps
1.Switch off the lamps and take the remote
control out of the ignition lock.
2.Remove the upper cover from the head-
lamp. To do so, use a screwdriver to press
the catches towards the rear, see arrows,
and pull the cover forward and out.
Follow the same steps in reverse order to reat-
tach the cover.
Be careful when installing the cover, oth-
erwise leaks could occur and cause dam-
age to the headlamp system.<
Parking lamps and roadside parking
lamps, daytime running light
H8 bulb, 35 watts
1.Remove the cover, refer to Access to the
lamps.
2.Turn the bulb approx. 90°, see arrow, and
take it out.
3.Disconnect the plug, change the bulb and
reconnect the plug.
4.Insert the bulb and turn it until it stops.
5.Reattach the cover.
Corner-illuminating lamp*
H3 bulb, 55 watts
1.Switch off the lamps and take the remote
control out of the ignition lock.
2.Remove the cover, refer to Access to the
lamps.
3.Push the wire bracket out of the anchor
towards the right and fold it up.
4.Disconnect the plug, change the bulb and
reconnect the plug.
5.Insert the bulb.
6.Fold the wire bracket down and engage it.
7.Reattach the cover.
ba8_E9293_US.book Seite 199 Freitag, 5. Mai 2006 1:02 13

Everything from A - Z
218
Everything from A - Z
Index
"..." Identifies Control Display
texts used to select
individual functions and
refers you to the page where
these texts can be found.
A
ABS Antilock Brake
System81
ACC, refer to Active cruise
control60
Accident, refer to Initiating an
emergency call203
Activated-charcoal filter for
automatic climate control99
"Activation time"99
Active cruise control60
– indicator lamps63
– malfunction64
– selecting distance62
– sensor64
Active steering87
– warning lamp87
Adaptive Head Light92
"Add digits" for mobile
phone168
Additives
– coolant194
"Address book" in
navigation128
Address for navigation
– deleting129
– entering121,124,128
– selecting129
– storing128
– storing current position128
"Add to destination
list"124,125
Adjusting temperature inside
the car, refer to Automatic
climate control96
Adjusting the thigh support41Adjusting the tone during
audio operation, refer to
Tone control141
Adjustment in audio mode
– front-to-rear141
– right/left balance141
Airbags87
– indicator/warning lamp89
– sitting safely40
Air conditioning mode
– automatic climate control96
– ventilation98
Air distribution
– automatic97
– individual96
Air flow rate97
Airing, refer to Ventilation98
Air pressure, refer to Tire
inflation pressure184
Air recirculation, refer to
Recirculated-air mode97
"Air recirculation on / off"48
Air supply
– automatic climate control96
– ventilation98
Air vents95
AKI, refer to Fuel
specifications182
Alarm system34
– avoiding unintentional
alarms35
– interior motion sensor35
– switching off an alarm34
– tilt alarm sensor34
"All channels" for satellite
radio150
All-season tires, refer to
Winter tires190
"All stations" displaying with
the radio144
"AM", waveband140,144
Ambient air, refer to
Recirculated-air mode97Antenna for mobile phone162
Antifreeze
– coolant194
– washer fluid58
Anti-theft alarm system, refer
to Alarm system34
Anti-theft system29
Approved axle loads, refer to
Weights212
Approved gross vehicle
weight, refer to Weights212
Armrest, refer to Center
armrest104
Arrival time, refer to
Computer68
Arrival time, refer to Starting
destination guidance132
"Arrow display" in
navigation133
Arrow view for navigation133
Ashtray
– front106
– rear107
Assist, refer to BMW
Assist175
Assistance window20
– refer to iDrive20
Assistant systems, refer to
Driving stability control
systems81
AUC Automatic recirculated-
air control97
Audio140
– controls140
– switching on/off140
– tone control141
– volume141
"Audio", refer to Tone
control141
"Audio Aux"140,
158
"Audio Aux" for external audio
device158
Audio device, external105
ba8_E9293_US.book Seite 218 Freitag, 5. Mai 2006 1:02 13

Everything from A - Z
224 Filter
– refer to Microfilter/activated-
charcoal filter for automatic
climate control99
Fine wood, refer to Caring for
your vehicle brochure
First aid pouch203
Fixture for remote control,
refer to Ignition lock52
Flashlight, refer to
Rechargeable flashlight104
Flash when locking/
unlocking30
Flat
– Flat Tire Monitor82
– Run-Flat Tires189
– Tire Pressure Monitor
TPM84
Flat tire
– Tire Pressure Monitor84
Flat Tire Monitor FTM82
– indicating a flat tire83
– indicator/warning lamp83
– initializing the system83
– malfunction84
– snow chains83,190
– system limits83
Flat tires, refer to Tire
condition188
Floor mats, carpets, refer to
Caring for your vehicle
brochure
Fluid reservoir, refer to
Washer fluid reservoir58
"FM", waveband140,144
FM, waveband144
Fog lamps93
– indicator lamp13,93
Folding in the mirrors, before
driving into a car wash114
Folding up the floor panel108
Footbrake, refer to Braking
safely113
Footwell lamp, refer to Interior
lamps93
For your own safety5
Front airbags87
"FTM"83FTM, refer to Flat Tire
Monitor82
Fuel182
– average consumption68
– display67
– high-quality brands182
– quality182
– specifications182
– tank contents, refer to
Capacities213
Fuel clock, refer to Fuel
gauge67
Fuel display, refer to Fuel
gauge67
Fuel filler door182
– releasing in the event of
electrical malfunction182
Fuses201
G
Garage door opener, refer to
Integrated universal remote
control101
Gasoline, refer to Required
fuel182
Gasoline display, refer to Fuel
gauge67
Gasoline engine, checking oil
level192
Gear indicator
– automatic transmission with
Steptronic54
Gearshift lever
– automatic transmission with
Steptronic55
– manual transmission54
Gearshifts
– automatic transmission with
Steptronic55
– manual transmission54
General driving notes112Glass sunroof, electric37
– closing after electrical
malfunction38
– convenient operation31
– initializing38
– opening, closing38
– operation with convenient
access36
– pinch protection system38
– power failure38
– raising38
Glove compartment104
– rechargeable flashlight104
GPS navigation, refer to
Navigation system120
Grills95
Gross vehicle weight, refer to
Weights212
H
Handbrake54
– indicator lamp54
Hand lamp, refer to
Rechargeable flashlight104
Hands-free system14
Hazard warning flashers14
HD, refer to Digital radio147
Head airbags87
Headlamp control,
automatic90
Headlamp flasher56
– indicator lamp11,13
Headlamps
– care, refer to Caring for your
vehicle brochure
Head restraints42
– front, removing43
– rear, removing43
– sitting safely40
Heated
– mirrors47
– rear window98
– seats44
Heating
– mirrors47
– rear window98
– residual heat98
– seats44
ba8_E9293_US.book Seite 224 Freitag, 5. Mai 2006 1:02 13

Everything from A - Z
228 Neck support, refer to Head
restraints42
Nets, refer to Storage
compartments105
"New address" in
navigation128
"New destination"121,125
"New route"136
New tires189
"Next entertainment
source"48
North-facing map134
Nose weight212
Nozzles95
Number of cylinders, refer to
Engine data210
Nylon rope, refer to Tow
rope206
O
OBD socket, refer to Socket
for On-Board Diagnosis197
Octane ratings, refer to Fuel
specifications182
Odometer66
Oil
– capacity213
Oil, refer to Engine oil192
Oil consumption192
Oil level192
Old batteries, refer to
Disposal201
"On a new destination" in
navigation127
"Onboard info"68
Onboard tool kit198
"On destination"127
"On location"127
Opening and closing
– convenient access35
– from inside32
– from outside29
– using the door lock31
– via the remote control29Operation by voice for mobile
phone171
– adjusting volume172
– canceling171
– correcting phone
number172
– dialing phone number172
– placing a call172
– redialing173
– voice commands171
– voice phone book172
Orientation menu, refer to
Start menu17
Outlets
– refer to Ventilation98
Output, refer to Engine
data210
Outside-air mode
– automatic climate control97
Outside-temperature
display66
– changing units of
measure70
– in computer70
Outside temperature
warning66
Overheated engine, refer to
Coolant temperature67
Overriding selector lever
lock56
P
Park assistant, refer to Park
Distance Control80
"Parked car operation"99
"Parked car ventilation"99
Parked car ventilation99
Parked car ventilation/heating
– activating switch-on
times100
– preselecting switch-on
times99
– switching on and off
directly99
Parking
– vehicle53
Parking aid, refer to PDC Park
Distance Control80Parking brake, refer to
Handbrake54
Parking lamps90
Parking lamps/low beams90
Passenger-side mirror tilt
function47
"Pathway lighting"91
Pathway lighting91
"PDC"80
PDC Park Distance Control80
Personal Profile28
"Perspective"134
Phone book166
Phone numbers
– deleting from phone
book169
– dialing167
– most recent numbers168
– selecting in phone book168
– Top 8168
Pinch protection system
– glass sunroof, electric38
– windows37
Placing a call, refer to
telephone owner's manual
"Play" for audio mode153
"Play" for satellite radio150
Pollen
– refer to Microfilter/activated-
charcoal filter for automatic
climate control99
Position
– displaying136
– saving, refer to Storing
current position128
Power failure201
Power seats41
Power windows37
Power windows, refer to
Windows37
Preselecting the switch-on
times for parked car
ventilation/heating99
"Presets", displaying with the
radio144
"Presets" for satellite
radio150
Pressure, tires
184
ba8_E9293_US.book Seite 228 Freitag, 5. Mai 2006 1:02 13
