Contents

Notes

About this Owner's Manual4
Additional sources of
information4
Symbols used4
Your individual vehicle5
Status at time of printing5
For your own safety5
Service and warranty6
Reporting safety defects7

Overview

Cockpit14
Instrument cluster16
Indicator and warning lamps18
Buttons in steering wheel*21
Hazard warning triangle*22
First-aid kit*22
Refueling23
Fuel specifications24

Controls and features

Opening and closing:

Keys28
Central locking system28
Opening and closing – via the
remote control29
Opening and closing – via the
door lock31
Opening and closing – from the
inside32
Luggage compartment lid33
Luggage compartment35
Alarm system*36
Electric power windows38
Manual convertible top39
Fully-automatic convertible
top*44
Wind deflector*48

To adjust:

Safe seating position50
Seats51
Adjusting electric power
seats51
Lumbar support*52
Head restraints52
Entering the rear53
Safety belts54
Seat and mirror memory*55
Seat heating*57
Mirrors57
Steering wheel58

37
Indicator lamp displays>The indicator lamp below the interior
rearview mirror flashes continuously:
The system is armed
>The indicator lamp flashes immedi-
ately after the vehicle is locked: doors
or luggage compartment lid are not
completely closed. Even if you do not
close the alerted area(s), the remain-
ing areas are secured, and the indi-
cator lamp will flash continuously
after 10 seconds. However, the inte-
rior motion sensor is not activated
>The indicator lamp goes out immedi-
ately after the vehicle is unlocked: no
manipulation or attempted intrusions
have been detected in the period
since the system was armed
>The indicator lamp flashes for
10 seconds immediately after the
vehicle is unlocked: an attempted
entry has been detected in the period
since the system was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Tilt alarm sensor and interior
motion sensorTilt alarm sensor:
The tilt of the vehicle is monitored. The
alarm system reacts, for example, to
attempts to steal the wheels or tow the
vehicle.
Interior motion sensor:
The vehicle interior is monitored up to
the height of the seat cushions. Even
when the convertible top is open, the
alarm system including the interior
motion sensor is armed. Objects falling
into the vehicle, e.g. leaves, can trigger
unintentional alarms, refer to Avoiding
unintentional alarms.Avoiding unintentional alarmsThe tilt alarm sensor and interior motion
sensor may be switched off at the same
time. You can do this to prevent a false
alarm, e.g. in the following situations:
>In garages with elevator ramps>When the vehicle is being trans-
ported by train
>When animals are to remain in the
vehicle.
To deactivate the tilt alarm and
interior motion sensors>Press the button on the remote con-
trol twice.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are deactivated until the vehicle is
unlocked and locked again.
You can have the tilt alarm sensor
and the interior motion sensor
permanently deactivated.<
The system inadvertently deacti-
vates the tilt alarm sensor and the
interior motion sensor if the conve-
nience closing of windows and glass
sunroof is interrupted within the first
10 seconds and then restarted. The
vehicle must then be unlocked and
relocked before the sensors will resume
operation.<
Alarm system*
OverviewControlsMaintenanceRepairsDataIndex

58

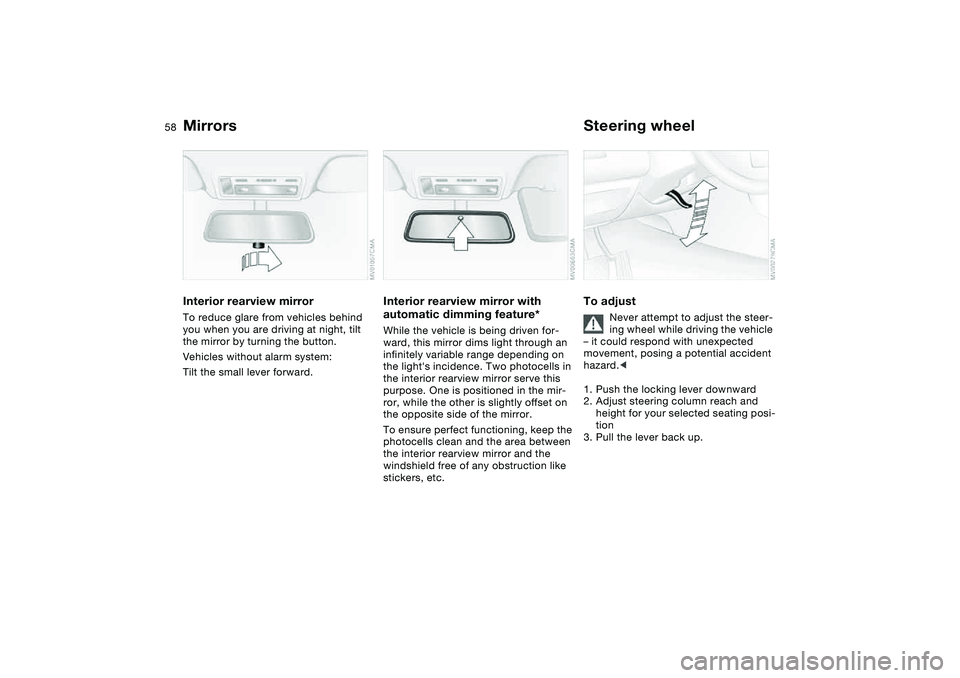

Interior rearview mirrorTo reduce glare from vehicles behind
you when you are driving at night, tilt
the mirror by turning the button.
Vehicles without alarm system:
Tilt the small lever forward.
Interior rearview mirror with
automatic dimming feature*While the vehicle is being driven for-
ward, this mirror dims light through an
infinitely variable range depending on
the light's incidence. Two photocells in
the interior rearview mirror serve this
purpose. One is positioned in the mir-
ror, while the other is slightly offset on
the opposite side of the mirror.
To ensure perfect functioning, keep the
photocells clean and the area between
the interior rearview mirror and the
windshield free of any obstruction like
stickers, etc.
Steering wheelTo adjust
Never attempt to adjust the steer-
ing wheel while driving the vehicle
– it could respond with unexpected
movement, posing a potential accident
hazard.<
1. Push the locking lever downward
2. Adjust steering column reach and
height for your selected seating posi-
tion
3. Pull the lever back up.
Mirrors

162Giving and receiving assistance
Receiving assistanceThe BMW Group's Mobile Service
offers you 24-hour assistance in the
event of a breakdown, even on week-
ends and holidays.
The telephone numbers of the Mobile
Service control center in your country
are listed in the BMW Dealer Directory.
If your vehicle has the necessary equip-
ment, you can contact the Mobile Ser-
vice or issue an emergency call using
buttons in the interior rearview mirror.
When an emergency call is initiated, a
telephone connection is established
with the BMW Assist response center.Fold down the cover.
1Emergency call
2Mobile Service
Requirements for initiating an emer-
gency call or contacting Mobile Service:
>Ignition key in position 1 or higher
>The car phone must be registered
with a mobile network
>The emergency call system must be
operational.
Initiating an emergency call*Press button 1 for at least 2 seconds.
The indicator lamp above the buttons
lights up. As soon as a telephone con-
nection has been set up to the BMW
Assist response center, the indicator
lamp flashes.
If the situation permits you to do so,
wait in the vehicle until the voice con-
nection is established. You can then
provide detailed information to the
response center.
If your vehicle is equipped with an acti-
vated BMW Assist and the current loca-
tion of the vehicle can be determined,
this location is transmitted to the BMW
Assist response center.
If the navigation system has failed,
the current location of the vehicle
is not transmitted.<
If the indicator lamp is flashing but you
cannot hear the BMW Assist response
center over the hands-free system, it is
possible that e.g. the hands-free sys-
tem is malfunctioning. The BMW Assist
response center can still hear you,
however.
If certain requirements are met, an
emergency call is automatically initiated
after a serious accident. The automatic
emergency call will not be hindered by
pressing the button.
For technical reasons, the emer-
gency call function cannot be
guaranteed in certain unfavorable con-
ditions.<

Everything from A to ZA
ABS Antilock Brake
System 127
indicator lamp 18
Acceleration assistant 76
Accessories, refer to For
your own safety 5
Accident, refer to Emer-
gency call 162
Activated-charcoal filter 108
Adaptive brake lamp, refer
to Brake force display 94
Adaptive headlights 96
Adding brake fluid 145
Additional sources of infor-
mation 4
Air conditioning 100
Air conditioning mode 102
automatic climate
control 106
Air distribution
air conditioning 102
automatic climate
control 106
individual 106
Air outlets, refer to Ventila-
tion 100, 104
Air pressure, refer to Tire
inflation pressure 130
Air recirculation, refer to
Recirculated-air mode
102, 107Air supply
air conditioning 102
automatic climate
control 106
Air, drying, refer to Air con-
ditioning mode 102, 106
Airbags 59
deactivating 62
indicator lamp 18, 61
sitting safely 50
Airing out, refer to Ventila-
tion 100, 104
AKI, refer to Fuel specifica-
tions 24
Alarm system 36
avoiding unintentional
alarms 37
All-season tires, refer to
Winter tires 136
Antifreeze 144
coolant 144
washer fluid 142
Antilock Brake System
(ABS) 127
indicator lamp 18
Anti-theft system 28
Anti-theft warning system,
refer to Alarm system 36
Approved axle loads, refer
to Weights 172
Approved gross weight,
refer to Weights 172Armrest 112
Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray
front 113
rear 114
Assistant systems, refer to
Dynamic Stability Control
(DSC) 91
AUC Automatic recircu-
lated-air control 107
AUTO program 106
Automatic
cruise control 82
headlamp control 95
Automatic air distribution,
refer to AUTO
program 106
Automatic air supply, refer
to AUTO program 106
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate
control 104
Automatic curb monitor 56
Automatic dimming, interior
rearview mirror 58
Automatic recirculated-air
control (AUC) 107Automatic transmission with
Steptronic 77
indicator lamp 19, 79
interlock 69
selector lever lock 77
shiftlock 77
tow-starting 166
Automatic windshield
washer, refer to Rain sen-
sor 81
Average fuel
consumption 89
Average speed 89
Avoiding unintentional
alarms 37
Axle loads, refer to
Weights 172
B
Backrest
unlock 53
Backrest, refer to Seat
adjustment 51
Backup lamps 72
bulb replacement 155
Bandages, refer to First-aid
kit 22
Bar, for towing 165

Everything from A to Z
179
Distance warning, refer to
Park Distance Control
(PDC) 90
Door key 28
Door lock 31
Doors
emergency operation 31
Draft-free ventilation
103, 107
Driving light, refer to Parking
lamps/Low beams 95
Driving notes 125
Driving through water, deep
water 125
Dry air, refer to Air condi-
tioning mode 102, 106
DSC Dynamic Stability Con-
trol 91
indicator lamp 19, 91
DTC Dynamic Traction Con-
trol 91
indicator lamp 19, 91
Dynamic Brake Control
(DBC) 19, 127
indicator lamp 19
Dynamic Stability Control
(DSC) 19, 91
Dynamic Traction Control
(DTC) 91
indicator lamp 19, 91E
Easy entry, refer to Entering
the rear 53
Electric power windows 38
Electrical accessories, fail-
ure 161
Electrical malfunction
automatic transmission
with Steptronic 79
door lock 31
driver's door 31
fuel filler door 23
luggage compartment
lid 33
Electronic Stability Program
(ESP), refer to Dynamic
Stability Control (DSC) 91
Emergency call 162
Emergency operation
closing the convertible
top 46
doors 31
driver's door 31
fuel filler door 23
Emergency release
luggage compartment lid
33, 34
Emissions, minimum, refer
to Energy control 84
Energy control 84Engine
breaking in 124
data 170
electronics 19
indicator lamp 19
speed 84, 170
starting 69
switching off 71
Engine compartment 140
Engine coolant 144
adding 144
Engine oil
adding 143
additives, refer to Adding
engine oil 143
capacity 173
consumption 142
indicator/warning lamp 19
quality 143
specified oils 143
viscosity 143
Engine oil level 19
check 142
indicator/warning lamp 18
Engine oil pressure
indicator/warning lamp 18
Engine oil types 143
Engine output, refer to
Engine data 170
Engine speed 84, 170
Entering the rear 53Environmentally-friendly
driving, refer to Energy
control 84
Equipment range, refer to
the Service and Warranty
Information Booklet for US
models / Warranty and
Service Guide Booklet for
Canadian models
ESP Electronic Stability Pro-
gram, refer to Dynamic
Stability Control (DSC) 91
Exterior mirrors 57
Eyelets, towing 165
F
False alarm, refer to
Avoiding unintentional
alarms 37
Fasten safety belts 54
warning lamp 18
Fault displays 86
Filling the windshield washer
reservoir 173
First aid, refer to First-aid
kit 22
First-aid kit 22
Flashlight 109
Flashlight, refer to
Rechargeable
flashlight 109
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to Z
181
Imprint 4
Indicator lamps 18
Indicator/warning lamp
airbags 18
alarm system 37
brakes 18, 19
Check Gas Cap 19
coolant 19, 85
DSC 19
Fasten safety belts 18
Flat Tire Monitor
18, 19, 93
reserve 85
rollover protection
system 19
Service Engine Soon 19
Individual air distribution 106
Individual settings, refer to
Vehicle Memory, Key
Memory 68
Inflation pressure monitor-
ing, refer to Flat Tire Moni-
tor 92
Inflation pressure, tires 130
INSPECTION 86
Instrument cluster 16
Instrument lighting 96
Instrument panel 14
Integrated universal remote
control 110
Interface socket for onboard
diagnostics (OBD) 148Interior lamps 98
remote control 30
Interior motion sensor 37
switching off 37
Interior rearview mirror 58
automatic dimming
feature 58
Interior temperature, adjust-
ment 102, 106
Interlock, refer to Steering
wheel lock 69
Intermittent mode, wipers 81
Interval display, service 86
J
Jack 157
Jacking points 158
Jump-starting 163
K
Key Memory 68
Keys 28
with remote control 28
Kickdown 74, 78
L
Lamp defect 153
Lamps and bulbs 153
Lashing down loads, refer to
Cargo loading 117
Lashing eyelets, refer to
Securing cargo 119Lashing fittings, refer to
Securing cargo 119
LATCH child-restraint
mounting system 64
Leather care, refer to the
Caring for your vehicle
brochure
Leaving the vehicle 71
LEDs light-emitting
diodes 157
Length, refer to
Dimensions 171
License plate lamp
bulb replacement 157
Light switch 95
Light-emitting diodes
(LEDs) 157
Lighter 113
LIGHTS ON warning 95
Lights, refer to Parking
lamps/Low beams 95
Load, determining the maxi-
mum 117
Load, refer to Cargo
loading 117
Loading
vehicle 117
Load-securing devices 119
Lock buttons on doors, refer
to Locking 32
Lock, steering wheel 69Locking
from inside 32
from outside 29, 31
Locking and unlocking
doors
from inside 32
from outside 29, 31
Low beams 95
automatic 95
bulb replacement 153
indicator lamp, defective
lamp 86
Lug bolts
key 158
torque 158
Luggage compartment
capacity 172
emergency operation,
refer to Manual
operation 33
enlarge volume 35
floor panel 35
lid 33
opening from outside 33
opening, remote
control 30
opening/closing, refer to
Luggage compartment
lid 33
remote control 30
volume 172
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to Z
183
Outside temperature dis-
play 88
changing unit of
measure 88
P
Paintwork care, refer to the
Caring for your vehicle
brochure
Panic mode, trigger
alarm 30
Park Distance Control
(PDC) 90
Parking aid, refer to Park
Distance Control (PDC) 90
Parking brake 71
indicator lamp 18
Parking lamps 95
bulb replacement 154
Parking lamps/Low
beams 95
Parts and accessories, refer
to Your individual vehicle 5
Passenger-side exterior mir-
ror tilt function 56
PDC Park Distance
Control 90
Placing a telephone call,
refer to the Owner's Man-
ual for the telephone
Plastic, refer to the Caring
for your vehicle brochurePollen, refer to
Microfilter 103
Pollen, refer to Microfil-
ter/activated-charcoal fil-
ter 108
Power output, refer to
Engine data 170
Power seat 51
Power socket 114
Power socket, cigarette
lighter 114
Pressure monitoring, tires
Flat Tire Monitor 92
Pressure, tires 130
Protective function
electric power windows 38
R
Radio remote control key,
refer to Master keys with
remote control 28
Radio, refer to the Owner's
Manual for Radio
Rain sensor 81
Raising the floor panel 35
Range 89
Reading lamps
front 98
hardtop 127
rear 98Rear lamps
bulb replacement 155
indicator lamp, defective
lamp 86
Rear window defroster
air conditioning 102
Rear window heating
automatic climate
control 107
Rear-entry assist 53
Rearview mirror 57
Receiving assistance 162
Recirculated-air mode
air conditioning 102
automatic climate
control 107
Recirculating the air, refer to
Recirculated-air mode
102, 107
Reclining seat, refer to Seat
adjustment 51
Refueling 23
fuel filler door 23
Releasing
hood 138
Remaining distance to ser-
vice 86
Remaining distance, refer to
Range 89Remote control 29
garage door opener 110
luggage compartment
lid 30
malfunction 30
Replacement key 29
Replacing lamps, refer to
Lamps and bulbs 153
Reporting safety defects 7
Restraint systems
for children 62
Restraint systems, refer to
Safety belts 54
Reverse
automatic transmission
with Steptronic 77
SMG gearbox 74
Reverse gear
manual transmission 72
Rollover protection system
66
indicator lamp 19
lowering 66
Roof load capacity 172
Roof-mounted luggage
rack 120
Rope, refer to Towing the
vehicle 165
Run Flat tires 135
S
Safe seating position 50
OverviewControlsMaintenanceRepairsDataIndex
