Contents

9

Passenger safety systems:

Airbags59
Transporting children safely62
Rollover protection system66
Vehicle Memory, Key
Memory68

Driving:

Ignition lock69
Starting the engine69
Switching off the engine71
Parking brake71
Manual transmission72
Sequential manual gearbox
SMG*73
Automatic transmission with
Steptronic*77
Turn signal indicator/Headlamp
flasher80
Washer/wiper system/Rain
sensor*81
Cruise control*82

Everything under control:

Odometer84
Tachometer84
Energy control84
Fuel gauge85
Engine coolant temperature
gauge85
Service interval display86
Check Control86
Clock87
Computer88

Technology for safety and
driving convenience:

Park Distance Control (PDC)*90
Dynamic Stability Control
(DSC)91
Flat Tire Monitor*92
Brake force display94

Lamps:

Parking lamps/Low beams95
Adaptive headlights*96
Instrument lighting96
High beams/Standing lamps97
Front fog lamps97
Interior lamps98

Controlling the climate for
pleasant driving:

Air conditioning100
Automatic climate control*104

Interior conveniences:

Glove compartment109
Integrated universal remote
control*110
Storage compartments112
Microphone*113
Ashtray, front*113
Ashtray, rear*114

Loading and transporting:

Ski bag*115
Cargo loading117
Roof-mounted luggage rack for
the hardtop*120

Controls and features

Contents

Operation, maintenance

Special operating instructions:

Break-in procedures124
General driving notes125
Antilock Brake System
(ABS)127
Hardtop*127

Wheels and tires:

Tire inflation pressure130
Tire code133
Tire condition134
Run Flat tires*135
New wheels and tires136
Snow chains*137

In the engine compartment:

Hood138
Engine compartment
essentials140
Washer fluid142
Engine oil142
Coolant144
Brake fluid145

Maintenance:

BMW Maintenance System146

Laws and regulations:

California laws148
OBD interface socket148

Owner service procedures

Replacement procedures:

Onboard tool kit152
Windshield wiper blades152
Lamps and bulbs153
Changing a wheel157
Battery161
Fuses161

Giving and receiving
assistance:

Receiving assistance162
Jump-starting163
Towing and tow-starting the
vehicle165

Technical data

Engine data170
Dimensions171
Weights172
Capacities173

17
1Fuel gauge85
2Indicator lamp for turn signals20
3Speedometer
4Indicator and warning lamps18
to 20
5Tachometer and Energy Control84
6Engine coolant temperature
gauge85
7Indicator and warning lamps18
to 20
8Control button for

>

Clock87

>

Units of measure for exterior tem-
perature display 88
9Selector lever and program display
for automatic transmission/sequen-
tial manual gearbox SMG, transmis-
sion indicator lamp19, 73, 79
10 Display for

>

Trip odometer/Odometer84

>

Clock87

>

Service interval86

>

Computer88
11 Check Control86
12 Trip odometer, reset to zero84
13 Indicator and warning lamps18
to 20

Instrument cluster

OverviewControlsMaintenanceRepairsDataIndex

20
Dynamic Brake Control (DBC)

●

Malfunction in DBC system.
Conventional braking efficiency
is available and unrestricted.
Have the system checked as soon as
possible.
For additional information, refer to
page 127.
Dynamic Brake Control (DBC)
warning lamp for Canadian
models.
Add washer fluid
The washer fluid level is too low,
top it up at the earliest opportu-
nity.
For additional information, refer to
page 142.
SERVICE ENGINE SOON

●

If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a fault in the emis-
sions-related electronic systems.
Although the vehicle remains opera-
tional, you should have the systems
checked by your BMW center at the
earliest possible opportunity.
For additional information, refer to
page 148.

Service Engine Soon indicator
lamp for Canadian models.
Engine electronics

●

There is a fault in the electronic
engine-management system.
You can continue to drive with reduced
engine output or engine speed. Please
have the system inspected at your
BMW center.
Add coolant
The coolant level is too low. Add
coolant at the earliest opportu-
nity.
For additional information, refer to
page 144.
CHECK GAS CAP*

●

This indicator lamp comes on
when the gas cap is loose or
missing.
Close the gas cap tightly: refer to
page 24.
Rollover protection system

●

The rollover protection system
has been deactivated due to a
malfunction. Please have the system
inspected by your BMW center at the
earliest opportunity.
For additional information, refer to
page 66.

Green: for your information

Turn signal indicator
Flashes when the turn signal is
operated.
Rapid flashing indicates a system mal-
function.
For additional information, refer to
page 80.
Cruise control
Lights up when the cruise con-
trol is activated: ready for oper-
ation via the buttons in the steering
wheel.
For additional information, refer to
page 82.
Front fog lamps
Lights up whenever you switch
on the fog lamps.
For additional information, refer to
page 97.

Blue: for your information

High beams
Comes on when the high beams
are on or the headlamp flasher
is actuated.
For additional information, refer to
pages 80, 97.

Indicator and warning lamps

85
Fuel gaugeOnce the indicator lamp stays on con-
tinuously, there are still approx. 2.1 gal-
lons/8 liters of fuel in the fuel tank.
Fuel tank capacity approx.
16.6 gallons/63 liters.
Certain operating conditions, such as
those encountered in mountainous
areas, may cause the needle to fluctu-
ate slightly.
Fill the fuel tank before it is com-
pletely empty. Driving to the last
drop of fuel can prevent the engine
from operating properly and result in
damage.<
When you switch on the ignition, the
indicator lamp lights up briefly as an
operation check.
Engine coolant temperature gaugeBlueThe engine is still cold. Drive at moder-
ate engine and vehicle speeds.Between the blue and red zonesNormal operating range. The needle
may rise as far as the edge of the red
sector during normal operation.RedWhen you switch on the ignition, the
warning lamp comes on briefly as an
operation check.
If the lamp comes on during normal
vehicle operation: the engine has over-
heated. Shut off the engine immediately
and allow it to cool down.
To check coolant level, refer to
page 144.
OverviewControlsMaintenanceRepairsDataIndex

141
1Brake fluid reservoir145
2Engine oil dipstick142
3Coolant expansion tank144
4Reservoir for the headlamp and wind-
shield washer system142
5Engine oil filler neck143
6Auxiliary terminal for jump-
starting163Engine compartment essentials
OverviewControlsMaintenanceRepairsDataIndex

144

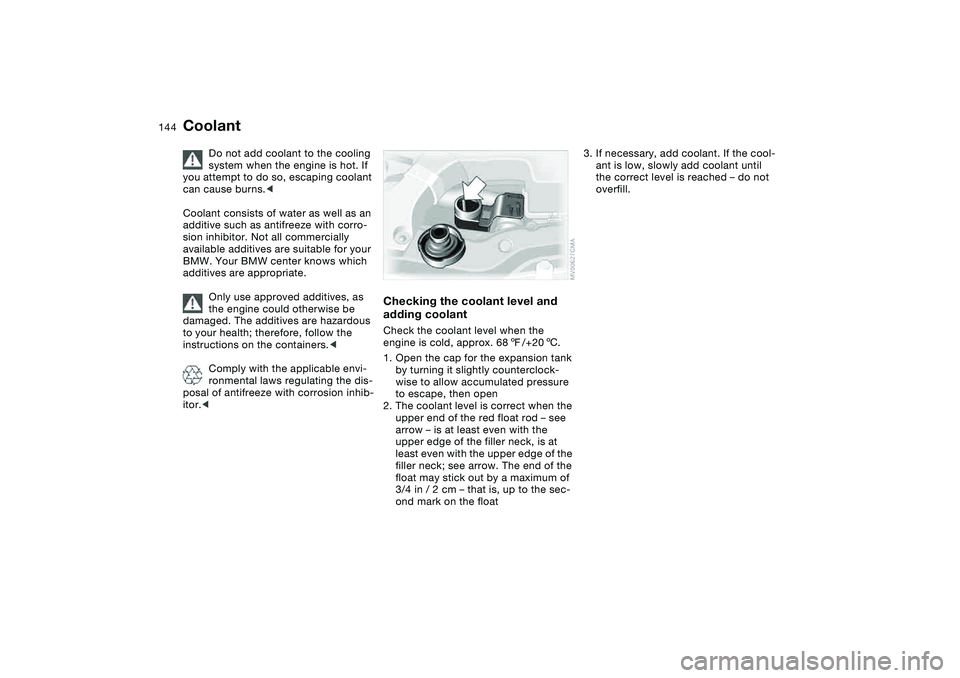

Coolant
Do not add coolant to the cooling
system when the engine is hot. If
you attempt to do so, escaping coolant
can cause burns.<
Coolant consists of water as well as an
additive such as antifreeze with corro-
sion inhibitor. Not all commercially
available additives are suitable for your
BMW. Your BMW center knows which
additives are appropriate.
Only use approved additives, as
the engine could otherwise be
damaged. The additives are hazardous
to your health; therefore, follow the
instructions on the containers.<
Comply with the applicable envi-
ronmental laws regulating the dis-
posal of antifreeze with corrosion inhib-
itor.<
Checking the coolant level and
adding coolantCheck the coolant level when the
engine is cold, approx. 687/+206.
1. Open the cap for the expansion tank
by turning it slightly counterclock-
wise to allow accumulated pressure
to escape, then open
2. The coolant level is correct when the
upper end of the red float rod – see
arrow – is at least even with the
upper edge of the filler neck, is at
least even with the upper edge of the
filler neck; see arrow. The end of the
float may stick out by a maximum of
3/4 in / 2 cm – that is, up to the sec-
ond mark on the float
3. If necessary, add coolant. If the cool-
ant is low, slowly add coolant until
the correct level is reached – do not
overfill.

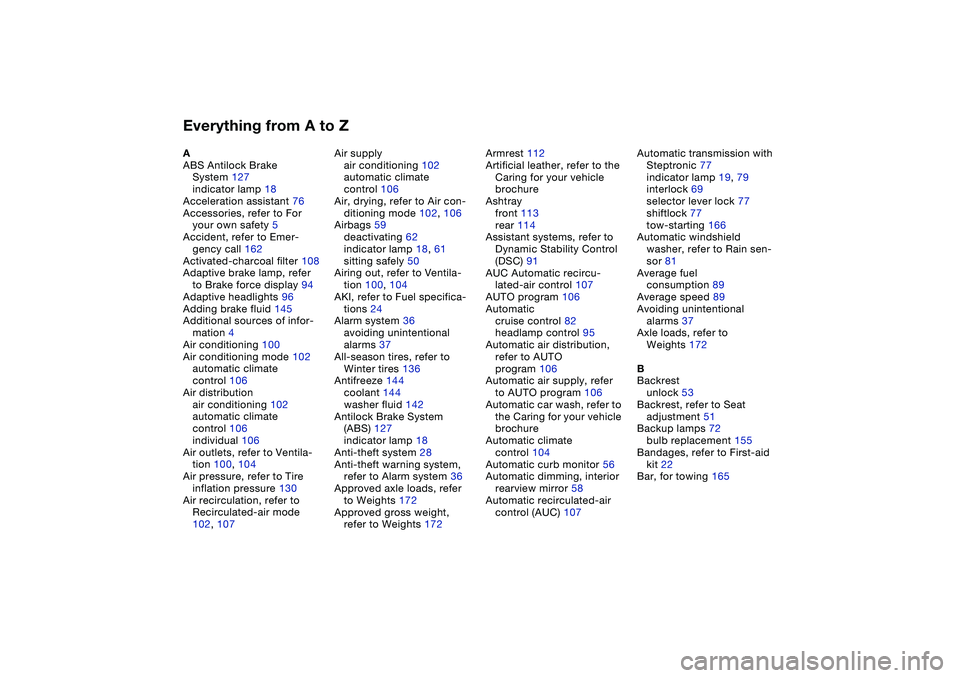

Everything from A to ZA
ABS Antilock Brake
System 127
indicator lamp 18
Acceleration assistant 76
Accessories, refer to For
your own safety 5
Accident, refer to Emer-
gency call 162
Activated-charcoal filter 108
Adaptive brake lamp, refer
to Brake force display 94
Adaptive headlights 96
Adding brake fluid 145
Additional sources of infor-
mation 4
Air conditioning 100
Air conditioning mode 102
automatic climate
control 106
Air distribution
air conditioning 102
automatic climate
control 106
individual 106
Air outlets, refer to Ventila-
tion 100, 104
Air pressure, refer to Tire
inflation pressure 130
Air recirculation, refer to
Recirculated-air mode
102, 107Air supply
air conditioning 102
automatic climate
control 106
Air, drying, refer to Air con-
ditioning mode 102, 106
Airbags 59
deactivating 62
indicator lamp 18, 61
sitting safely 50
Airing out, refer to Ventila-
tion 100, 104
AKI, refer to Fuel specifica-
tions 24
Alarm system 36
avoiding unintentional
alarms 37
All-season tires, refer to
Winter tires 136
Antifreeze 144
coolant 144
washer fluid 142
Antilock Brake System
(ABS) 127
indicator lamp 18
Anti-theft system 28
Anti-theft warning system,
refer to Alarm system 36
Approved axle loads, refer
to Weights 172
Approved gross weight,
refer to Weights 172Armrest 112
Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray
front 113
rear 114
Assistant systems, refer to
Dynamic Stability Control
(DSC) 91
AUC Automatic recircu-
lated-air control 107
AUTO program 106
Automatic
cruise control 82
headlamp control 95
Automatic air distribution,
refer to AUTO
program 106
Automatic air supply, refer
to AUTO program 106
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate
control 104
Automatic curb monitor 56
Automatic dimming, interior
rearview mirror 58
Automatic recirculated-air
control (AUC) 107Automatic transmission with
Steptronic 77
indicator lamp 19, 79
interlock 69
selector lever lock 77
shiftlock 77
tow-starting 166
Automatic windshield
washer, refer to Rain sen-
sor 81
Average fuel
consumption 89
Average speed 89
Avoiding unintentional
alarms 37
Axle loads, refer to
Weights 172
B
Backrest
unlock 53
Backrest, refer to Seat
adjustment 51
Backup lamps 72
bulb replacement 155
Bandages, refer to First-aid
kit 22
Bar, for towing 165
