2006 BMW 330CI CONVERTABLE maintenance

35
Luggage compartmentTo fold up and secure the floor
panel1. Pull up at the handle and fold the
panel up
2. Press the button to release the
hanger from the handle
3. Hook the handle into the rubber seal
of the drip rail.
Carefully replace the hanger in its
holder when lowering the floor
panel back down.<
The fittings at the corners of the lug-
gage compartment provide you with a
convenient means of attaching luggage
compartment nets* and flexible straps
for securing luggage.
Refer also to Cargo loading on
page 117.
To enlarge the luggage
compartmentWith the convertible top closed, you
can enlarge the luggage compartment.
To do this, flip the handle outward and
press it down and toward the front of
the vehicle. The convertible top com-
partment panel is now raised and
secured.To fold down the convertible top
compartment panelThe convertible top compartment lid
must be folded down to open the con-
vertible top. Swing out the handle and
pull toward the back of the vehicle.
OverviewControlsMaintenanceRepairsDataIndex

37
Indicator lamp displays>The indicator lamp below the interior
rearview mirror flashes continuously:
The system is armed
>The indicator lamp flashes immedi-
ately after the vehicle is locked: doors
or luggage compartment lid are not
completely closed. Even if you do not
close the alerted area(s), the remain-
ing areas are secured, and the indi-
cator lamp will flash continuously
after 10 seconds. However, the inte-
rior motion sensor is not activated
>The indicator lamp goes out immedi-
ately after the vehicle is unlocked: no
manipulation or attempted intrusions
have been detected in the period
since the system was armed
>The indicator lamp flashes for
10 seconds immediately after the
vehicle is unlocked: an attempted
entry has been detected in the period
since the system was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Tilt alarm sensor and interior
motion sensorTilt alarm sensor:
The tilt of the vehicle is monitored. The
alarm system reacts, for example, to
attempts to steal the wheels or tow the
vehicle.
Interior motion sensor:
The vehicle interior is monitored up to
the height of the seat cushions. Even
when the convertible top is open, the
alarm system including the interior
motion sensor is armed. Objects falling
into the vehicle, e.g. leaves, can trigger
unintentional alarms, refer to Avoiding
unintentional alarms.Avoiding unintentional alarmsThe tilt alarm sensor and interior motion
sensor may be switched off at the same
time. You can do this to prevent a false
alarm, e.g. in the following situations:
>In garages with elevator ramps>When the vehicle is being trans-
ported by train
>When animals are to remain in the
vehicle.
To deactivate the tilt alarm and
interior motion sensors>Press the button on the remote con-
trol twice.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are deactivated until the vehicle is
unlocked and locked again.
You can have the tilt alarm sensor
and the interior motion sensor
permanently deactivated.<
The system inadvertently deacti-
vates the tilt alarm sensor and the
interior motion sensor if the conve-
nience closing of windows and glass
sunroof is interrupted within the first
10 seconds and then restarted. The
vehicle must then be unlocked and
relocked before the sensors will resume
operation.<
Alarm system*
OverviewControlsMaintenanceRepairsDataIndex

39
Despite trap protection, always
make sure that the windows can
close without obstruction, otherwise in
some cases, e.g. with thin objects, it is
not guaranteed that the closing opera-
tion will be interrupted.
Trap protection is restricted when the
switch is pulled and held beyond the
pressure point. In this instance, if the
closing force exceeds a certain value,
the window will re-open just a few milli-
meters.
If the switch is pulled and held beyond
the pressure point again within approx.
4 seconds, trap protection is overrid-
den.<
After a power lossAfter the battery has been discon-
nected, the trap protection must be
reinitialized. Perform the following pro-
cedure twice:
>Open and close the window com-
pletely
>With the window closed, keep pulling
the switch for approx. 1 second.
Manual convertible topThe fabric top offers the perfect protec-
tion against weather and one person
can open and close it easily and simply.
To gain maximum satisfaction from your
convertible, please observe the follow-
ing: we strongly recommend that you
close the convertible top before leaving
the vehicle parked. When closed, the
top not only guards the passenger
compartment from unforeseeable dam-
age from the weather, but also affords a
degree of protection against theft.
However, even when the top is closed
valuables should always be stored in
the locked luggage compartment.
Never attempt to mount any kind of roof
rack or luggage carrier on the convert-
ible top.
Closing the electric power win-
dows: to help ensure that the win-
dows seal securely, you should either
close the rear windows first or close all
four windows at the same time.<
Electric power windows
OverviewControlsMaintenanceRepairsDataIndex

41

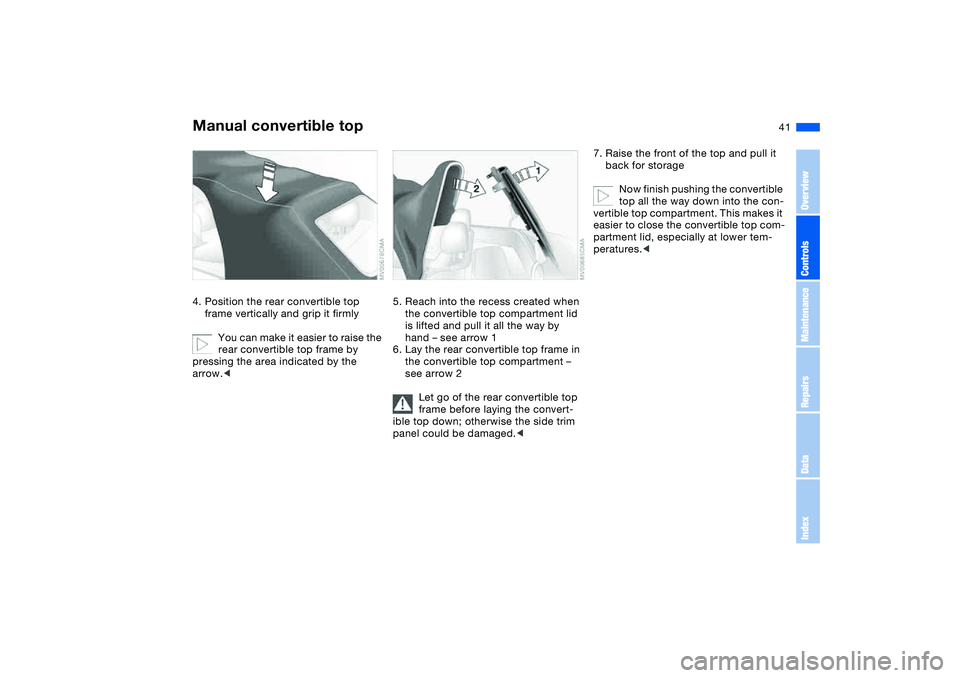

4. Position the rear convertible top
frame vertically and grip it firmly
You can make it easier to raise the
rear convertible top frame by
pressing the area indicated by the
arrow.<
5. Reach into the recess created when
the convertible top compartment lid
is lifted and pull it all the way by
hand – see arrow 1
6. Lay the rear convertible top frame in
the convertible top compartment –
see arrow 2
Let go of the rear convertible top
frame before laying the convert-
ible top down; otherwise the side trim
panel could be damaged.<
7. Raise the front of the top and pull it
back for storage
Now finish pushing the convertible
top all the way down into the con-
vertible top compartment. This makes it
easier to close the convertible top com-
partment lid, especially at lower tem-
peratures.<
Manual convertible top
OverviewControlsMaintenanceRepairsDataIndex

43

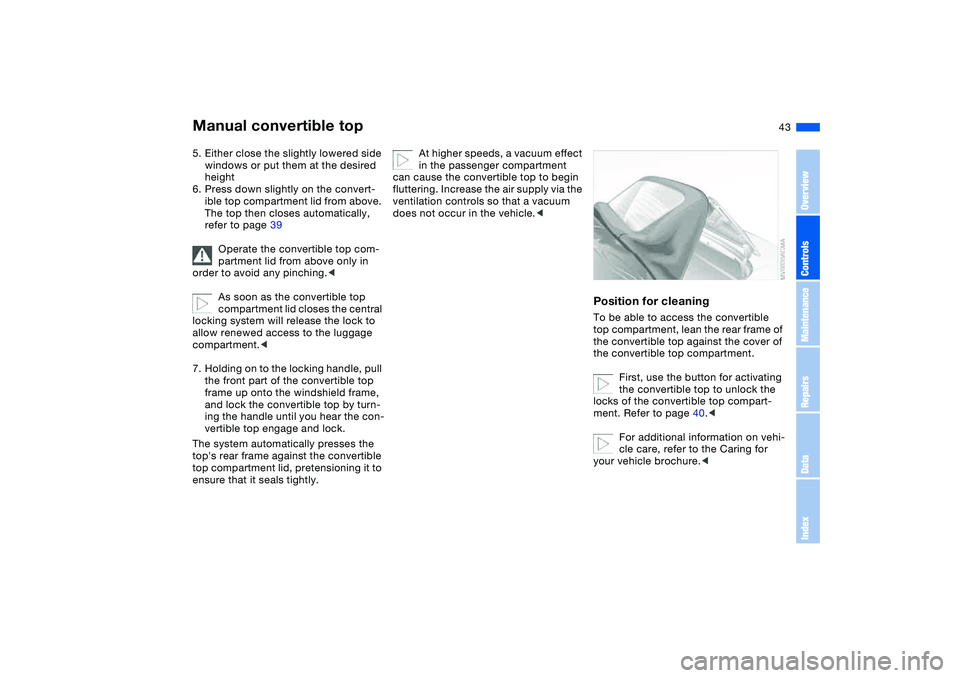

5. Either close the slightly lowered side
windows or put them at the desired
height
6. Press down slightly on the convert-
ible top compartment lid from above.
The top then closes automatically,
refer to page 39
Operate the convertible top com-
partment lid from above only in
order to avoid any pinching.<
As soon as the convertible top
compartment lid closes the central
locking system will release the lock to
allow renewed access to the luggage
compartment.<
7. Holding on to the locking handle, pull
the front part of the convertible top
frame up onto the windshield frame,
and lock the convertible top by turn-
ing the handle until you hear the con-
vertible top engage and lock.
The system automatically presses the
top's rear frame against the convertible
top compartment lid, pretensioning it to
ensure that it seals tightly.
At higher speeds, a vacuum effect
in the passenger compartment
can cause the convertible top to begin
fluttering. Increase the air supply via the
ventilation controls so that a vacuum
does not occur in the vehicle.<
Position for cleaningTo be able to access the convertible
top compartment, lean the rear frame of
the convertible top against the cover of
the convertible top compartment.
First, use the button for activating
the convertible top to unlock the
locks of the convertible top compart-
ment. Refer to page 40.<
For additional information on vehi-
cle care, refer to the Caring for
your vehicle brochure.<
Manual convertible top
OverviewControlsMaintenanceRepairsDataIndex

45
Opening and closing1To close
2To open
To avoid placing unnecessary
loads on the battery, you should
avoid operating the top when the
engine is switched off.
Before closing the top, always ensure
that the windshield frame is clear of any
obstructions that could prevent the top
from closing correctly.<
With the ignition key in position 1 or
higher, and with the vehicle stationary
1. Read and comply with the preceding
safety precautions
2. Ensure that the convertible top com-
partment panel in the luggage com-
partment is folded down, refer to
page 35; otherwise, it will not be
possible to open the convertible top
3. Ensure that the luggage compart-
ment lid is closed
4. Maintain pressure on the corre-
sponding button for the convertible
top operation.
It can take a few seconds until the
opening or closing procedure starts.
The luggage compartment lid can-
not be opened while the convert-
ible top is in motion.<
While the convertible top is in
motion, the rear window will move
toward the passenger compartment. To
avoid possible pinching, the area
around the closing convertible top
should be clear.<
After having been stored for an
extended period of time in the
convertible top compartment, e.g. dur-
ing the winter months because the
hardtop was being used, you may have
to support the convertible top by hand
when closing it for the first time.
If the convertible top should halt just
before the closing phase is completed,
press against the front section of the
convertible top frame from the outside
to help the closing process along. Con-
tinue pressing the switch while doing
so until the top starts up again on its
own.<
Indicator lamps>The red indicator lamp is lit whenever
the convertible top mechanism is in
motion. It goes out as soon as the
opening or closing operation has
been completed
>If the red indicator lamp flashes after
the control button is released, the
convertible top has not yet been
opened or closed completely. You
can resume operation in the desired
direction by pressing the button
again.
>If the yellow indicator lamp lights up
continuously with the button pressed,
the convertible top compartment
Fully-automatic convertible top*
OverviewControlsMaintenanceRepairsDataIndex

47
1. Remove the insert between the rear
seats. Take the trim off of the guide
rod and flip it forward
2. Press down hard on the emergency
lock 1 – see previous illustration.
After a brief pause, the mechanism
for the convertible top compartment
lid will be released
If the mechanism for the convert-
ible top compartment lid does not
unlock, then insert the Allen wrench 2
into the recess 3 and turn clockwise to
release it.<
3. If the luggage compartment lid is
closed, open the convertible top
compartment lid up as far as the stop
will allow
4. Grasp the convertible top by the lat-
eral guide section – see arrow 1 –
and the front convertible top frame –
see arrow 2. Lift out the top and
swing it forward until you encounter
a perceptible resistance – until it
stops. Position the rear convertible
top frame vertically and close the
convertible top compartment lid.
Fold down the rear convertible top
frame
To avoid damaging the side trim,
always fold the convertible top
forward before folding the rear frame
brace up into its vertical position.<
5. Use a screwdriver to lift out the cover
panel that is in the center of the front
convertible top frame
6. Insert the Allen wrench 2 – refer to
page 46 – into the recess – see arrow
7. Pull down on the front convertible
top frame as far as possible. Com-
plete the closing process by continu-
ing to turn the wrench in a clockwise
direction. Turn until the front convert-
ible top frame has locked onto the
windshield frame. The system auto-
matically presses the top's rear
frame against the convertible top
compartment lid, pretensioning it to
ensure that it seals tightly.
Always make sure the closing pro-
cedure is completed to prevent
vehicle damage or personal injury.<
Fully-automatic convertible top*
OverviewControlsMaintenanceRepairsDataIndex

49
2. Flip out both sides and lock into
place. It is essential for the two com-
ponents marked in the illustration to
mesh at this point
3. Hold the wind deflector so that the
smaller half points toward the front
and guide the mounting pin for the
side piece into the proper opening
4. Pull back on the mounting pin for the
other side piece by using a slide, so
that the mounting pin can be guided
into the opening provided
5. Unlock the convertible top compart-
ment lid via the convertible top con-
trol button, refer to page 45, and
open the convertible top compart-
ment lid
6. Flip the back half of the wind deflec-
tor backward, so that the mounts are
lying on the vehicle
7. Close the convertible top compart-
ment lid via the convertible top con-
trol button. The wind deflector is now
attached so that it is theft-proof.
Operate the convertible top com-
partment lid from above only in
order to avoid any pinching.
With the wind deflector in place: to
avoid damaging the wind deflector
never push the front seats all the way
back.<
RemovalFollow the same procedure as when
installing, just reverse the steps.
Wind deflector*
OverviewControlsMaintenanceRepairsDataIndex
