Replacing components

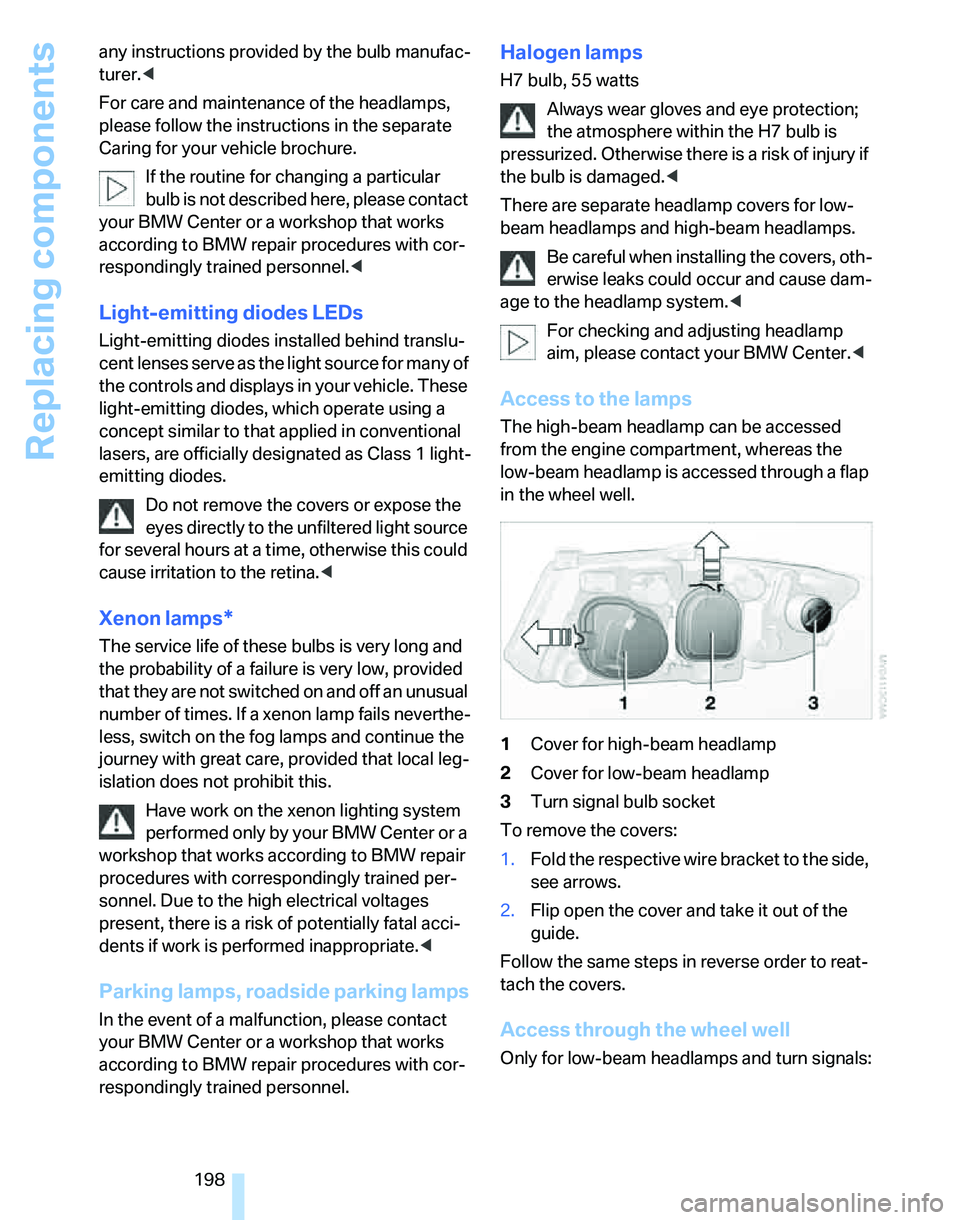

198 any instructions provided by the bulb manufac-
turer.<
For care and maintenance of the headlamps,
please follow the instructions in the separate
Caring for your vehicle brochure.
If the routine for changing a particular
bulb is not described here, please contact
your BMW Center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.<
Light-emitting diodes LEDs
Light-emitting diodes installed behind translu-
cent lenses serve as the light source for many of
the controls and displays in your vehicle. These
light-emitting diodes, which operate using a
concept similar to that applied in conventional
lasers, are officially designated as Class 1 light-
emitting diodes.
Do not remove the covers or expose the
eyes directly to the unfiltered light source
for several hours at a time, otherwise this could
cause irritation to the retina.<
Xenon lamps*
The service life of these bulbs is very long and
the probability of a failure is very low, provided
that they are not switched on and off an unusual
number of times. If a xenon lamp fails neverthe-
less, switch on the fog lamps and continue the
journey with great care, provided that local leg-
islation does not prohibit this.
Have work on the xenon lighting system
performed only by your BMW Center or a
workshop that works according to BMW repair
procedures with correspondingly trained per-
sonnel. Due to the high electrical voltages
present, there is a risk of potentially fatal acci-
dents if work is performed inappropriate.<
Parking lamps, roadside parking lamps
In the event of a malfunction, please contact
your BMW Center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.
Halogen lamps
H7 bulb, 55 watts
Always wear gloves and eye protection;
the atmosphere within the H7 bulb is
pressurized. Otherwise there is a risk of injury if
the bulb is damaged.<
There are separate headlamp covers for low-
beam headlamps and high-beam headlamps.
Be careful when installing the covers, oth-
erwise leaks could occur and cause dam-
age to the headlamp system.<
For checking and adjusting headlamp
aim, please contact your BMW Center.<
Access to the lamps
The high-beam headlamp can be accessed
from the engine compartment, whereas the
low-beam headlamp is accessed through a flap
in the wheel well.
1Cover for high-beam headlamp
2Cover for low-beam headlamp
3Turn signal bulb socket
To remove the covers:
1.Fold the respective wire bracket to the side,
see arrows.
2.Flip open the cover and take it out of the
guide.
Follow the same steps in reverse order to reat-
tach the covers.
Access through the wheel well
Only for low-beam headlamps and turn signals:

Mobility
199Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

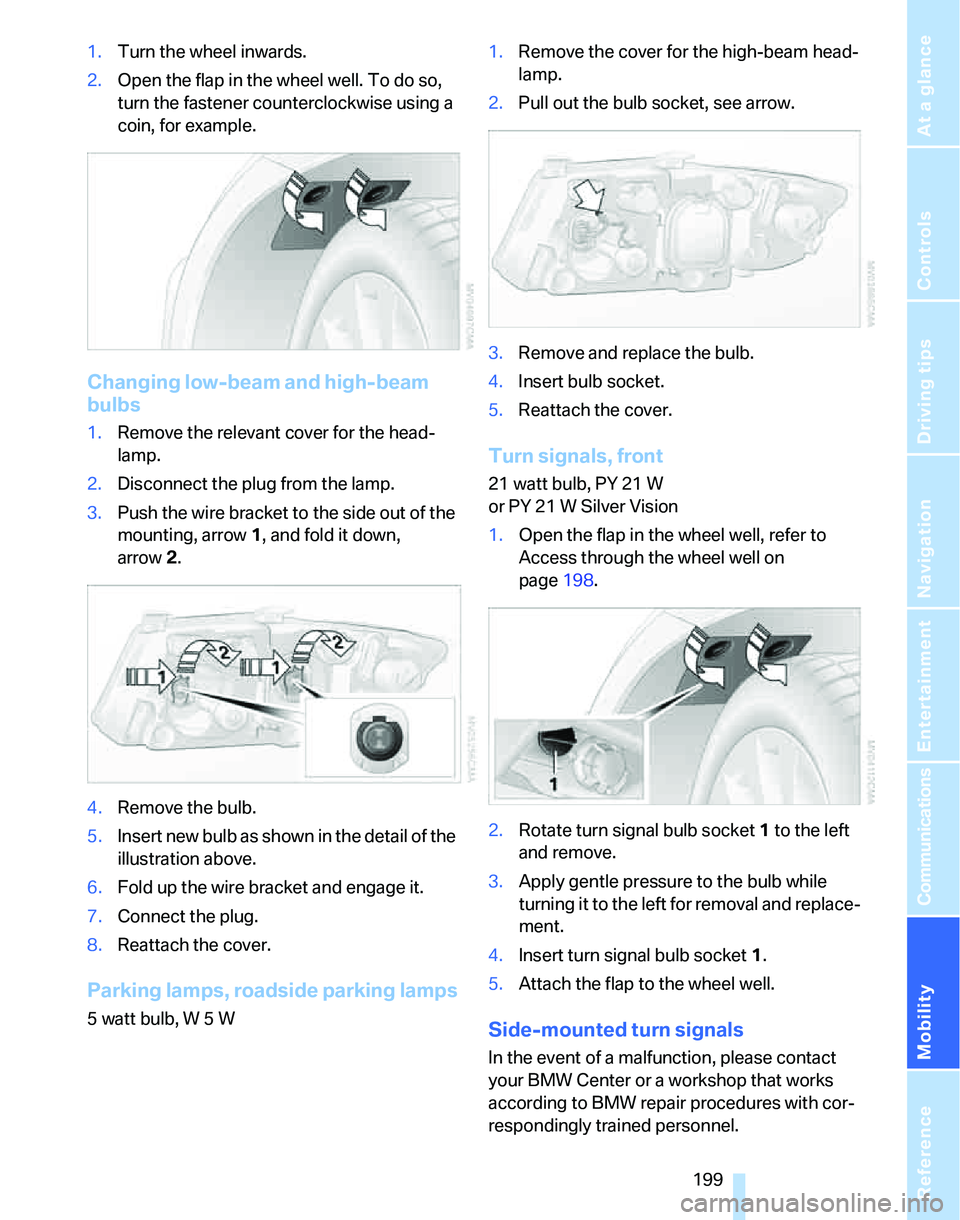

1.Turn the wheel inwards.
2.Open the flap in the wheel well. To do so,
turn the fastener counterclockwise using a
coin, for example.
Changing low-beam and high-beam
bulbs
1.Remove the relevant cover for the head-
lamp.
2.Disconnect the plug from the lamp.
3.Push the wire bracket to the side out of the
mounting, arrow1, and fold it down,
arrow2.
4.Remove the bulb.
5.Insert new bulb as shown in the detail of the
illustration above.
6.Fold up the wire bracket and engage it.
7.Connect the plug.
8.Reattach the cover.
Parking lamps, roadside parking lamps
5 watt bulb, W 5 W1.Remove the cover for the high-beam head-
lamp.
2.Pull out the bulb socket, see arrow.
3.Remove and replace the bulb.
4.Insert bulb socket.
5.Reattach the cover.
Turn signals, front
21 watt bulb, PY 21 W
or PY 21 W Silver Vision
1.Open the flap in the wheel well, refer to
Access through the wheel well on
page198.
2.Rotate turn signal bulb socket 1 to the left
and remove.
3.Apply gentle pressure to the bulb while
turning it to the left for removal and replace-
ment.
4.Insert turn signal bulb socket 1.
5.Attach the flap to the wheel well.
Side-mounted turn signals
In the event of a malfunction, please contact
your BMW Center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.

Replacing components
200

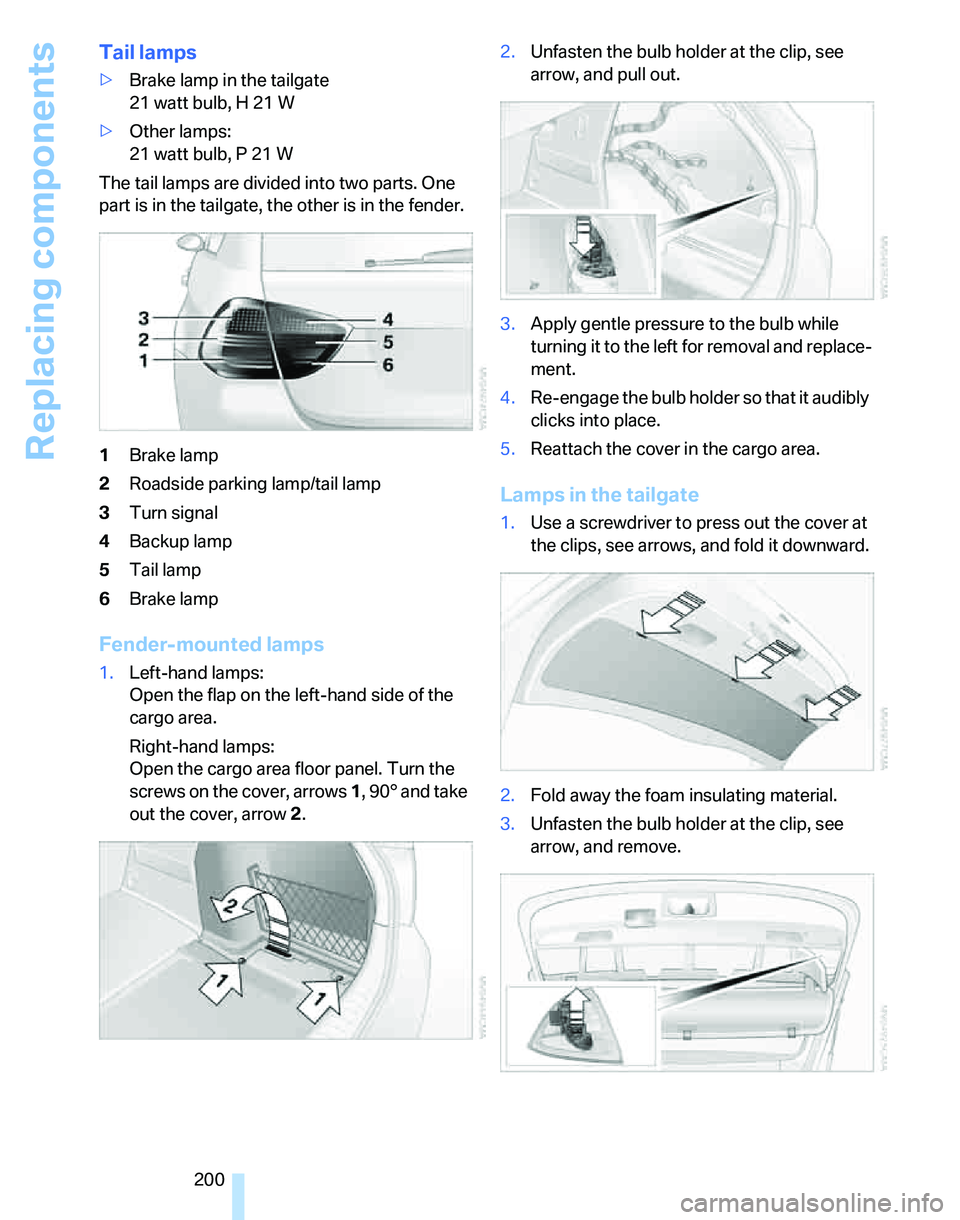

Tail lamps
>Brake lamp in the tailgate
21 watt bulb, H 21 W
>Other lamps:
21 watt bulb, P 21 W
The tail lamps are divided into two parts. One
part is in the tailgate, the other is in the fender.
1Brake lamp
2Roadside parking lamp/tail lamp
3Turn signal
4Backup lamp
5Tail lamp
6Brake lamp
Fender-mounted lamps
1.Left-hand lamps:
Open the flap on the left-hand side of the
cargo area.
Right-hand lamps:
Open the cargo area floor panel. Turn the
screws on the cover, arrows 1, 90° and take
out the cover, arrow 2.2.Unfasten the bulb holder at the clip, see
arrow, and pull out.
3.Apply gentle pressure to the bulb while
turning it to the left for removal and replace-
ment.
4.Re-engage the bulb holder so that it audibly
clicks into place.
5.Reattach the cover in the cargo area.
Lamps in the tailgate
1.Use a screwdriver to press out the cover at
the clips, see arrows, and fold it downward.
2.Fold away the foam insulating material.
3.Unfasten the bulb holder at the clip, see
arrow, and remove.

Everything from A - Z
226 Lock buttons in the doors,
refer to Locking33
Locking
– adjusting confirmation
signal31
– from inside33
– from outside30
– without remote control, refer
to Convenient access35
Locking and unlocking doors
– from inside32
– from outside30
"LOGIC7", refer to Tone
control142
Low beams90
– automatic90
– replacing bulbs198
Lower back support, refer to
Lumbar support42
Luggage compartment
– capacity212
– opening from inside33
Luggage compartment, refer
to Cargo area33
Luggage compartment net,
refer to Cargo area net106
Luggage compartment net,
refer to Securing cargo115
Luggage rack, refer to Roof-
mounted luggage rack115
Lumbar support42
M
M+S tires, refer to Winter
tires189
Maintenance, refer to Service
Booklet
Maintenance system195
Malfunction warnings, refer to
Check Control77
Manual mode
– automatic transmission with
Steptronic56
"Manual" on the radio145Manual operation
– door lock32
– glass sunroof39
– panorama glass roof39
– tailgate33
– transmission lock, automatic
transmission57
Manual release
– fuel filler door182
Manual transmission55
Map
– changing scale134
– destination entry125
"Map direction of travel"134
"Map facing north"134
Master key, refer to Integrated
key/remote control28
Maximum cooling95
Maximum speed
– with winter tires189
Memory, refer to Seat and
mirror memory44
MENU button16
Menus, refer to iDrive16
Microfilter
– BMW Maintenance
System195
– for automatic climate
control98
Microfilter/activated-charcoal
filter
– BMW Maintenance
System195
Microphone for telephone14
Mirror dimming feature113
Mirrors46
– automatic curb monitor47
– exterior mirrors46
– heating47
– interior rearview mirror47
"Missed calls"168
Missed calls168Mobile phone
– accepted calls168
– adjusting volume166
– calling167
– ending call167
– installation location, refer to
Center armrest103
– missed calls168
– operation via iDrive166
– redialing168
– refer to separate Owner's
Manual
– Top 8168
– touch tone dialing169
Mobile phone, installation
location, refer to Center
armrest103
Mobile phone, refer to the
separate Owner's Manual
Mobile phone in the
vehicle112
Mobile phones, use inside the
car, refer to Mobile phone in
the vehicle112
Modifications, technical, refer
to For your own safety5
Monitor, refer to iDrive
controls16
Monitoring system for tire
pressures, refer to Flat Tire
Monitor85
"Monitor on / off"48
Most recent mobile phone
numbers168
MP3, refer to Compressed
audio files152
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher57
– refer to Wiper system58
Music track
– finding154
"Mute on / off"48
Muting the TV140

Everything from A - Z

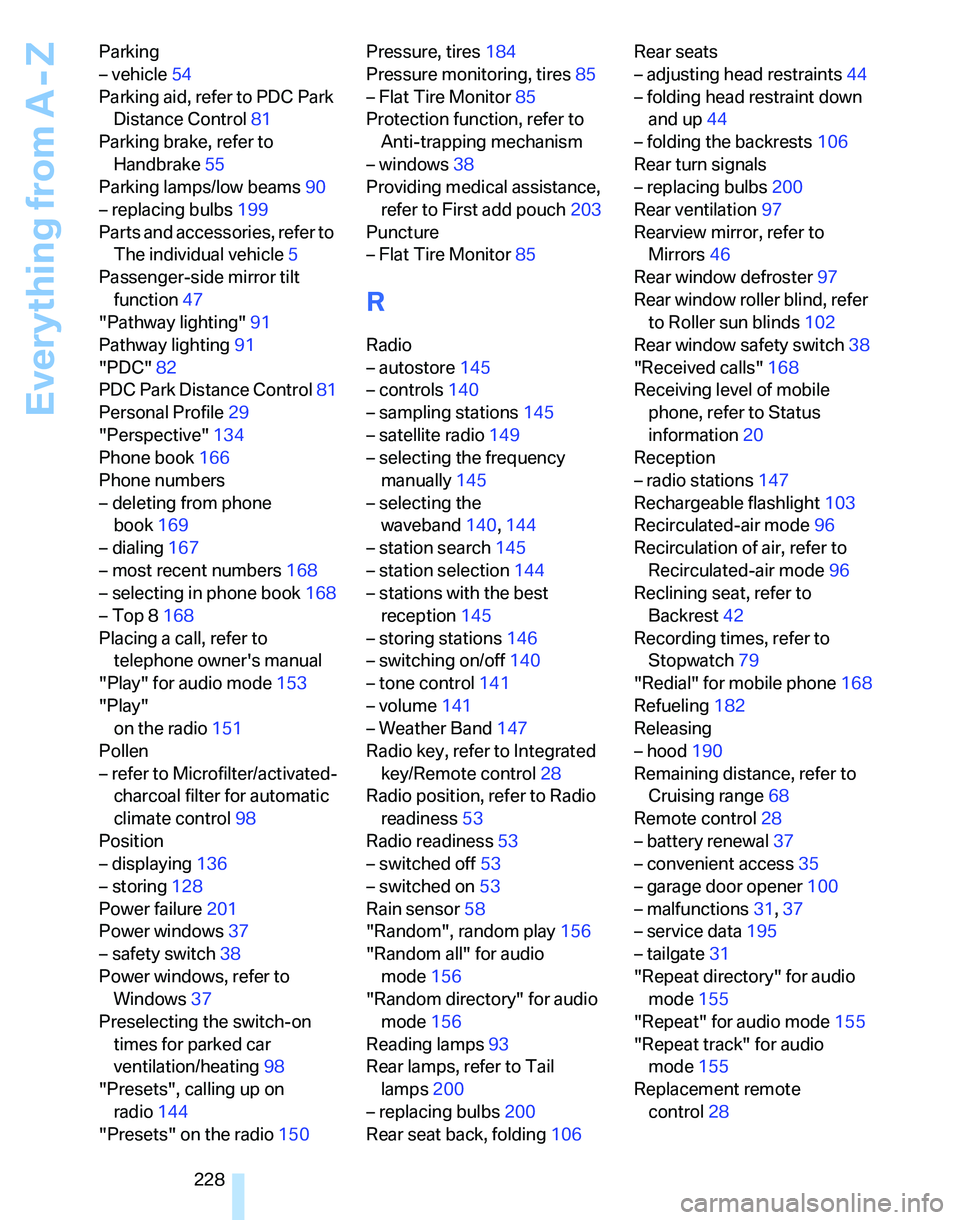

228 Parking
– vehicle54
Parking aid, refer to PDC Park
Distance Control81
Parking brake, refer to
Handbrake55
Parking lamps/low beams90
– replacing bulbs199
Parts and accessories, refer to
The individual vehicle5
Passenger-side mirror tilt
function47
"Pathway lighting"91
Pathway lighting91
"PDC"82
PDC Park Distance Control81
Personal Profile29
"Perspective"134
Phone book166
Phone numbers
– deleting from phone
book169
– dialing167
– most recent numbers168
– selecting in phone book168
– Top 8168
Placing a call, refer to
telephone owner's manual
"Play" for audio mode153
"Play"
on the radio151
Pollen
– refer to Microfilter/activated-
charcoal filter for automatic
climate control98
Position
– displaying136
– storing128
Power failure201
Power windows37
– safety switch38
Power windows, refer to
Windows37
Preselecting the switch-on
times for parked car
ventilation/heating98
"Presets", calling up on
radio144
"Presets" on the radio150Pressure, tires184
Pressure monitoring, tires85
– Flat Tire Monitor85
Protection function, refer to
Anti-trapping mechanism
– windows38
Providing medical assistance,
refer to First add pouch203
Puncture
– Flat Tire Monitor85
R
Radio
– autostore145
– controls140
– sampling stations145
– satellite radio149
– selecting the frequency
manually145
– selecting the
waveband140,144
– station search145
– station selection144
– stations with the best
reception145
– storing stations146
– switching on/off140
– tone control141
– volume141
– Weather Band147
Radio key, refer to Integrated
key/Remote control28
Radio position, refer to Radio
readiness53
Radio readiness53
– switched off53
– switched on53
Rain sensor58
"Random", random play156
"Random all" for audio
mode156
"Random directory" for audio
mode156
Reading lamps93
Rear lamps, refer to Tail
lamps200
– replacing bulbs200
Rear seat back, folding106Rear seats
– adjusting head restraints44
– folding head restraint down
and up44
– folding the backrests106
Rear turn signals
– replacing bulbs200
Rear ventilation97
Rearview mirror, refer to
Mirrors46
Rear window defroster97
Rear window roller blind, refer
to Roller sun blinds102
Rear window safety switch38
"Received calls"168
Receiving level of mobile
phone, refer to Status
information20
Reception
– radio stations147
Rechargeable flashlight103
Recirculated-air mode96
Recirculation of air, refer to
Recirculated-air mode96
Reclining seat, refer to
Backrest42
Recording times, refer to
Stopwatch79
"Redial" for mobile phone168
Refueling182
Releasing
– hood190
Remaining distance, refer to
Cruising range68
Remote control28
– battery renewal37
– convenient access35
– garage door opener100
– malfunctions31,37
– service data195
– tailgate31
"Repeat directory" for audio
mode155
"Repeat" for audio mode155
"Repeat track" for audio
mode155
Replacement remote
control28

Everything from A - Z

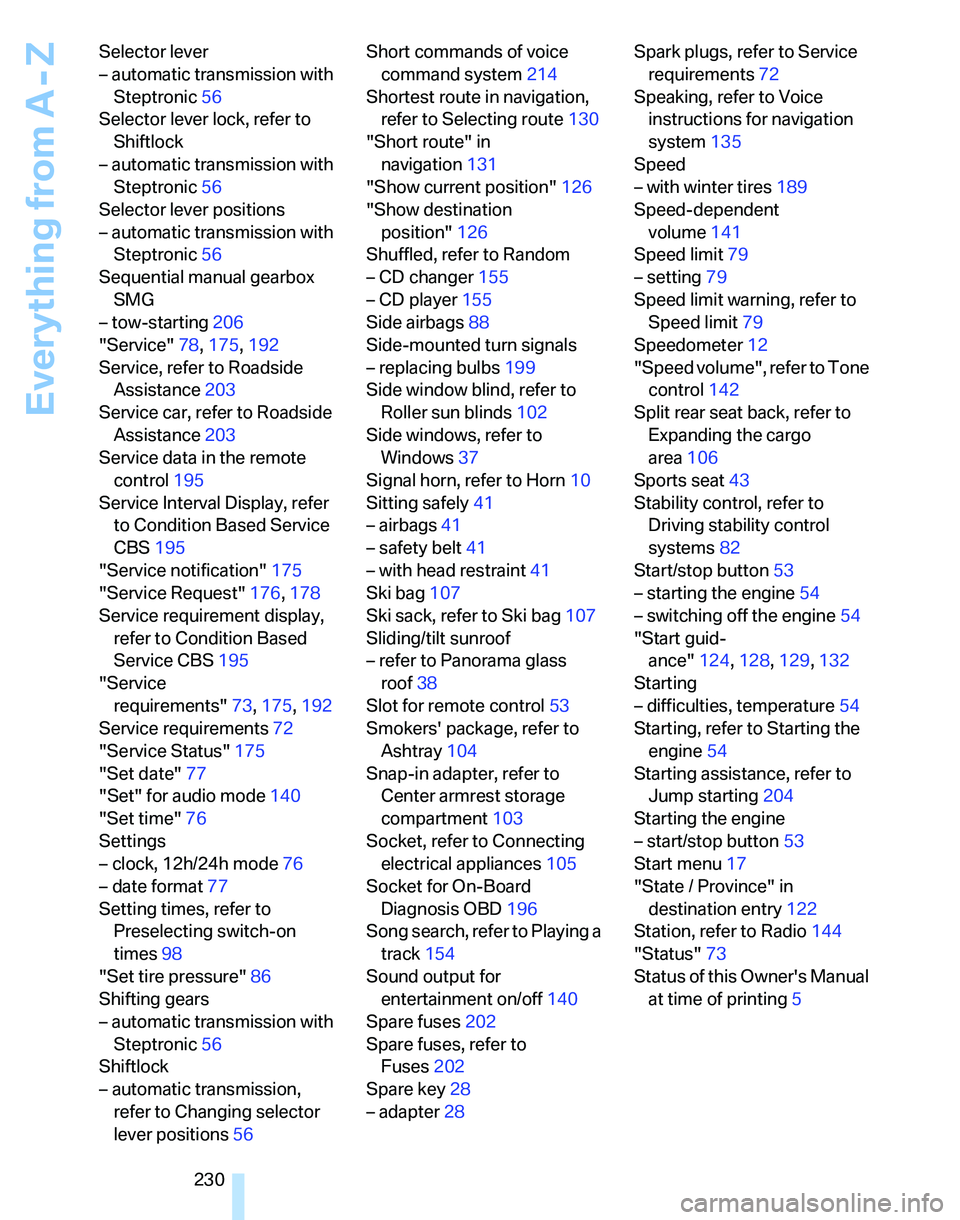

230 Selector lever
– automatic transmission with
Steptronic56
Selector lever lock, refer to
Shiftlock
– automatic transmission with
Steptronic56
Selector lever positions
– automatic transmission with
Steptronic56
Sequential manual gearbox
SMG
– tow-starting206
"Service"78,175,192
Service, refer to Roadside
Assistance203
Service car, refer to Roadside
Assistance203
Service data in the remote
control195
Service Interval Display, refer
to Condition Based Service
CBS195
"Service notification"175
"Service Request"176,178
Service requirement display,
refer to Condition Based
Service CBS195
"Service
requirements"73,175,192
Service requirements72
"Service Status"175
"Set date"77
"Set" for audio mode140
"Set time"76
Settings
– clock, 12h/24h mode76
– date format77
Setting times, refer to
Preselecting switch-on
times98
"Set tire pressure"86
Shifting gears
– automatic transmission with
Steptronic56
Shiftlock
– automatic transmission,
refer to Changing selector
lever positions56Short commands of voice
command system214
Shortest route in navigation,
refer to Selecting route130
"Short route" in
navigation131
"Show current position"126
"Show destination
position"126
Shuffled, refer to Random
– CD changer155
– CD player
155
Side airbags88
Side-mounted turn signals
– replacing bulbs199
Side window blind, refer to
Roller sun blinds102
Side windows, refer to
Windows37
Signal horn, refer to Horn10
Sitting safely41
– airbags41
– safety belt41
– with head restraint41
Ski bag107
Ski sack, refer to Ski bag107
Sliding/tilt sunroof
– refer to Panorama glass
roof38
Slot for remote control53
Smokers' package, refer to
Ashtray104
Snap-in adapter, refer to
Center armrest storage
compartment103
Socket, refer to Connecting
electrical appliances105
Socket for On-Board
Diagnosis OBD196
Song search, refer to Playing a
track154
Sound output for
entertainment on/off140
Spare fuses202
Spare fuses, refer to
Fuses202
Spare key28
– adapter28Spark plugs, refer to Service
requirements72
Speaking, refer to Voice
instructions for navigation
system135
Speed
– with winter tires189
Speed-dependent
volume141
Speed limit79
– setting79
Speed limit warning, refer to
Speed limit79
Speedometer12
"Speed volume", refer to Tone
control142
Split rear seat back, refer to
Expanding the cargo
area106
Sports seat43
Stability control, refer to
Driving stability control
systems82
Start/stop button53
– starting the engine54
– switching off the engine54
"Start guid-
ance"124,128,129,132
Starting
– difficulties, temperature54
Starting, refer to Starting the
engine54
Starting assistance, refer to
Jump starting204
Starting the engine
– start/stop button53
Start menu17
"State / Province" in
destination entry122
Station, refer to Radio144
"Status"73
Status of this Owner's Manual
at time of printing5

Everything from A - Z

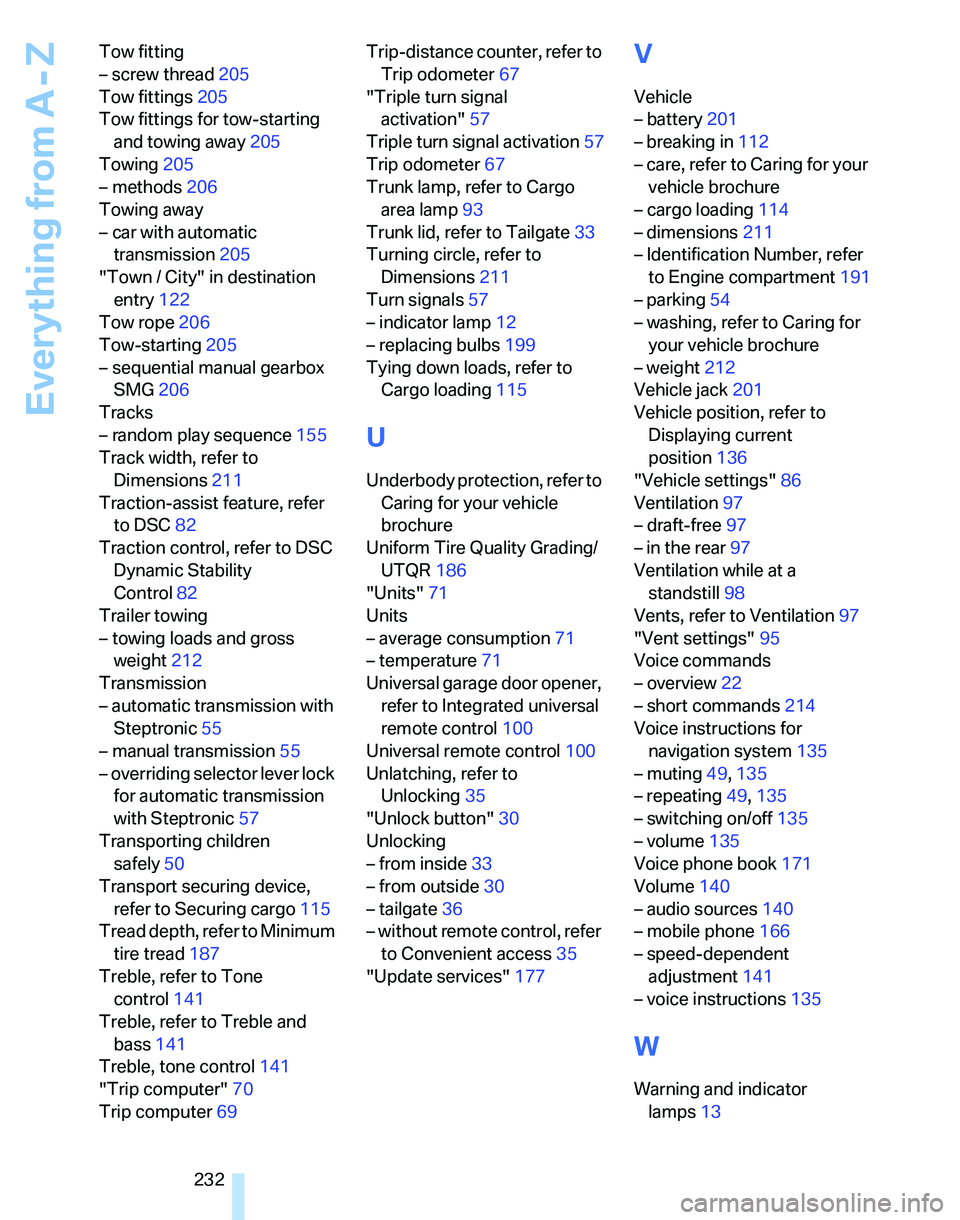

232 Tow fitting
– screw thread205
Tow fittings205
Tow fittings for tow-starting
and towing away205
Towing205
– methods206
Towing away
– car with automatic
transmission205
"Town / City" in destination
entry122
Tow rope206
Tow-starting205
– sequential manual gearbox
SMG206
Tracks
– random play sequence155
Track width, refer to
Dimensions211
Traction-assist feature, refer
to DSC82
Traction control, refer to DSC
Dynamic Stability
Control82
Trailer towing
– towing loads and gross
weight212
Transmission
– automatic transmission with
Steptronic55
– manual transmission55
– overriding selector lever lock
for automatic transmission
with Steptronic57
Transporting children
safely50
Transport securing device,
refer to Securing cargo115
Tread depth, refer to Minimum
tire tread187
Treble, refer to Tone
control141
Treble, refer to Treble and
bass141
Treble, tone control141
"Trip computer"70
Trip computer69Trip-distance counter, refer to
Trip odometer67
"Triple turn signal
activation"57
Triple turn signal activation57
Trip odometer67
Trunk lamp, refer to Cargo
area lamp93
Trunk lid, refer to Tailgate33
Turning circle, refer to
Dimensions211
Turn signals57
– indicator lamp12
– replacing bulbs199
Tying down loads, refer to
Cargo loading115
U
Underbody protection, refer to
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR186
"Units"71
Units
– average consumption71
– temperature71
Universal garage door opener,
refer to Integrated universal
remote control100
Universal remote control100
Unlatching, refer to
Unlocking35
"Unlock button"30
Unlocking
– from inside33
– from outside30
– tailgate36
– without remote control, refer
to Convenient access35
"Update services"177
V
Vehicle
– battery201
– breaking in112
– care, refer to Caring for your
vehicle brochure
– cargo loading114
– dimensions211
– Identification Number, refer
to Engine compartment191
– parking54
– washing, refer to Caring for
your vehicle brochure
– weight212
Vehicle jack201
Vehicle position, refer to
Displaying current
position136
"Vehicle settings"86
Ventilation97
– draft-free97
– in the rear97
Ventilation while at a
standstill98
Vents, refer to Ventilation97
"Vent settings"95
Voice commands
– overview22
– short commands214
Voice instructions for
navigation system135
– muting49,135
– repeating49,135
– switching on/off135
– volume135
Voice phone book171
Volume140
– audio sources140
– mobile phone166
– speed-dependent
adjustment141
– voice instructions135
W
Warning and indicator
lamps13
