36
Floor matYou can turn the floor mat over to trans-
port soiled objects, etc. The rubber-
coated side is suitable for washing and
is also designed to inhibit sliding.
The fittings at the corners of the lug-
gage compartment provide you with a
convenient means of attaching luggage
compartment nets* and flexible straps
for securing luggage.
Refer also to Cargo loading on
page 106.
Alarm system*The conceptThe vehicle alarm system responds:
>When a door, the hood or the lug-
gage compartment lid is opened
>To movement inside the vehicle –
interior motion sensor
>To variations in the vehicle's tilt angle
such as those occurring during
attempts to steal the wheels or tow
the vehicle – tilt alarm sensor.
>To interruption of battery voltage.
The system responds to unauthorized
vehicle entry and attempted theft by
simultaneously activating the following:
>The acoustic alarm sounds for
30 seconds
>The hazard warning flashers are acti-
vated for approx. five minutes
>The high beams flash on and off in
rhythm with the hazard warning flash-
ers.To arm and disarm the alarm
systemWhen the vehicle is locked or unlocked
via the remote control or the driver's
door lock, the alarm system is also
simultaneously armed or disarmed.You can have different acknowl-
edgment signals set to confirm
arming and disarming.<
You can also open the luggage com-
partment lid when the system is armed
by pressing the remote control button,
refer to page 30. The lid is once again
secured when it is closed.
Extended pressure on the button sets
off the alarm – Panic mode, refer to
page 30.
Luggage compartment
123 In the engine compartment
HoodTo releasePull the lever located under the left-
hand side of the instrument panel.
Do not attempt to service your
vehicle if you do not have the
required technical background. If you
are not familiar with the regulations to
be observed, have your vehicle ser-
viced only by a BMW center or a shop
that works according to BMW require-
ments with the appropriately trained
personnel. Work that is improperly car-
ried out could result in consequential
damage and pose safety hazards.<
To openPull the release handle and open the
hood.
To closeAllow the hood to fall from a height of
about 1 ft/30 cm so that it audibly
engages.
To avoid injuries, be sure that the
travel path of the hood is clear
when it is closed, following the same
safety precautions used in all closing
procedures.
If you notice while driving that the hood
is not completely closed, stop immedi-
ately and close it securely.<
OverviewControlsMaintenanceRepairsDataIndex

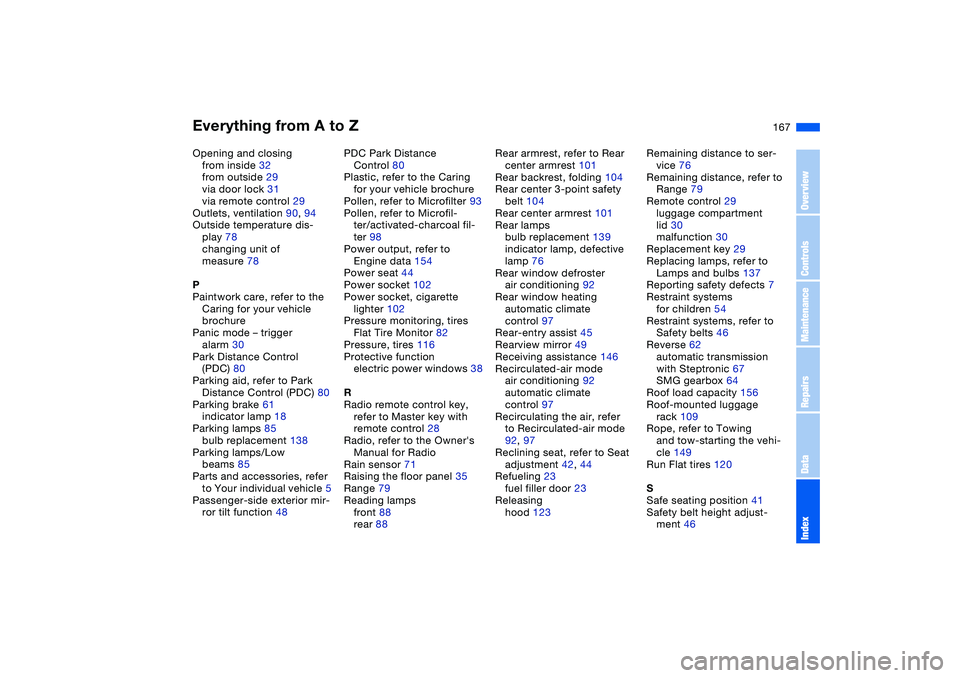

Everything from A to Z
167
Opening and closing
from inside 32
from outside 29
via door lock 31
via remote control 29
Outlets, ventilation 90, 94
Outside temperature dis-
play 78
changing unit of
measure 78
P
Paintwork care, refer to the
Caring for your vehicle
brochure
Panic mode – trigger
alarm 30
Park Distance Control
(PDC) 80
Parking aid, refer to Park
Distance Control (PDC) 80
Parking brake 61
indicator lamp 18
Parking lamps 85
bulb replacement 138
Parking lamps/Low
beams 85
Parts and accessories, refer
to Your individual vehicle 5
Passenger-side exterior mir-
ror tilt function 48PDC Park Distance
Control 80
Plastic, refer to the Caring
for your vehicle brochure
Pollen, refer to Microfilter 93
Pollen, refer to Microfil-
ter/activated-charcoal fil-
ter 98
Power output, refer to
Engine data 154
Power seat 44
Power socket 102
Power socket, cigarette
lighter 102
Pressure monitoring, tires
Flat Tire Monitor 82
Pressure, tires 116
Protective function
electric power windows 38
R
Radio remote control key,
refer to Master key with
remote control 28
Radio, refer to the Owner's
Manual for Radio
Rain sensor 71
Raising the floor panel 35
Range 79
Reading lamps
front 88
rear 88Rear armrest, refer to Rear
center armrest 101
Rear backrest, folding 104
Rear center 3-point safety
belt 104
Rear center armrest 101
Rear lamps
bulb replacement 139
indicator lamp, defective
lamp 76
Rear window defroster
air conditioning 92
Rear window heating
automatic climate
control 97
Rear-entry assist 45
Rearview mirror 49
Receiving assistance 146
Recirculated-air mode
air conditioning 92
automatic climate
control 97
Recirculating the air, refer
to Recirculated-air mode
92, 97
Reclining seat, refer to Seat
adjustment 42, 44
Refueling 23
fuel filler door 23
Releasing
hood 123Remaining distance to ser-
vice 76
Remaining distance, refer to
Range 79
Remote control 29
luggage compartment
lid 30
malfunction 30
Replacement key 29
Replacing lamps, refer to
Lamps and bulbs 137
Reporting safety defects 7
Restraint systems
for children 54
Restraint systems, refer to
Safety belts 46
Reverse 62
automatic transmission
with Steptronic 67
SMG gearbox 64
Roof load capacity 156
Roof-mounted luggage
rack 109
Rope, refer to Towing
and tow-starting the vehi-
cle 149
Run Flat tires 120
S
Safe seating position 41
Safety belt height adjust-
ment 46
OverviewControlsMaintenanceRepairsDataIndex
