Overview11
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Cleaning the controls
– First clean the controls with a brush to remove dust.
– Then wipe the controls with a clean, soft, slightly damp
cloth.Display
The Display can be cleaned with a professionally available “LCD
cleaner”. The cloth should be slightly dampened with the cleaning
fluid to clean the display.
Controls
The controls should be cleaned with a brush first so that no dirt is
trapped between the buttons and the housing. We recommend
giving the controls a final wipe with a cloth moistened with water
and dish washing detergent.
Note
Treat the display with care. Pushing on it with your finger or
touching it with sharp objects can cause dents or scratches.Switching on and offAutomatic switching on and offThe Navigation System switches on automatically after you turn on
the ignition. When you remove your key from the ignition lock, the
Navigation System will automatically switch off.What happens when it is switched on?
When the system is switched on, the start screen appears. The
o u t p u t m e n u o f t h e l a s t s e l e c t e d m a i n f u n c t i o n i s d i s p l a y e d . T h e l a s t
selected audio source is switched on automatically.
What happens when it is switched off?
When the equipment is switched off, the display darkens and the
audio source is silenced. Settings that have already been made do
not change.
Tips
The display can be switched off in the Setup menu
page 173, the
operating mode selected remains active.
Switching on/off manually
The Navigation System can also be turned on and off
manually if necessary.
Fig. 3 Navigations-
system: ON/OFF knob

Overview 12
– Push the On/Off knob to switch it on and off
fig.3.The Navigation System can also be switched on and off manually if
necessary. If the Navigation System was switched off in this way
with the ignition key removed, it is still available for about 30
minutes.
If the Navigation System was switched off manually, it is not
switched on automatically the next time the ignition is turned on.
Note
To avoid discharg ing the battery, the Navigation System should n ot
be switche d o n for an unne cessarily long time with the engine off.Opening and closing displayThe display must be opened to access the drives
located behind it.
–Press the

button
fig.4 to open or close the display

fig.5.
Opening the display provides access to the DVD navigation drive
and the two card readers for SD/MMC memory cards
fig.5.
The display can also be closed using the function button, control
buttons, the control knob, the button or the
Forward/Reverse button
page 9.
The open display is automatically closed after about one minute.
Note


If the display cannot be closed, it is possible that objects in the
vicinity of the display or an incorrectly inserted SD/MMC memory
card is preventing it from being closed. Do not try to force the
display closed.


To prevent damage to the Navigation System, no foreign bodies
should be introduced into the DVD navigation drive or into the MP3
card reader.
Fig. 4 Navigation
System: Button for
opening and closing
the display
Fig. 5 Display open:
Access to the DVD
drive and the MP3 card
reader
RETURN

Overview 14Entering PINFig. 6 Speller display: Entering PIN– Switch the ignition on.
– Switch the Navigation System on if it is not switched on
automatically
page 11.
– Enter the PIN using the speller
fig.6.
– Confirm your entry with OK. The electronic lock is
cancelled.Yo u h a v e two attempts to enter the correct PIN. The number of
attempts is shown in the display. If you enter the incorrect PIN twice
in succession, the message System is locked appears in the display.Unlocking the system (unlocking procedure)
Before you can enter the PIN again, the electronic lock must be
cancelled. This happens automatically w h e n t h e N a v i g a t i o n S y s t e m
has been switched on for about 60 minutes. If you do not insert the
ignition key into the lock, the Navigation System switches off auto-
matically after 30 minutes. When the Navigation System switches
off automatically or is switched off, the unlocking process is
cancelled and has to be started over.
When the unlocking process is complete, you have two more
attempts to enter the correct PIN. If you enter the incorrect PIN
again twice in succession, the procedure must be repeated.
Tips
If you lose your PIN, contact an Audi dealership or authorized
facility.

General system operation 18Th e fo ur control buttons organized around the control
knob
page 17, fig.10 are arranged to correspond to the bar-
shaped switch symbols in the screen corners: the top right screen
corner corresponds to the top right control button
page 17,
fig.11.
When you press a control button, a new menu group is displayed
which is assigned thematically to the particular main function.
To make orientation easier, the activated control button is illumi-
nated and the corresponding corner of the screen is highlighted in
color.
Return buttonB y p r e s s i n g t h e b u t t o n y o u w i l l j u m p b a c k o n e l e v e l i n t h e
menu hierarchy within a main function.
A selection that has not been confirmed by pressing the control
knob will be cancelled.The button is available in every menu application.
Using the button, you can also deactivate the active side
menu in the navigation map display
page 144.
Tips
If you activate the function button
page 16 within a main func-
tion, the system will automatically jump to the main menu of that
main function. Please note
page 20, “Home function”.
Forward/Reverse buttonDepending on the operating mode, the following functions are
carried out with these buttons:
Main radio function is active
go to next station on the radio station list
go to previous station on the radio station list
Fig. 12 Navigation
System: Return button
RETURN
RETURN
RETURN
Fig. 13 Navigation
System
Forward/reverse
button

|A2
|A1

General system operation19
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP If you would like to scroll in an active radio station list using the
Forward/Reverse button, it is not necessary to show the station list
in the Navigation System display.
If the radio memory list
page 61 is shown in the Navigation
System display, you can select a a station from the memory list by
pressing the Forward/Reverse button.
Main CD function is active
Pressing the button calls up the next CD track. If the button is
held down, fast forward is activated.
You can jump back to the previous track by pressing the button
within the first 10 seconds of play time for a track. After 10
s e c o n d s i t j um p s t o t h e s t a r t o f t h e t ra ck. I f t h e b ut to n is he l d d o w n ,
reverse is activated.
If you would like to scroll in an active CD track list using the
Forward/Reverse button or activate forward/reverse it is not neces-
sary to show the CD operating menu in the Navigation System
display.
Main MP3 function is active
Pressing the button c alls up the n e xt in the MP3 p layer. If the
button is held down, fast forward is activated.
You can jump back to the previous track by pressing the button
within the first 10 seconds of play time for a track. After 10
s e c o n d s i t j um p s t o t h e s t a r t o f t h e t ra ck. I f t h e b ut to n is he l d d o w n ,
reverse is activated.
If you would like to scroll in an active MP3 track list using the
Forward/Reverse button or activate forward/reverse it is not neces-
sary to show the MP3 operating menu in the Navigation System
display.
Adjusting volumeVolume can be adjusted by turning the ON/OFF button. The volume
setting will be stored automatically.
If the volume is too high when the radio is turned on, it will be
reduced automatically to a level set by the factory. If the volume is
too low when the radio is turned on, it will be increased automati-
cally to a level set by the factory.
Tips
Volume can also be adjusted using the buttons on the multi-func-
tion steering wheel*
page 21.

|
A2
|
A1

|
A2
|
A1
Fig. 14 Navigation
System ON/OFF knob -
adjusting volume

General system operation 20Home functionIf you activate the function button within a main function, the
system will automatically jump to the main menu of that main func-
tion.
In Navigation “Home function” depends on the route guidance
selected: If you have activated route guidance with stopovers, you
go to the menu for route planning by pressing the function button
again
page 139, fig.146. If you have activated route guidance
without stopovers
page 139, y o u g o t o t h e m a i n n a v i g a t i o n m e n u
(singe destination mode) by pressing the function button again.
History function
The system recalls the previous settings.When a function button is pressed, the system will switch to the
most recently accessed menu level for the specific main function.
This includes any sublevels that were opened. This excludes Setup
menus.
The history memory is erased when the system moves into standby
mode.
An example: You are currently on the Tuning radio menu and switch
to the navigation menu by pushing the button. If you press
the button at this time, you will not jump to the main radio
menu, but directly to the Tuning radio menu.
Start Navigation System ResetThe following process will restart your Audi Navigation
System and will allow complete functionality sytem to be
restored.
– Press the ON/OFF knob to switch the Navigation System
off.
– Press and hold the ON/OFF knob until the display reap-
pears and turns black.
– Release the ON/OFF knob as soon as the display has
turned black. A f t e r a f e w s e c o n d s , t h e N a v i g a t i o n S y s t e m
begins its restart, or you can switch it on manually

page 11.
NAV
FM

AM
Fig. 15 Navigation
System ON/OFF knob

Drives 36Loading navigation DVD– Press the button to open the display.
– Hold the navigation DVD by the hole in the center and the
outer edge
page 51, fig.52.– G ui de t h e n a vi g a t i o n DV D s t ra i g h t ( l a be l s i de u p) i n to t h e
drive . The navigation DVD is pulled in automatically.
Before in ser ting the n avigation DVD, check to make sure the re is n o
DVD/CD already in the drive. If there is a DVD/CD in the drive, push
the Eject button and remove the DVD/CD
page 37.
The navigation DVD should never be forced into the drive. The navi-
gation DVD is pulled in automatically.
If you are shown the message Please check navigation DVD in the
display, you cannot use the Navigation function. Possible reasons
are described starting on
page 51.
If you are shown the message Navigation is being initialized in the
display, navigation is in the start phase. As soon as this message
disappears and a navigation menu is displayed, you can use the
navigation feature.
Tips
To ensure problem-free operation, you should use only a clean,
unscratched and undamaged navigation DVD. You can find addi-
tional hints starting on
page 48.
Fig. 33 Display open:
DVD navigation driveFig. 34 Display open:
Inserting navigation
DVD into the drive


A2
A1

Drives39
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
– Press the button to open the display
page 38,
fig.36.
– Hold the MP3 CD or audio CD by the hole in the center
and the outer edge
page 38, fig.37.
– Guide the MP3 CD or audio CD straight (label side up)
into the drive . The CD is pulled in automatically.Before inserting the CD, check to make sure there is no CD already
in the drive. If there is a CD in the drive, push the Eject button and
remove the CD
page 37.
A CD s ho uld never be forced in to the drive. The CD is pulled in auto-
matically. If the CD is inserted wrong side up, you will be alerted by
a message in the open display.
If an MP3 CD has been inserted and not played, the data from the
ID3 tag are read in in the background. If you start playback of an
MP3 CD immediately, the ID3 tag data are displayed for the track
being played.
An audio CD (CD-A) inserted in the DVD navigation drive is played
using the CD function
page 78. An MP3 CD inserted in the DVD
navigation drive is played using the MP3 function
page 83.
Note


Always keep the navigation DVD that you removed in a suitable
j e w e l c as e (e .g . C D c as e ) to p ro t e c t t he DV D f ro m d i r t , d us t p a r t i c le s ,
scratches and other damage
page 48.


Do not attach labels to the CDs. Heat can cause the label to
b e c o m e d e t a ch e d i n t h e d ri v e , j a m t h e CD a n d c a us e a m a lf un c t io n .
Use a permanent marker to label CDs you have burned yourself.


Never expose the navigation DVD to direct sunlight.
Tips


Standard 12-cm diameter CDs can be used. Mini CDs with a
diameter of 8 cm (3 inches) or non-circular CDs, known as shape
CDs, must not be used.


The use of cleaning CDs can lead to mechanical damage to the
drive.


Because of the diversity of CD-R/CD-RW blanks and their
different storage capacities, function may be limited with individual
storage media.


If you have not inserted a navigation DVD into the drive, you
cannot use the Navigation and Directory functions.
Ejecting a CD– Press the button to open the display.


A2
A1

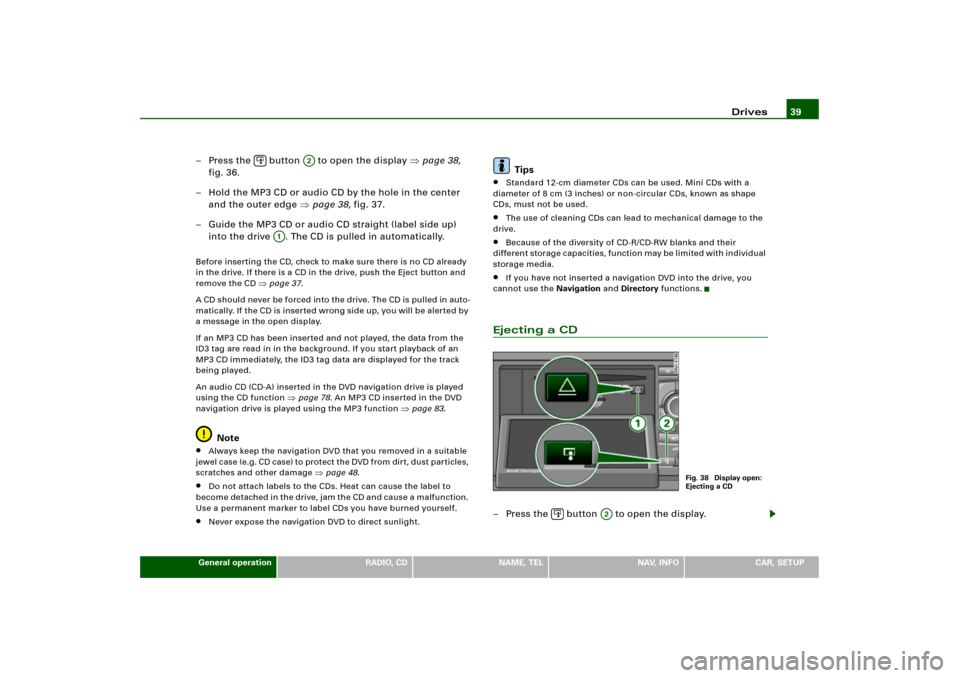

Fig. 38 Display open:
Ejecting a CD


A2
