Navigation (NAV)133
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP terminate this route guidance, select Cancel route guidance
page 132Tips
Calculated destinations can also be changed in the map display by
moving the crosshairs
page 149.
To p d e s t i n a t i o nFig. 138 Navigation: Set entry as top destinationFig. 139 Navigation: Map display of a top destination (push pin)
– In a destination input menu
page 117, fig.121, select
the top destination desired from the list below the menu
item “Start route guidance”.
– Select Start route guidance.If you have activated the Display as top destination
fig.138 func-
tion when making entries in the directory (
page 135 or
page 103), they are listed
page 136 in a destination input menu
page 117, fig.121 under the menu item “Start route guidance” .
If you have activated the top destinations
page 155in the “Map
content” menu with a checkmark
, the top destinations you set are
indicated by a “push pin” on the map
fig.139.

Navigation (NAV) 144Th e fi g ure s
page 143, fig.15 0 a nd
page 143, fig.151 show you
the possible types of information in the map display:
Map orientation
Scale
Estimated distance to the next destination/stopover
Estimated time of arrival to the next destination/stopover
Ve hicle s ymbol
Example of selected map contents page 155
Turn list inserted in the Setup menu page 156
The map display modes can be changed page 151.
A crosshair with selection rectangle helps you select your destina-
tion with the aid of the map
page 148.
Route guidance is additionally shown by directional arrows in the
instrument cluster display (
page 113 or
page 114).
Tips
An underpass or a tunnel is shown by broken lines on the map
display up to a scale of 0.5 mile.
Map display with active side menu
The map display can be changed through the active
side menu.Fig. 152 Navigation: Map display with active side menu–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu

fig.152.
– Select the desired submenu item by rotating and
pressing the control knob and make your changes.
– Press the button, to leave the map side menu.If you have activated the Zoom function
page 146 or the
crosshairs
page 149 in the active side menu, you have to press
the button twice in order to leave the map side menu.
A1AA AA4A9A:
RETURN
RETURN

Navigation (NAV)145
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP After you have activated the side menu, you are shown information
(city/street names and longitude/latitude) for the position you had
reached at the time of activation.
The following functions can be carried out using the
active map side menu:
Tips
Settings made in an active side menu are not kept after deactiva-
tion. You can enter permanent settings for the map display using
Setup Navigation
page 151.
Map orientation
Inside side menu activation you can switch back and
forth between direction of travel and North.Fig. 153 Navigation: Map orientation North in the active side menu–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu.
– Rotate the control knob to the first map menu item

fig.153.
– By pressing the control knob, you can switch back and
forth between orientation North
fig.153 and Tr a v e l.
For the time the side menu is active, the changed setting
remains.
Legende
FunctionOrientation page 145Scale page 146Map position menu page 148Activation of map crosshairs page 149Presentation of map crosshairs page 149Vehicle symbol
A1AA AA4A9
A1

Navigation (NAV) 148Map position menuFig. 156 Navigation: Map position
Fig. 157 Navigation: Map position menu
–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu.
– Rotate the control knob to the third menu item

fig.156.
– Press the control knob.
– Select Detail info, Set as destination, Set as stopover or
Save to directory.You can set the point marked at the time by the crosshairs as a desti-
nation or stopover, or save it to the directory. If additional detailed
information is available for the selected point on the map, you can
display it using the Detail info function.
You can also specify a new point on the map by moving the
crosshairs
page 149. This new point can then be Set as
destination, Set as stopover or you can Save in directory.
You can use the Set as stopover f u n c t i o n i f y o u h a v e e n t e r e d “ R o u t e
with stopovers” page 139.

Navigation (NAV)149
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP

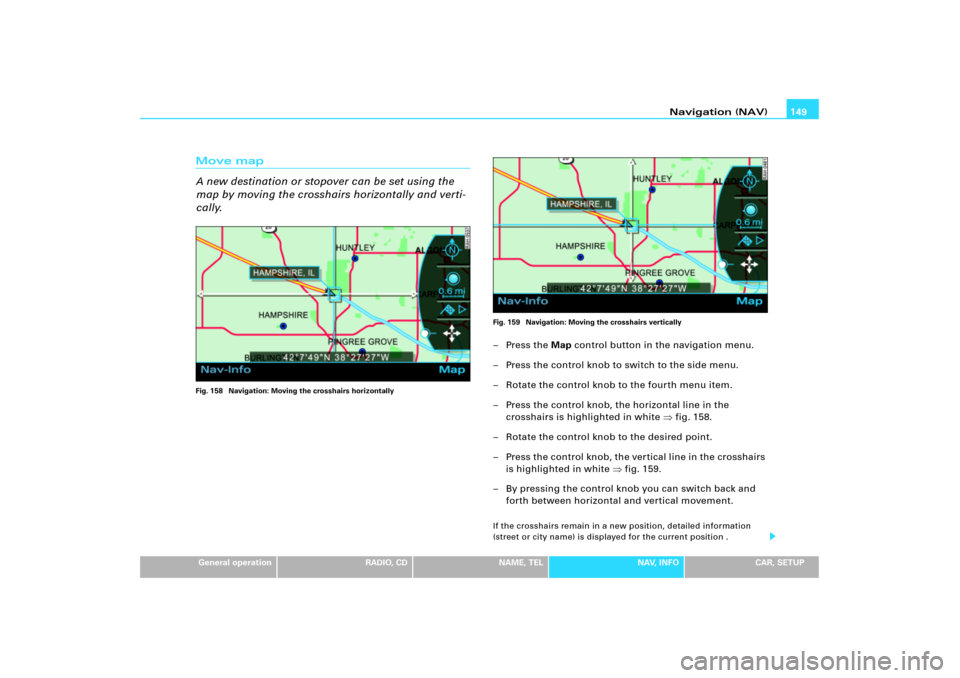

Move map
A new destination or stopover can be set using the
map by moving the crosshairs horizontally and verti-
cally.Fig. 158 Navigation: Moving the crosshairs horizontallyFig. 159 Navigation: Moving the crosshairs vertically
–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu.
– Rotate the control knob to the fourth menu item.
– Press the control knob, the horizontal line in the
crosshairs is highlighted in white
fig.158.
– Rotate the control knob to the desired point.
– Press the control knob, the ver tical line in the crosshairs
is highlighted in white
fig.159.
– By pressing the control knob you can switch back and
forth between horizontal and vertical movement.If the crosshairs remain in a new position, detailed information
(street or city name) is displayed for the current position .

Navigation (NAV) 150By pressing the button once, you leave the crosshairs
setting and you can use other map menu items via the active side
menu. Pressing the button again deactivates the side

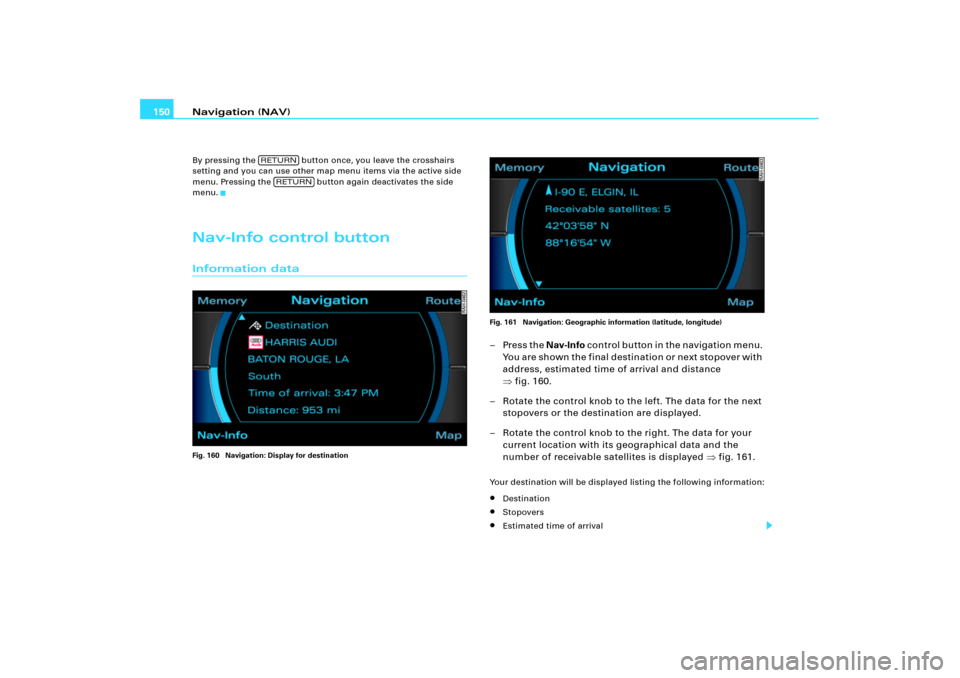

menu.Nav-Info control buttonInformation dataFig. 160 Navigation: Display for destination Fig. 161 Navigation: Geographic information (latitude, longitude)
–Press the Nav-Info control button in the navigation menu.
You are shown the final destination or next stopover with
address, estimated time of arrival and distance

fig.160.
– Rotate the control knob to the left. The data for the next
stopovers or the destination are displayed.
– Rotate the control knob to the right. The data for your
current location with its geographical data and the
number of receivable satellites is displayed
fig.161.Your destination will be displayed listing the following information:

Destination


Stopovers


Estimated time of arrival
RETURN
RETURN

Navigation (NAV) 162
– In a destination input menu
page 117, fig.121, enter
the desired location data.
– Press the function button
page 16 in the navi-
gation menu.
– Select Set position/direction
page 161, fig.176.
– Using the crosshairs
page 149 on the map, select the
desired starting point for route guidance on the map.
– In the active side meu, select OK
page 161, fig.177.
– Set the direction of the location
page 161, fig.178 by
rotating the control knob.
– When you press the control knob, the system automati-
cally jumps back to the the Setup Navigation menu.You can calculate the route from another position than the present
vehicle location.
We recommend entering the data for the starting point into a desti-
nation input menu
page 117, fig.121 before you select the Set
position/direction. That way, the system will jump to the point
e n t e r e d i n t h e m a p d i s p l a y. I t i s e a s i e r t o s e t t h e l o c a t i o n o n t h e m a p
from this point.
You can search for the starting point using the crosshairs
page 149.
You can enter the starting point manually to calculate future routes.
When you have set the location manually on the map, you can
switch to a destination input menu to enter the destination data.
Start route guidance in Demo mode to simulate route guidance page 161.
Tips
It is only possible to set the location manually and to start route
guidance in Demo mode for a simulation if you vehicle is not
moving and GPS reception is not available
page 110 (e.g. in an
underground parking garage).
SETUP

Frequently Asked Questions (FAQ) 176Wa rra n t yThe same warranty conditions apply to the equipment
as to new vehicles.Damage under the warranty excludes improper treatment of the
radio or attempts to make repairs by unqualified persons.
The unit must not have suffered any external damage.
Exchange service
After expiration of the warranty, equipment requiring repair will be
exchanged for overhauled equipment at replacement value with an
exchange part warranty. This is dependent upon whether there is no
damage to the housing and no unqualified persons have attempted
to make repairs.
Tips
In a warranty case or in the event of an exchange, the “device card”
with the PIN number and the serial number must be presented to
the Audi dealership.
