Page 154 of 194
Navigation (NAV)149
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Move map
A new destination or stopover can be set using the
map by moving the crosshairs horizontally and verti-
cally.Fig. 158 Navigation: Moving the crosshairs horizontallyFig. 159 Navigation: Moving the crosshairs vertically
–Press the Map control button in the navigation menu.
– Press the control knob to switch to the side menu.
– Rotate the control knob to the fourth menu item.
– Press the control knob, the horizontal line in the
crosshairs is highlighted in white fig.158.
– Rotate the control knob to the desired point.
– Press the control knob, the ver tical line in the crosshairs
is highlighted in white fig.159.
– By pressing the control knob you can switch back and
forth between horizontal and vertical movement.If the crosshairs remain in a new position, detailed information
(street or city name) is displayed for the current position .
Page 156 of 194
Navigation (NAV)151
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Distance to destination
Location of your vehicle
Geographic location of your vehicle (latitude, longitude)
Receivable satellites
The last navigation announcement will also be repeated.
Setup NavigationOpening and closing SetupFig. 162 Setup Navigation: main menu (page one)Fig. 163 Setup Navigation: main menu (page two)

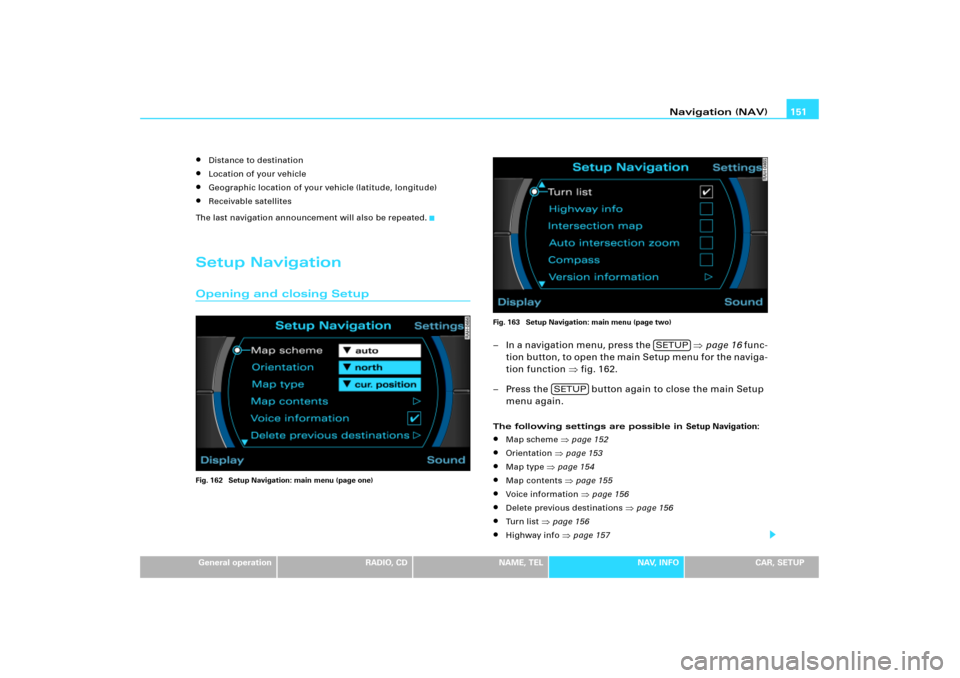

– In a navigation menu, press the page 16 func-
t i o n b u tt o n , t o o p e n t h e m ai n S e t up m e n u fo r t h e n a v i g a -
tion function fig.162.
– Press the button again to close the main Setup
menu again.The following settings are possible in Setup Navigation:
Map scheme
page 152
Orientation
page 153
Map type
page 154
Map contents
page 155
Voice information
page 156
Delete previous destinations
page 156
Turn list
page 156
Highway info
page 157
SETUP
SETUP
Page 158 of 194
Navigation (NAV)153
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP night
The map display contains all topographical details. The background
is shown dark
page 152, fig.164. This provides a glare-free view
o f t h e m a p . T h e s t r e e t n a m e s a n d t h e i r l a y o u t , p l a c e n a m e s a n d m a p
contents are in contrasting light colors
auto
The map scheme changes automatically from day to night display
when the low-beam lights are turned on.
Map orientationFig. 165 Setup Navigation: Map orientation North– Press the function button page 16 in the navi-
gation menu.
–Select Orientation.– Select north, dir. of travel or auto.
north
The map display is always oriented north, the directional arrow on
the vehicle symbol rotates accordingly
fig.165.
dir. of travel
The vehicle symbol points to the top. The map rotates accordingly
when vehicle direction changes.
auto
The map is oriented automatically depending on the selected scale.
Less than 1.5 miles oriented to dir. of travel and greater than 1.5
miles oriented to north.
SETUP
Page 160 of 194
Navigation (NAV)155
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Map content
In addition to the information that is displayed auto-
matically, the map can also display other additional

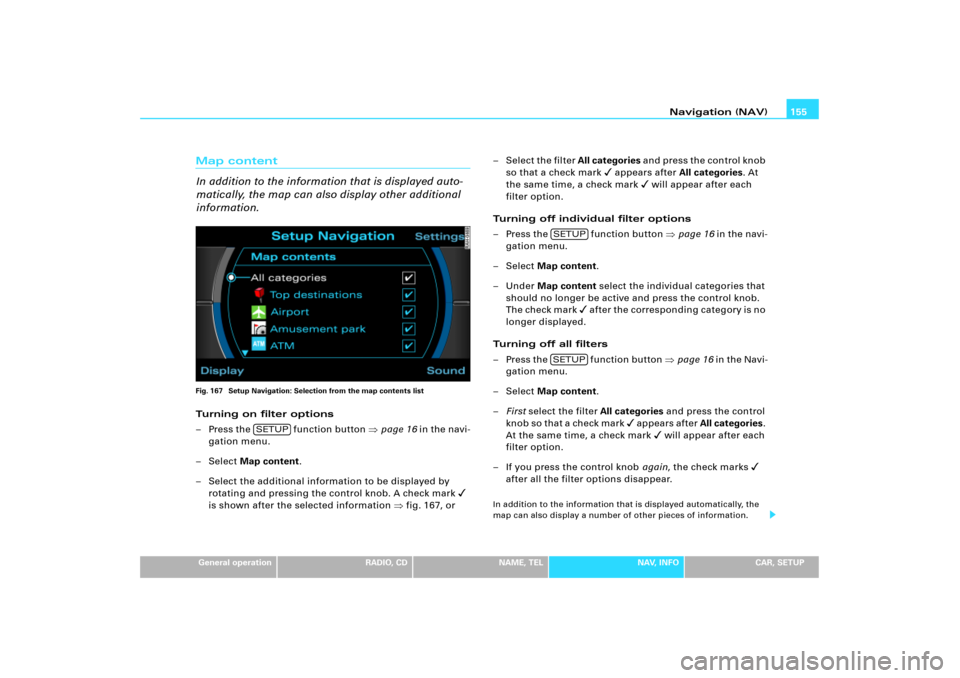

information.Fig. 167 Setup Navigation: Selection from the map contents listTurning on filter options
– Press the function button page 16 in the navi-
gation menu.
–Select Map content.
– Select the additional information to be displayed by
rotating and pressing the control knob. A check mark
is shown after the selected information fig.167, or– Select the filter All categories a n d p re s s t h e co n t ro l k n o b
so that a check mark
appears after All categories. At
the same time, a check mark
will appear after each
filter option.
Turning off individual filter options
– Press the function button page 16 in the navi-
gation menu.
– Select Map content.
–Under Map content select the individual categories that
should no longer be active and press the control knob.
The check mark
a ft e r t h e co rre s po n di n g c a t e g o r y i s n o
longer displayed.
Turning off all filters
–Press the function button page 16 in the Navi-
gation menu.
– Select Map content.
–First select the filter All categories and press the control
k n o b so t h a t a ch e ck m a r k
appears after All categories.
At the same time, a check mark
will appear after each
filter option.
– If you press the control knob again, the check marks
after all the filter options disappear.
In addition to the information that is displayed automatically, the
map can also display a number of other pieces of information.
SETUP
SETUPSETUP
Page 162 of 194
Navigation (NAV)157
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
– Press the function button page 16 in the navi-
gation menu.
– Highlight Turn list with a check mark
page 151,
fig.163 to activate the function.
Th e n e x t th re e up c o mi n g t u rn s
page 156, fi g .1 6 9 a r e s h o wn in
the Turn list.
The immediate upcoming turn is shown in the bottom section of the
table.
If you pass a turn, it is deleted from the three-part table. The next
turn drops down into the list.
The following information is shown in the Turn list:
Recommended direction shown as an arrow, traffic circulars or
freeway entrances and exits, stopovers and destination
Names of streets, secondary roads and freeways you should be
driving on following the turn
Estimated distance to each recommended turn or to destination
The name underneath the three-line Turn list shows you the road
you are presently driving on.Tips
If you have activated the Turn list and freeway information page 157, you are shown the list of freeway information on free-
ways
fig.170 and the Turn list on other roads
page 156,
fig.169.
Highway info
When driving on freeways, additional information is
sh o w n , f o r e x a m p l e f o r p a r ki ng a re as , f re e w a y e x i t s o r

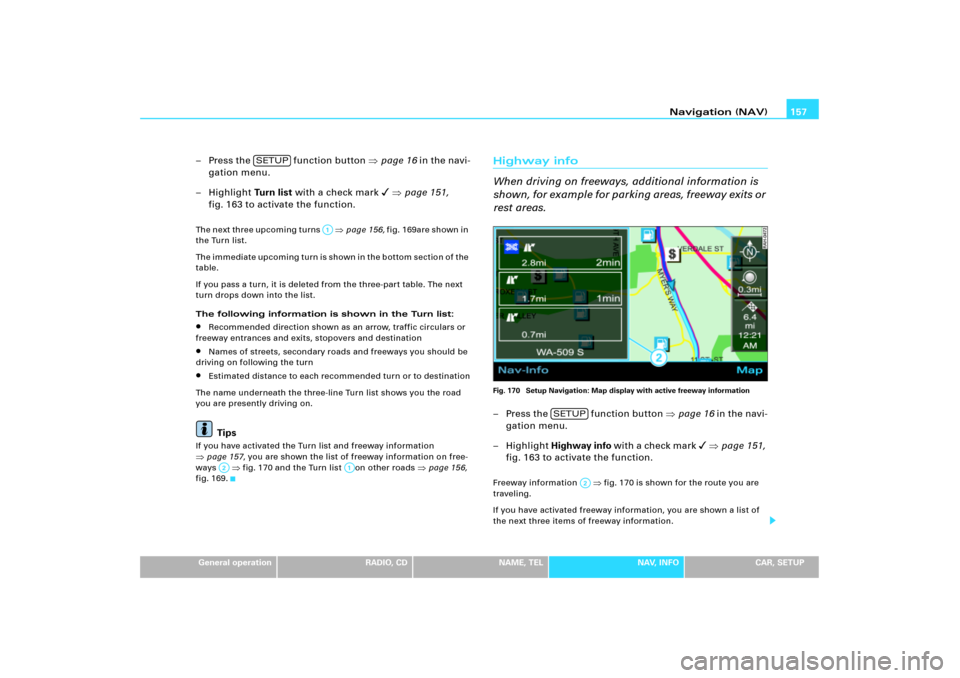

rest areas.Fig. 170 Setup Navigation: Map display with active freeway information– Press the function button page 16 in the navi-
gation menu.
– Highlight Highway info w i t h a ch e ck m a r k
page 151,
fig.163 to activate the function.
Freeway information
fig.170 is shown for the route you are
traveling.
If you have activated freeway information, you are shown a list of
the next three items of freeway information.
SETUP
A1
A2
A;
SETUP
A2
Page 164 of 194
Navigation (NAV)159
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
– Press the function button page 16 in the navi-
gation menu.
– Highlight the Intersection map with a check mark
page 158, fig.171 to activate the function.
The map is divided into two parts at intersections. The right half of
the display continues to show you the map display you selected.
Th e l e ft h a l f o f t he d i s p l a y s h o w s y o u a p a ra l l e l e n l a r g e d v i e w o f t h e
intersection area
page 158, fig.172.
Next to the enlarged view, you are shown the changes in distance
until the turn-off point. At the same you are shown the name of the
street onto which you want to turn.
If you have activated the Auto intersection zoom function, the
Intersection map function cannot be activated.
If you would like to activate the Intersection map function, you first
have to deactivate the Auto intersection zoom function. These two
functions are mutually exclusive.
Tips
The map is oriented to driving direction
page 153 when switching
to zoom mode.
Auto intersection zoom
The map displays in zoom mode at intersections.Fig. 173 Setup Navigation: Auto intersection zoom activated– Press the function button page 16 in the navi-
gation menu.
– Highlight the Auto intersection zoom with a check mark
fig.173 to activate the function.
For a detailed display, the map automatically zooms in at street
intersections, enhancing the view of the route from street to street.
If you have activated the Itersection map function, the Auto
intersection zoom function cannot be activated.
If you would like to activate the Auto intersection zoom function,
you first have to deactivate the Intersection map function. These
two functions are mutually exclusive.
SETUP
SETUP
Page 166 of 194
Navigation (NAV)161
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Demo modeFig. 176 Setup Navigation: Activate demo mode– Press the function button page 16 in the navi-
gation menu.
– Highlight Demo mode with a check mark
fig.176 to
activate the function.
The Demo mode provides a simulation of the route you entered. This
allows you to effectively plan and display your destination by
showing specific map content
page 155 or route criteria
page 141.
Map type “Position 3D”
page 154 is not shown in Demo mode. If
you have selected map type “Position 3D”, the simulation is shown
in map type “current position”.
Set position/directionFig. 177 Setup Navigation: Input position/direction manually
Fig. 178 Setup Navigation: Set direction of position
SETUP
Page 168 of 194
Information (INFO)163
General operation
RADIO, CD
NAME, TEL
NAV, INFO
CAR, SETUP
Information (INFO)IntroductionSelecting information function
Navigation information can be selected using the
button.– Pr e s s t h e f u n c t i o n b u t t o n page 16 t o d i s p l a y t h e
main information menu fig.179.Th e m a i n i n f o r m a t i o n m e n u d i s p l a y s t h e s a m e i n fo r m a t i o n a s i n t h e
main function once the control button for the Nav-Info is
pressed.
Main information menuInformation data
Location and destination information can both be
displayed.Fig. 179 Info: Displaying the destination– Press the function button to display the main
information menu fig.179. You are shown the destina-
tion or next stopover with address, estimated time of
arrival and distance.
– Rotate the control knob to the left. The data for the next
stopovers to the destination are displayed.
INFO
INFONAV
INFO
