2006.5 Citroen C4 DAG display
[x] Cancel search: displayPage 190 of 218
272727
IV
B
C
D
E
BCDE
A
HOW TO ACCESS THE AUDIO MENU ?
HOW TO ACCESS THE AUDIO MENU SHORTCUTS ?
The shortcut options available allow you:
manually enter the frequency of a station.
To activate or deactivate RDs search.
To activate or deactivate regional search mode.
To activate or deactivate display of the text informa tion broadcast by the station being listened to.
a U D I O
a C C E s s I N g T H E m E N U
Each Audio source has a shor tcut.
press button mENU.
Page 191 of 218
282828
IV
A1
A2
A3
A4
B1
B2
B3
B4
A1A2A3A4
ABC
B1B2B3B4
C
A
B

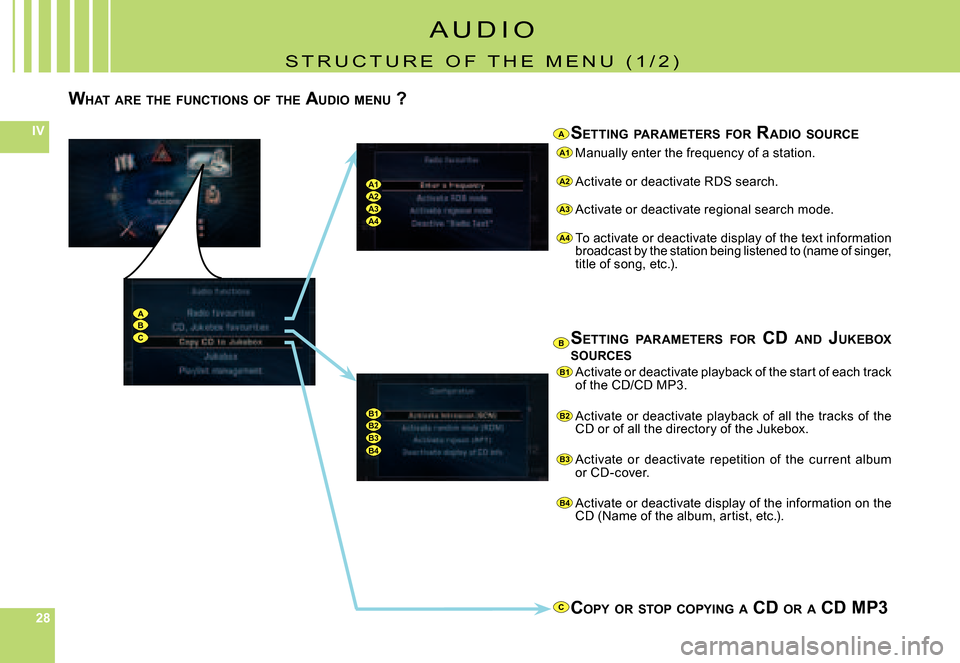

WHAT ARE THE FUNCTIONS OF THE AUDIO MENU ?
SETTING PARAMETERS FOR RADIO SOURCE
manually enter the frequency of a station.
activate or deactivate RDs search.
activate or deactivate regional search mode.
To activate or deactivate display of the text informa tion broadcast by the station being listened to (name of singer, title of song, etc.).
SETTING PARAMETERS FOR CD AND JUKEBOX SOURCES
activate or deactivate playback of the start of eac h track of the CD/CD mp3.
activate or deactivate playback of all the tracks of t he CD or of all the directory of the Jukebox.
activate or deactivate repetition of the current album or CD-cover.
activate or deactivate display of the information on the CD (Name of the album, artist, etc.).
COPY OR STOP COPYING A CD OR A CD MP3
a U D I O
s T R U C T U R E O F T H E m E N U ( 1 / 2 )
Page 195 of 218
323232
IVThe RDs (Radio Data system) function allows you:to listen to the same station even though you are travelling through different regions (on condition that the transmitters for this station cover the area being travelled through), t o l i s t e n t o t r a f fi c a n n o u n c e m e n t fl a s h e s on a temporary basisto have the station name displayed, etc.
Page 213 of 218
505050
VI
A1A2A3
ABCD
A1
A2
A3
B2
D1
D2
D1
A4
B1B2B3
D2
A4
B1
B3
C
A
B
D
D3
D3
D4
D4
C O N F I g U R a T I O N
a C C E s s I N g T H E m E N U - s T R U C T U R E
T h e C o n fi g u r a t i o n m e n u e n a b l e s y o u t o p r o g r a m m e y o u r N a v i D r i v e as well as certain functions of your vehicle.
WHAT ARE THE FUNCTIONS OF THE CONFIGURATION MENU ?
CONFIGURING THE DISPLAY OF YOUR NAVIDRIVE
Choose the colour of the display.
adjust the brightness of the display.
A d j u s t t h e d a t e a n d t h e t i m e a n d d e fi n e t h e f o r m a t 1 2 H o r 2 4 H .
Choose a feminine voice or a masculine voice and adj ust the voice synthesiser volume.
CONFIGURE THE VOICE OF YOUR NAVI DRIVE
CHOOSE THE LANGUAGE OF THE VOICE SYNTHESISER AND OF THE DISPLAY
Choose the duration for guide-me-home lighting and activate or deactivate the directional headlamps.
DEFINE THE VEHICLE PARAMETERS (ACCORDING TO EQUIPMENT )DEFINE THE V THE
Choose system of measurement: metric or imperial.
activate or deactivate the voice commands.
activate or deactivate the audio/video auxiliary inpu t.
activate or deactivate the automatic triggering of th e rear wiper when you engage reverse gear.
HOW TO ACCESS THE CONFIGURATION MENU ?
press button mENU. R o t a t e t h e c o n t r o l t o s e l e c t t h e C o n fi g u r a t i o n i c o n .press on the control to validate.
Page 215 of 218
525252
VII
A
B
A
AB
V E H I C l E D I a g N O s I s
m E N U s T R U C T U R E
WHAT IS THE VEHICLE DIAGNOSIS MENU ?
The vehicle diagnosis menu accesses the latest alerts that have been signalled as well as the status of the various functions on the vehicle.
WHAT ARE THE FUNCTIONS OF THE VEHICLE DIAGNOSIS MENU ?
CONSULT THE LIST OF LATEST ALERTS SIGNALLED ON THE DISPLAY
C ONSULT THE STATUS OF THE VARIOUS FUNCTIONS ON THE VEHICLE (ACTIVATED OR DEACTIVATED )
HOW TO ACCESS THE VEHICLE DIAGNOSIS MENU ?
(according to equipment)
press button mENU.
Page 216 of 218
535353
VIII
ABB1B2
B4
B1B2B3B4
A
A
B3
B
V I D E O
a C C E s s I N g T H E m E N U - s T R U C T U R E
WHAT IS THE VIDEO MENU ?
The Video menu comprises the functions for adjusting t he video on your NaviDrive.
WHAT ARE THE FUNCTIONS OF THE VIDEO MENU ?
ACTIVATING OR DEACTIVATING VIDEO MODE
H OW TO ACCESS THE VIDEO MENU ?
select a display format (16/9 or 4/3).SETTING THE VIDEO PARAMETERS
adjust the brightness of the display.
adjust the contrast on the display.
If you have equipment connected on the a u d i o / v i d e o s o c k e t s , a c t i v a t i o n o f v i d e o mode cuts the audio source currently being listened to. Press on but ton SOURCE to reactivate any other audio source. T o v i e w t h e i m a g e s , t h e e q u i p m e n t h a s to emit a signal and the vehicle must be s t a t i o n a r y . W h i l e t h e v e h i c l e i s i n m o t i o n , only the sound is available.
T o u s e t h i s s o u r c e , a c t i v a t e t h e v i d e o m o d e . T h e v i d e o c a n b e u s e d i f t h e v e h i c l e s p e e d i s l e s s t h a n 5 k m / h .
press button mENU.
Page 217 of 218
545454
IX
F R E Q U E N T ly - a s K E D Q U E s T I O N s
QUESTIONSANSWERSSOLUTIONS
There is a discrepancy in sound quality between the different audio sources (radio, CD, CD changer etc.).
To achieve an optimum listening quality, the audio a djustments (Volume, Bass, Treble, ambiance, loudness) can be ad apted to each of the dif ferent sound sourc es, which c an produc e audible shif ts when you change the sourc e (radio, C D, CD changer etc.).
Check that the aUDIO adjustments ( Volume, Bass, Treble, ambiance and loudness) are adapted to your wishes for each of the audio sources.
The CD immediately ejects.The CD is the wrong way up, is unplayable, does not con tain audio data or contains an audio format that the radio cannot play back.
Check that you have inser ted the CD the right way up in the CD player.
Check the condition of the CD: the CD cannot be played back if it is too damaged.
Check the contents if it is a burnt CD: refer to the advice given in the chapter on audio system.
For reasons of poor quality, some burnt CDs will not be played back by the audio system.
The CD changer does not play back DVDs.
The CD changer does not play back mp3 CDs.
T h e C D p l a y e r s o u n d i s d o w n -graded.The CD is scratched or of poor quality.Inser t only CDs of good quality and keep them in good condition.
The pre-set stations do not work (no sound, 87,5 mhz is displayed, etc.).The waveband selected is not the correct one.press on the BaND button to retrieve the waveband (am,Fm1, Fm2, FmasT) where the stations are memo-rised.
T r a f fi c A n n o u n c e m e n t s ( T A ) i s d i s - p l a y e d . I d o n o t r e c e i v e a n y t r a f fi c i n f o r -mation or public announcements.
T h e p a r t i c u l a r r a d i o s t a t i o n i s n o t i n t h e r e g i o n a l t r a f fi c i n f o r m a -tion network. C h a n g e t o a r a d i o s t a t i o n t h a t d o e s b r o a d c a s t t r a f fi c information.
The table below brings together the answers to the que stions that are the most frequently asked.
Page 218 of 218
555555
IX
F R E Q U E N T ly - a s K E D Q U E s T I O N s
QUESTIONSANSWERSSOLUTIONS
The rec eption qualit y of the radio station being listened to gradually deteriorates.
The vehicle is too distant from the transmitter, or no transmitter is present in the geographical area you are passing th rough.
activate the RDs function to allow the system to chec k whether a more power ful transmitter is to be found in the geographical area.
The environment (hills, high buildings, tunnels, underground car parks, etc.) is blocking reception, even in RDs mode.This phenomenon is normal and does not imply anythi ng wrong with the radio.
The aerial is absent or has been damaged (for example after going through a car wash or in an underground car park).Have the aerial checked by a CITROËN dealer.
When the engine is not running, the radio stops after a few minutes.
When the engine is switched off, the working time fo r the radio depends on the batter y charge. The interruption is nor mal: the radio goes into economy mode, cutting off in order to save the vehicle’s batter y.
you have to star t the engine so as to increase the bat-ter y charge.
T h e m e s s a g e “ t h e a u d i o s y s t e m i s o v e r h e a t i n g ” a p p e a r s o n t h e screen.
In order to protect the audio equipment in excessiv e ambient temperatures, the radio goes into an automatic thermic protection mode which results in a reduction in sound volume or stopping of the CD player.
switch off the audio system for a few minutes in order to allow the system to cool down.
Why is one not informed in real time of a hold-up on the route even though t h e o p t i o n f o r g u i d a n c e b y “ t r a f fi c i n f o ” is activated ?
When you star t up, the system takes a few minutes to c apture t h e t r a f fi c i n f o r m a t i o n v i a R D S - T M C . W a i t f o r t h e t r a f fi c i n f o r m a t i o n t o b e s a f e l y r e c e i v e d (pictogrammes displayed on the map) and make sure that you use the major ar terial roads to have “inform ed” navigation.
Only the major ar terial roads (motor ways and some d ual car- r i a g e w a y s ) a r e f e a t u r e d i n R D S - T M C t r a f fi c i n f o r m a t i o n ) .
I t m a y h a p p e n t h a t a h o l d - u p i s n o t r e p o r t e d b y t h e t r a f fi c i n f o provider.
Why is a diversion not suggested when I h a v e s e l e c t e d t r a f fi c i n f o ?
D o n o t c o n f u s e t h e “ t r a f fi c i n f o ” g u i d a n c e o p t i o n w h i c h c a n s u g -gest a diversion (the “diver t” button appears in the w indow) with t h e m e n u s “ D i s p l a y o f t r a f fi c m e s s a g e s ” o r “ R e a d i n g o f t r a f fi c messages” which af fect only the display without recalculating the itinerar y (no “diver t” button in the window).
To have “informed” navigation with the detour proposi-tion, it is essential to activate the guidance option with “ t r a f fi c i n f o ” .
