SPECIFICATIONS
8-2
8
Gear ratio:
1st:
38/15 (2.533)
2nd:
33/16 (2.063)
3rd:
37/21 (1.762)
4th:
35/23 (1.522)
5th:
30/22 (1.364)
6th:
33/26 (1.269)Chassis:Frame type:
Diamond
Caster angle:
24.00 °
Trail:
97.0 mm (3.82 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
MICHELIN/Pilot POWER C
Manufacturer/model:
DUNLOP/D218FLRear tire:Type:
Tubeless
Size:
190/50 ZR17M/C (73W)Manufacturer/model:
MICHELIN/Pilot POWER G
Manufacturer/model:
DUNLOP/D218L
Loading:Maximum load:
202 kg (445 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Loading condition:
90–202 kg (198–445 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT6.00Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
130.0 mm (5.12 in)
U5VYE1E0.book Page 2 Tuesday, September 7, 2004 9:09 AM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U5VYE1E0.book Page 1 Tuesday, September 7, 2004 9:09 AM

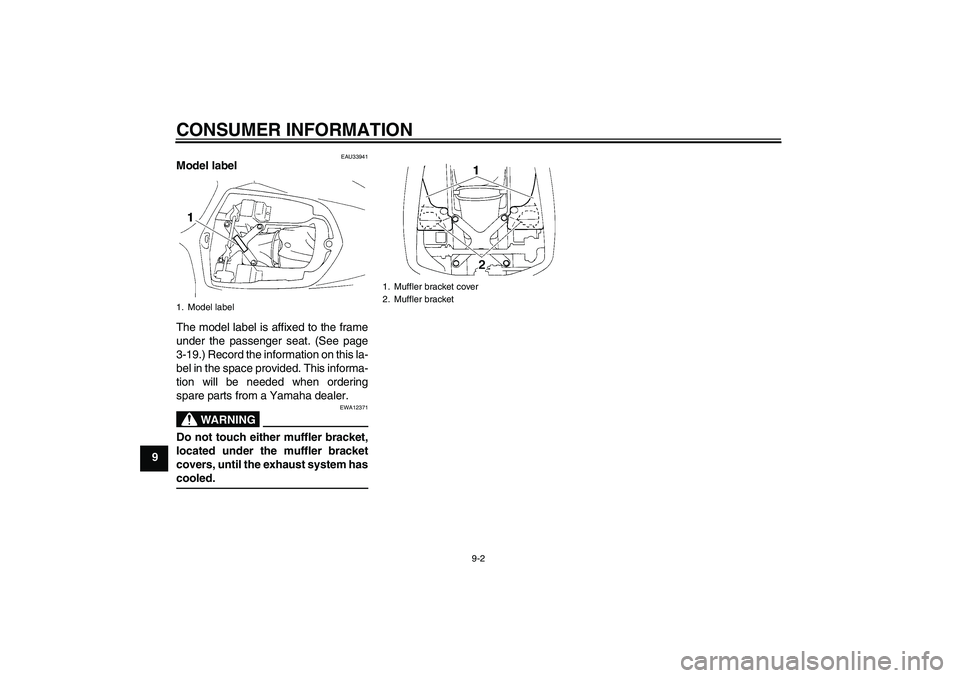

CONSUMER INFORMATION
9-2
9
EAU33941
Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-19.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering
spare parts from a Yamaha dealer.
WARNING
EWA12371
Do not touch either muffler bracket,
located under the muffler bracket
covers, until the exhaust system hascooled.1. Model label
1. Muffler bracket cover
2. Muffler bracket
