2005 YAMAHA YFM350R check engine light

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-5
Model label ........................................... 3-7
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Handlebar switches .............................. 4-5
Start switch .......................................... 4-7
Throttle lever ........................................ 4-9
Speed limiter ...................................... 4-11
Clutch lever ........................................ 4-13
Brake lever ......................................... 4-13
Brake pedal ........................................ 4-15
Parking brake lever ............................ 4-17
Shift pedal .......................................... 4-21
1234
Drive select lever ............................... 4-21
Fuel tank cap ..................................... 4-23
Fuel cock............................................ 4-23
Starter (choke) .................................. 4-27
Seat.................................................... 4-29
Front shock absorber adjustment ...... 4-31
Rear shock absorber adjustment ....... 4-33
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Chain.................................................. 5-13
Throttle lever ...................................... 5-15
Fittings and fasteners......................... 5-15
Lights ................................................. 5-15
Switches............................................. 5-15
Tires ................................................... 5-17
How to measure tire pressure ............ 5-21
Tire wear limit..................................... 5-23
5
U5YT61.book Page 1 Wednesday, April 7, 2004 3:59 PM

OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Shifting ................................................6-15
To start out and accelerate .................6-17
To decelerate ......................................6-21
Engine break-in ...................................6-23
Parking ................................................6-27
Parking on a slope ..............................6-27
Accessories and loading .....................6-31
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-41
Climbing uphill.....................................7-47
Riding downhill ....................................7-57
Crossing a slope .................................7-61
Crossing through shallow water ..........7-65
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Engine oil and oil filter element........... 8-17
Spark plug inspection ......................... 8-29
Air filter element cleaning ................... 8-33
Carburetor adjustment ........................ 8-41
Idle speed adjustment ........................ 8-43
Throttle lever adjustment .................... 8-45
Valve clearance adjustment ............... 8-45
Front brake pad inspection ................. 8-47
Rear brake pad inspection.................. 8-47
Brake fluid level check ........................ 8-49
Brake fluid replacement ...................... 8-53
Front brake lever free play.................. 8-55
Brake pedal height adjustment ........... 8-57
Parking brake adjustment ................... 8-59
Adjusting the rear brake light switch ... 8-65
Clutch lever free play adjustment ....... 8-67
Drive chain slack check ...................... 8-69
Drive chain slack adjustment .............. 8-71
Lubricating the drive chain.................. 8-73
Cable inspection and lubrication......... 8-75
Brake and shift pedal/brake and
clutch lever lubrication ...................... 8-75
8
U5YT61.book Page 2 Wednesday, April 7, 2004 3:59 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-47–8-57
ClutchCheck operation, condition and lever free play. 8-67
Parking brakeCheck operation, condition and cable length. 8-59–8-63
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-17–8-27
Drive chainCheck chain slack and condition.
Adjust if necessary.5-13, 8-69–8-73
ThrottleCheck for proper throttle cable operation and free play. 5-15, 8-45
Wheels and tiresCheck tire pressure, wear and damage.5-17–5-23,
8-85–8-87
Fittings and fastenersCheck all fittings and fasteners. 5-15
Lights and switchesCheck for proper operation.5-15, 8-65,
8-97–8-105
U5YT61.book Page 1 Wednesday, April 7, 2004 3:59 PM

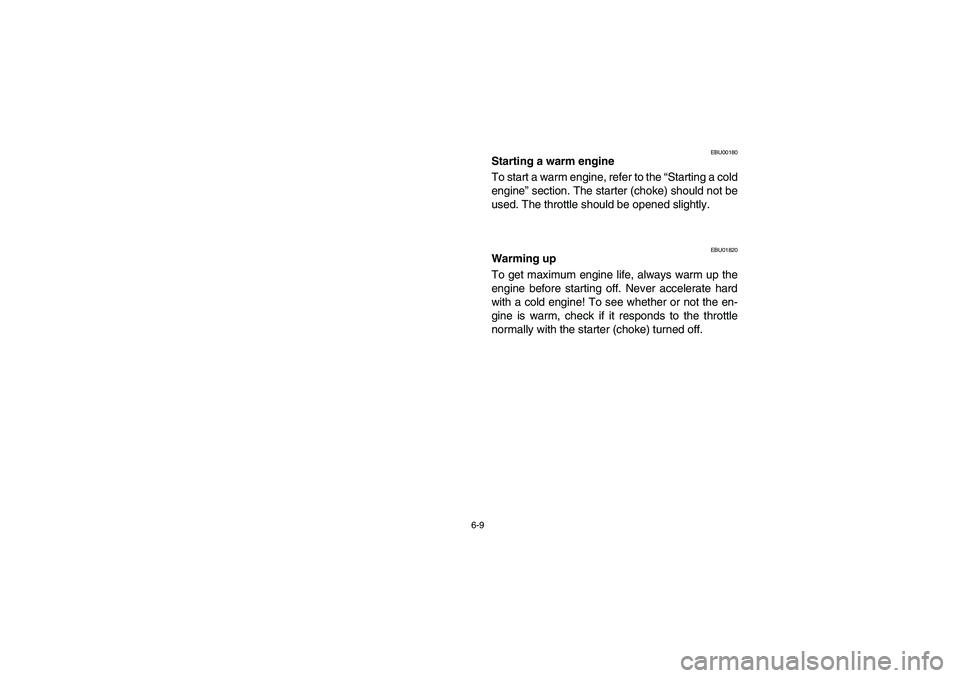

6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU01820
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
U5YT61.book Page 9 Wednesday, April 7, 2004 3:59 PM

8-8 * Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
Engine oil strainer
Clean.Drive chain
Check and adjust slack/alignment/clean/lube.Brakes*Check operation/fluid leakage/See NOTE page 8-9.
Correct if necessary.Clutch*Check operation.
Adjust if necessary.Wheels*Check balance/damage/runout.
Replace if necessary.Wheel bearings*Check bearing assemblies for looseness/damage.
Replace if damaged.Steering system*Check operation.
Repair if damaged.
Check toe-in.
Adjust if necessary.Front and rear
suspension*Check operation.
Correct if necessary.Upper and lower arm
pivot and steering shaft*Lubricate every 6 months with lithium-soap-based grease.Rear arm pivot*
Lubricate every 6 months with lithium-soap-based grease.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.Lights and switches*Check operation.
Adjust headlight beams.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
U5YT61.book Page 8 Wednesday, April 7, 2004 3:59 PM
