Page 145 of 156

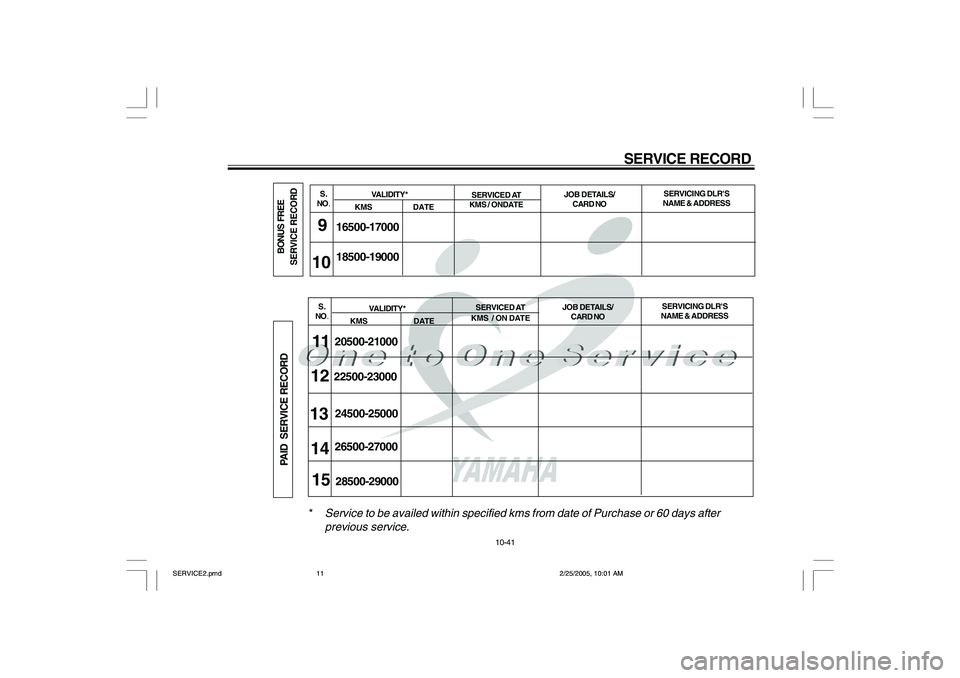

SERVICE RECORD
11
16500-17000
18500-19000
20500-21000
S.
NO.SERVICED AT
KMS / ONDATESERVICING DLR'S
NAME & ADDRESS JOB DETAILS/
CARD NO VALIDITY*
KMS DATE9
10
22500-23000
24500-25000
26500-27000
S.
NO.SERVICED AT
KMS / ON DATESERVICING DLR'S
NAME & ADDRESS JOB DETAILS/
CARD NO VALIDITY*
KMS DATE12
1314
28500-29000
BONUS FREE
SERVICE RECORDPAID SERVICE RECORD
*
Service to be availed within specified kms from date of Purchase or 60 days after
previous service.
15
10-41
SERVICE2.pmd2/25/2005, 10:01 AM 11
Page 146 of 156
SERVICE RECORD
10-42
(i) Cost of Oil for the Free Services will be Chargeable at actuals and to be borne by
the Customer.
(ii) Please ensure that the Servicing Dealer Column is duly Stamped & signed by the
Servicing Dealer.
(iii)For the validity of "Warranty" benefits, It is mandatory that all Services, Bonus
Free Services and Paid Services are availed by the customer as per the
recommended Schedule, as given in the Owner's Manual.
(iv)Please ensure that each service is availed within 60 days from date of previous
service or as per the recomended service schedule whichever is earlier.
I
M
P
O
R
T
A
N
T
SERVICE2.pmd2/25/2005, 10:01 AM 12
Page 147 of 156

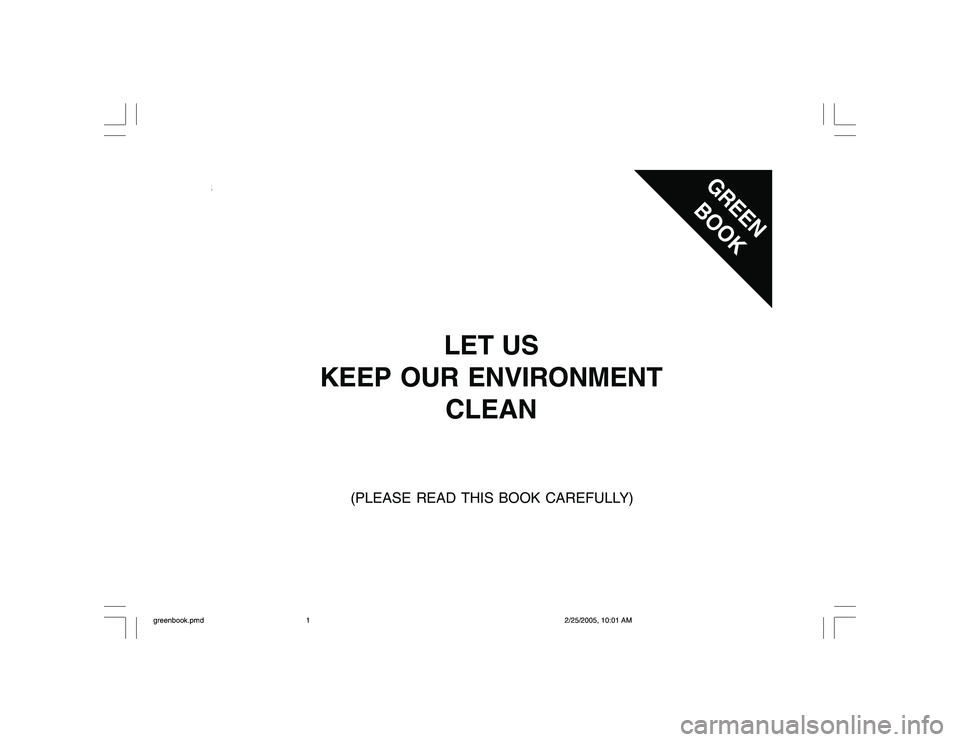

(PLEASE READ THIS BOOK CAREFULLY)
LET US
KEEP OUR ENVIRONMENT
CLEAN
GREEN
BOOK
greenbook.pmd2/25/2005, 10:01 AM 1
Page 148 of 156
CONTENTS• Government Regulations 1
Action by Yamaha Motor India Pvt. Ltd. 1
Guidelines to be followed by the Owners/Users of Motorcycles. 1
DO’S & DON’TS for the Motorcycle 2-3
Procedure for measurement of ‘CO’ Emission Level. 4
List of Components impacting Emission 5
Log Sheets 6
greenbook.pmd2/25/2005, 10:01 AM 2
Page 149 of 156

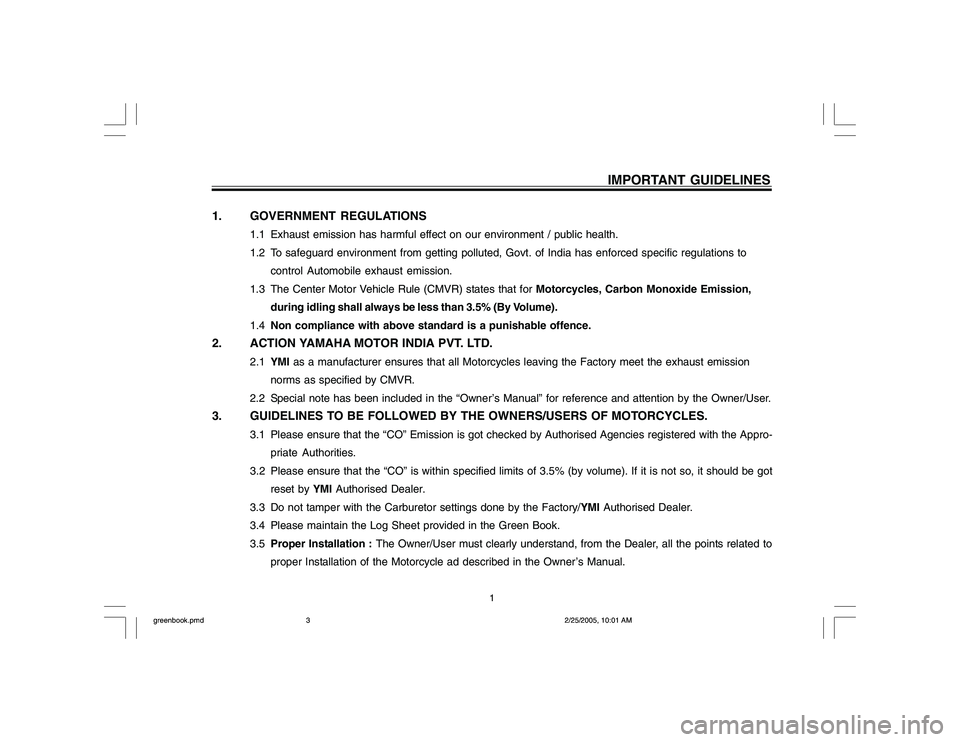

IMPORTANT GUIDELINES
1. GOVERNMENT REGULATIONS
1.1 Exhaust emission has harmful effect on our environment / public health.
1.2 To safeguard environment from getting polluted, Govt. of India has enforced specific regulations to
control Automobile exhaust emission.
1.3 The Center Motor Vehicle Rule (CMVR) states that for Motorcycles, Carbon Monoxide Emission,
during idling shall always be less than 3.5% (By Volume).
1.4Non compliance with above standard is a punishable offence.
2. ACTION YAMAHA MOTOR INDIA PVT. LTD.
2.1YMI as a manufacturer ensures that all Motorcycles leaving the Factory meet the exhaust emission
norms as specified by CMVR.
2.2 Special note has been included in the “Owner’s Manual” for reference and attention by the Owner/User.
3. GUIDELINES TO BE FOLLOWED BY THE OWNERS/USERS OF MOTORCYCLES.
3.1 Please ensure that the “CO” Emission is got checked by Authorised Agencies registered with the Appro-
priate Authorities.
3.2 Please ensure that the “CO” is within specified limits of 3.5% (by volume). If it is not so, it should be got
reset by YMI Authorised Dealer.
3.3 Do not tamper with the Carburetor settings done by the Factory/YMI Authorised Dealer.
3.4 Please maintain the Log Sheet provided in the Green Book.
3.5Proper Installation : The Owner/User must clearly understand, from the Dealer, all the points related to
proper Installation of the Motorcycle ad described in the Owner’s Manual.
1
greenbook.pmd2/25/2005, 10:01 AM 3
Page 150 of 156

3.6 KEEP OUR ENVIRONMENT CLEAN.
Please follow simple steps
DO’S ()
1
Always use genuine ‘spare parts’ purchased from
YMI
Authorised Dealers.
2
Always use only genuine oils
4T - 20W/40 SG grade - YAMALUBE 4T
3 Always keep your engine well turned. Save environment and also improve Fuel Efficiency
4 ALWAYS GET YOUR MOTORCYCLE REPAIRED AND MAINTAINED ONLY AT YMI AUTHORISED
DEALER.
YMI serves you through a large network of Authorised Dealers.
5.Check the Following at every scheduled service:-
a) Spark Plug : Check/Reset Gap/Replace as per the recommendations
in this Owner’s Manual (page no 6-7)
b) Carburetor : Cleaning/Adjustment Every 4500 kmsc) Air Filter : Clean every 2000 kms as per the environment conditions.
d) Piston/Rings/Cylinder : Check / Clean / Replace if necessary
e) Exhaust System : Check / Replace if necessary
f) Valve Timing : Check / Adjust every 4500 kms
g) Compression pressure : Check / Diagnose.
DO’S AND DON’TS FOR THE MOTORCYCLE
2
greenbook.pmd2/25/2005, 10:01 AM 4
Page 151 of 156

DO’S AND DON’TS FOR THE MOTORCYCLE
6 Always drive with Starter Lever in OFF position.
7 Use Starter Lever for minimum possible period (1 to 2 minutes) only to start and warm up Engine
(may be required only in winter)
8 If misfiring, get your Motorcycle diagnosed & attended immediately without running even for a KM.
9
Get Motorcycle maintained regularly as per details and schedule given in Owner’s Manual.
10 Get emission of your Motorcycle inspected at least once every 3 months.
11 Please follow good driven habits in varying traffic conditions.
12 Switch “OFF” the engine while waiting at signal point.
DON’TS ()
1. Don’t overload/overspeed your Motorcycle.
2. Don’t after or modify you Motorcycle.
3. Never drive with Ignition “OFF” while moving down a slope.
4. Don’t turn off the Engine or interrupt the Ignition when the Transmission is in Gear & the Motor
cycle is in motion.
5. Don’t idle the Engine for a prolonged period.
6. Don’t use Non-Genuine Parts.
7. Don’t buy adulterated Petrol/Oil.
3
greenbook.pmd2/25/2005, 10:01 AM 5
Page 152 of 156
4. PROCEDURE FOR MEASUREMENT OF “CO” EMISSION LEVEL
4.1IMPORTANT : “CO” Measurement Equipment must be duty calibrated.
4.2 Check for “NO LEAKAGE” from Exhaust System.
4.3 Starter Lever should be in OFF position.
4.4 All Electricals should be in OFF position.
4.5 Set the Idle speed of the Engine in warmed up condition of Motorcycle as specified.
4.6 Insert the Sampling probe of the Exhaust Gas Analyser inside the Exhaust Muffler of the
Motorcycle.
4.7 If the reading is within specified limits then it is acceptable.
If the reading exceeds the norm of 3.5% (by volume) have it adjusted by YMI Authorised
Dealer.
4.8 YMI serves you through an extensive network of
Authorised Dealers
Authorised Service Points.
Trained Private Workshop (Garage) Owner’s.‘CO’ EMISSION LEVEL MEASUREMENT
4
MODELIDLE R.P.M.
1300 - 1500 RPM
CRUX-S
greenbook.pmd2/25/2005, 10:01 AM 6
