PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 10. Install the panel.
11. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
12. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do notmix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the crankcase.
13. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
14. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20610
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page
3-14.)
2. Remove panel A. (See page 6-5.)
3. Remove the air filter case cover by
removing the screws.
4. Pull the air filter element out.
Tightening torque:
Oil filter element drain screw:
7 Nm (0.7 m·kgf, 5 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element replace-
ment:
3.00 L (3.17 US qt) (2.64 Imp.qt)
With oil filter element replacement:
3.35 L (3.54 US qt) (2.95 Imp.qt)
1. Air filter case cover
2. Screw
U5WME2E0.book Page 10 Tuesday, August 3, 2004 11:40 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
EAU21320
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.NOTE:
The engine is warm when it quickly re-sponds to the throttle.
Check the engine idling speed and, if
necessary, adjust it to specification by
turning the throttle stop screw. To in-
crease the engine idling speed, turn the
screw in direction (a). To decrease the
engine idling speed, turn the screw in
direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
1. Throttle stop screw
Engine idling speed:
950–1150 r/min
1. Throttle cable free play
U5WME2E0.book Page 12 Tuesday, August 3, 2004 11:40 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500


The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
WARNING
EWA11020
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind.Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
90–203 kg (198–448 lb):
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Maximum load*:
203 kg (448 lb)
* Total weight of rider, passenger, car-
go and accessories
U5WME2E0.book Page 13 Tuesday, August 3, 2004 11:40 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU23021
Lubricating the drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.CAUTION:
ECA11120
To prevent damaging the O-rings, do
not clean the drive chain with steam
cleaners, high-pressure washers orinappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
CAUTION:
ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that coulddamage the O-rings.
EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.Recommended lubricant:
Engine oil
U5WME2E0.book Page 21 Tuesday, August 3, 2004 11:40 AM

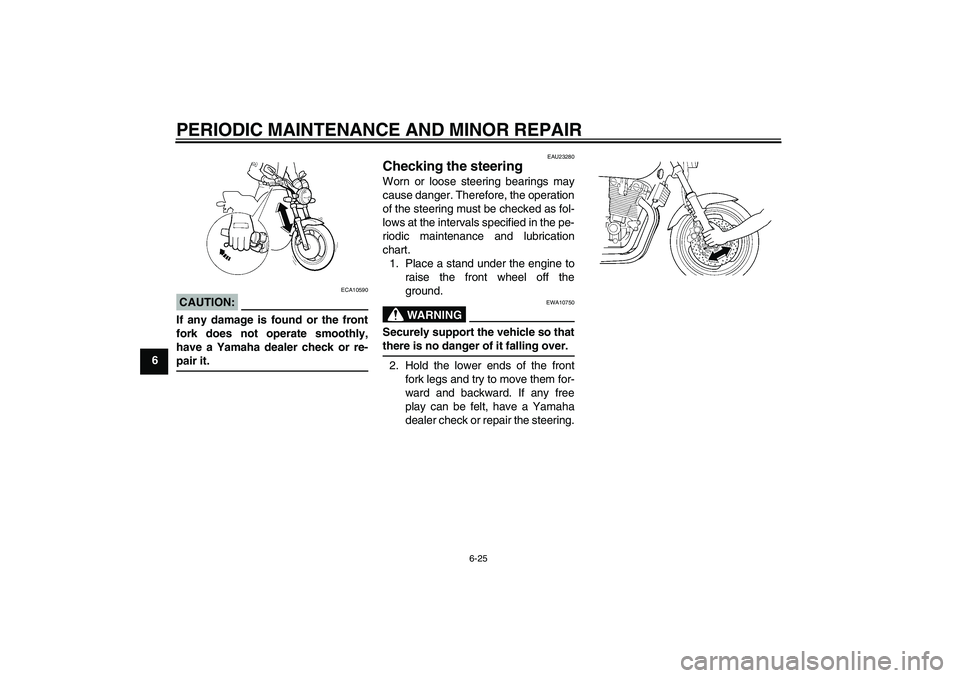

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U5WME2E0.book Page 25 Tuesday, August 3, 2004 11:40 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU25891
Troubleshooting chart
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U5WME2E0.book Page 35 Tuesday, August 3, 2004 11:40 AM

MOTORCYCLE CARE AND STORAGE
7-4
7
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.
6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30°C (90 °F)]. For more information
on storing the battery, see page
6-26.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U5WME2E0.book Page 4 Tuesday, August 3, 2004 11:40 AM

INDEXAAir filter element, cleaning..................... 6-10
Anti-theft alarm (optional)........................ 3-7
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-26
Brake and clutch fluid levels,
checking ............................................. 6-18
Brake and clutch fluids, changing ......... 6-19
Brake and clutch levers,
checking and lubricating ..................... 6-23
Brake and shift pedals,
checking and lubricating ..................... 6-22
Brake lever ............................................ 3-10
Brake pedal ........................................... 3-10CCables, checking and lubricating .......... 6-21
Carburetors, adjusting........................... 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-13
Centerstand and sidestand,
checking and lubricating ..................... 6-23
Clutch lever ............................................. 3-9
Clutch lever free play ............................ 6-16DDimmer switch ........................................ 3-8
Drive chain, lubricating.......................... 6-21
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-4
Engine idling speed............................... 6-12
Engine oil and oil filter element ............... 6-8
Engine, starting a warm .......................... 5-2
Engine stop switch .................................. 3-8
FFront and rear brake pads, checking .... 6-17
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-24
Fuel....................................................... 3-11
Fuel cock .............................................. 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-12
Fuel tank cap ........................................ 3-11
Fuses, replacing ................................... 6-27HHandlebar switches ................................ 3-7
Hazard switch ......................................... 3-8
Headlight bulb, replacing ...................... 6-28
Helmet holder ....................................... 3-15
High beam indicator light ........................ 3-4
Horn switch ............................................. 3-8IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-19
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLuggage strap holders .......................... 3-18MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-3
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-8
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-16SSafety information ................................... 1-1
Seat ....................................................... 3-14
Self-diagnosis device .............................. 3-5
Shifting .................................................... 5-3
Shift pedal ............................................... 3-9
Shock absorber assemblies,
adjusting ............................................. 3-17
Sidestand .............................................. 3-18
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starter (choke) lever.............................. 3-14
Starting a cold engine ............................. 5-1
Start switch.............................................. 3-8
Steering, checking................................. 6-25
Storage.................................................... 7-3
Storage compartment............................ 3-15
Swingarm pivots, lubricating ................. 6-24TTachometer ............................................. 3-5
Tail/brake light bulb, replacing .............. 6-30
U5WME2E0.book Page 1 Tuesday, August 3, 2004 11:40 AM
