5 - 5
CHASFRONT WHEEL AND REAR WHEEL
EC595000
ASSEMBLY AND INSTALLATION
Front wheel
1. Install:
Bearing (left) 1
Spacer 2
Bearing (right) 3
Oil seal 4
NOTE:
Apply the lithium soap base grease on the
bearing and oil seal lip when installing.
Use a socket that matches the outside diam-
eter of the race of the bearing.
Left side of bearing shall be installed first.
Install the oil seal with its manufacture’s
marks or numbers facing outward.
CAUTION:
Do not strike the inner race of the bearing.
Contact should be made only with the outer
race.
2. Install:
Brake disc 1
Bolt (brake disc) 2
NOTE:
Tighten the bolts in stage, using a crisscross
pattern.
New
T R..12 Nm (1.2 m · kg, 8.7 ft · lb)
3. Install:
Collar 1
NOTE:
Apply the lithium soap base grease on the oil
seal lip.
4. Install:
Trip meter gear unit 1
NOTE:
Apply the lithium soap base grease on the oil
seal lip of the trip meter gear unit.
Make sure the two projections a in the
wheel hub are meshed with the two slots b
in the trip meter gear unit.
b a1
B

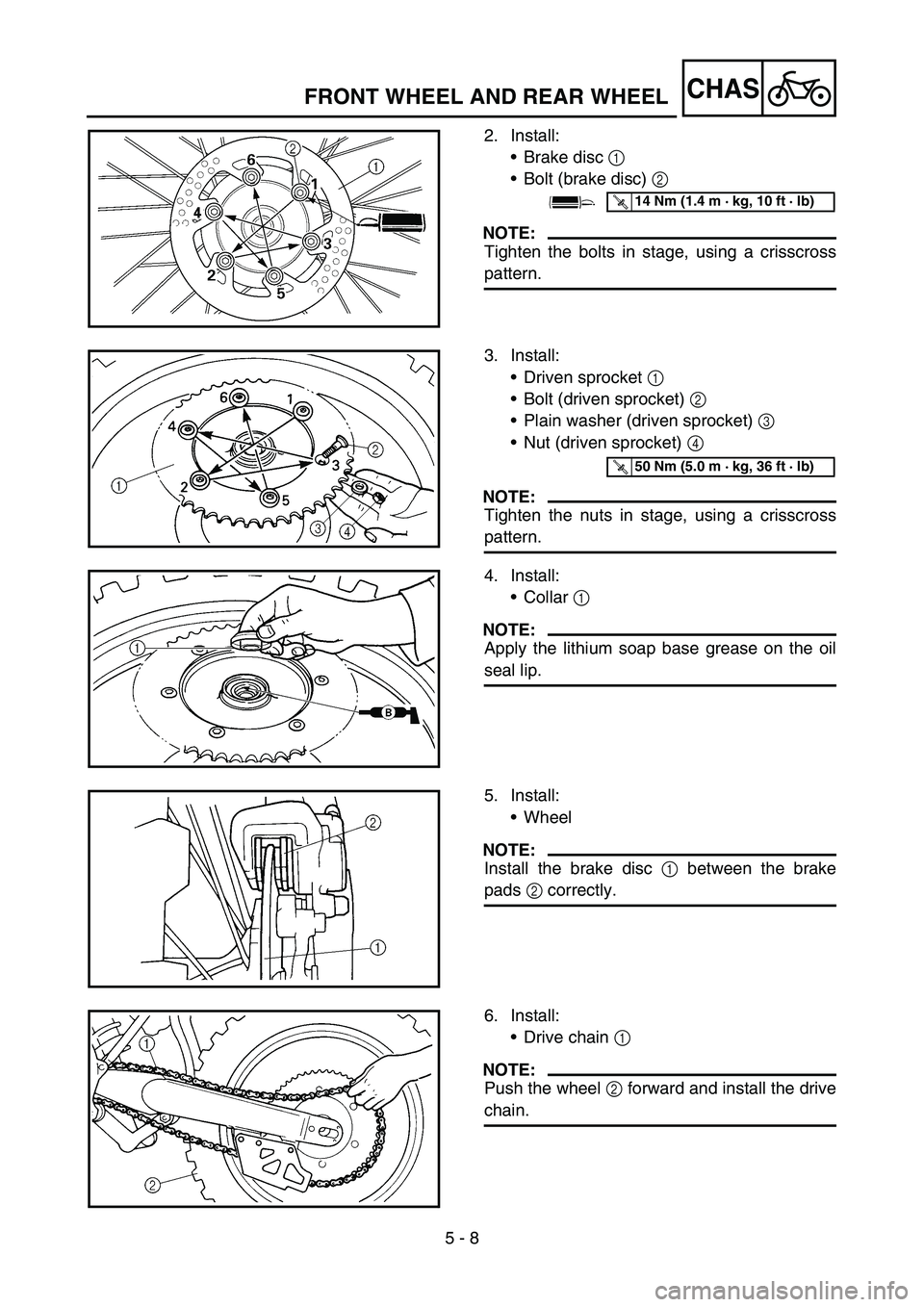

5 - 8
CHAS
2. Install:
•Brake disc 1
Bolt (brake disc) 2
NOTE:
Tighten the bolts in stage, using a crisscross
pattern.
T R..14 Nm (1.4 m · kg, 10 ft · lb)
3. Install:
Driven sprocket 1
Bolt (driven sprocket) 2
Plain washer (driven sprocket) 3
Nut (driven sprocket) 4
NOTE:
Tighten the nuts in stage, using a crisscross
pattern.
T R..50 Nm (5.0 m · kg, 36 ft · lb)
4. Install:
Collar 1
NOTE:
Apply the lithium soap base grease on the oil
seal lip.
5. Install:
Wheel
NOTE:
Install the brake disc 1 between the brake
pads 2 correctly.
6. Install:
Drive chain 1
NOTE:
Push the wheel 2 forward and install the drive
chain.
FRONT WHEEL AND REAR WHEEL
