TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Main switch/steering lock .................3-1
Indicator lights .................................3-2
Speedometer unit ............................3-2
Handlebar switches .........................3-3
Clutch lever ......................................3-4
Shift pedal ........................................3-4
Brake lever ......................................3-4
Brake pedal .....................................3-5
Fuel tank cap ...................................3-5
Fuel ..................................................3-6
Fuel cock .........................................3-6
Starter (choke) knob “
1
” .................3-7
Seat .................................................3-8
Helmet holder ..................................3-8
Storage pouch .................................3-9
Shock absorber ...............................3-9
Sidestand .........................................3-9
Ignition circuit cut-off system .........3-10
PRE-OPERATION CHECKS
...............4-1
Pre-operation check list ...................4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting a cold engine ..................... 5-1
Starting a warm engine ................... 5-2
Shifting ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-2
Removing and installing panels ...... 6-5
Checking the spark plug .................. 6-6
Engine oil and oil filter element ....... 6-8
Replacing the air filter element and
cleaning the check hose ............ 6-11
Adjusting the carburetor ................ 6-12
Adjusting the engine idling
speed ......................................... 6-12
Checking the throttle cable free
play ............................................ 6-13
Valve clearance ............................. 6-13
Tires .............................................. 6-13
Spoke wheels ................................ 6-15
Adjusting the clutch lever free
play ............................................ 6-16Adjusting the brake lever free
play ............................................ 6-16
Adjusting the rear brake light
switch ......................................... 6-17
Checking the front and rear brake
pads ........................................... 6-17
Checking the brake fluid level ....... 6-18
Changing the brake fluid ............... 6-19
Drive chain slack ........................... 6-19
Cleaning and lubricating the drive
chain .......................................... 6-20
Checking and lubricating the
cables ........................................ 6-21
Checking and lubricating the
throttle grip and cable ................ 6-21
Checking and lubricating the brake
and shift pedals ......................... 6-22
Checking and lubricating the brake
and clutch levers ........................ 6-22
Checking and lubricating the
sidestand ................................... 6-23
Lubricating the rear
suspension ................................ 6-23
Checking the front fork .................. 6-24
Checking the steering ................... 6-24
Checking the wheel bearings ........ 6-25
Battery ........................................... 6-25
Replacing the fuse ........................ 6-27
Replacing the headlight bulb ........ 6-27
Replacing the tail/brake light
bulb ............................................ 6-29

SAFETY INFORMATION
1-3
1
the motorcycle to minimize imbal-
ance or instability.

Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.

Never attach any large or heavy
items to the handlebar, front fork,
or front fender. These items, in-
cluding such cargo as sleeping
bags, duffel bags, or tents, can
create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep the following guidelines in mind,
as well as those provided under “Load-ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.

Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.

Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also causeinstability when passing or being
passed by large vehicles.

Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.

Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas

GASOLINE IS HIGHLY FLAMMA-
BLE:

Always turn the engine off when
refueling.

Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.

Never refuel while smoking or in
the vicinity of an open flame.

Never start the engine or let it run

5-1
2
3
4
56
7
8
9

OPERATION AND IMPORTANT RIDING POINTS
EAU15950
WARNING

EWA10270

Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.

Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.

Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
EAU16060
Starting a cold engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.

The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
WARNING

EWA10290

Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-10.

Never ride with the sidestand
down.
1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to “ ”.
3. Shift the transmission into the neu-
tral position.
NOTE:

When the transmission is in the neutral
position, the neutral indicator lightshould be on, otherwise have a
Yamaha dealer check the electrical cir-
cuit.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 3-7.)
5. Start the engine by pushing the
start switch.
NOTE:

If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt.
6. After starting the engine, move the
starter (choke) back halfway.
CAUTION:

ECA11040
For maximum engine life, never ac-
celerate hard when the engine is
cold!
7. When the engine is warm, turn the
starter (choke) off.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
2
3
4
5
67
8

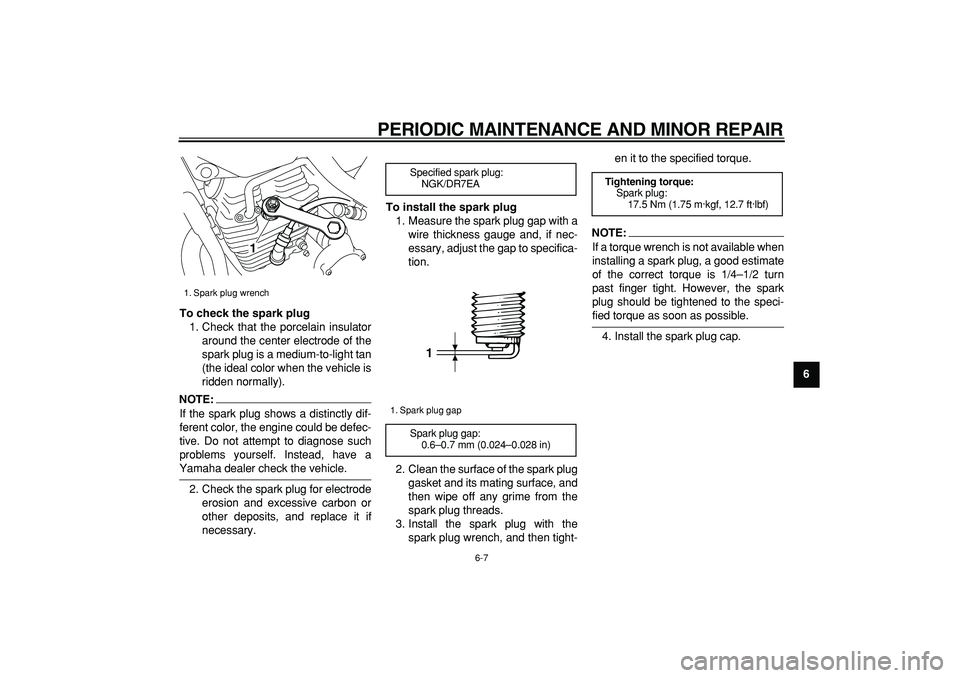

9 To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
NOTE:

If the spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-en it to the specified torque.
NOTE:

If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
4. Install the spark plug cap.
1. Spark plug wrench
1

Specified spark plug:
NGK/DR7EA
1. Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
1

Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
1
2
3
4
5
6
7
8
9

EAU37801
Engine oil and oil filter
element
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the General periodic maintenance
and lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:

Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in a
false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
NOTE:

The engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter element replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engineto collect the used oil.
3. Remove the engine oil filler bolt
and drain bolt to drain the oil from
the crankcase.
1. Maximum level mark
2. Minimum level mark
3. Engine oil level check window
1
2
3

1. Engine oil filler bolt
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
2
3
4
5
67
8
9

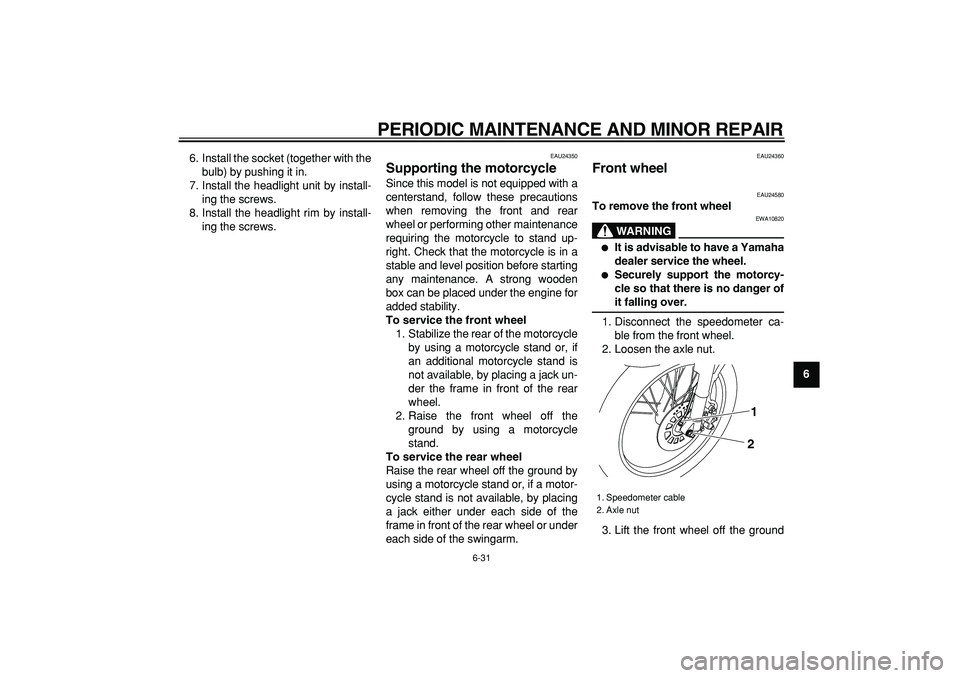

6. Install the socket (together with the
bulb) by pushing it in.
7. Install the headlight unit by install-
ing the screws.
8. Install the headlight rim by install-
ing the screws.

EAU24350
Supporting the motorcycle
Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.

EAU24360
Front wheel
EAU24580
To remove the front wheel
WARNING

EWA10820

It is advisable to have a Yamaha
dealer service the wheel.

Securely support the motorcy-
cle so that there is no danger of
it falling over.
1. Disconnect the speedometer ca-
ble from the front wheel.
2. Loosen the axle nut.
3. Lift the front wheel off the ground
1. Speedometer cable
2. Axle nut
1
2

INDEX
A
Air filter element and check hose, replacing
and cleaning ..........................................6-11
Auxiliary light bulb, replacing ...................6-30
B
Battery .....................................................6-25
Brake and clutch levers, checking and
lubricating ..............................................6-22
Brake and shift pedals, checking and
lubricating ..............................................6-22
Brake fluid, changing ...............................6-19
Brake fluid level, checking .......................6-18
Brake lever ................................................3-4
Brake lever free play, adjusting ...............6-16
Brake pedal ...............................................3-5
C
Cables, checking and lubricating .............6-21
Carburetor, adjusting ...............................6-12
Care ...........................................................7-1
Caution, matte black ..................................7-1
Clutch lever ................................................3-4
Clutch lever free play, adjusting ..............6-16
D
Dimmer switch ...........................................3-3
Drive chain, cleaning and lubricating .......6-20
Drive chain slack .....................................6-19
E
Engine break-in .........................................5-3
Engine idling speed .................................6-12
Engine oil and oil filter element ..................6-8
Engine, starting a warm .............................5-2
Engine stop switch.....................................3-3
F
Front and rear brake pads, checking .......6-17Front fork, checking ................................. 6-24
Fuel ........................................................... 3-6
Fuel cock ................................................... 3-6
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ............................................. 3-5
Fuse, replacing ........................................ 6-27
H
Handlebar switches ................................... 3-3
Headlight bulb, replacing ......................... 6-27
Helmet holder ............................................ 3-8
High beam indicator light ........................... 3-2
Horn switch................................................ 3-3
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-10
Indicator lights ........................................... 3-2
K
Key identification number .......................... 9-1
M
Main switch/steering lock .......................... 3-1
Model label ................................................ 9-2
N
Neutral indicator light................................. 3-2
P
Panels, removing and installing................. 6-5
Parking ...................................................... 5-4
Part locations............................................. 2-1
Periodic maintenance and lubrication
chart ........................................................ 6-2
Pre-operation check list ............................. 4-2
R
Rear brake light switch, adjusting............ 6-17
Rear suspension, lubricating ................... 6-23
S
Safety information ..................................... 1-1
Seat ........................................................... 3-8
Shifting ...................................................... 5-2
Shift pedal ................................................. 3-4
Shock absorber ......................................... 3-9
Sidestand .................................................. 3-9
Sidestand, checking and lubricating........ 6-23
Spark plug, checking ................................. 6-6
Specifications ............................................ 8-1
Speedometer unit ...................................... 3-2
Starter (choke) knob.................................. 3-7
Starting a cold engine ............................... 5-1
Start switch................................................ 3-3
Steering, checking................................... 6-24
Storage...................................................... 7-3
Storage pouch ........................................... 3-9
Supporting the motorcycle ...................... 6-31
T
Tail/brake light bulb, replacing ................ 6-29
Throttle cable free play, checking ........... 6-13
Throttle grip and cable, checking and
lubricating ............................................. 6-21
Tires ........................................................ 6-13
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-34
Troubleshooting chart ............................. 6-35
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-29
Turn signal switch ..................................... 3-3
V
Valve clearance....................................... 6-13
Vehicle identification number .................... 9-1
