PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
2
3
4
5
67
8
9

EAU21381
Checking the throttle cable
free play
The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance
The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21581
Tires
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING

EWA10500

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).

The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
1. Throttle cable free play
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
2
3
4
5
67
8
9
CAUTION:

ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that could
damage the O-rings.
EAU23100
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING

EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
Recommended lubricant:
Engine oil

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
1
2
3
4
5
6
7
8
9

EAU23271

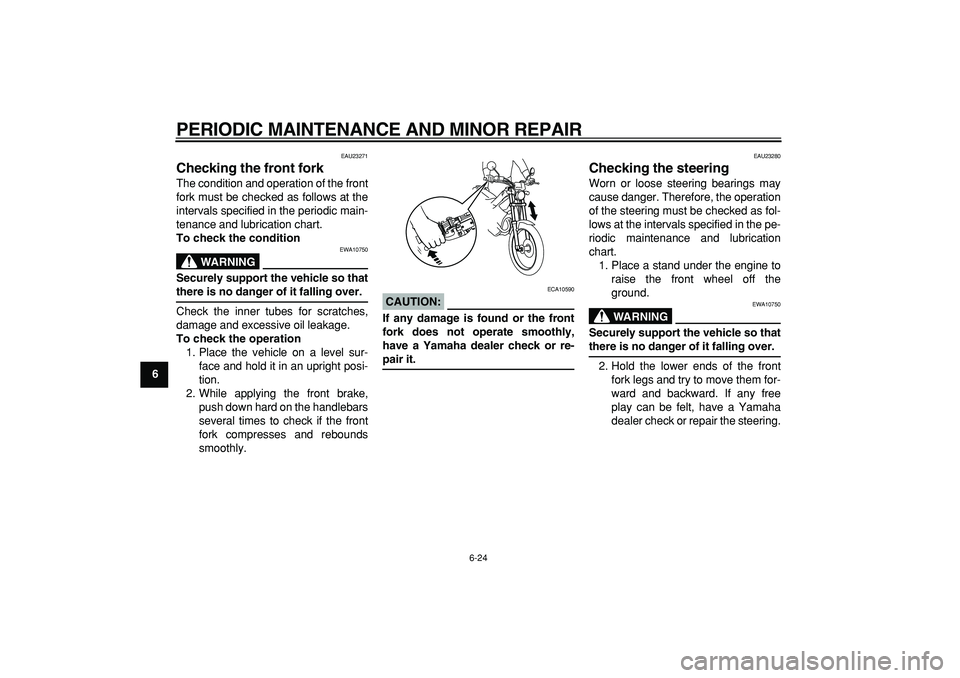

Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING

EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:

ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING

EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
2
3
4
5
67
8
9
6. Install the socket (together with the
bulb) by pushing it in.
7. Install the headlight unit by install-
ing the screws.
8. Install the headlight rim by install-
ing the screws.

EAU24350
Supporting the motorcycle
Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.

EAU24360
Front wheel
EAU24580
To remove the front wheel
WARNING

EWA10820

It is advisable to have a Yamaha
dealer service the wheel.

Securely support the motorcy-
cle so that there is no danger of
it falling over.
1. Disconnect the speedometer ca-
ble from the front wheel.
2. Loosen the axle nut.
3. Lift the front wheel off the ground
1. Speedometer cable
2. Axle nut
1
2

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
2
3
4
5
67
8
9

EAU25901
Troubleshooting chart
WARNING

EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.

MOTORCYCLE CARE AND STORAGE
7-4
2
3
4
5
6
78
9
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
WARNING

EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place
[less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more in-formation on storing the battery,
see page 6-25.
NOTE:

Make any necessary repairs before
storing the motorcycle.

INDEX
A
Air filter element and check hose, replacing
and cleaning ..........................................6-11
Auxiliary light bulb, replacing ...................6-30
B
Battery .....................................................6-25
Brake and clutch levers, checking and
lubricating ..............................................6-22
Brake and shift pedals, checking and
lubricating ..............................................6-22
Brake fluid, changing ...............................6-19
Brake fluid level, checking .......................6-18
Brake lever ................................................3-4
Brake lever free play, adjusting ...............6-16
Brake pedal ...............................................3-5
C
Cables, checking and lubricating .............6-21
Carburetor, adjusting ...............................6-12
Care ...........................................................7-1
Caution, matte black ..................................7-1
Clutch lever ................................................3-4
Clutch lever free play, adjusting ..............6-16
D
Dimmer switch ...........................................3-3
Drive chain, cleaning and lubricating .......6-20
Drive chain slack .....................................6-19
E
Engine break-in .........................................5-3
Engine idling speed .................................6-12
Engine oil and oil filter element ..................6-8
Engine, starting a warm .............................5-2
Engine stop switch.....................................3-3
F
Front and rear brake pads, checking .......6-17Front fork, checking ................................. 6-24
Fuel ........................................................... 3-6
Fuel cock ................................................... 3-6
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ............................................. 3-5
Fuse, replacing ........................................ 6-27
H
Handlebar switches ................................... 3-3
Headlight bulb, replacing ......................... 6-27
Helmet holder ............................................ 3-8
High beam indicator light ........................... 3-2
Horn switch................................................ 3-3
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-10
Indicator lights ........................................... 3-2
K
Key identification number .......................... 9-1
M
Main switch/steering lock .......................... 3-1
Model label ................................................ 9-2
N
Neutral indicator light................................. 3-2
P
Panels, removing and installing................. 6-5
Parking ...................................................... 5-4
Part locations............................................. 2-1
Periodic maintenance and lubrication
chart ........................................................ 6-2
Pre-operation check list ............................. 4-2
R
Rear brake light switch, adjusting............ 6-17
Rear suspension, lubricating ................... 6-23
S
Safety information ..................................... 1-1
Seat ........................................................... 3-8
Shifting ...................................................... 5-2
Shift pedal ................................................. 3-4
Shock absorber ......................................... 3-9
Sidestand .................................................. 3-9
Sidestand, checking and lubricating........ 6-23
Spark plug, checking ................................. 6-6
Specifications ............................................ 8-1
Speedometer unit ...................................... 3-2
Starter (choke) knob.................................. 3-7
Starting a cold engine ............................... 5-1
Start switch................................................ 3-3
Steering, checking................................... 6-24
Storage...................................................... 7-3
Storage pouch ........................................... 3-9
Supporting the motorcycle ...................... 6-31
T
Tail/brake light bulb, replacing ................ 6-29
Throttle cable free play, checking ........... 6-13
Throttle grip and cable, checking and
lubricating ............................................. 6-21
Tires ........................................................ 6-13
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-34
Troubleshooting chart ............................. 6-35
Turn signal indicator light .......................... 3-2
Turn signal light bulb, replacing .............. 6-29
Turn signal switch ..................................... 3-3
V
Valve clearance....................................... 6-13
Vehicle identification number .................... 9-1
