2005 YAMAHA TDM 900 turn signal bulb

TABLE OF CONTENTS
Replacing the tail/brake light
bulb ............................................ 6-30
Replacing a turn signal light
bulb ............................................ 6-31
Replacing an auxiliary light bulb .... 6-31
Supporting the motorcycle ............. 6-32
Troubleshooting ............................. 6-32
Troubleshooting charts .................. 6-33
MOTORCYCLE CARE AND
STORAGE
........................................... 7-1
Care ................................................. 7-1
Storage ............................................ 7-3
SPECIFICATIONS
.............................. 8-1
CONSUMER INFORMATION
.............. 9-1
Identification numbers ..................... 9-1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
1
2
3
4
5
6
7
8
9
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:

ECA10640
Do not use a fuse of a higher amper-
age rating than recommended toavoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23750
Replacing a headlight bulb
This model is equipped with two quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.
1. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
2. Unhook the headlight bulb holder,
and then remove the defective
bulb.
Specified fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Radiator fan fuse:
20.0 A
Ignition fuse:
10.0 A
Signaling system fuse:
10.0 A
Backup fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Turn signal light and hazard fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS control unit fuse:
10.0 A
1. Headlight bulb holder
2. Headlight coupler
1
2

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
1
2
3
4
5
6
7
8
9

EAU24201
Replacing a turn signal light
bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
CAUTION:

ECA11190
Do not overtighten the screw, other-
wise the lens may break.
EAU36450
Replacing an auxiliary light
bulb
1. Remove the auxiliary light lens by
removing the screws.
2. Remove the defective bulb by pull-
ing it out.
1. Screw
2. Turn signal light lens
12

1. Turn signal light bulb1
1. Auxiliary light lens
2. Screw
21

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8
9Electrical system:

Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:
Headlight:
12 V, 55.0 W
×
2
Tail/brake light:
12 V, 5.0 W/21.0 W
×
1
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
Meter lighting:
14 V, 2.0 W
×
2
Neutral indicator light:
14 V, 1.2 W
×
1
High beam indicator light:
14 V, 1.4 W
×
1
Oil level warning light:
LEDTurn signal indicator light:
14 V, 1.2 W
×
1
Engine trouble warning light:
14 V, 1.4 W
×
1
ABS warning light:
14 V, 1.4 W
×
1
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Turn signal light and hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Backup fuse:
10.0 A

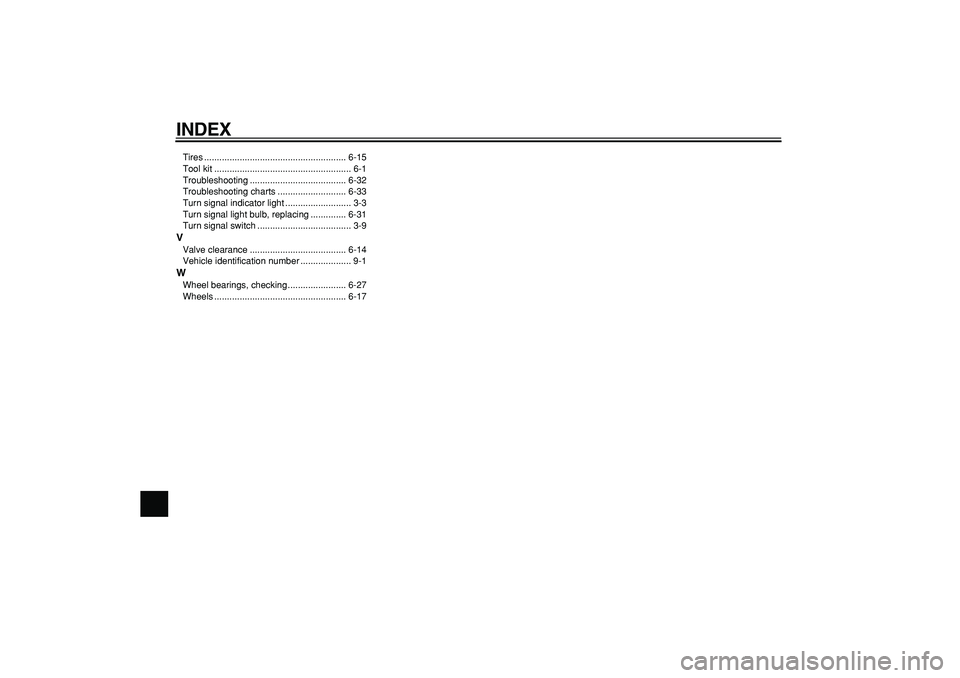

INDEX
Tires ........................................................ 6-15
Tool kit ...................................................... 6-1
Troubleshooting ...................................... 6-32
Troubleshooting charts ........................... 6-33
Turn signal indicator light .......................... 3-3
Turn signal light bulb, replacing .............. 6-31
Turn signal switch ..................................... 3-9
V
Valve clearance ...................................... 6-14
Vehicle identification number .................... 9-1
W
Wheel bearings, checking ....................... 6-27
Wheels .................................................... 6-17
