2005 YAMAHA RHINO 660 ECO mode

EVU00050
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND VEHICLE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-7
Key identification number ..................... 3-9
Vehicle identification number ............. 3-11
Model label ......................................... 3-13
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-5
Multi-function meter unit ..................... 4-13
Switches ............................................. 4-19
Accelerator pedal ............................... 4-33
Brake pedal ........................................ 4-35
Parking brake lever ............................ 4-37
Drive select lever ................................ 4-39
Fuel tank cap ...................................... 4-39
Fuel level check window..................... 4-41
Starter (choke) ................................... 4-41
1234
Seats .................................................. 4-43
Seat belts ........................................... 4-45
Glove compartment............................ 4-49
Cargo bed .......................................... 4-51
Front and rear shock absorber
adjustment ....................................... 4-57
Trailer hitch bracket ........................... 4-61
Auxiliary DC jack ................................ 4-63
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Coolant............................................... 5-17
Final gear oil ...................................... 5-21
Differential gear oil ............................. 5-21
Accelerator pedal ............................... 5-23
Seat belts ........................................... 5-23
Steering.............................................. 5-25
Fittings and fasteners......................... 5-25
Lights ................................................. 5-25
Switches............................................. 5-27
Tires ................................................... 5-29
How to measure tire pressure ............ 5-33
5
U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

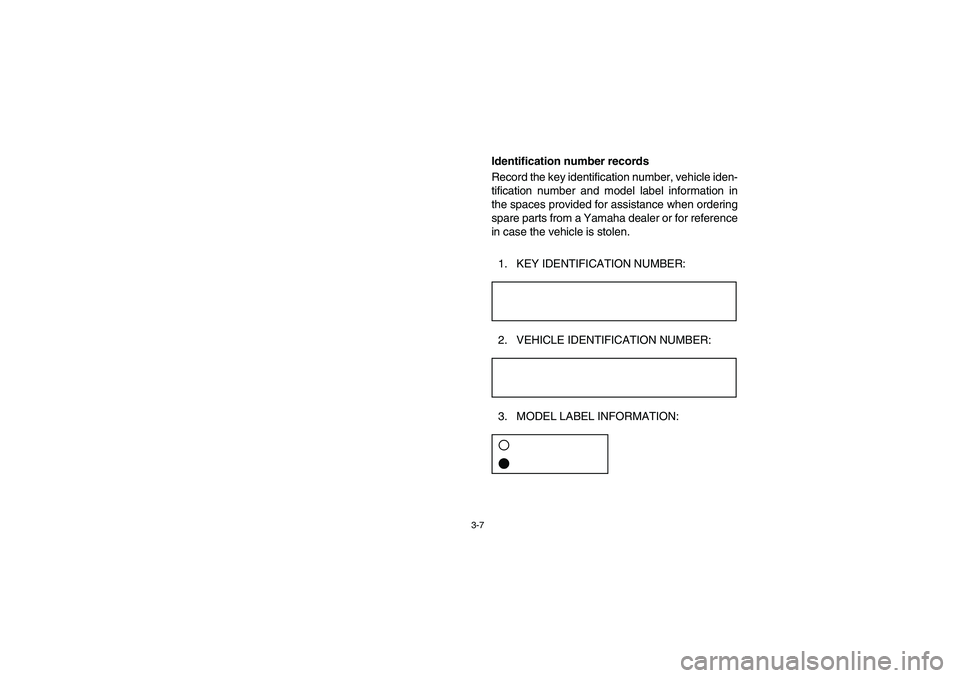

3-7
EVU00090
Identification number records
Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided for assistance when ordering
spare parts from a Yamaha dealer or for reference
in case the vehicle is stolen.
1. KEY IDENTIFICATION NUMBER:ACA-02E2. VEHICLE IDENTIFICATION NUMBER:ACA-02E3. MODEL LABEL INFORMATION:ACA-01E
U5UG61.book Page 7 Monday, September 6, 2004 9:00 AM

3-13 1. Model label
1.Étiquette de modèle
1. Etiqueta del modelo
EVU00120
Model label
The model label is affixed to the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed to order spare parts from your Yamaha dealer.
U5UG61.book Page 13 Monday, September 6, 2004 9:00 AM

4-15 1. Speedometer 2.“H” button
3.“M” button 4. Clock/Hour meter
5. Odometer/Tripmeter A/Tripmeter B
6.“TRIP/ODO” button 7. Clock/Hour button “”/“”
1. Compteur de vitesse 2. Bouton “H”
3. Bouton “M”4. Montre/compteur horaire
5. Compteur kilométrique/totalisateur journalier A/
totalisateur journalier B
6. Bouton “TRIP/ODO”
7. Bouton de la montre/du temps “”/“”
1. Velocímetro 2. Botón “H”
3. Botón “M”4. Reloj/Cuentahoras
5. Cuentakilómetros/Cuentakilómetros parcial A/
Cuentakilómetros parcial B
6. Botón “TRIP/ODO”
7. Botón Reloj/Cuentahoras “”/“”
Odometer and tripmeter modes
Pushing the “TRIP/ODO” button switches the dis-
play between the odometer mode “ODO” and the
tripmeter modes “A” and “B” in the following order:
ODO
→TRIP A
→TRIP B
→ODO
To reset a tripmeter, select it by pushing the “TRIP/
ODO” button, and then push the “TRIP/ODO” but-
ton for at least three seconds. The tripmeters can
be used to estimate the distance that can be trav-
eled with a full tank of fuel. This information will en-
able you to plan future fuel stops.NOTE:_ Holding in the “TRIP/ODO” button and then turning
the key to “ON” switches the display between
“mph” and “km/h”. _
U5UG61.book Page 15 Monday, September 6, 2004 9:00 AM

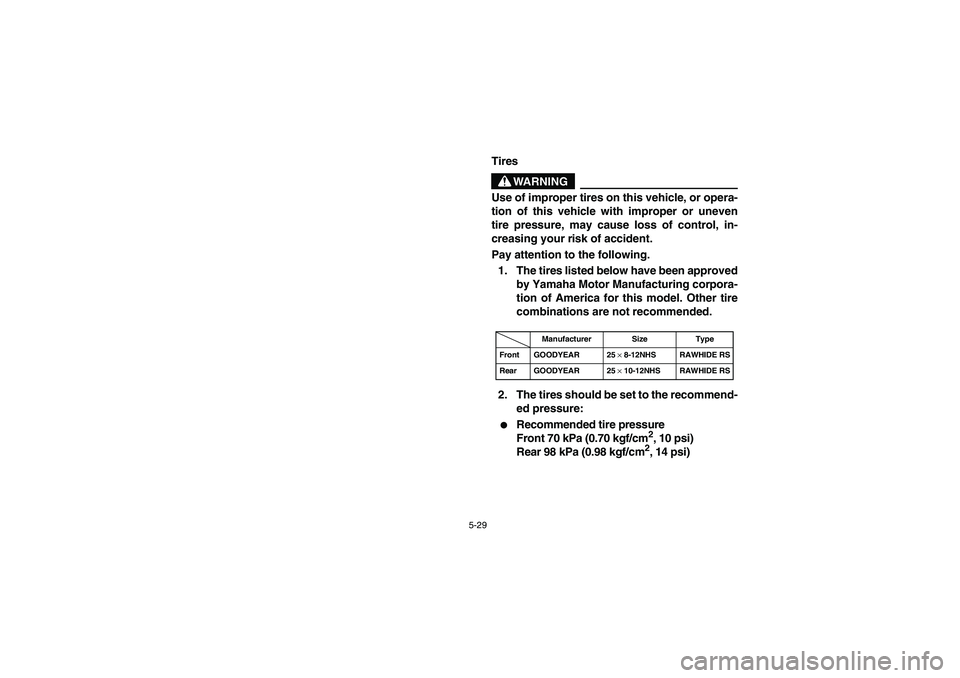

5-29
EVU01380
Tires
WARNING
Use of improper tires on this vehicle, or opera-
tion of this vehicle with improper or uneven
tire pressure, may cause loss of control, in-
creasing your risk of accident.
Pay attention to the following.
1. The tires listed below have been approved
by Yamaha Motor Manufacturing corpora-
tion of America for this model. Other tire
combinations are not recommended.ACE-01E2. The tires should be set to the recommend-
ed pressure:

Recommended tire pressure
Front 70 kPa (0.70 kgf/cm
2, 10 psi)
Rear 98 kPa (0.98 kgf/cm2, 14 psi)
Manufacturer Size Type
Front GOODYEAR 25
× 8-12NHS RAWHIDE RS
Rear GOODYEAR 25
× 10-12NHS RAWHIDE RS
U5UG61.book Page 29 Monday, September 6, 2004 9:00 AM

5-30
FVU01380
Pneus
AVERTISSEMENT
La conduite avec des pneus qui ne conviennent pas ou
dont la pression de gonflage est inégale ou incorrecte
pourrait entraîner une perte de contrôle du véhicule
et augmenter les risques d’accident.
Lire attentivement ce qui suit :
1. Les pneus mentionnés ci-dessous ont été ap-
prouvés par la Yamaha Motor Manufacturing
corporation of America pour ce modèle. Il est
déconseillé de monter d’autres pneus sur ce vé-
hicule.ACE-01F2. Gonfler les pneus à la pression recommandée:

Pression de gonflage recommandée
Avant : 70 kPa (0,70 kgf/cm
2, 10 psi)
Arrière : 98 kPa (0,98 kgf/cm2, 14 psi)
Fabricant Taille Type
Avant GOODYEAR 25 ×
8-12NHS RAWHIDE RS
Arrière GOODYEAR 25 ×
10-12NHS RAWHIDE RS
SVU01380
Neumáticos
ADVERTENCIA
El uso de neumáticos inadecuados en este vehí-
culo o la utilización del mismo cuando la presión
de los neumáticos es incorrecta o desigual pue-
de ocasionar la pérdida de control, con el consi-
guiente riesgo de accidente.
Preste atención a los puntos siguientes.
1. Los neumáticos que se enumeran a conti-
nuación han sido aprobados por Yamaha
Motor Manufacturing Corporation of Ameri-
ca para este modelo. No se recomiendan
otras combinaciones de neumáticos.ACE-01E2. Los neumáticos deben tener la presión re-
comendada:

Presión recomendada
Delanteros 70 kPa (0,70 kgf/cm
2, 10 psi)
Traseros 98 kPa (0,98 kgf/cm
2, 14 psi)
Marca Medida Tipo
Delan-
terosGOODYEAR 25
× 8-12NHS RAWHIDE RS
Trase-
rosGOODYEAR 25
× 10-12NHS RAWHIDE RS
U5UG61.book Page 30 Monday, September 6, 2004 9:00 AM

10-2
10
Compression ratio 9.10 :1
Starting system Electric starter
Lubrication system Wet sump
Engine oil:
Type
Recommended engine oil classification API Service SE, SF, SG type or higherModel YXR660FA
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
CAUTION:
In order to prevent clutch slippage (since the en-
gine oil also lubricates the clutch), do not mix any
chemical additives. Do not use oils with a diesel
specification of “CD” or oils of a higher quality
than specified. In addition, do not use oils labeled
“ENERGY CONSERVING II” or higher.
U5UG61.book Page 2 Monday, September 6, 2004 9:00 AM

10-4
Spark plug:
Type/manufacturer DPR8EA-9/NGK
Spark plug gap 0.8–0.9 mm (0.031–0.035 in)
Clutch type: Wet, centrifugal automatic
Transmission:
Primary reduction system V-belt
Secondary reduction system Shaft drive
Secondary reduction ratio 41/21
× 24/18
× 33/9 (9.544)
Transmission type V-belt automatic
Operation Right hand operation
Reverse gear 25/17 (1.471)
Sub transmission ratio low 35/17 (2.058)
high 28/19 (1.473)
Chassis:
Frame type Steel tube frame
Caster angle 5.0°
Trail 26.0 mm (1.02 in)
Tire:
Ty p e Tu b e l e s s
Size front 25
× 8-12NHS
rear 25 × 10-12NHS Model YXR660FA
