1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND VEHICLE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-7
Key identification number ..................... 3-9
Vehicle identification number ............. 3-11
Model label ......................................... 3-13
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-5
Multi-function meter unit ..................... 4-13
Switches ............................................. 4-19
Accelerator pedal ............................... 4-33
Brake pedal ........................................ 4-35
Parking brake lever ............................ 4-37
Drive select lever ................................ 4-39
Fuel tank cap ...................................... 4-39
Fuel level check window..................... 4-41
Starter (choke) ................................... 4-41
1234
Seats .................................................. 4-43
Seat belts ........................................... 4-45
Glove compartment............................ 4-49
Cargo bed .......................................... 4-51
Front and rear shock absorber
adjustment ....................................... 4-57
Trailer hitch bracket ........................... 4-61
Auxiliary DC jack ................................ 4-63
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Coolant............................................... 5-17
Final gear oil ...................................... 5-21
Differential gear oil ............................. 5-21
Accelerator pedal ............................... 5-23
Seat belts ........................................... 5-23
Steering.............................................. 5-25
Fittings and fasteners......................... 5-25
Lights ................................................. 5-25
Switches............................................. 5-27
Tires ................................................... 5-29
How to measure tire pressure ............ 5-33
5
U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

Tire wear limit......................................5-35
OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Jump-starting ........................................6-9
Warming up.........................................6-13
Drive select lever operation and
reverse driving ..................................6-15
Engine break-in ...................................6-21
Parking ................................................6-25
Parking on a slope ..............................6-25
Accessories and loading .....................6-29
DRIVING YOUR VEHICLE .......................7-1
Getting to know your vehicle .................7-1
Learning to operate your vehicle...........7-9
Turning your vehicle............................7-13
Braking ................................................7-15
Going uphill .........................................7-17
Going downhill ....................................7-21
Crossing through shallow water ..........7-27
Riding over rough terrain ....................7-33
Riding in brush or wooded areas ........7-35
Encountering obstacles on the trail .....7-37
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
periodic maintenance/lubrication .......... 8-7
Hood ................................................... 8-17
Console .............................................. 8-21
Engine oil and oil filter cartridge ......... 8-23
Final gear oil ....................................... 8-35
Differential gear oil.............................. 8-41
Coolant ............................................... 8-47
Axle boots ........................................... 8-51
Spark plug inspection ......................... 8-53
Cleaning the air filter elements ........... 8-61
V-belt cooling duct check hose ........... 8-73
V-belt case drain plug ......................... 8-75
Carburetor adjustment ........................ 8-77
Idle speed adjustment ........................ 8-79
Valve clearance adjustment ............... 8-81
Front brake pad check ........................ 8-83
Rear brake pad check ........................ 8-85
Checking the brake fluid level............. 8-85
Brake fluid replacement ...................... 8-89
Checking the brake pedal ................... 8-91
Parking brake lever free play
adjustment ........................................ 8-93
Brake light switch adjustment ............. 8-97
Cable inspection and lubrication......... 8-99
8
U5UG61.book Page 2 Monday, September 6, 2004 9:00 AM

3-1
EVU00080
1-DESCRIPTION AND VEHICLE IDENTIFICATION
1. Headlights
2. Front shock absorber assembly adjusting ring
3. Brake fluid reservoir
4. Air filter elements (Engine and air intake duct)
5. V-belt case
6. Driver seat
7. Driver seat belt
8. Spark plug
9. Cargo bed
10. Tail/brake lights
11. Rear shock absorber assembly adjusting ring
12. Cargo bed release lever
13. Passenger seat belt
14. Passenger seat
15. Oil filter cartridge
16. Engine oil dipstick
17. Battery
18. Fuses
19. Coolant reservoir
20. Radiator cap
21. Fuel level check window
22. Fuel tank cap
U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

5-1
EVU01340
1-PRE-OPERATION CHECKS
Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-7–5-9,
8-83–8-91
Parking brakeCheck for proper operation, condition and free play. 8-93–8-95
FuelCheck fuel level.
Fill with fuel if necessary.5-11–5-13
Engine oilCheck oil level.
Fill with oil if necessary.5-15, 8-23–8-33
Coolant reservoirCheck coolant level.
Fill with coolant if necessary.5-17–5-19,
8-47–8-49
Final gear oil/
Differential gear oilCheck for leakage. 5-21, 8-35–8-45
Accelerator pedalCheck for proper accelerator pedal operation. 5-23
Seat beltsCheck for proper operation and belt wear. 5-23
SteeringCheck for proper operation. 5-25
Fittings and fastenersCheck all fittings and fasteners. 5-25
Lights and switchesCheck for proper operation.5-25–5-27,
8-119–8-129
Wheels and tiresCheck tire pressure, wear and damage.5-29–5-35,
8-103–8-105
Axle bootsCheck for damage. 8-51
U5UG61.book Page 1 Monday, September 6, 2004 9:00 AM

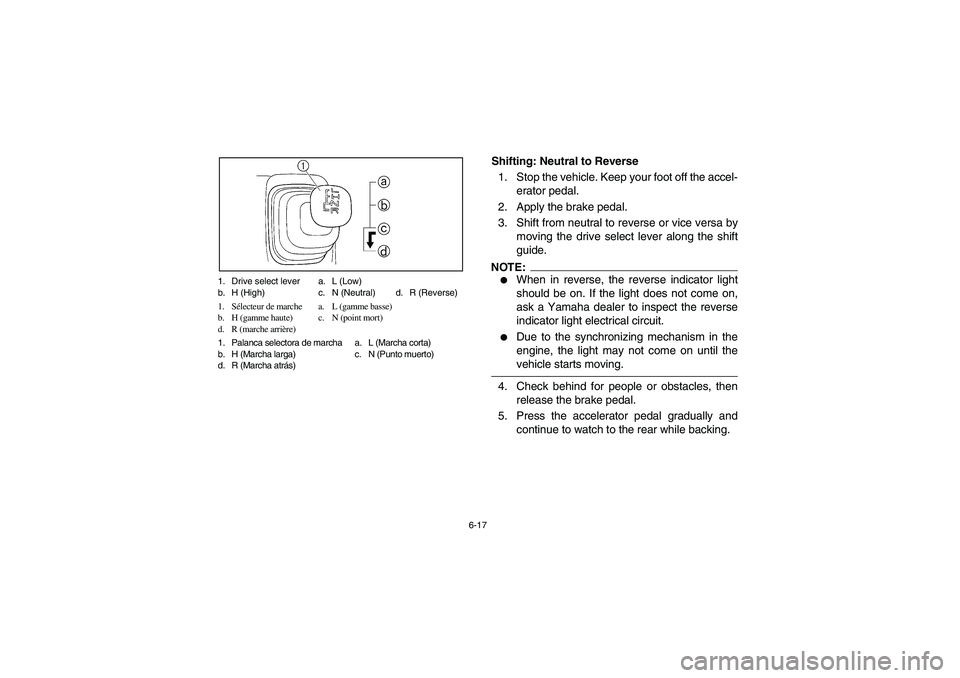

6-17 1. Drive select lever a. L (Low)
b. H (High) c. N (Neutral) d. R (Reverse)
1. Sélecteur de marche a. L (gamme basse)
b. H (gamme haute) c. N (point mort)
d. R (marche arrière)
1. Palanca selectora de marcha a. L (Marcha corta)
b. H (Marcha larga) c. N (Punto muerto)
d. R (Marcha atrás)
Shifting: Neutral to Reverse
1. Stop the vehicle. Keep your foot off the accel-
erator pedal.
2. Apply the brake pedal.
3. Shift from neutral to reverse or vice versa by
moving the drive select lever along the shift
guide.NOTE:_

When in reverse, the reverse indicator light
should be on. If the light does not come on,
ask a Yamaha dealer to inspect the reverse
indicator light electrical circuit.


Due to the synchronizing mechanism in the
engine, the light may not come on until the
vehicle starts moving.
_ 4. Check behind for people or obstacles, then
release the brake pedal.
5. Press the accelerator pedal gradually and
continue to watch to the rear while backing.
U5UG61.book Page 17 Monday, September 6, 2004 9:00 AM
