TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
LCD tachometer .............................3-5
Multi-function display ......................3-5
Anti-theft alarm (optional) ...............3-8
Handlebar switches ........................3-8
Clutch lever ...................................3-10
Shift pedal .....................................3-10
Brake lever ...................................3-10
Brake pedal ..................................3-11
Fuel tank cap ................................3-11
Fuel ...............................................3-12
Fuel tank breather hose ................3-13
Catalytic converter ........................3-13
Seat ..............................................3-13
Storage compartment ...................3-14
Adjusting the shock absorber
assembly ...................................3-15
Sidestand ......................................3-16
Ignition circuit cut-off system ........3-16PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-5
Checking the spark plugs ............... 6-6
Engine oil and oil filter cartridge ..... 6-7
Coolant ......................................... 6-10
Replacing the air filter element ..... 6-12
Adjusting the engine idling
speed ........................................ 6-13
Adjusting the throttle cable free
play ........................................... 6-14
Adjusting the valve clearance ...... 6-14
Tires ............................................. 6-14
Cast wheels .................................. 6-17
Adjusting the clutch lever free
play ........................................... 6-17Adjusting the rear brake light
switch ....................................... 6-18
Checking the front and rear
brake pads ................................ 6-18
Checking the brake fluid level ...... 6-19
Changing the brake fluid .............. 6-20
Drive chain slack .......................... 6-20
Lubricating the drive chain ........... 6-22
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-23
Checking and lubricating the
brake and shift pedals .............. 6-23
Checking and lubricating the
brake and clutch levers ............ 6-24
Checking and lubricating the
centerstand and sidestand ....... 6-24
Lubricating the swingarm
pivots ........................................ 6-25
Checking the front fork ................. 6-25
Checking the steering .................. 6-26
Checking the wheel bearings ....... 6-26
Battery ......................................... 6-27
Replacing the fuses ..................... 6-28
Replacing the headlight bulb ....... 6-29
Replacing the tail/brake light
bulb ........................................... 6-30
Replacing a turn signal light
bulb ........................................... 6-31U5VXE2E0.book Page 1 Wednesday, July 7, 2004 11:32 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11250
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:

Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.


This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If the oil lev-
el detection circuit is defective, the
following cycle will be repeated un-
til the malfunction is corrected: Theoil level warning light will flash ten
times, then go off for 2.5 seconds.
If this occurs, have a Yamaha
dealer check the vehicle.
EAU11530
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-5 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU26871
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
NOTE:This model is also equipped with a self-
diagnosis device for the immobilizer
system. If the immobilizer system is de-
fective, the indicator will start flashing
and the multi-function meter will display
an error code when the key is turned to
“ON”. (See “Self-diagnosis device” onpage 3-5 for details.)
U5VXE2E0.book Page 4 Wednesday, July 7, 2004 11:32 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 Air intake temperature mode
The temperature displayed may vary
from the outside temperature depend-
ing on engine conditions. To switch the
clock to the air intake temperature
mode, first set the display to the odom-
eter or tachometer mode, and then
push the “RESET” button for at least
two seconds.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, refuel as soon as possible.
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, the display segments will
flash. If this occurs, have a Yamahadealer check the electrical circuit.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. Whenthe key is turned to “ON”, all of the dis-
play segments of the coolant tempera-
ture meter will appear one after the
other and then disappear in order to
test the electrical circuit. The coolant
temperature varies with changes in the
weather and engine load. If the top seg-
ment flashes, stop the vehicle and let
the engine cool. (See page 6-37.)
CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
Self-diagnosis devices
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the multi-function display
will indicate a two-digit error code (e.g.,
12, 13, 14).
This model is also equipped with a self-
diagnosis device for the immobilizer
system.If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code (e.g., 51, 52, 53).
NOTE:If the multi-function display indicates er-
ror code 52 (all segments of the coolant
temperature meter will come on, except
the top segment, which will flash), this
could be caused by transponder inter-
ference. If this error appears, try the fol-lowing.
1. Use the code re-registering key to
start the engine.1. Error code display
U5VXE2E0.book Page 7 Wednesday, July 7, 2004 11:32 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU32951
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-16.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECA12741
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light


Engine trouble warning light


Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any oneattempt.
U5VXE2E0.book Page 1 Wednesday, July 7, 2004 11:32 AM

OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16810
Tips for reducing fuel
consumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17091
0–1000 km (0–600 mi)
Avoid prolonged operation above 7000
r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 8400
r/min.
CAUTION:
ECA10301
After 1000 km (600 mi) of operation,
the engine oil must be changed and
the oil filter cartridge or element re-placed.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.CAUTION:
ECA10310


Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-cle.
U5VXE2E0.book Page 3 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU33020
Panel C
To remove the panel1. Remove the seat. (See page
3-13.)
2. Remove the bolt, and then pull the
panel off as shown.
To install the panel1. Place the panel in the original posi-
tion, and then install the bolt.2. Install the seat.
EAU19651
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be defective. Do
not attempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Panel C
2. Bolt
Specified spark plug:
NGK/CR9EK
U5VXE2E0.book Page 6 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6 Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.CAUTION:
ECA10840
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twistit back and forth while pushing it in.
EAU32852
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles.
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.5 ft·lbf)
U5VXE2E0.book Page 7 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20070

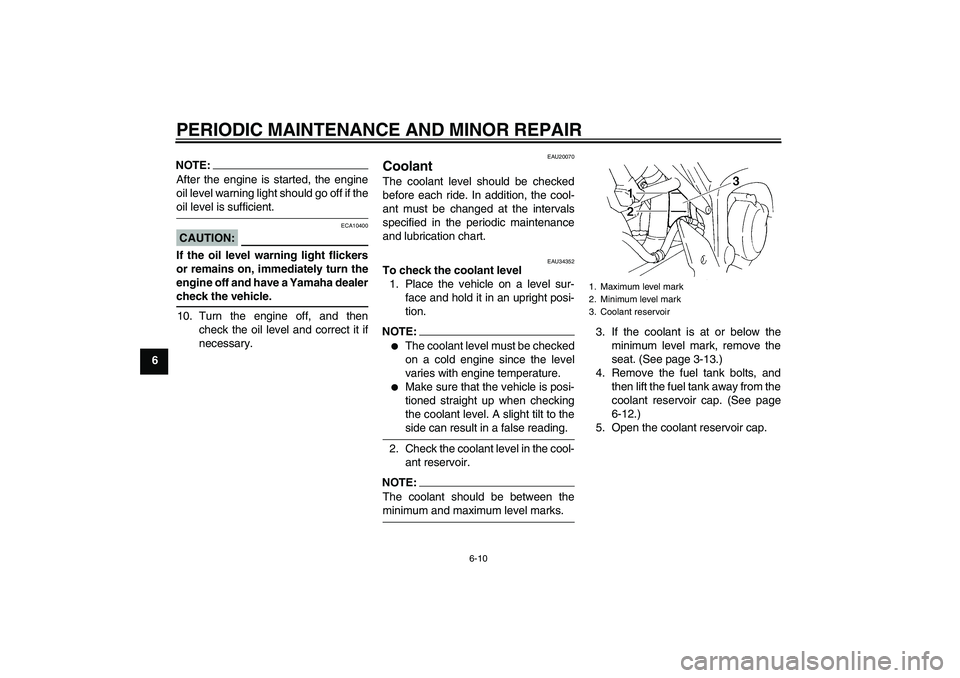

Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU34352
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove the
seat. (See page 3-13.)
4. Remove the fuel tank bolts, and
then lift the fuel tank away from the
coolant reservoir cap. (See page
6-12.)
5. Open the coolant reservoir cap.
1. Maximum level mark
2. Minimum level mark
3. Coolant reservoir
U5VXE2E0.book Page 10 Wednesday, July 7, 2004 11:32 AM
