2005 YAMAHA BIG BEAR PRO 400 check engine

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer ........................................ 4-9
Fuel gauge ......................................... 4-11
Handlebar switches ............................ 4-13
Throttle lever ...................................... 4-17
Speed limiter ...................................... 4-19
Front brake lever ................................ 4-21
Brake pedal and rear brake lever ....... 4-23
Parking brake ..................................... 4-25
Shift pedal .......................................... 4-27
1234
Drive select lever ............................... 4-27
Recoil starter ...................................... 4-29
Fuel tank cap ..................................... 4-29
Fuel cock............................................ 4-31
Starter (choke) ................................... 4-33
Seat.................................................... 4-35
Storage box........................................ 4-37
Front carrier ....................................... 4-37
Rear carrier ........................................ 4-37
Front shock absorber adjustment ...... 4-39
Rear shock absorber adjustment ....... 4-41
Auxiliary DC jack ................................ 4-43
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil/transfer gear oil ................. 5-13
Final gear oil/Differential gear oil ....... 5-15
Throttle lever ...................................... 5-15
Fittings and fasteners......................... 5-17
Lights ................................................. 5-17
Switches............................................. 5-17
Tires ................................................... 5-19
How to measure tire pressure ............ 5-23
5
U1C160.book Page 1 Wednesday, May 12, 2004 4:55 PM

Tire wear limit......................................5-25
OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Reverse lock release wire ...................6-15
Shifting ................................................6-17
To start out and accelerate .................6-19
To decelerate ......................................6-21
Engine break-in ...................................6-23
Parking ................................................6-27
Parking on a slope ..............................6-27
Accessories and loading .....................6-29
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-41
Climbing uphill.....................................7-47
Riding downhill ....................................7-57
Crossing a slope .................................7-61
Crossing through shallow water ..........7-65
Riding over rough terrain ....................7-69
67
Sliding and skidding............................ 7-71
What to do if ....................................... 7-75
What to do .......................................... 7-75
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Engine oil and oil filter element........... 8-17
Transfer gear oil replacement............. 8-29
Final gear oil ....................................... 8-33
Differential gear oil replacement ......... 8-39
Axle boots ........................................... 8-41
Spark plug inspection ......................... 8-43
Air filter cleaning ................................. 8-47
Carburetor adjustment ........................ 8-55
Idle speed adjustment ........................ 8-57
Valve clearance adjustment ............... 8-59
Select lever safety system cable
adjustment ........................................ 8-59
Throttle lever adjustment .................... 8-61
Front brake pad check ........................ 8-61
Rear brake shoe inspection ................ 8-63
Brake fluid level check ........................ 8-63
Brake fluid replacement ...................... 8-67
Front brake lever free play.................. 8-69
8
U1C160.book Page 2 Wednesday, May 12, 2004 4:55 PM

4-5
EBU00733
Oil temperature warning light checking method
ACB-10E
Turn the main switch to “ON” and the
engine stop switch to “”.
Oil temperature warning
light does not come on.
Oil temperature warning
light comes on.
Check engine oil temperature.
Oil temperature warning
light does not come on.
Engine oil temperature and
electrical circuit are OK. Go
ahead with riding.
Push start switch with the
transmission in neutral.
Ask a Yamaha dealer to
inspect the electrical circuit.
Oil tempera-
ture is low.
Allow to cool.
Oil tempera-
ture is high.
Oil temperature
warning light comes
on momentarily.
U1C160.book Page 5 Wednesday, May 12, 2004 4:55 PM

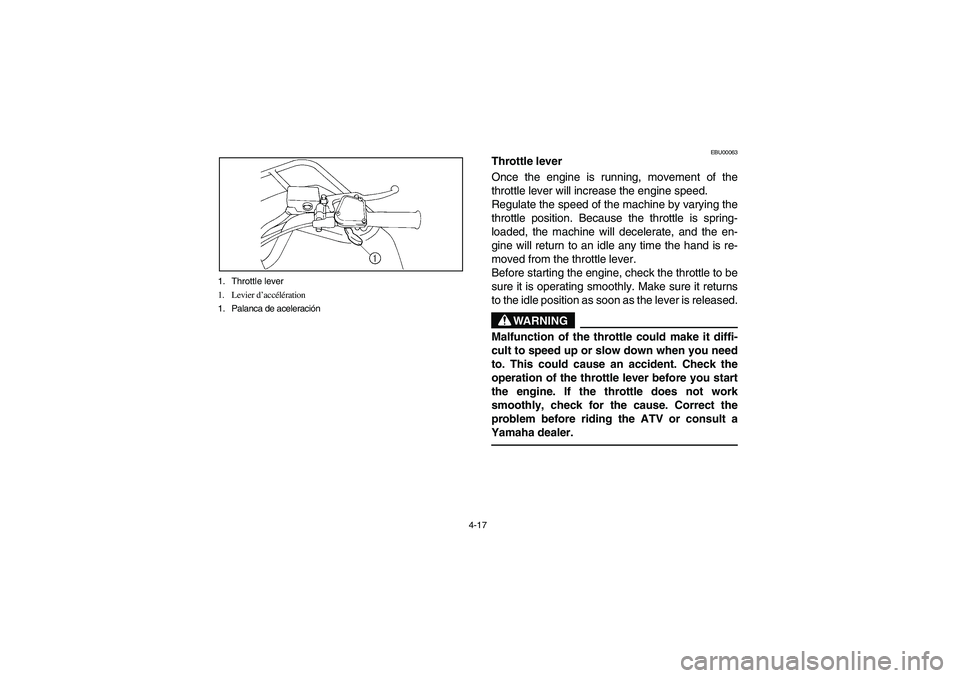

4-17 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
U1C160.book Page 17 Wednesday, May 12, 2004 4:55 PM

5-1
EBU00113
1-PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-61–8-79
Rear brakeCheck operation, pedal height and free play.
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oil/
Transfer gear oilCheck oil level.
Fill with oil if necessary.5-13, 8-17–8-27
Final gear oil/
Differential gear oilCheck for leakage. 5-15, 8-29–8-41
ThrottleCheck for proper throttle cable operation. 5-15, 8-61
Wheels and tiresCheck tire pressure, wear and damage.5-19–5-25,
8-85–8-87
Fittings and fastenersCheck all fittings and fasteners. 5-17
Lights and switchesCheck for proper operation. 5-17, 8-97–8-101
Axle bootsCheck operation. 8-41
U1C160.book Page 1 Wednesday, May 12, 2004 4:55 PM

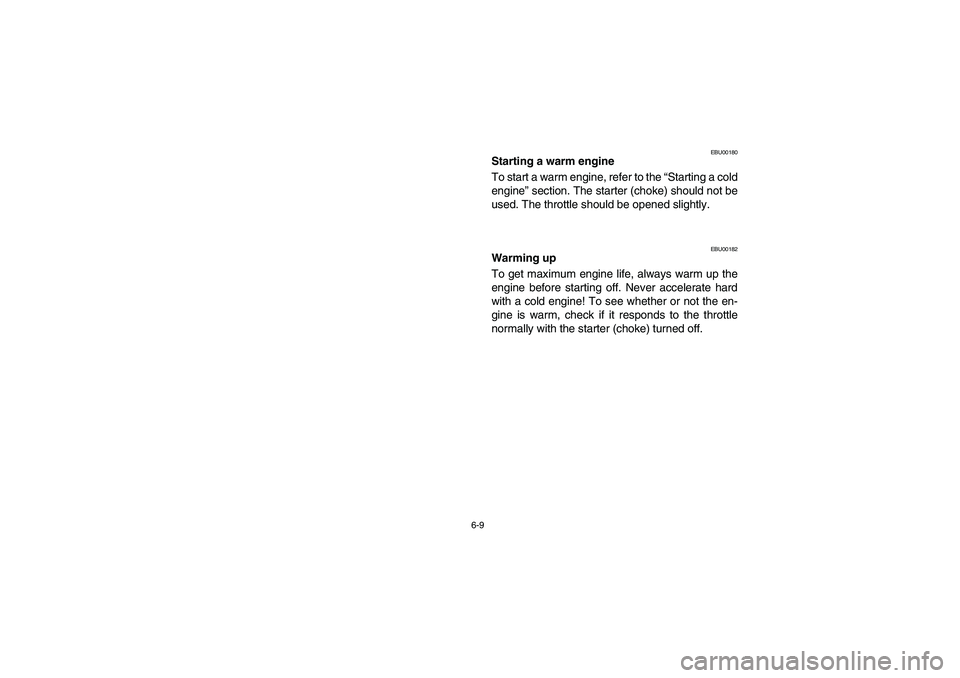

6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
U1C160.book Page 9 Wednesday, May 12, 2004 4:55 PM

8-7
EBU02621
PERIODIC MAINTENANCE/LUBRICATION
NOTE:_

For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.


For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check starter (choke) operation.
Adjust engine idling speed.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Retighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace (Warm engine before draining).Transfer gear oilU1C160.book Page 7 Wednesday, May 12, 2004 4:55 PM

8-8
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.Engine oil filter element
Replace.Engine oil strainer
Clean.Final gear oil
Check oil level/oil leakage.
Replace every 12 months.Differential gear oil
Front brake*Check operation/fluid leakage/see NOTE page 8-9.
Correct if necessary.Rear brake*Check operation.
Adjust if necessary.Clutch*Check operation.
Adjust if necessary.Drive select lever
safety system*Check operation.
Adjust if necessary.Wheels*Check balance/damage/runout.
Repair if necessary.Wheel bearing*Check bearing assemblies for looseness/damage.
Replace if damaged.Steering system*Check operation.
Replace if damaged.
Check toe-in.
Adjust if necessary.Axle boots*Check condition.
Replace if damaged.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
U1C160.book Page 8 Wednesday, May 12, 2004 4:55 PM
