2005 TOYOTA SEQUOIA buttons

05_SEQUOIA_U (L/O 0409)
220
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
RDS (Radio Data System)
Your audio system is equipped with Radio
Data System (RDS). RDS station providing
good reception is automatically selected if
current reception worsens.
The “RDS” button turns the RDS on and
off. This button is operational except in
AM mode.
To turn on the RDS, push and hold this
button until you hear a beep and “RDS”
will appear on the display. At this time,
the radio starts to search the RDS sta-
tions and “RDS SEARCH” will flash on the
display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found, “NO
RDS ST” will appear on the display and
you will hear a beep, and the display
returns to the previous mode.
To turn the RDS off, push the button until
you hear a beep again.RPT (Repeat)
Cassette player
Push “RPT” (preset button 2) while the
track is playing. “
” will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again. Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.

05_SEQUOIA_U (L/O 0409)
228
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet.
USING THE CONTROLLER
To use the rear seat audio system con-
troller, direct the signal output portion
of the controller to the signal reception
portion of the rear seat audio system
display.
The rear seat audio system controller can
be operated when the ignition switch is in
the “ACC” or “ON” position.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
Details of specific buttons, controls, and
features of the controller, see
“CONTROLLER FEATURES” on page 230
in this Section.
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.

05_SEQUOIA_U (L/O 0409)
230
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CONTROLLER FEATURES1. “
” and “” (DISC/CH/PROG) buttons
2. “
” and “” (TUNE/TRACK) buttons
3. “ON/SOURCE” button
4. “OFF” button 1. “
” and “” (DISC/CH/PROG) but-
tons
Radio
You can scan only the preset stations for
the band of the front audio system. (For
instructions, see “—Controls and features”
on page 211 in this Section.)
To scan the preset stations:
Push the “
” or “” (DISC/CH/PROG)
button. The radio will tune in the next
preset station up or down the band. The
station frequency will appear on the dis-
play.
Cassette tape player
Push the “
” or “” (DISC/CH/PROG)
button to select the other side of a cas-
sette tape. The display indicates which
side is currently selected. (“
” indicates
t he top si de, “
” indicates the bottom
side.)
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding. Compact disc player with changer
Use these buttons to select a disc you
want to listen to.
Push the “
” or “” (DISC/CH/PROG)
button until the number of the disc you
want to listen appears on the display.
2. “
” and “” (TUNE/TRACK) buttons
Radio
Push the “
” or “” (TUNE/TRACK) but-
ton to tune or seek.
Tuning:
Quickly push and release the “
” or “”
(TUNE/TRACK) button. Each time you
push the button, the radio will step up or
down to another frequency. If you push
and hold the button, and the radio will go
into the seek mode.
Seeking:
Push and hold the “
” or “” (TUNE/
TRACK) button. The radio will seek up or
down for a station of the nearest frequen-
cy and will stop on reception. Each time
you push the button, the stations will be
searched one after another.

05_SEQUOIA_U (L/O 0409)
241
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CONTROL BUTTONS1. “
” and “” (TUNE/TRACK) buttons
These buttons operate the front audio
system or select the track/chapter
when the DVD player is operated.
2. “
” and “” (DISC/CH/PROG) buttons
These buttons skip directly to a desired
preset station, disc, track or chapter.

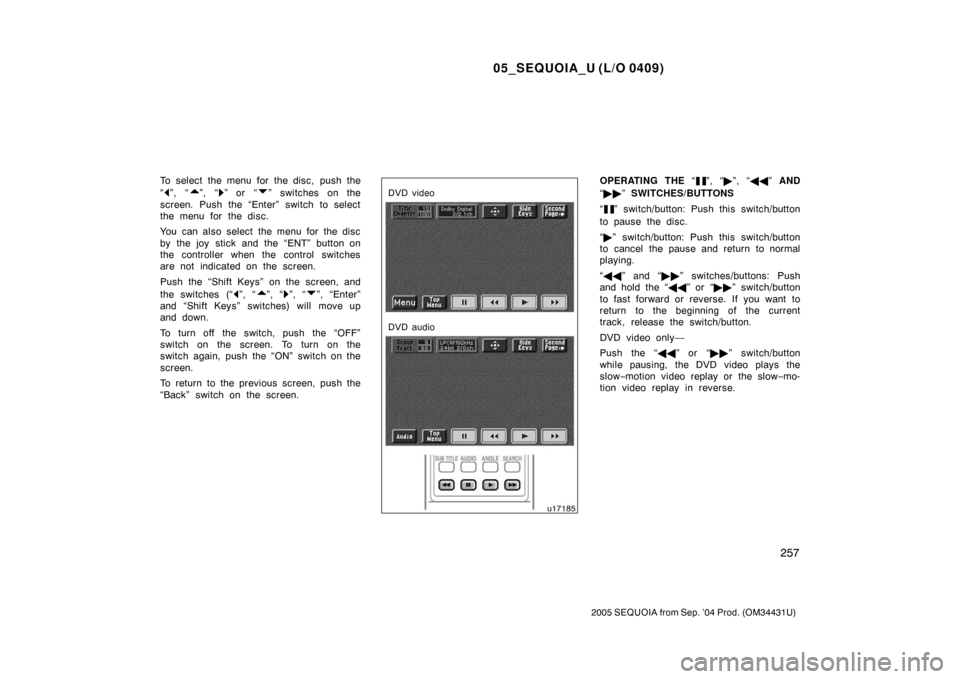

3. “CURSOR” button This button indicates the control
switches on the screen when the DVD
player is operated.
4. Joy stick
This joy stick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. “ENT” button This button inputs the selected switch
or the selected menu for the disc.
6. “SOURCE” button
This button turns on the rear seat en-
tertainment system and selects the
mode.
7. “DISPLAY” button This button adjusts the color, tone,
contrast and brightness of the screen.

05_SEQUOIA_U (L/O 0409)
245
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
When you select a mode, the screen indi-
cates which is selected.
Radio
AM mode:
When you select the AM mode, “AM” will
appear on the screen.
FM mode:
When you select the FM mode, “FM1” or
“FM2” will appear on the screen.
Tape mode
“TAPE” appears on the screen while this
mode is selected.
Compact disc mode
“CD” appears on the screen while this
mode is selected.
The screen shows the track, or track and
disc number currently being played.
OPERATING FRONT AUDIO SYSTEM
To operate the front audio system, use
the following switches.1. “
” and “” (DISC/CH/PROG) but-
tons
Radio
You can scan only the preset stations for
the band of the front audio system. (For
instructions, see “—Controls and features”
on page 211 in this Section.)
To scan the preset stations:
Push the “
” or “” (DISC/CH/PROG)
button. The radio will tune in the next
preset station up or down the band. The
station frequency will appear on the
screen. Cassette tape player
Push the “
” or “” (DISC/CH/PROG)
button to select the other side of a cas-
sette tape. The screen indicates which
side is currently selected. (“
” indicates
t he top si de, “
” indicates the bottom
side.)
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
Compact disc player with changer
Use these buttons to select a disc you
want to listen to.
Push the “
” or “” (DISC/CH/PROG)
button until the number of the disc you
want to listen appears on the display.

05_SEQUOIA_U (L/O 0409)
246
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
2. “” and “” (TUNE/TRACK) buttons
Radio
Push the “
” or “” (TUNE/TRACK) but-
ton to tune or seek.
Tuning:
Quickly push and release the “
” or “”
(TUNE/TRACK) button. Each time you
push the button, the radio will step up or
down to another frequency. If you push
and hold the button, and the radio will go
into the seek mode.
Seeking:
Push and hold the “
” or “” (TUNE/
TRACK) button. The radio will seek up or
down for a station of the nearest frequen-
cy and will stop on reception. Each time
you push the button, the stations will be
searched one after another.
Cassette tape player
This button has the following features—
To fast forward or reverse:
Push and hold the “
” (TUNE/TRACK)
button until “FF” will appears on the dis-
play to forward a tape. Push and hold the
“
” (TUNE/TRACK) button until “REW”
appears on the display to rewind a tape. To stop the tape while it is fast forward-
ing, push the “
” (TUNE/TRACK) button.
To stop the tape while it is rewinding,
push the “
” (TUNE/TRACK) button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
To skip up or down to locate a song or
recording:
You can select up to nine recordings (in-
cluding current one).
Push the “
” or “” (TUNE/TRACK) but-
ton. “FF 1” or “REW 1” will appear on the
screen.
Next, push either side of the track button
until the number on the screen reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play. In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.
Compact disc player
This button has the following features—
To skip up or down to a different track:
Push the “
” or “” (TUNE/TRACK) but-
ton until the number of the track you want
to listen to appears on the display. If you
want to return to the beginning of the
current track, quickly push the “
”
(TUNE/TRACK) button one time.
To fast forward or reverse:
Push and hold the “
” or “” (TUNE/
TRACK) button to fast forward or reverse
within a compact disc. When you release
the button, the compact disc player will
resume playing.

05_SEQUOIA_U (L/O 0409)
251
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To select the DVD mode, push the
“DVD” button on the controller.
You can also select the DVD mode on the
mode selection screen mentioned above.
Vehicles with navigation system—The
“DVD Hint!” screen appears when the
DVD mode is first selected after you
turn the ignition key to the “ACC” or
“ON” position.
Push the “OK” switch when you read the
message.The DVD player can be operated with the
controller buttons directly.1. “DVD” button
2. “MENU” button
3. “TOP MENU” button
4. “RETURN” button
5. “SET UP” button
6. “SEARCH” button
7. “ANGLE” button
8. “AUDIO” button
9. “SUB TITLE” button
10. “
”, “ ”, “  ” and “ ” buttons
—DVD player operation
switches

05_SEQUOIA_U (L/O 0409)
257
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To select the menu for the disc, push the
“
”, “”, “” or “” switches on the
screen. Push the “Enter” switch to select
the menu for the disc.
You can also select the menu for the disc
by the joy stick and the “ENT” button on
the controller when the control switches
are not indicated on the screen.
Push the “Shift Keys” on the screen, and
the switches (“
”, “”, “”, “”, “Enter”
and “Shift Keys” switches) will move up
and down.
To turn off the switch, push the “OFF”
switch on the screen. To turn on the
switch again, push the “ON” switch on the
screen.
To return to the previous screen, push the
“Back” switch on the screen.
DVD video
DVD audio
OPERATING THE “”, “ ”, “  ” AND
“  ” SWITCHES/BUTTONS
“
” switch/button: Push this switch/button
to pause the disc.
“  ” switch/button: Push this switch/button
to cancel the pause and return to normal
playing.
“  ” and “ ” switches/buttons: Push
and hold the “ ” or “ ” switch/button
to fast forward or reverse. If you want to
return to the beginning of the current
track, release the switch/button.
DVD video only—
Push the “ ” or “” switch/button
while pausing, the DVD video plays the
slow −motion video replay or the slow −mo-
tion video replay in reverse.
