2005 TOYOTA RAV4 Engine START

'05 Rav4_U (L/O 0409)
11
2005 RAV4 from Sep. '04 Prod. (OM42570U)
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
NOTICE
When using a key containing a trans-ponder chip, observe the followingprecautions:

When starting the engine, do not
use the key with a key ring restingon the key grip and do not pressthe key ring against the key grip.
Otherwise the engine may not start,or may stop soon after it starts.

When starting the engine, do not
use the key with other transponderkeys around (including keys of oth-er vehicles) and do not press other
key plates against the key grip.Otherwise the engine may not start,or may stop soon after it starts. If
this happens, remove the key onceand then insert it again after remov-ing other transponder keys (includ-
ing keys of other vehicles) from thering or while gripping or coveringthem with your hand to start the
engine.

'05 Rav4_U (L/O 0409)
13
2005 RAV4 from Sep. '04 Prod. (OM42570U)
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key's head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.

The indicator light stays on.

The indicator light does not start flash-
ing when the key is removed from the
ignition switch.

The indicator light flashes inconsistent-
ly.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off. For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-tem. If any unauthorized changes ormodifications are made, proper opera-
tion of the system cannot be guaran-teed.
Engine immobilizer system

'05 Rav4_U (L/O 0409)
98
2005 RAV4 from Sep. '04 Prod. (OM42570U)
HEADLIGHTS

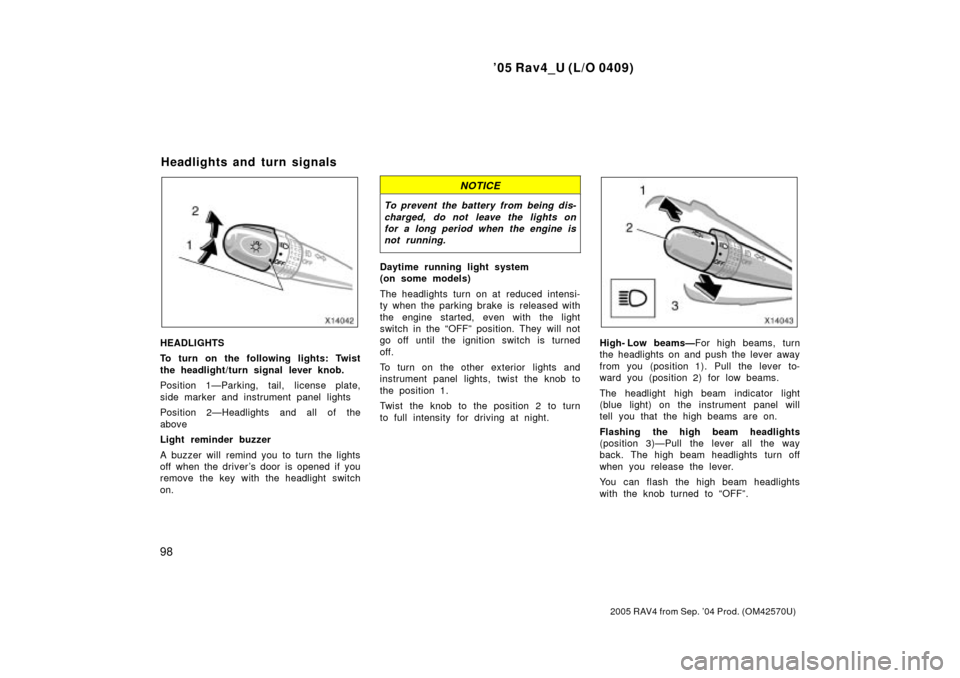

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver 's door is opened if you
remove the key with the headlight switch
on.
NOTICE
To prevent the battery from being dis-charged, do not leave the lights onfor a long period when the engine isnot running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the OFFº position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
High- Low beamsÐ For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to OFFº.
Headlights and turn signals

'05 Rav4_U (L/O 0409)
106
2005 RAV4 from Sep. '04 Prod. (OM42570U)
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly fullÐNeedle at Fº
Nearly emptyÐNeedle at Eº
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches Eº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
It is not a malfunction even if the needle
of the fuel gauge returns to Eº when the
ignition switch is turned to the STARTº
position.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:

Driving up a long hill on a hot day.

Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge

'05 Rav4_U (L/O 0409)
107
2005 RAV4 from Sep. '04 Prod. (OM42570U)

Idling for a long period with the air
conditioning on in stop- and- go traffic.

Towing a trailer.
It is not a malfunction even if the needle
of the engine coolant temperature gauge
returns to Cº when the ignition switch is
turned to the STARTº position.
NOTICE

Do not remove the thermostat in the engine cooling system as thismay cause the engine to overheat.The thermostat is designed to con-
trol the flow of coolant to keep thetemperature of the engine withinthe specified operating range.

Do not continue driving with anoverheated engine. See If your ve-hicle overheatsº on page 246 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over- revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
It is not a malfunction even if the needle
of the tachometer returns to the bottom
position when the ignition switch is turned
to the STARTº position.
NOTICE
Do not let the indicator needle getinto the red zone. This may causesevere engine damage.
Tachometer

'05 Rav4_U (L/O 0409)
11 2
2005 RAV4 from Sep. '04 Prod. (OM42570U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the ONº posi-
tion.

When the parking brake is applied...
Vehicles with anti- lock brake systemÐ
This light comes on for a few seconds
when the ignition key is turned to the
ONº position even after the parking brake
is released.

When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:

The light does not come on even if the
parking brake is applied when the igni-
tion key is in the ONº position.
Vehicles with anti- lock brake systemÐ

The light does not come on even if the
ignition key is turned on with the park-
ing brake released. A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.

The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
Vehicles with anti- lock brake sys-
temÐ

The brake system warning light re-
mains on together with the ABSº
warning light.
In this case, not only the anti- lock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver's Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver's seat belt.
Once the ignition key is turned to ONº or
STARTº, the reminder light flashes and
buzzer sounds if the driver 's seat belt is
not fastened. Unless the driver fastens the
belt, the light continues flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger 's Seat Belt Re- minder Light
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to ONº or
STARTº, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Howev-
er, if a front passenger uses an additional
seat cushion, the light may not flash even
when the seat belt is not buckled up.
If luggage or other load is placed on the
front passenger seat, depending on its
weight and how it is placed on the seat,
built- in sensors in the seat cushion may
detect the pressure, causing the reminder
light to keep flashing.

'05 Rav4_U (L/O 0409)
11 3
2005 RAV4 from Sep. '04 Prod. (OM42570U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio,etc., and drive directly to the
nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the enginedrive belt is broken or loose.
(e) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance. The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light onÐeven for one block.It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the ONº position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.

Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.

Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...

There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.

'05 Rav4_U (L/O 0409)
11 6
2005 RAV4 from Sep. '04 Prod. (OM42570U)
(k) Automatic Transmission Fluid Tem-perature Warning Light (four- wheel
drive models)
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in Pº. With the engine id-
ling, wait until the light goes off. If the
light goes off, you can start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning light on may damage the automatictransmission.
(l) VSC TRACº Warning Light
This light warns that there is a problem
somewhere in the vehicle stability control
system or traction control system.
The light will come on when the ignition
key is turned to ONº and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.
In the following cases, contact your Toyota
dealer:

The warning light does not come on
after the ignition key is turned to ONº.

The warning light remains on after the
ignition key is turned to ONº.

The warning light comes on while driv-
ing.
Two- wheel drive models onlyÐThe TRAC
OFFº indicator light will come on when the
VSC TRACº warning light comes on even
if the TRAC OFFº switch is not pushed. (m) Low Tire Pressure Warning Light
This light warns that the tire inflation pres-
sure is critically low. The light comes on
when the ignition key is turned to the
ONº position. It goes off after a few sec-
onds. This indicates that the low tire pres-
sure warning system is functioning proper-
ly.
If the light comes on while driving, adjust
tire inflation pressure to the specified lev-
el. (See Tiresº on page 316 in Section 8.)
After the tire inflation pressure is adjusted,
push the tire pressure warning system re-
set switch for a few seconds and make
sure the warning light goes off. If the light
still remains or blinks once every second,
have the low tire pressure warning system
checked at your Toyota dealer.
If the light blinks twice every second, the
low tire pressure warning system needs to
be initialized.
For details, see Tire pressure warning
systemº on page 131 in Section 1- 7.
