2005 TOYOTA MR2 SPYDER engine

722005 MR2 from Aug. ’04Prod. (OM17527U)
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires
or connectors.
When the soft top is completely
lowered, keep the rear window de-
fogger turned off to avoid damage
to the top.

732005 MR2 from Aug. ’04Prod. (OM17527U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge74 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers77 . . . . . . . . . . . . . . .
SECTION 1 6

742005 MR2 from Aug. ’04Prod. (OM17527U)

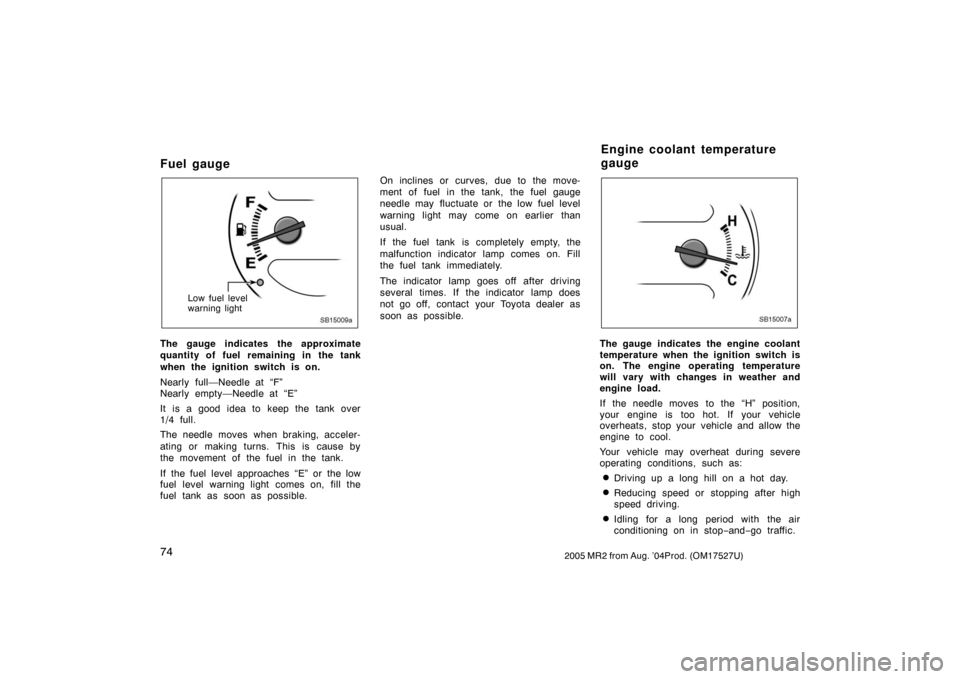

Fuel gauge
SB15009a
Low fuel level
warning light
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is cause by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
SB15007a
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves to the “H” position,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Engine coolant temperature
gauge

752005 MR2 from Aug. ’04Prod. (OM17527U)
If the engine coolant temperature gauge
needle is not displayed, there may be a
problem in the system. In this case, con-
tact your Toyota dealer as soon as pos-
sible.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your
vehicle overheats” on page 166 in
Section 4.
Tachometer
SB15008
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Odometer and two trip meters
SB15005
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Show two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.

792005 MR2 from Aug. ’04Prod. (OM17527U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following case:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light
and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light continues flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Passenger ’s Seat Belt Reminder
Light
The light acts as a reminder to have the
passenger buckle up the seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the passenger seat and
does not fasten the seat belt. Unless the
passenger fastens the belt, the light stays
flashing. However, if a passenger uses an
additional seat cushion, the light may not
flash even when the seat belt is not
buckled up.
If luggage or other load is placed on the
passenger seat, depending on its weight
and how it is placed on the seat, built−in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
flash.

802005 MR2 from Aug. ’04Prod. (OM17527U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operation properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.

812005 MR2 from Aug. ’04Prod. (OM17527U)
Emissions lnspection and Maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (On−Board Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” in Section 6.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) “Sequential Manual Transmission”
Warning Light (Sequential manual
transmission only)
This light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off. This
means the sequential manual transmission
system is operating properly.In case the “Sequential Manual
Transmission” warning light comes on, pull
off the road, stop the engine and contact
your Toyota dealer. Although you may be
able to drive your vehicle, the vehicle may
jerk when shifted or the clutch may not
engage properly, causing the vehicle to
jerk due to the malfunction. In some
cases the shift requirement may be
canceled, and the gear may be locked.
(i) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti−
lock brake system works properly, the
light turns off after a few seconds. There-
after, if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
(j) Open Door Warning Light
This light remains on until both the doors
are completely closed.

822005 MR2 from Aug. ’04Prod. (OM17527U)
(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the systems of the air-
bag and seat belt pretensioners are op-
erating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or flashes while
driving.
(l) Power Steering System Warning
Light
This light warns that there is a problem
in your power steering system.
If the light comes on while you are driv-
ing, have your vehicle checked by your
Toyota dealer as soon as possible.(m) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the “ACC” or
“LOCK” position.
(n) Light reminder buzzer
The buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
ignition switch.
(o) Warning function of the Sequential
Manual Transmission (sequential
manual transmission only)
When driving, if any incorrect operation
that may cause damage to this system is
performed or if the gear is not shifted as
desired by the driver, the warning buzzer
will sound and the gear position indicator
will flash to warn the driver in some
cases. For details, see “(k) Warning
functions” on page 94 in Section 1−6.CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light)
1. Apply the parking brake.
2. Open either side door.
The open door warning light should
come
on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The “ABS” and power steer-
ing system warning lights go off after
a few seconds. The SRS warning light
goes off after about 6 seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
