2005 TOYOTA MR2 SPYDER child lock

532005 MR2 from Aug. ’04Prod. (OM17527U)
SB13107a
When you put a forwardfacing or a
rearfacing child restraint system which
belongs to a passenger risk group on
the passenger seat, turn the passenger
airbag manual onoff switch counter-
clockwise to the “OFF” position. (For
details, see “SRS driver airbag and pas-
senger airbag” on page 37 in this Sec-
tion.)
The indicator comes on when the system
is off.
CAUTION
If you must install a rearfacing
child restraint system on the pas-
senger seat, make sure the passen-
ger airbag manual onoff switch is
in the “OFF” position and that the
indicator light is on.
Forwardfacing child restraint sys-
tem: A forwardfacing child re-
straint system which belongs to a
passenger risk group should never
be installed on the passenger seat
with the passenger airbag manual
onoff switch in the “ON” position,
because the passenger airbag could
inflate with considerable speed and
force. Otherwise the child may be
killed or seriously injured in for-
ward seating position. (For details,
see “SRS driver airbag and passen-
ger airbag” on page 37 in this Sec-
tion.)
SB13083a
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

542005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
SB13084a
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
SB13085a
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

562005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
A forwardfacing child restraint
system which belongs to a passenger
risk group should never be installed
on the passenger seat with the
passenger airbag manual onoff
switch in the “ON” position, because
the passenger airbag could inflate
with considerable speed and force.
Otherwise the child may be killed or
seriously injured in forward seating
position. (For details, see “SRS driver
airbag and passenger airbag” on page
37 in this Section.)
SB13107a
When you put a forwardfacing child
restraint system which belongs to pas-
senger risk group on the passenger
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and passenger airbag” on
page 37 in this Section.)
The indicator comes on when the system
is off.
SB13064
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle, taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts—” on
page 31 in this Section for details.

572005 MR2 from Aug. ’04Prod. (OM17527U)

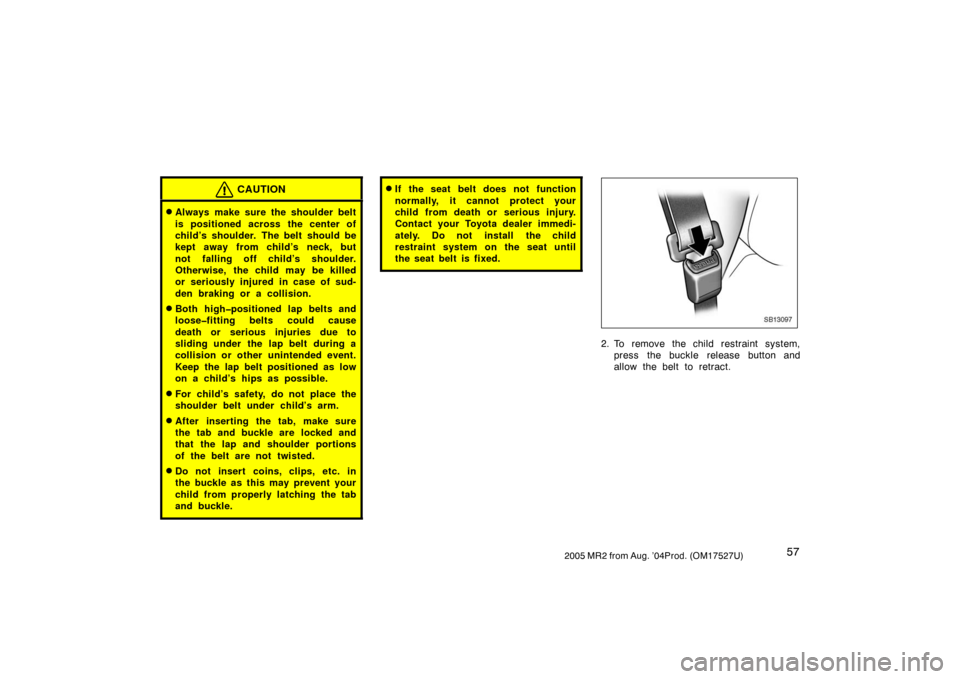

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
SB13097
2. To remove the child restraint system,
press the buckle release button and
allow the belt to retract.

602005 MR2 from Aug. ’04Prod. (OM17527U)
SB13118b
Rearmost
positionMore than
3 notches
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and slide
the seat backward into the rearmost
position. Then slide it forward by
more than 3 notches.
SB13117a
9th lock
position1st lock
position
2. Raise the seatback back to the 1st
lock position (most upright position)
until it locks into place. Adjust the
seatback to the 9th lock position.
Make sure the seatback is locked se-
curely.SB13115a
Ty p e A
