2005 TOYOTA MATRIX navigation

’05 MATRIX_U (L/O 0409)
3
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
1. Power rear view mirror control switches
2. Interior/instrument panel light controldial
3. Headlight, turn signal and front fog light switches
4. Wiper and washer switches
5. Air conditioning controls
6. Rear window defogger switch
7. Emergency flasher switch
8. Clock
9. Front passenger ’s seat belt reminder light/front pass enger occupant
classification indicator light
10. Car audio 11. Auxiliary box or power outlet (115 VAC)
12. Power outlet (12 VDC) or cigarette lighter
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. “TRAC OFF” (traction control system off) switch
17. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light

View B (vehicles without navigation system)

’05 MATRIX_U (L/O 0409)
5
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

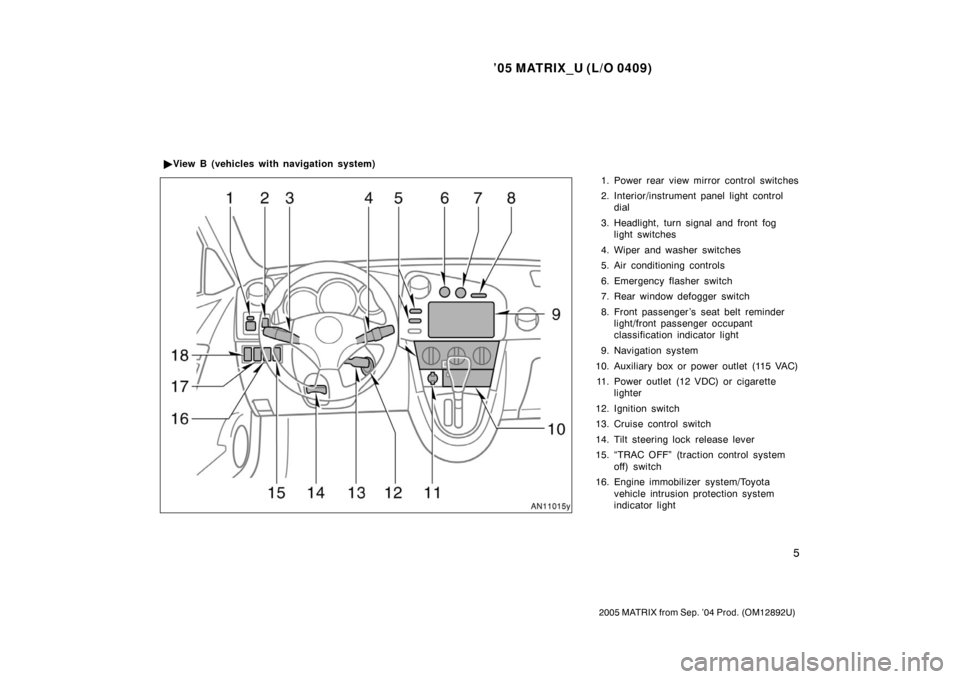

1. Power rear view mirror control switches
2. Interior/instrument panel light controldial
3. Headlight, turn signal and front fog light switches
4. Wiper and washer switches
5. Air conditioning controls
6. Emergency flasher switch
7. Rear window defogger switch
8. Front passenger ’s seat belt reminder light/front pass enger occupant
classification indicator light
9. Navigation system
10. Auxiliary box or power outlet (115 VAC) 11. Power outlet (12 VDC) or cigarette lighter
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. “TRAC OFF” (traction control system off) switch
16. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light

View B (vehicles with navigation system)

’05 MATRIX_U (L/O 0409)
100
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it. The rear window wip-
er operates while the washer squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 291 in
Section 7 −3.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Without navigation system
With navigation system
Rear window wiper and
washer Rear window defogger

’05 MATRIX_U (L/O 0409)
135
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Car audio system operating hints 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

’05 MATRIX_U (L/O 0409)
154
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
1. “A/C” button (on some models)
2. Air flow selector
3. Fan speed selector
4. Temperature selector
5. Air intake selector
Controls
Without navigation system

’05 MATRIX_U (L/O 0409)
155
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
1. “A/C” button (on some models)
2. Air flow selector
3. Fan speed selector
4. Temperature selector
5. Air intake selector

With navigation system
