63
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 106 in Section 1−6.)
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or flashes while
driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’05 Corolla_U (L/O 0409)
65
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
The SRS warning light will come on
and front passenger occupant classifi-
cation indicator light will indicate
“OFF” if there is a malfunction in the
front passenger occupant classification
system.

’05 Corolla_U (L/O 0409)
66
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Condition and operation in the front passenger occupant classification systemCondition detected bythe front passenger
occupant classification system
Indicator/warning lightDevices
Front
passenger occupant
classification
indicator light
SRS warning light
Front
passenger ’s seat belt
reminder lightFront
passenger airbagSide airbag
on the front passenger seatCurtain shieldairbag in the front
passenger sideFront
passenger ’s seat belt
pretensioner
1. Adult∗ 1“ON”OffFlashing∗4Activated
2. Child∗2 or child
restraint system∗ 3“OFF”OffFlashing∗4Deactivated
Activated
Activated
3. UnoccupiedNot
illuminatedOffOffDeactivatedDeactivated
4. There is a
malfunction in the
system
“OFF”OnOffDeactivatedActivated
∗1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 3: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” on page 68 in this Section as for installi ng the
child restraint system.)
∗ 4: In the event the front passenger does not wear a seat belt.

’05 Corolla_U (L/O 0409)
68
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 71 in this Section.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant classifica-
tion indicator light may indicate “ON” (the
front passenger airbag and side airbag on
the front passenger seat may deploy)
even if observing the above cautions,
when a child sits in, or a forward−facing
child restraint system is installed on the
front passenger seat. Refer to all the cau-
tions in “SRS airbags” on page 49 and
“Child restraint” on page 68 in this Sec-
tion. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 41 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the impact of the
rapid inflation of the front passen-
ger airbag could cause death or se-
rious injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.
Child restraint—
—Child restraint precautions

’05 Corolla_U (L/O 0409)
102
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

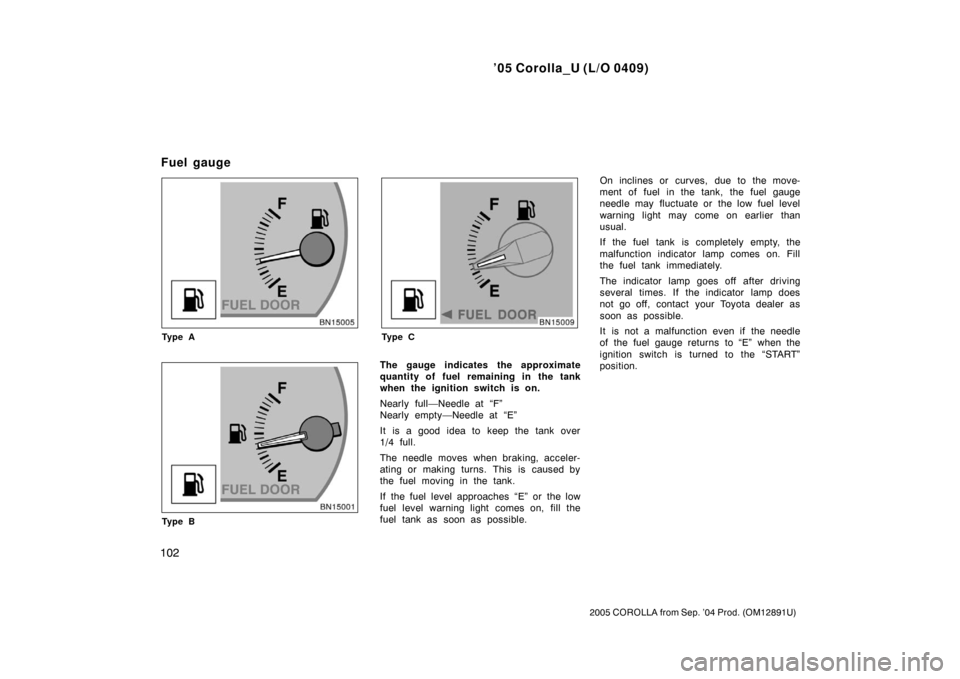

Ty p e A
Ty p e B
Ty p e C
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the fuel moving in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
It is not a malfunction even if the needle
of the fuel gauge returns to “E” when the
ignition switch is turned to the “START”
position.
Fuel gauge

’05 Corolla_U (L/O 0409)
107
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(i)Close all doors.
(j)Take vehicle to Toyota dealer immediately.
(k)Adjust tire inflation pressure and turn off warning light by pushing reset switch for a
few seconds. If warning light remains, contact Toyota dealer.
(l)Add washer fluid.
(m)Take vehicle to Toyota dealer.
(n)Replace engine oil.

’05 Corolla_U (L/O 0409)
109
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
Vehicles with anti −lock brake system—
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
Vehicles with anti −lock brake system—
The light does not come on even if the
ignition key is turned on with the park-
ing brake released. A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
Vehicles with antilock brake sys-
tem—
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 6 seconds.
If the vehicle speed rises above 15 km/h
(9 mph) with the seat belt unfastened, the
buzzer will sound for about 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 seconds. Even if the vehicle speed
drops below 15 km/h (9 mph), the buzzer
will continue to sound. To stop the buzzer,
fasten the seat belt. If the buzzer still
sounds, make sure the front passenger ’s
seat belt is fastened.
(c) Front Passenger ’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
have the front passenger buckle up the
seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt.

’05 Corolla_U (L/O 0409)
11 0
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
If the vehicle speed rises above 15 km/h
(9 mph) with the seat belt unfastened, the
buzzer will sound for about 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 seconds. Even if the vehicle speed
drops below 15 km/h (9 mph), the buzzer
will continue to sound. To stop the buzzer,
fasten the seat belt. If the buzzer still
sounds, make sure the driver ’s seat belt
is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sound.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible. If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
1ZZ −FE engine—
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.
