2005 SUBARU IMPREZA buttons

2-11
Keys and doors
– CONTINUED –
system may not respond. „Illuminated entry
The interior (dome) light and ignition switch light (for
turbo models) will illuminate when the “ ” button is
pressed. These lights stay illuminated for approxi-
mately 30 seconds if any of the doors (or the rear gate
on the Wagon) is not opened.
If the “ ” button is pressed before 30 seconds have
elapsed, these lights will go out. Also, these lights will
go out if the key is inserted in the ignition switch. Theinterior light switch must be set to the middle position
in order for this function to operate. „ Vehicle finder function
Use this function to find your vehicle parked among
many vehicles in a large parking lot. Provided you are
within 30 feet (10 meters) of the vehicle, pressing the
“ ” button three times in a five-second period will
cause your vehicle’s horn to sound once and its turn
signal lights to flash three times. „ Sounding a panic alarm
To activate the alarm, keep the “ ” button pressed
for more than two seconds . The horn will sound and the turn signal lights will flash.
To deactivate it, press the “ ” button or “ ” but-
ton. Unless a button on the remote is pressed, the
alarm will be deactivated after approximately 30 sec-
onds. „
Selecting audible signal operation
Using an electronic chirp, the system will give you an
audible signal when the doors lock and unlock. If de-
sired, you may turn the audible signal off.
To turn the audible signal off, unlock the door by
pressing the “ ” button and then simultaneously
depress “ ” and “ ” buttons for more than two
seconds. An electronic chirp will sound twice and the
turn signal lights will flash twice to inform you that the
audible signal has been turned off.
To turn the audible signal on, unlock the door by
pressing the “ ” button and then simultaneously
depress “ ” and “ ” buttons for more than two
seconds. An electronic chirp will sound once and the
turn signal lights will flash once to inform you that the
audible signal has been turned on. „ Replacing the battery
When the transmitter battery begins to get weak,
transmitter range will begin to decrease. Replace the

4-12
Climate control
„
To use as full-automatic climate con-
trol system
Place the temperature control dial in the position for
your desired temperature, then set the other dials and
buttons as described below. The system’s functions
will then switch to AUTO mode and be controlled au-
tomatically. y Air flow control dial: AUTO position
y Fan speed control dial: AUTO position
y Air inlet selection button: Press for at least 1 sec-
ond. (Indicator will flash twice.)y Air conditioner button: Press for at least 1 second.
(Indicator will flash twice.) „ To use as semi-automatic climate con-
trol system
Each function can be individually set to AUTO mode
independently of the others. Any function set to AUTO
mode is controlled automatically. Any function not set
to AUTO mode can be manually adjusted as desired.
The temperature can be set within a range of 65 to85 °F (20 to 30 °C). „
Fan speed control dial
The fan operates only with the ignition switch in the
ON position. The fan speed control dial is used to se-
lect the AUTO (automatic control) mode or to select
the desired fan speed. The dial’s positions and their
functions are as follows:
OFF: The fan does not operate.
AUTO: The fan speed is adjusted automatically in ac-
cordance with the air temperature inside and outside
the passenger compartment, the intensity of sunlight,
and other factors. SUBARU recommends using the
AUTO position.
Other positions: The fan speed can be adjusted in 25
steps.
UG4056BA

5-5
Audio
– CONTINUED –
Type A audio set (if equipped)
The radio will operate only when the ignition switch is in the “ACC” or “ON” position. „Radio operation

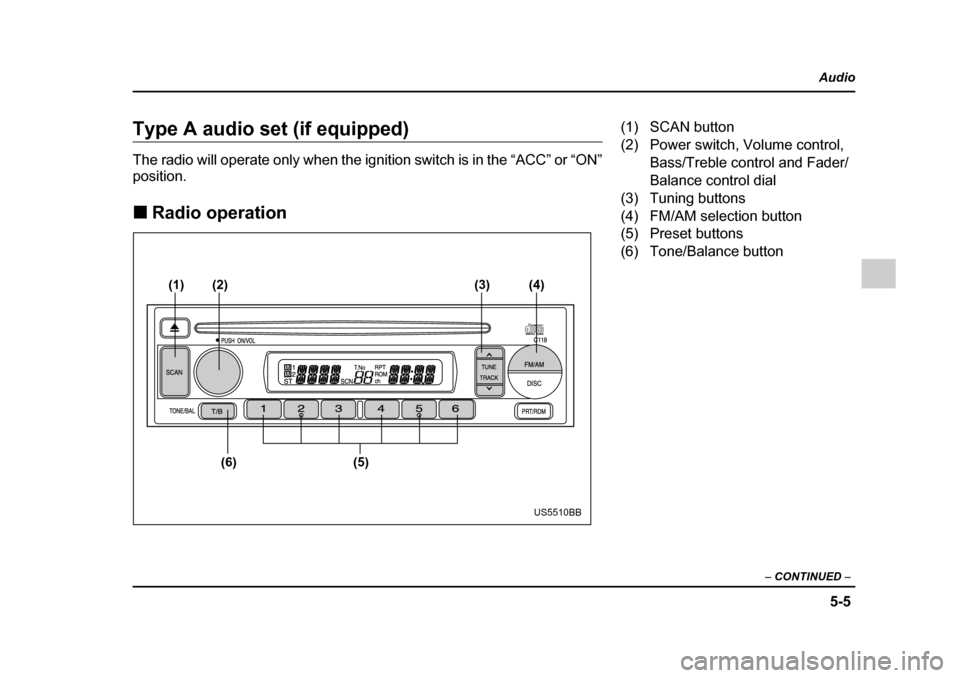

(1)
(6) (5)
(2)
(3) (4)
US5510BB
(1) SCAN button
(2) Power switch, Volume control,
Bass/Treble control and Fader/
Balance control dial
(3) Tuning buttons
(4) FM/AM selection button
(5) Preset buttons
(6) Tone/Balance button

5-8
Audio
T
FM/AM selection button (FM/AM)
Push the “FM/AM” button (4) when the radio is off to
turn on the radio.
Push the “FM/AM” button when the radio is on to se-
lect FM1, FM2 or AM reception. Each time this button
is pressed, the band will change in the following order:
The display indicates which one is currently selected. T Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. T Manual tuning (TUNE)
Push the “ ” side of the tuning button (3) to increase
the tuning frequency and press the “ ” side of the
button to decrease it.
Each time the button is pressed, the frequency chang-
es 10 KHz in the AM waveband and 0.2 MHz in the FM
waveband.
Constant pressure on the button causes a continuous
change in the frequency. T
Automatic tuning (SCAN)
Press the “SCAN” button (1) to change the radio to the
SCAN mode. In this mode, the radio scans through the
radio band until a station is found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned from the low end to the
high end.
Press the “SCAN” button again to cancel the SCAN
mode and to stop on any displayed frequency.
When the “SCAN” button is pressed for automatic tun-
ing, stations are scanned in the direction of low fre-
quencies to high frequencies only.
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. T Selecting preset stations
Presetting a station with a “Preset” button (5) allows
you to select that station in a single operation. Up to
six AM, FM1 and FM2 stations each may be preset. T How to preset stations
1. Press the “FM/AM” selection button to select AM,
FM1 or FM2 reception.
2. Press the “SCAN” button (1) or tune the radio man-
ually until the desired station frequency is displayed.
3. Press one of the “Preset” buttons (5) for at least 2
FM1 FM2 AM

5-9
Audio
– CONTINUED –
seconds to store the frequency. The frequency of the
station will flash once on the display at this time. If the
button is pressed for less than 2 seconds, the preced-
ing selection will remain in memory.
NOTE y If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. y If a mobile telephone is placed near the radio, it
may cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault.

5-10
Audio „
Compact disc player operation
(7) (8)
(11) (10)(9)
US5510CB
(7) Eject button
(8) Disc slot
(9) DISC button
(10) Repeat/Random button
(11) Track selection buttons

5-13
Audio
– CONTINUED –

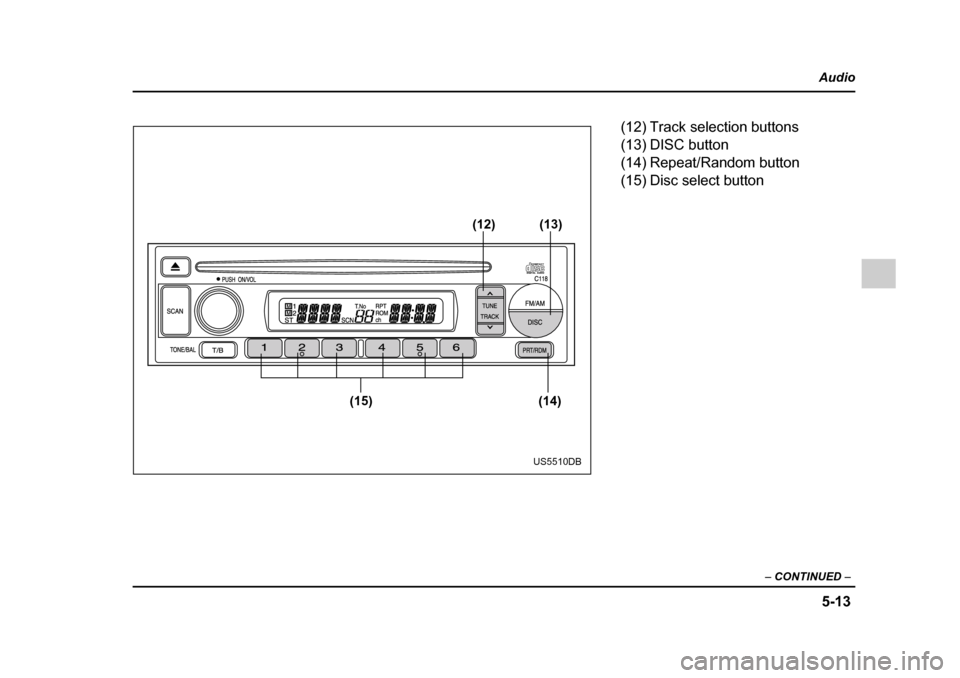

(14)
(15) (13)
(12)
US5510DB
(12) Track selection buttons
(13) DISC button
(14) Repeat/Random button
(15) Disc select button

5-14
Audio
T
To start playback
When the “DISC” button (13) is pressed, the CD
changer will start playback. The display shows the cur-
rent disc number, track number and the elapsed time
during playback.
NOTE y If a disc is in the player, the “DISC” button is
used to change from CD player operation to DISC
changer operation. Each time the “DISC” button is
pressed, the operating mode will change alter-
nately. y At the end of the disc, the player automatically
continues with the next disc. y After playback on the last disc finishes, play-
back will automatically return to the first disc. y If you have loaded fewer than 6 discs, any miss-
ing disc is automatically skipped. T Selection of a desired disc
You can select a desired disc from among the discs
contained in the CD changer only by pressing the cor-
responding number on one of the “Disc select” buttons
(15). If you are to listen to the 5th disc in the CD chang-
er, press the “5” button of the “Disc select” buttons
(15). All other discs in the CD changer can also be se-
lected in a similar way.
NOTE y No disc change takes place if the button corre-
sponding to the storage tray in which no disc is
loaded is pressed. y If the disc select button corresponding to the
disc now in playback is pressed again, the disc
will be replayed from its beginning. T To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the button (12) to skip to
the beginning of the next track. Each time this side of
the button is pressed, the indicated track number will
increase. V Backward direction
Briefly press the “ ” side of the button (12) to skip to
the beginning of the current track. Each time this side
of the button is pressed, the indicated track number
will decrease. T Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the button (12) continuously for
more than 1 second to fast-forward the disc.
Release the button to stop fast-forwarding.
If you continue fast-forwarding to the end of the disc,
