2005 SUBARU IMPREZA turn signal

11 -7 9
Maintenance and service
– CONTINUED –
1) Backup light
2) Rear turn signal light
3) Brake/tail light
4) Tail light
5) Brake light
2. Open the rear portion of the side trunk trim panel.
3. Remove the bulb holder from the rear combination
light assembly by turning it counterclockwise.
4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb.
5. Set the bulb holder into the rear combination light
assembly and turn it clockwise until it locks.
6. Secure the rear trunk trim panel with the clips. T
Wagon
1. Using a Phillips screwdriver, remove the upper and
lower screws that secure the side cover of the rear
combination light assembly.
554
2
3
1
UGB539BB
UGB540BA

11 - 8 0
Maintenance and service

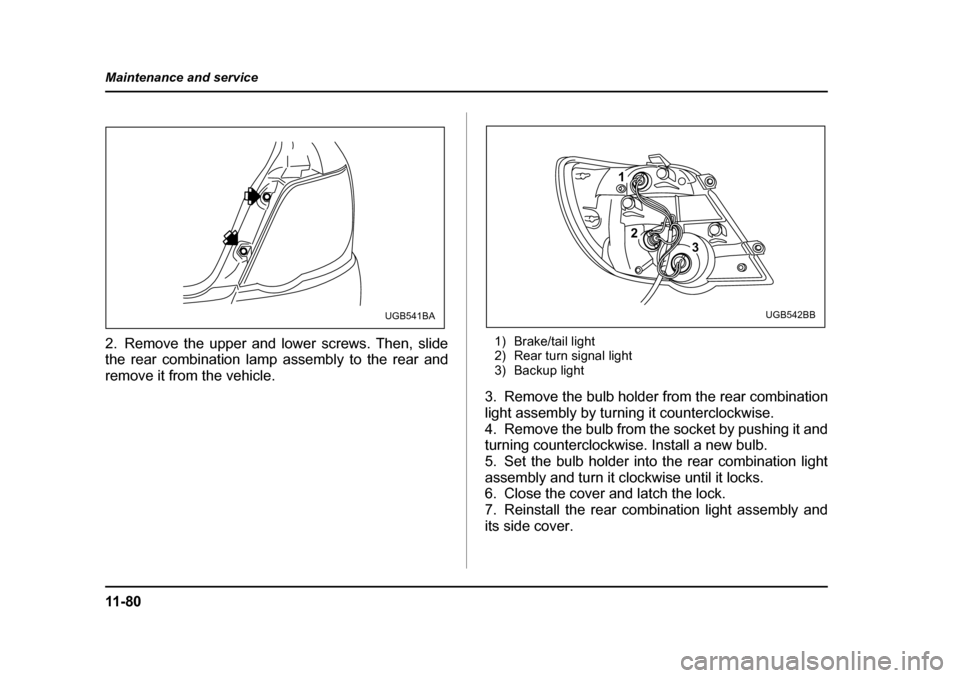

2. Remove the upper and lower screws. Then, slide
the rear combination lamp assembly to the rear and
remove it from the vehicle.
1) Brake/tail light
2) Rear turn signal light
3) Backup light
3. Remove the bulb holder from the rear combination
light assembly by turning it counterclockwise.
4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb.
5. Set the bulb holder into the rear combination light
assembly and turn it clockwise until it locks.
6. Close the cover and latch the lock.
7. Reinstall the rear combination light assembly and
its side cover.
UGB541BA
2
1
3
UGB542BB

12-9
Specifications
– CONTINUED –
„Fuse panel located in the engine com- partment
A) FWD socket (AT models except Turbo)
B) Main fuse
C) Engine sensor (Non-turbo models)
A 12
3
C B
4
5 6
78
91011
12
UGC012BB
Fuse panelFuse ratingCircuit
120Ay
Radiator cooling fan (Main)
220AyRadiator cooling fan (Sub)
330AyABS motor
420AyRear window defogger
515AyHazard warning flasher
y Horn
615AyTurn signal lights
710AyAutomatic transmis-
sion control unit
810AyAlternator
915AyHeadlight (right side)
1015AyHeadlight (left side)
1120AyLighting switch
1220AyClock
y Interior light

12-10
Specifications
Bulb chart
Description Wattage Bulb type
Headlight
U.S.-spec. WRX-
STi versionLow beam 12V-35W D2R
High beam 12V-60W 9005 (HB3)
Except U.S.-spec.
WRX-STi version Low beam 12V-55W H1
High beam 12V-60W 9005 (HB3)
Front fog light 12V-55W H3
Front turn signal 12V-21W –
Parking light 12V-5W 168
Rear combination
light Brake light (Sedan) 12V-21W 7440
Brake/tail light 12V-21/5W 7443
Turn signal light 12V-21W (Amber) –
Tail light (Sedan) 12V-21/5W 7443
Back-up light 12V-21W 7440 High mount stop light
Sedan
(in compartment) 12V-18W 921
Sedan
(in rear spoiler) 12V-1.2W –
Wagon 12V-13W 912
License plate light 12V-5W 168
Trunk room light 12V-16W W16W
Cargo area light 12V-13W –
Front ashtray light 12V-1.4W –
Dome light 12V-8W –
Map light 12V-8W –
Description Wattage Bulb type
