2005 SUBARU IMPREZA fuse

12-1
12
Specifications
Specifications ................................................ 12-2 Dimensions ....................................................... 12-2
Engine ................................................................ 12-3
Electrical system .............................................. 12-3
Capacities .......................................................... 12-4
Tires ................................................................... 12-5
Wheel alignment ............................................... 12-6
Fuses and circuits ........................................ 12-7 Fuse panel located behind the coin tray ....... 12-7
Fuse panel located in the engine compartment .................................................. 12-9
Bulb chart ...................................................... 12-10
Vehicle identification .................................... 12-11

12-7
Specifications
– CONTINUED –
Fuses and circuits „Fuse panel located behind the coin tray
1
23456
78 9101112
13 14 15
16 17 18 19
20 21 22 23
HSC001BB
Fuse panelFuse ratingCircuit
115AyHeater fan
215AyHeater fan
315AyPower door lock
y Remote keyless entry
420AyCigarette lighter
y Remote controlled rear
view mirrors
510AyTail light
y Parking light
615AySRS airbag
715AyFog light
820AyABS solenoid
915AyRadio
10Empty
1115AyEngine ignition system
y SRS airbag
y AT control system

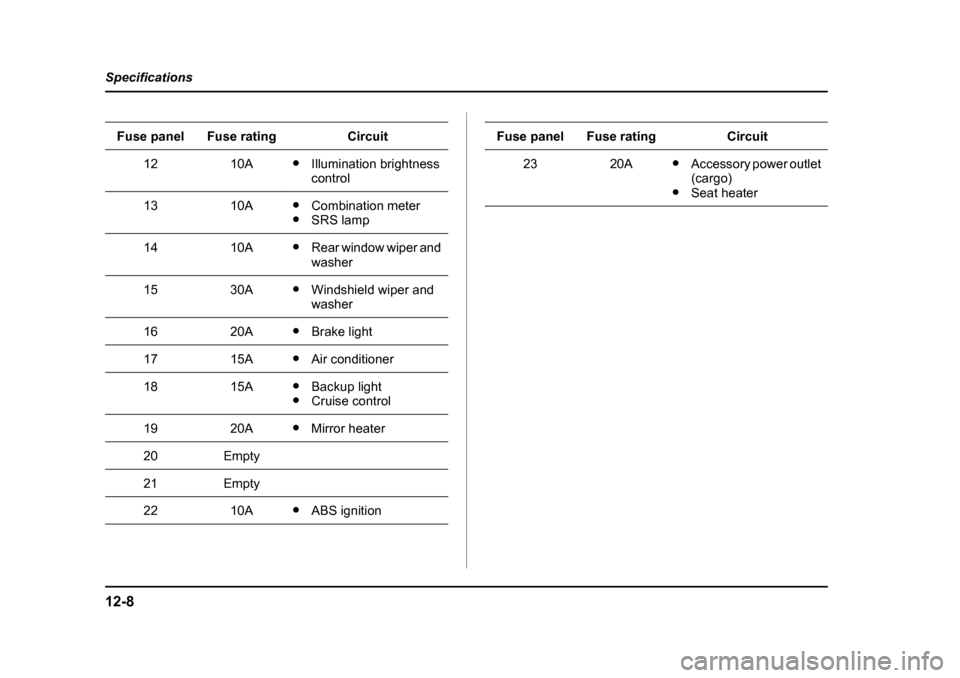

12-8
Specifications
1210Ay
Illumination brightness control
1310AyCombination meter
y SRS lamp
1410AyRear window wiper and washer
1530AyWindshield wiper and washer
1620AyBrake light
1715AyAir conditioner
1815AyBackup light
y Cruise control
1920AyMirror heater
20Empty
21Empty
2210AyABS ignition
Fuse panelFuse ratingCircuit
2320AyAccessory power outlet
(cargo)
y Seat heater
Fuse panelFuse ratingCircuit

12-9
Specifications
– CONTINUED –

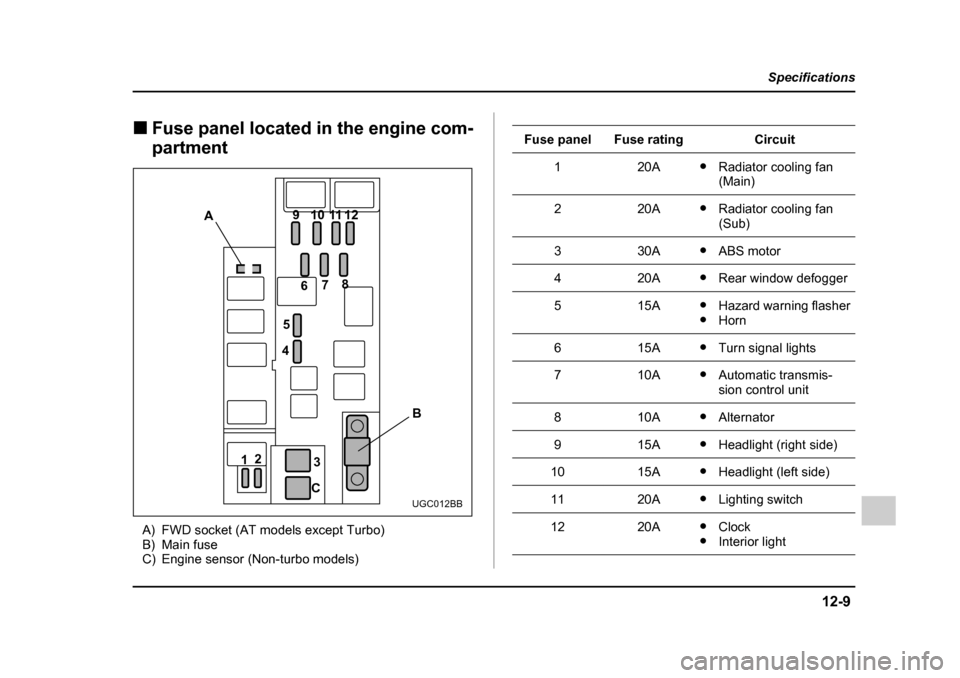

„Fuse panel located in the engine com- partment
A) FWD socket (AT models except Turbo)
B) Main fuse
C) Engine sensor (Non-turbo models)
A 12
3
C B
4
5 6
78
91011
12
UGC012BB
Fuse panelFuse ratingCircuit
120Ay
Radiator cooling fan (Main)
220AyRadiator cooling fan (Sub)
330AyABS motor
420AyRear window defogger
515AyHazard warning flasher
y Horn
615AyTurn signal lights
710AyAutomatic transmis-
sion control unit
810AyAlternator
915AyHeadlight (right side)
1015AyHeadlight (left side)
1120AyLighting switch
1220AyClock
y Interior light
