2005 SUBARU IMPREZA flat tire

9-18
In case of emergency
terioration of the center differential.
„ Towing and tie-down hooks
The towing hooks should be used only in an emergen-
cy (e.g., to free a stuck vehicle from mud, sand or
snow).
Front towing hook:
1. Take out the towing hook, screwdriver and wheel
nut wrench from the on board tool bag.
2. Insert a flat-head screwdriver into the slot at point A
on the front passenger side fog light cover, then use it
to pry the cover upward. The tabs at point A on the fog light cover will come free of the bumper.
3. Pull the entire fog light cover toward you.
4. Screw the towing hook into the threaded hole until
its thread becomes invisible.
5. Tighten the towing hook securely using the wheel
nut wrench.
After towing, remove the towing hook from the vehicle
and stow it in the tool bag.
Fit the fog light cover on the bumper.
y
Do not use the towing hook except when tow-
ing your vehicle.
A
UG9030BB
UG9526BA

9-25
In case of emergency
– CONTINUED –
wise to loosen it, then remove the jack.

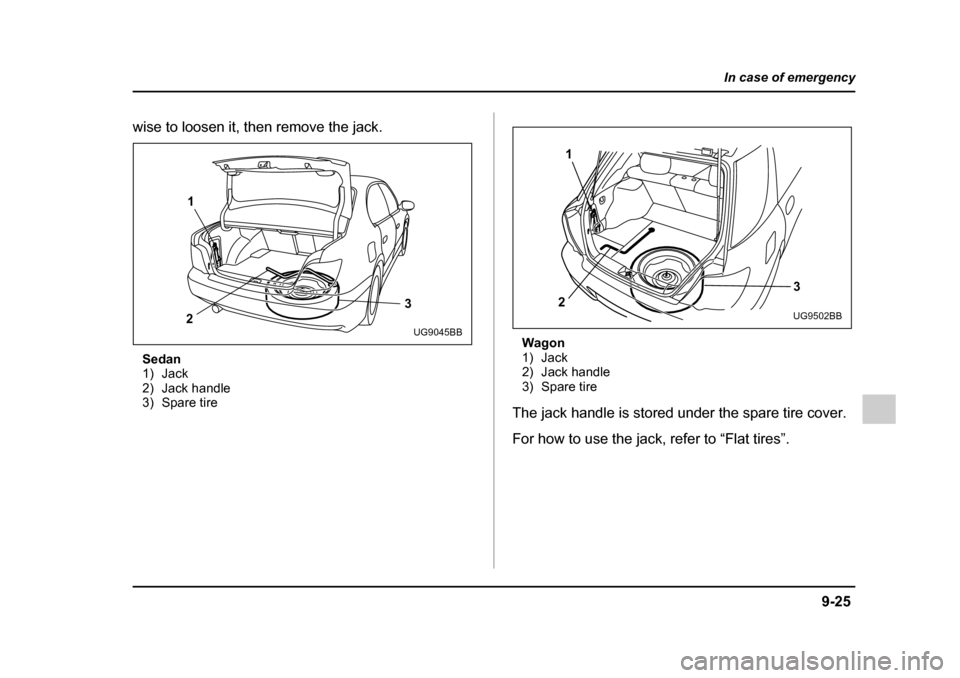

Sedan
1) Jack
2) Jack handle
3) Spare tire Wagon
1) Jack
2) Jack handle
3) Spare tire
The jack handle is stored under the spare tire cover.
For how to use the jack, refer to “Flat tires”.
1
2 3
UG9045BB
3
1
2
UG9502BB

11 - 5 4
Maintenance and service
Use only those wheels that are specified for
your vehicle. Wheels not meeting specifica-
tions could interfere with brake caliper opera-
tion and may cause the tires to rub against the
wheel well housing during turns. The resulting
loss of vehicle control could lead to an acci-
dent.
NOTE
When any of the wheels is removed and replaced
for tire rotation or to change a flat tire, alwayscheck the tightness of the wheel nuts after driving
approximately 600 miles (1,000 km). If any nut is
loose, tighten it to the specified torque.
Aluminum wheels
Aluminum wheels can be scratched and damaged
easily. Handle them carefully to maintain their appear-
ance, performance, and safety. y
When any of the wheels is removed and replaced
for tire rotation or to change a flat, always check the
tightness of the wheel nuts after driving approximately
600 miles (1,000 km). If any nut is loose, tighten it to
the specified torque.y Never apply oil to the threaded parts, wheel nuts, or
tapered surface of the wheel.y Never let the wheel rub against sharp protrusions or
curbs. y Be sure to fit tire chains on uniformly and completely
around the tire, otherwise the chains may scratch the
wheel.y When wheel nuts, balance weights, or the center
cap is replaced, be sure to replace them with genuine
SUBARU parts designed for aluminum wheels.

12-11
Specifications
– CONTINUED –

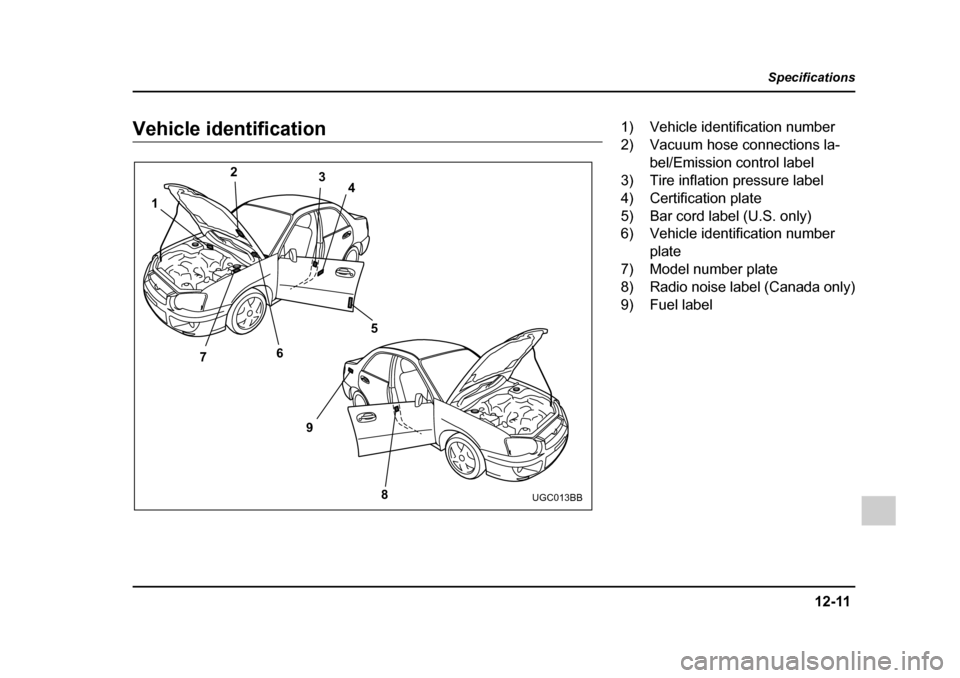

Vehicle identification
2
1
7 6
9 8
4
3
5
UGC013BB
1) Vehicle identification number
2) Vacuum hose connections la-bel/Emission control label
3) Tire inflation pressure label
4) Certification plate
5) Bar cord label (U.S. only)
6) Vehicle identification number
plate
7) Model number plate
8) Radio noise label (Canada only)
9) Fuel label

13-1
13
Consumer information and Reporting safety defectsTire information ............................................. 13-2Tire labeling ....................................................... 13-2
Recommended tire inflation pressure ............ 13-5
Glossary of tire terminology ............................ 13-7
Tire care – maintenance and safety practices ......................................................... 13-8
Vehicle load limit – how to determine ............. 13-9
Determining compatibility of tire and vehicle
load capacities ............................................... 13-13
Adverse safety consequences of overloading
on handling and stopping and on tires ........ 13-14
Steps for Determining Correct Load Limit ..... 13-14
Uniform tire quality grading standards ....... 13-15 Treadwear .......................................................... 13-15
Traction AA, A, B, C .......................................... 13-15
Temperature A, B, C ......................................... 13-16
Reporting safety defects (USA) ................... 13-17

13-3
Consumer information and Reporting safety defects
– CONTINUED –
Example:
(6) Load Index: A numerical code which speci-
fies the maximum load a tire can carry at the
speed indicated by its speed symbol, at maxi-
mum inflation pressure.
For example, “90” means 1,323 lbs (600 kg), “89”
means 1,278 lbs (580 kg).
Load indices apply only to the tire, not to
the vehicle. Putting a load rated tire on any
vehicle does not mean the vehicle can be
loaded up to the tire’s rated load.
(7) Speed Rating: An alphabetical system de-
scribing a tire’s capability to travel at established
and predetermined speeds.
For example, “V” means 149 mph (240 km/h)
y Speed ratings apply only to the tire, not
to the vehicle. Putting a speed rated tire on
any vehicle does not mean the vehicle can
be operated at the tire’s rated speed. y The speed rating is void if the tires are
worn out, damaged, repaired, retreaded, or
otherwise altered from their original condi-
tion. If tires are repaired, retreaded, or oth-
erwise altered, they may not be suitable for
original equipment tire designed loads and
speeds.
T Tire Identification Number (TIN)
Tire Identification Number (TIN) is marked on the
intended outboard sidewall. The TIN is com-
posed of four groups. Here is a brief review of the
TIN with a breakdown of its individual elements.
(1) Manufacturer’s Identification Mark
P 205 / 55 R 16 89 V Size designation (6) (7)
DOT XX XX XXX XXXX
(1) (2) (3)(4)

13-4
Consumer information and Reporting safety defects
(2) Tire Size
(3) Tire Type Code
(4) Date of Manufacture
The first two figures identify the week, starting
with “01” to represent the first full week of the cal-
endar year; the second two figures represent the
year. For example, 0101 means the 1st week of
2001. T
Other markings
The following makings are also placed on the
sidewall. V Maximum permissible inflation pressure
The maximum cold inflation pressure to which
this tire may be inflated. For example, “300 kpa
(44 PSI) MAX. PRESS” V Maximum load rating
The load rating at the maximum permissible
weight load for this tire. For example, “MAX.
LOAD 580 kg (1279 LBS) @ 300 kpa (44 PSI) MAX. PRESS.”
Maximum load rating applies only to the
tire, not to the vehicle. Putting a load rated
tire on any vehicle does not mean the vehi-
cle can be loaded up to the tire’s rated
load.
V Construction type
Applicable construction of this tire.
For example, “TUBELESS STEEL BELTED RA-
DIAL” V Construction
The generic name of each cord material used in
the plies (both sidewall and tread area) of this
tire.
For example, “PLIES: TREAD 2 STEEL + 2
POLYESTER SIDEWALL 2 POLYESTER” V Uniform Tire Quality Grading (UTQG)
For details, refer to “Uniform tire quality grading
standards” in this chapter.

13-5
Consumer information and Reporting safety defects
– CONTINUED –
„Recommended tire inflation pressure
T Recommended cold tire inflation pressure
Recommended cold tire inflation pressure for your vehicle’s tires is as follows,
*1: The recommended cold tire pressure for the 215/45R17 87W tire is not indicated on the vehicle plac-
ard attached to the driver’s side B-pillar since this tire is a dealer option for the WRX. If your vehicle is
equipped with 215/45R17 87W tires, be sure to adjust them to the air pressure shown on this page.
ItemRS, RS sport
package, WRXWRX (option tire) *1WRX-STi
Tire sizeP205/55R16 89V215/45R17 87W225/45R17 90W
Wheel size16
× 6 1
/2 JJ17
× 7 JJ17 × 8 JJ
PressureFront32 psi (220 kPa,
2.2 kgf/cm 2
)33 psi (230 kPa,
2.3 kgf/cm 2
)36 psi (250 kPa,
2.5 kgf/cm 2
)
Rear29 psi (200 kPa,
2.0 kgf/cm 2
)32 psi (220 kPa,
2.2 kgf/cm 2
)30 psi (210 kPa,
2.1 kgf/cm 2
)
Temporary spare
tireSizeT135/70 D16T135/70 D17
Pressure60 psi (420 kPa, 4.2 kgf/cm 2
)
