2005 SUBARU FORESTER dashboard

1-57
Seat, seatbelt and SRS airbags
– CONTINUED –
„SRS frontal airbag
The driver’s SRS frontal airbag is stowed in the center
portion of the steering wheel. The passenger’s SRS
frontal airbag is stowed near the top of the dashboard
under an “SRS AIRBAG” mark.
In a moderate to severe frontal collision, the driver’s
and front passenger’s SRS frontal airbags deploy and
supplement the seatbelts by reducing the impact on
the driver’s and front passenger’s head and chest.

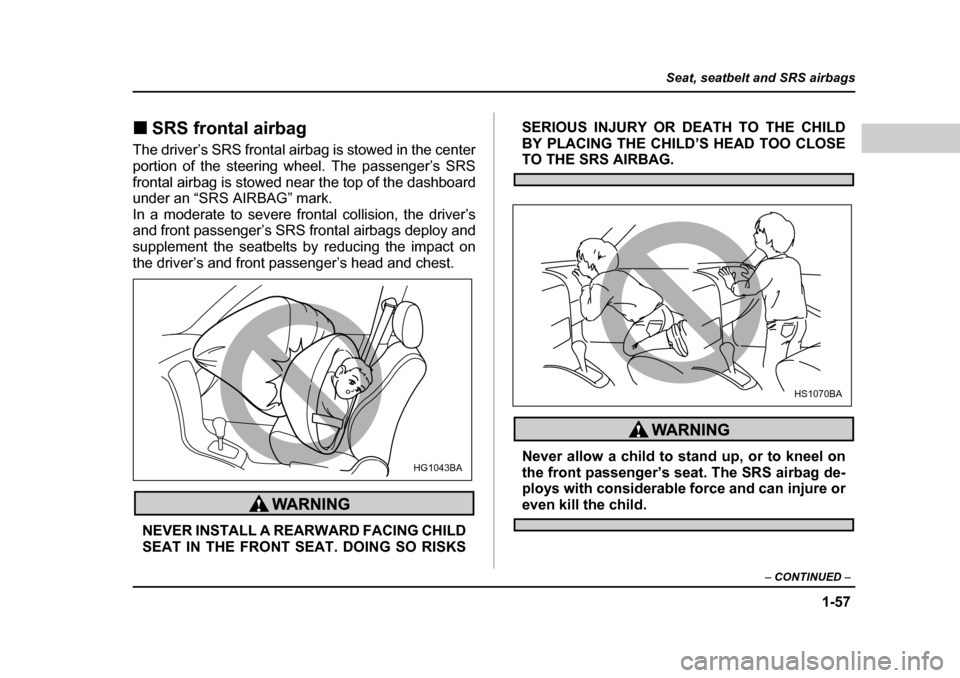

NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD TOO CLOSE
TO THE SRS AIRBAG.
Never allow a child to stand up, or to kneel on
the front passenger’s seat. The SRS airbag de-
ploys with considerable force and can injure or
even kill the child.
HG1043BA
HS1070BA

1-59
Seat, seatbelt and SRS airbags
– CONTINUED –
avoid injuries that can result when the SRS air-
bag contacts an occupant not in proper posi-
tion such as one thrown toward the front of the
vehicle during pre-accident braking.

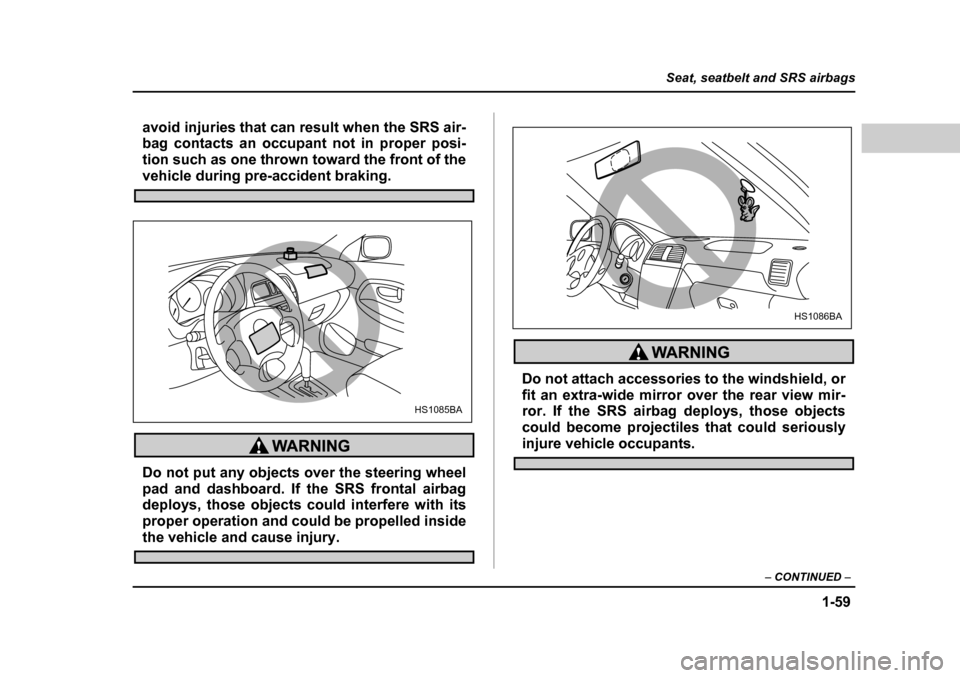

Do not put any objects over the steering wheel
pad and dashboard. If the SRS frontal airbag
deploys, those objects could interfere with its
proper operation and could be propelled inside
the vehicle and cause injury.
Do not attach accessories to the windshield, or
fit an extra-wide mirror over the rear view mir-
ror. If the SRS airbag deploys, those objects
could become projectiles that could seriously
injure vehicle occupants.
HS1085BA
HS1086BA

1-75
Seat, seatbelt and SRS airbags
– CONTINUED –
„SRS airbag system servicing
yWhen discarding an airbag module or scrap-
ping the entire vehicle damaged by a collision,
consult your SUBARU dealer. y The SRS airbag has no user-serviceable
parts. Do not use electrical test equipment on
any circuit related to the SRS airbag system.
For required servicing of the SRS airbag, see
your nearest SUBARU dealer. Tampering with
or disconnecting the system’s wiring could re-
sult in accidental inflation of the SRS airbag or
could make the system inoperative, which may
result in serious injury. The wiring harnesses of
the SRS airbag system are covered with yellow
insulation and system connectors are yellow
for easy identification.
If you need service or repair in areas listed be-
low, we recommend that you have an autho-
rized SUBARU dealer perform the work. The
SRS airbag control module, impact sensors
and airbag modules are stored in these areas. y
Under the center console
y Near the bottom of the radiator
y Steering wheel and column and nearby areas
y Top of the dashboard on front passenger’s
side and nearby areasy Each front seat and nearby area (for vehicles
with SRS side airbags only)
y Inside each center pillar
In the event that the SRS airbag is deployed, re-
placement of the system should be performed
only by an authorized SUBARU dealer. When the
components of the SRS airbag system are re-
placed, use only genuine SUBARU parts.
To ensure their long-term reliability, the SRS airbags
must be inspected by a SUBARU dealer ten years af-
ter the date of manufacture, which is shown on the cer-
tification plate attached to the driver’s door jamb.
NOTE
In the following cases, contact your SUBARU deal-
er as soon as possible.y The front part of the vehicle was involved in an
accident in which the SRS frontal airbags did not
deploy.y The pad section of the steering wheel or front

1-76
Seat, seatbelt and SRS airbags
passenger’s frontal airbag cover is scratched,
cracked, or otherwise damaged.
In addition, if your vehicle is equipped with SRS
side airbags, contact your SUBARU dealer as
soon as possible in the following cases.y
Either center pillar or a nearby area of the vehi-
cle was involved in an accident in which the SRS
side airbag did not deploy.y The fabric or leather of either front seatback is
cut, frayed, or otherwise damaged. „ Precautions against vehicle modifica- tion
yTo avoid accidental activation of the system
or rendering the system inoperative, which may
result in serious injury, no modifications
should be made to any components or wiring of
the SRS airbag system.
This includes following modifications: yInstallation of custom steering wheels
y Attachment of additional trim materials to
the dashboard y Installation of custom seats (for vehicles with SRS side airbags only)y
Replacement of seat fabric or leather (for
vehicles with SRS side airbags only) y Installation of additional fabric or leather
on the front seat (for vehicles with SRS side
airbags only)
y Installation of additional electrical/electronic
equipment such as a mobile two-way radio on
or near the SRS airbag system components
and/or wiring is not advisable. This could inter-
fere with proper operation of the SRS airbag
system.
Do not perform any of the following modifica-
tions. Such modifications can interfere with
proper operation of the SRS airbag system. y Attachment of any equipment (brush bar,
winches, snow plow, skid plate, etc.) other than
genuine SUBARU accessory parts to the front
end. y Modification of the suspension system or
front end structure. y Installation of a tire of different size and con-
struction from the tires specified on the tire

3-22
Instruments and controls
Clock

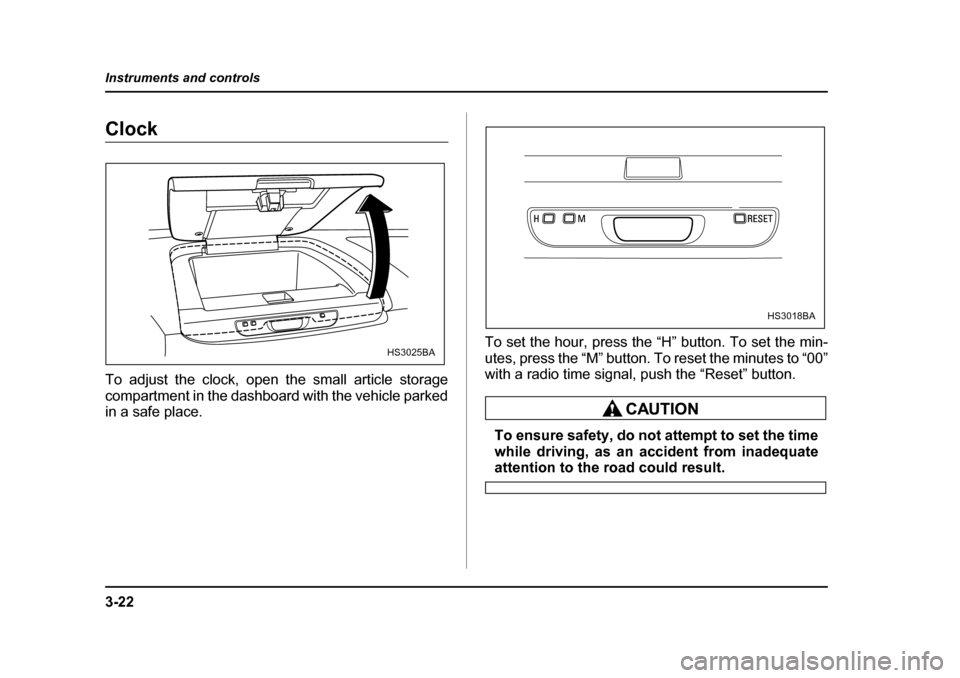

To adjust the clock, open the small article storage
compartment in the dashboard with the vehicle parked
in a safe place.
To set the hour, press the “H” button. To set the min-
utes, press the “M” button. To reset the minutes to “00”
with a radio time signal, push the “Reset” button.
To ensure safety, do not attempt to set the time
while driving, as an accident from inadequate
attention to the road could result.
HS3025BA
HS3018BA

6-1
6
Interior equipment
Interior lights ................................................ 6-2 Dome light ......................................................... 6-2
Cargo area light ................................................ 6-2
Map lights ...................................................... 6-3
Sun visors ..................................................... 6-3 Vanity mirror ...................................................... 6-4
Storage compartments ................................ 6-4 Glove box ........................................................... 6-5
Center console .................................................. 6-5
Overhead console ............................................. 6-6
Dashboard storage compartment ................... 6-6
Convenience net ............................................... 6-7
Coin tray ............................................................ 6-7
Cup holders .................................................. 6-8 Front passenger’s cup holder ......................... 6-8
Rear passenger’s cup holder ........................... 6-8
Accessory power outlets ............................. 6-9
Cigarette lighter socket ................................ 6-11 Use with a cigarette lighter .............................. 6-12
Using as an accessory power outlet ............... 6-13
Ashtray .......................................................... 6-14
Floor mat ....................................................... 6-15
Coat hook ...................................................... 6-16
Cargo area cover (if equipped) .................... 6-16 Using the cover ................................................. 6-16
To remove the cover ......................................... 6-17
To install the cover housing ............................ 6-17
Shopping bag hook ...................................... 6-18
Cargo tie-down hooks .................................. 6-18 Under-floor storage compartment ............... 6-19

6-6
Interior equipment
„
Overhead console

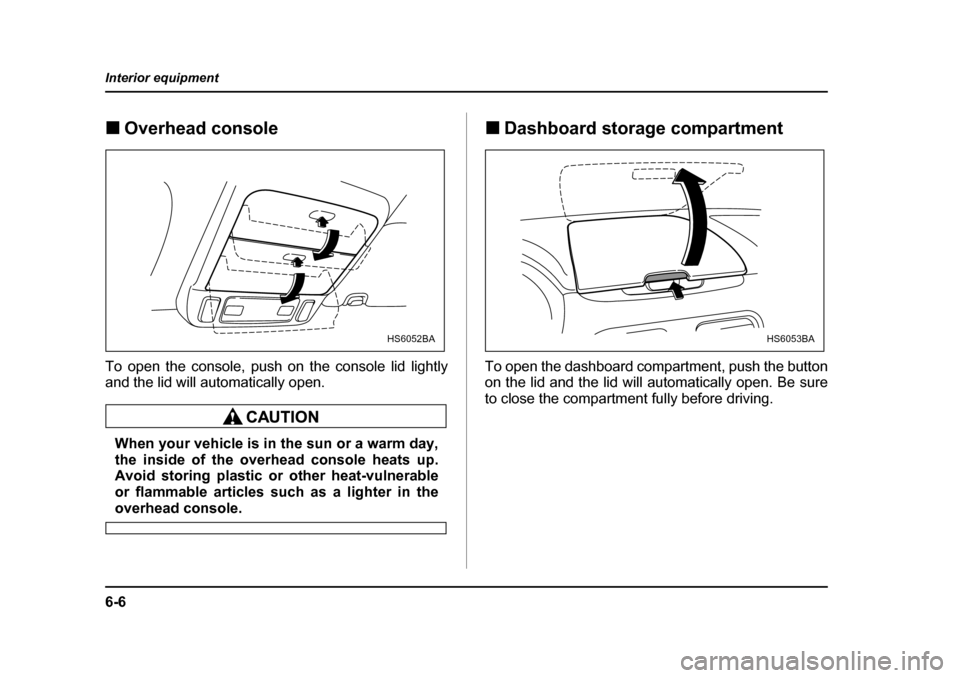

To open the console, push on the console lid lightly
