2005 SKODA SUPERB key

2
OVERVIEW
Quick Reference Guide
Pos. Page
1 Rotary/push knob .................................... 5
- Switch on/of
f (ON/OFF):
Press knob
- V
olume control (VOLUME): Turn knob Pos. Page
2 Sound setting buttons .............................. 6
T
he following settings can be made by
pressing and turning the tone setting but-
tons.
- Bass setting (BASS)
- Mid-range setting (MIDDLE)
- T
reble setting (TREBLE)
- Balance (BALANCE)
- Fader (F
ADER)
Overview
Dear Customer,
In teh event that you did not receive the secu-
rity code for your radio, this is because your
car is equiped with the convenience system
of coding for which this code is not needed. In
the battery is disconnected and then re-con-
nected, first of all switch the ignition on with
the key and then, after this, the radio. Should
you nevertheless wish to have the security
code, please contact your Škoda dealer.
20.indd 27.6.2003, 14:32
2

3

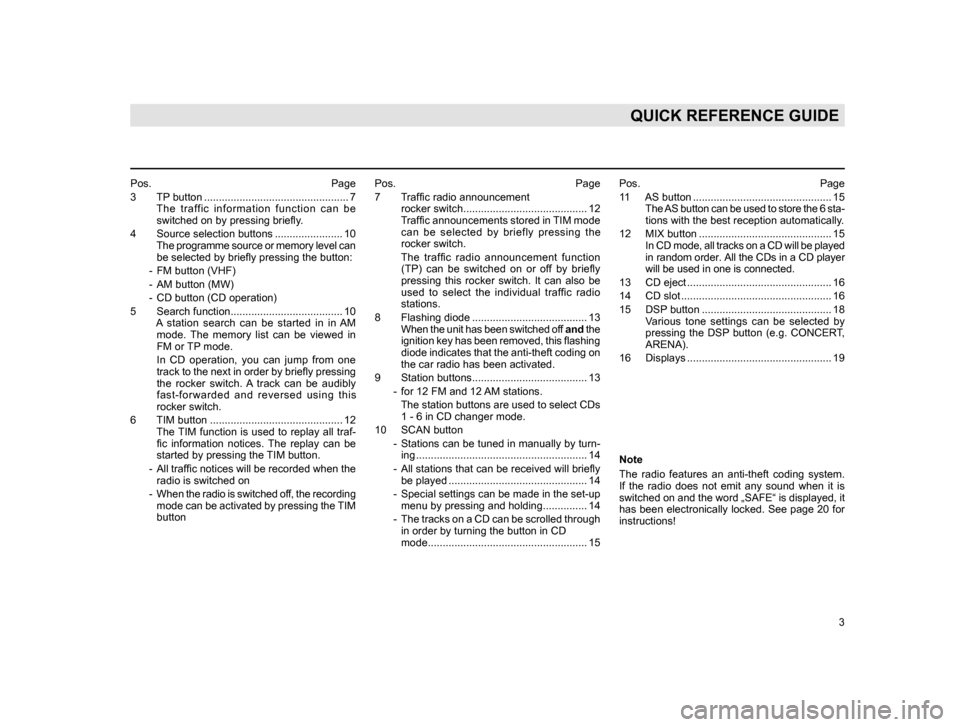

QUICK REFERENCE GUIDE
Pos. Page
3 TP
button ................................................. 7
The traffic information function can be switched on by pressing briefly.
4 Source selection buttons ....................... 10
T
he programme source or memory level can be selected by briefly pressing the button:
- FM button (VHF)
- AM button (MW)
- CD button (CD operation)
5 Search function...................................... 10
A
station search can be started in in AM mode. The memory list can be viewed in
FM or TP mode.
I
n CD operation, you can jump from one track to the next in order by briefly pressing
the rocker switch. A track can be audibly
fast-forwarded and reversed using this
rocker switch.
6 TIM button ............................................. 12
The
TIM function is used to replay all traf- fic
information notices. The replay can be
started by pressing the TIM button.
- All
traffic notices will be recorded when the radio is switched on
- W
hen the radio is switched off, the recording mode can be activated by pressing the TIM
button Pos. Page
7 T
raffic radio announcement
rocker switch.......................................... 12
T
raffic announcements stored in TIM mode can be selected by briefly pressing the
rocker switch.
T
he traffic radio announcement function (TP) can be switched on or off by briefly
pressing this rocker switch. It can also be
used to select the individual traffic radio
stations.
8 Flashing diode ....................................... 13
W
hen the unit has been switched off and the
ignition key has been removed, this flashing
diode indicates that the anti-theft coding on
the car radio has been activated.
9 Station buttons....................................... 13
- for 12 FM and 12
AM stations.
The
station buttons are used to select CDs 1 - 6 in CD changer mode.
10 SCAN button
- Stations
can be tuned in manually by turn- ing .......................................................... 14
- All
stations that can be received will briefly be played ............................................... 14
- Special
settings can be made in the set-up menu by pressing and holding............... 14
- The
tracks on a CD can be scrolled through in order by turning the button in CD
mode...................................................... 15 Pos. Page
1

1 AS button ............................................... 15
T
he AS button can be used to store the 6 sta- tions with the best reception automatically
.
12 MIX button ............................................. 15
I
n CD mode, all tracks on a CD will be played in random order. All the CDs in a CD player
will be used in one is connected.
13 CD eject ................................................. 16
14 CD slot ................................................... 16
15 DSP
button ............................................ 18
Various tone settings can be selected by pressing the DSP button (e.g. CONCERT,
ARENA).
16 Displays ................................................. 19
Note
The

radio features an anti-theft coding system.
If the radio does not emit any sound when it is
switched on and the word „SAFE“ is displayed, it
has been electronically locked. See page 20 for
instructions!
20.indd 27.6.2003, 14:32
3

5
CONTROLS AND EQUIPMENT
Tips on CD operation
To ensure perfect, high-quality CD reproduction,
only clean, undamaged CDs should be used.
Please do not stick any labels onto the CD’s.
Compact discs not being used should always be
stored in the CD rack from the Genuine Škoda
accessories range or in the original box.
Never leave CDs exposed to direct sunlight!
Notes on cleaning compact discs
Use a soft, lint-free cloth to clean CDs. Wipe the
disc in a straight line from the centre outwards.
Stubborn soiling can be removed with a commer-
cial CD cleaner or isopropyl alcohol.
Never use fluids like petrol, paint thinner or
record cleaner, as these can damage the sur-
face of the CD!
Radio and CD operation
1 - Rotary/Push knob
The knob serves:
lSwitching on/off (ON/OFF).
l V
olume control (VOLUME).
Switching on/off (ON/OFF)
Briefly press the knob to switch the radio on
and off .
The
frequency and volume settings used before
the radio was last switched off will be reacti-
vated.
If the radio is on when the key is removed from
the ignition, it automatically switches off.
The radio will switch on automatically if the key is
replaced in the ignition. The radio can be switched on again when the
ignition key has been removed by pressing the
rotary/push knob
1. It will then switch off auto-
matically approximately 1 hour later to ensure
that the battery does not run flat.
This procedure can, however, be repeated as
often as required.
When the unit is switched off and the ignition key
has been removed, a flashing diode (see page
16) indicates that the radio is equipped with an
activated Anti-Theft Code.
If the radio unit makes no noise after switching on
and „SAFE“ is shown in the display, please refer
to the operating notes as of page 20.
Volume control (VOLUME)
The volume can be set by turning the knob .
„VOLUME“ is shown in the display with a settings
bar. The bar shows the change in volume.
The settings bar will disappear approximately 5
seconds after the volume has been altered.
Note
If the minimum volume is selected, the settings
bar will be shown with „MIN“ additionally in the
display.
20.indd 27.6.2003, 14:32
5

12
CONTROLS AND EQUIPMENT
6 - TIM button
Up to 9 traffic information reports with a total
length of 4 minutes can be stored automatically
with the TIM function (Traffic Information Memory)
in the quality of a telephone conversation. This
function uses a digital memory.
Recording traffic reports
You have 3 different possibilities to record traffic
announcements:
l When the radio is switched on, every traffic
announcement
of the selected station will be re-
corded as soon as „TP“ appears in the dis
play.
l Recording period: 2 hours 1 - Switch
on the TP ready mode with the TP
button 3 and select the required TP station by
pressing the traffic radio rocker switch 7.
2 - Remove the ignition key
.
All incoming traffic announcements will now be
recorded for the next 2 hours.
l Using
the functions TIM Time 1 and TIM Time
2, the TP recording function can be made avail-
a
ble for a period of 2 hours. Traffic announce-
ments
will be recorded during this period - see
page 8.
Note
l T
he oldest report will be deleted if a new report
is to be recorded and the memory is full.
lI
f a report is longer than 4 minutes the be-
ginning will be recorded over. An acoustic signal
will indicate that it was not possible to record the
entire report.
lNo
traffic announcements will be recorded if
the vehicle is not used for three days or longer.
7 - Traffic radio rocker switch
Listening to traffic reports chronologically
Press the TIM button 6 - the most recent traffic
report will be played first and the reports will then
be played in chronological order through to the
oldest. „TP Memo 2/3“, for example.
„TP-Memo“: TIM replay
„2/3“: 2nd traffic announcement of three recorded
traffic announcements.
„No TP Message“ will appear in the display if no
traffic reports have been recorded.
Listening to traffic reports in any order
l Press the TIM button 6.
l M
ove from message to message with the
traffic radio rocker switch 7 by pressing the right
side
(next message) and the left side (previous
message) or to the beginning of a message.
20.indd 27.6.2003, 14:32
12

13
CONTROLS AND EQUIPMENT
8 - Flashing diode
When the unit is switched off and the ignition
key is removed, this flashing diode indicates that
the car radio is equipped with activated anti-theft
coding.
9 - Station buttons
Radio operation
A maximum of 24 stations can be stored on the 6
station buttons and the different memory levels.
FM1/FM2 = 6 stations each,
AM1/AM2 = 6 stations each.
„FM2“ indicates that you are on the second me-
mory level. You can switch between the memory
levels by pressing the FM or AM button 4.
Manually storing
l Select desired waveband 4.
l T
une radio to desired station 10.
l Press
the button on which the station is to be
stored and hold until the programme is muted
and a signal is emitted. The station is now stored.
The number of the station button appears in the
display (if, for example, you store a station on
button number 3, a „3“ will appear in the display.
Note
P

lease ensure that the name of the station is
shown in the display when storing. Otherwise
any running text being displayed, and not the
station name, will be stored!
20.indd 27.6.2003, 14:32
13

20
CONTROLS AND EQUIPMENT
Anti-theft coding
When the unit is switched off and the ignition key
has been removed, the flashing diode 8 will show
that the radio has anti-theft coding.
The anti-theft coding will electronically prevent
unauthorized persons from operating the unit if it
has been removed from the vehicle.
Convenience radio coding
For technical reasons, the convenience radio cod-
ing is not available for all vehicle models.
In the past one had to recode the radio manually
every time the unit was removed or when the
vehicle battery had been disengaged.
That has all changed with the new convenience
radio coding function: Once the code number
has been input in the radio it will then be stored
in the vehicle!
If the current supply has been interrupted the radio
will automatically compare „its“ code number with
the one stored in the vehicle. If the code numbers
are identical the radio will be ready for use after
just a few seconds.
It is therefore no longer necessary to disengage
the electronic lock manually!
If the code numbers are not identical, however,
because the radio has been fitted to another ve-
hicle, for example, the electronic lock will have to
be disengaged manually.In teh event that you did not receive the secu-
rity code for your radio, this is because your
car is equiped with the convenience system
of coding for which this code is not needed. In
the battery is disconnected and then re-con-
nected, first of all switch the ignition on with
the key and then, after this, the radio. Should
you nevertheless wish to have the security
code, please contact your Škoda dealer.
Cancelling the electronic lock
If the radio was installed in another vehicle,
„SAFE“ will appear in the display after the radio
is switched on.
To cancel the electronic lock, you must enter the
correct
code number.
It is essential that the following steps be carried
out in the correct order:
l Turn on the radio - the word „SAFE“ appears
in the display
.
l „1000“
will appear in the display after approxi-
mately 3 seconds.
If, however, „SAFE“ is still shown - together
with a small „2“ - in the left of the display,
the radio is blocked! The radio must remain
switched on for 1 hour to lift this block.
lInput
the code number attached to the code
card using the station buttons (9).
Use button 1 to input the first digit of
the code
number, button 2 to input the second digit ,
and so on. l
Then press either the search or the manual
setting
rocker switch for longer than 2 seconds.
Release button!
l A
frequency will be shown automatically shortly
after the correct code has been input.
The radio can now be used again!
Incorrect Code Number
Should

you inadvertently input the incorrect code
number in attempting to release the electronic
lock, the word „SAFE“ will appear in the display
- first flashing and then permanently.
You can now repeat the entire cancelling proce-
dure once . The number of attempts will be shown
in the display.
If you input another incorrect number, your ra-
dio will be blocked for approximately one hour,
i.e. the radio cannot be turned on. This will be
indicated through the small „2“ in the bottom
left of the display. After an hour, the radio must
remain switched on, the display with the number
of attempts goes out and you can cancel the
electronic lock as described above.
T

his cycle - two attempts, one hour lock - will
remain the same.
20.indd 27.6.2003, 14:32
20
