Seats and Stowage83
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
deployed airbag. In this case, the objects which are thrown back
can injure the occupants - hazard!
•Please note that the handling properties of your vehicle may be
affected when transporting heavy objects as a result of the
displacement of the centre of gravity. The speed and style of
driving must be adjusted accordingly.
•The items carried in the luggage compartment should be stored
in such a way that no objects are able to slip forward if there are any
sudden driving or braking manoeuvres undertaken - risk of injury!
•Never drive with the boot lid slightly ajar or even fully opened
otherwise exhaust gases may get into the interior of the vehicle -
risk of poisoning!
•On no account exceed the permissible axle loads and the
permissible gross weight of the vehicle - risk of accident!
•Never transport occupants in the luggage compartment!
Note
•Tyre pressure must be adjusted to the load ⇒page 236, fig. 179 .
•The air circulation in the interior of the car helps to prevent the
windows from misting up. Stale air is diverted via the outlet nozzles into
the lateral trim panels of the luggage compartment. Check for yourself that
the outlet nozzles are not covered.
•On vehicles fitted without foldable backrest but with fixed backrest, the
luggage compartment cannot be enlarged.
Lashing eyes
Eyes are located on the sides of the loading area for lashing the goods to
be loaded ⇒ fig. 65.
You can also attach a securing net* to these eyes for lashing small objects.
WARNING
•The load to be transported must be fixed in place in such a way
that it cannot move during the journey and when braking.
•If the items of luggage or objects are attached to the lashing
eyes with unsuitable or damaged lashing straps, injuries can occur
in the event of braking manoeuvres or accidents. In order to
prevent the items of luggage being thrown forward, always use
suitable lashing straps which are firmly attached to the lashing
eyes. Never attach a child seat to the lashing eyes!
WARNING (continued)
Fig. 65 Position of
lashing eyes in luggage
compartment
s3ec.book Seite 83 Montag, 2. Mai 2005 3:42 15

Seats and Stowage87
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
on the knob is visible. If the seat backrest is correctly locked, the knob is
pushed back and the red surface is not visible.
WARNING
•The belt locks and the pelvic belt must be in their original posi-
tion after folding back the seat backrest - they must be ready to use.
•The seat backrests must be securely interlocked in position so
that no objects in the luggage compartment can slide forward if
there is sudden braking - risk of injury!
•Pay attention that the rear seat backrest is correctly interlocked.
It is only then that the three-point seat belt for the middle seat can
reliably fulfil its function.
•Before folding the seat backrest back into the secure position,
place the rear lateral seat belt behind the edge of the side trim
panel. Take suitable measures to prevent that the seat belt is
jammed between the seat backrest and the side trim panel is thus
damaged.
The luggage compartment cover
You can use the luggage compartment cover behind the head restraints
of the rear seats for storing light and soft items.
WARNING
No objects should be placed on the luggage compartment cover,
the vehicle occupants could be endangered if there is sudden
braking or the vehicle co llides with something.
Caution
Please ensure that the heating elements of the rear window heater are not
damaged as a result of objects placed in this area.
s3ec.book Seite 87 Montag, 2. Mai 2005 3:42 15

Seats and Stowage89
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•After placing items into the through-loading bag, you must
secure the bag with the securing belt .
•The securing belt must hold the items tight.
•Ensure that the securing belt on ski sport articles lies in the
middle between the bindings (see imprint on the through-loading
bag).
Note
•Place the skis with the tips facing the front, snowboards and ski sticks
with the tips facing the rear into the through-loading bag.
•If there are several pairs of skis in the through-loading bag, ensure that
the bindings are positioned at the same height.
•The through-loading bag must never be folded together or stowed
when moist.
The cool box in the a rmrest of rear seats*
Using the system
The contents of the cool box is cooled to a temperature of about
20 °C below the ambient temperature, but to a maximum of
approx.+ 5 °C.
Opening and Closing
– Pull the handle ⇒fig. 75 and pull the lid downwards.
– Open up the lid of the cool box upwards until it is heard to lock.
Switching on and off
– The cooling action of the cool box is switched on and off using switch ⇒fig. 75. It is signalised by the lighting up of the
indicator light on the switch.
AA
Fig. 75 Cool box
AA
s3ec.book Seite 89 Montag, 2. Mai 2005 3:42 15

Seats and Stowage99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Removing ashtray insert
– Press the cover of the ashtray down slightly as far as the stop.
– Grasp the ashtray insert and pull it out at an angle of about
45°.
Insert ashtray insert
– Position the ashtray insert at an angle of about 45° and press it into the mount as far the stop.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Ashtray in the armrest*
Ashtray located in the armrest of the rear right door
Opening ashtray
– Press on the middle part of the cover of the ashtray.
Removing ashtray insert
– Press on the top part of the opened ashtray in position , the ashtray insert is raised ⇒fig. 90.
Insert ashtray insert
– Press the ashtray insert into the armrest.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Fig. 90 Ashtray in the
armrest of the rear right
door
AA
AB
s3ec.book Seite 99 Montag, 2. Mai 2005 3:42 15

Seats and Stowage
100

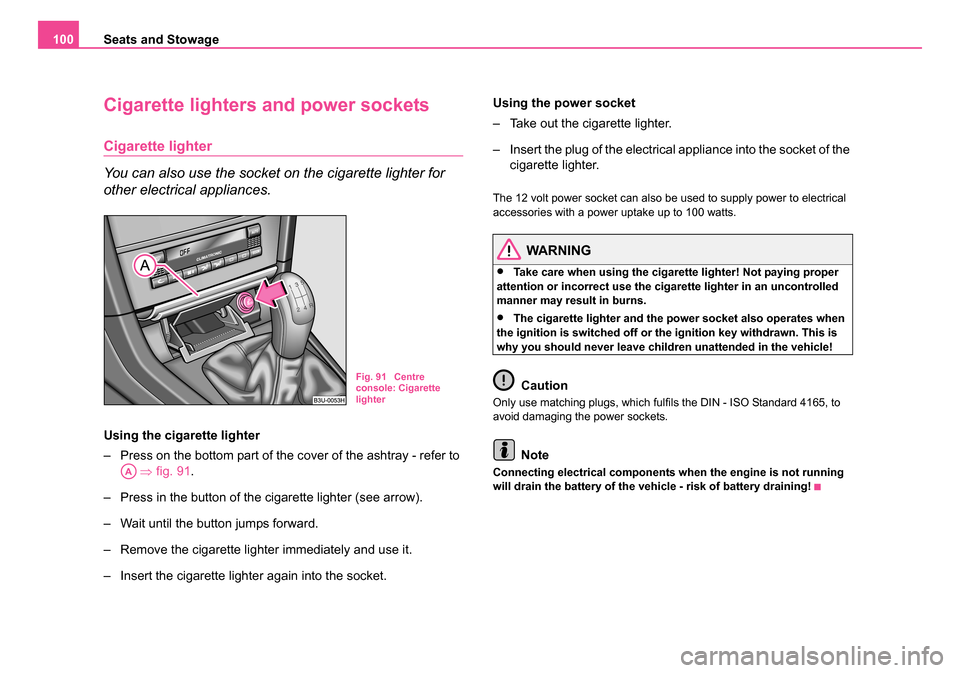

Cigarette lighters and power sockets
Cigarette lighter
You can also use the socket on the cigarette lighter for
other electrical appliances.
Using the cigarette lighter
– Press on the bottom part of the cover of the ashtray - refer to
⇒ fig. 91.
– Press in the button of the cigarette lighter (see arrow).
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket. Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the socket of the
cigarette lighter.
The 12 volt power socket can also be used to supply power to electrical
accessories with a power uptake up to 100 watts.
WARNING
•Take care when using the cigarette lighter! Not paying proper
attention or incorrect use the cigarette lighter in an uncontrolled
manner may result in burns.
•The cigarette lighter and the power socket also operates when
the ignition is switched off or the ignition key withdrawn. This is
why you should never leave children unattended in the vehicle!
Caution
Only use matching plugs, which fulfils the DIN - ISO Standard 4165, to
avoid damaging the power sockets.
Note
Connecting electrical components when the engine is not running
will drain the battery of the vehicle - risk of battery draining!
Fig. 91 Centre
console: Cigarette
lighter
AA
s3ec.book Seite 100 Montag, 2. Mai 2005 3:42 15

Seats and Stowage101
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Cigarette lighter in rear compartment*
Operating and further information regarding the use of the cigarette lighter
⇒page 100.
Power socket in the luggage compartment
– Open the cover of the power socket ⇒fig. 93.
– Connect the plug of the electrical appliance to the socket.
The power socket fulfils the requirements of DIN standard ISO 4165 and
must only be used for connecting approved electrical accessories with a
power uptake of up to 100 watts. The vehicle battery will be discharged in
the process if the engine is stationary.
Further information concerning use of the power socket ⇒page 243,
“Accessories and replacement parts”.
Fig. 92 Centre
console: Cigarette
lighterFig. 93 Luggage
compartment: Power
socket
s3ec.book Seite 101 Montag, 2. Mai 2005 3:42 15

Heating and air conditioning system
112
•Switch on the cooling system by pressing button ,*
•We recommend pressing button air recirculation mode.
Optimum cooling
•Turn the control dial to the left up to the stop and the temperature
can then be increased by turning the regulator to the right according to the
prevailing conditions,*
•Blower switch in position 1, 2 , or 3;*
•Turn the air distribution control into the position ,*
•Open the air outlet vents 3 and 4,*
•Switch on the cooling system by pressing button ,*
•We recommend setting the air outlet vents 3 and 4 in such a way that
the air flows to the rear over the heads of the occupants. Do not press
button - recirculated air mode.
Fresh air mode - ventilation
•Turn the control dial ⇒page 110, fig. 107 to the left up to the stop,*
•Blower switch in the desired position,*
•Turn the air distribution control into the position ,*
•Open air outlet vents 3 and 4 ⇒ page 113, fig. 108 ,*
•Switch off the cooling by pressing button ,*
•Switch off the recirculated air mode by pressing button .
Fresh air is also supplied to the rear footwell if you select air outlet vents
5 with the aid of the air distribution control .
Recirculated air mode
In recirculated air mode air is sucked out of the interior of
the vehicle and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle
from getting into the vehicle, for example when driving through a
tunnel or when standing in a traffic jam.
Switching recirculated air mode on
– Press switch ⇒page 110, fig. 107 the switch symbol

lights up.
Switching recirculated air mode off
– Press button again, the button symbol
 goes out.
Recirculated air mode is switched off automatically or cannot be switched
on, if the air distribution control ⇒page 110, fig. 107 is in position .
WARNING
You should not leave recirculated air mode on over a longer period
of time. “Stale air” may result in fatigue in the driver and occupants,
reduce attention levels and also cause the windows to mist up. The
risk of having an accident increases. Switch recirculated air mode
off as soon as the windows begin misting up.
AE
AD
AA
AB
AC
AE
AD
AA
AB
AC
AE
AD
AC


AC
s3ec.book Seite 112 Montag, 2. Mai 2005 3:42 15

Heating and air conditioning system 113
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Air outlet vents
Fig. 108 Air vents at the front
Fig. 109 Air vents at the rear
Open air outlet vents
– Turn the vertical thumbwheel (not when in the end position). Close air outlet vents
– Turn the vertical thumbwheel into the end position.
Redirecting air flow
– Swivel upward or downward the gr
ille of the vents in order to
change the direction of the air flow using the vertically
arranged thumbwheel.
– Turn the horizontal thumbwheel on the vent to the right or left in order to change the air flow to the appropriate side.
You can set the air supply to the individual vents with the air distribution
control ⇒page 110, fig. 107 . You can also set the vents 3 and 4
⇒ fig. 108 and 6 ⇒ fig. 109 individually.
Unwarmed or cooled air will flow out of the air outlet vents according to the
setting of control dial ⇒page 110, fig. 107 and the atmospheric condi-
tions.
The rear footwell vents 7 are controlled together with the vents 5. Turn the
air distribution control ⇒page 110, fig. 107 into the position
.
Using the air conditioni ng system economically
The compressor on the air conditioning system uses power from the
engine when in cooling mode which will effect the fuel consumption.
It recommended to open the windows or the doors of a vehicle for which
the interior has been strongly heated through the effect of direct sunlight
in order to allow the heated air to escape.
The cooling system should not be switched on while travelling when the
window is open.
AC
AA
AC
s3ec.book Seite 113 Montag, 2. Mai 2005 3:42 15
