2005 SKODA SUPERB display

Communicating and Navigating147
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Navigation system*
The controls for the navigation system, radio, CD player are located in the
centre console on both sides of the monitor screen. Navigation data is
also shown in the information display.
Please refer to the relevant operating instructions for a detailed descrip-
tion of the navigation system.
s3ec.book Seite 147 Montag, 2. Mai 2005 3:42 15

Airbag system
168
In certain accident situations both the front airbags as well as the head
and side airbags may be deployed together.
If an airbag is deployed, the airbag is filled with propellant gas. The
airbags inflate in fractions of a second and at a high speed in order to be
able to offer that additional protection in the event of an accident.
A grey white, non harmful gas is released when airbag is inflated. This is
perfectly normal and is not an indication of a fire in the vehicle.
The load of the occupants is cushioned when plunging into the fully
inflated airbag and the risk of injury to the entire upper body (chest,
stomach and pelvis) is reduced on the side facing the door.
Important safety information on the side airbag
Correct use of the airbag system considerably reduces the
risk of injury!
WARNING
•It is essential to always switch off ⇒page 171, “Deactivating an
airbag” the front passenger airbag when attaching a child safety
seat on the front passenger seat where the child is seated with its
back facing in direction of travel (in some countries also when the
child is facing the direction of travel). If this is not done, there is a
risk of the child suffering severe or even fatal injuries if the front
passenger airbag is deployed. In certain countries national legal
provisions also require that the side or head passenger airbags be
deactivated. When transporting a child on the front passenger seat,
please comply with the appropriate national regulations regarding
the use of child safety seats.
•Your head should never be positioned in the deployment area of
the side airbag. You might suffer severe injuries in the event of an accident. This applies in particular to children who are transported
without using a suitable child safety seat
⇒page 177, “Child safety
and side airbags”.
•If children adopt an incorrect seated position when travelling,
they may be exposed to an increased risk of injury in the event of
an accident. This can result in serious injuries ⇒page 174, “What
you should know about transporting children!”.
•There must not be any further persons, animals as well as
objects positioned between the occupants and the deployment
area of the airbag. There must also be no accessories such as cup
holders, attached to the doors to enable the side airbags to activate
properly.
•Only hang light items of clothing on the clothes hooks to the
vehicle. Never leave any heavy or sharp-edged objects in the
pockets of the items of clothing.
•Ensure that there are no excessive forces, such as violent
knocks, kicks etc., impact on the backrests of the seats otherwise
the system may be damaged. The side airbags would not be
deployed in such a case!
•Any seat or protective covers which you fit to the driver or front
passenger seats must only be of the type expressly authorized by
Škoda Auto. In view of the fact th at the airbag inflates out of the
backrest of the seat, use of non-approved seat or protective covers
would considerably impair the protective function of the side
airbag.
•Any damage to the original seat covers in the area of the side
airbag module must be repaired without delay by your specialist
garage.
•The airbag modules in the front seats must not display any
damage, cracks or deep scratches. It is not permissible to use force
in order to open the modules.
WARNING (continued)
s3ec.book Seite 168 Montag, 2. Mai 2005 3:42 15

Fuses and light bulbs261
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Caution
•Never attempt to “repair” fuses and also do not replace them with a
fuse of a higher amperage - risk of fire! This may also cause damage at
another part of the electrical system.
•Have the electrical system checked as quickly as possible by a
specialist garage if a newly inserted fuse blows again after a short time.
Note
We recommend that you have these fuses replaced by a specialist
garage.
Fuse assignment
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
Fig. 198 Schematic
representation of fuse
carrier
No.Ampere s
1Heatable windscreen washing nozzles5
2Turn signals10
3Not assigned
4Licence plate light5
5
Instrument cluster - warning lights, seat heaters, cruise
control system, exterior mirror adjustment, lighting of
controls and switches, outside temperature display, air
conditioning, audible parking aid, navigation system,
multifunction steering wheel
10
6Heating of the external mirror5
7ABS, EDS, ASR, ESP, cruise control system, engine
electronics10
8Automatic headlight beam adjustment5
9Parking aid5
10CD changer, mobile phone, multifunction steering
wheel5
11Electrically adjustable seatsa)5
12Power supply for diagnostic socket10
13Brake lights10
14Central locking control unit, interior lighting10
15Instrument cluster, air conditioning, automatic gearbox,
exterior mirror adjustment memory and navigation sys-
tem10
16ESP5
17Two-way radio system, special vehicles (police etc.)10
s3ec.book Seite 261 Montag, 2. Mai 2005 3:42 15

Index
272
Child safety seats
ISOFIX system . . . . . . . . . . . . . . . . . . . 182
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . 178 attach . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Child seat protection . . . . . . . . . . . . . . . 181
Classification into groups . . . . . . . . . . . 178
on the front passenger seat . . . . . . . . . 176
Safety instructions . . . . . . . . . . . . . . . . . 174
Use of child seats . . . . . . . . . . . . . . . . . 178
Children and safety . . . . . . . . . . . . . . . . . . . 174
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . 208
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . 100
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Climatronic Air outlet vents . . . . . . . . . . . . . . . . . . . 119
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Defrosting windows . . . . . . . . . . . . . . . . 115
economic use . . . . . . . . . . . . . . . . . . . . 115
Keeping windows demisted . . . . . . . . . . 116
Operational problems . . . . . . . . . . . . . . 115
Recirculated air mode . . . . . . . . . . . . . . 117
Setting temperature . . . . . . . . . . . . . . . . 118
Climatronic (automatic air conditioning) . . . 114
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . 108
Cockpit An overview . . . . . . . . . . . . . . . . . . . . . . . 11
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . 61
Compartments . . . . . . . . . . . . . . . . . . . . . . 102
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Convenience operation . . . . . . . . . . . . . . . . . 52 Converting/masking over headlights . . . . . . 199
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
replenishing . . . . . . . . . . . . . . . . . . . . . . 226
Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Coolant temperature gauge . . . . . . . . . . . . . 14
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Cooling Climatronic . . . . . . . . . . . . . . . . . . . . . . . 114
The air conditioning system . . . . . . . . . . 109
Correct seated position . . . . . . . . . . . . . . . . 151
Counter for distance driven . . . . . . . . . . . . . . 16
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 128
Cruise control system . . . . . . . . . . . . . . . . . 128
D
Deactivating an airbag . . . . . . . . . . . . . . . . 171
Defrosting rear window . . . . . . . . . . . . . . . . . 64
Defrosting windows The air conditioning system . . . . . . . . . . 111
Defrosting windscreen . . . . . . . . . . . . . . . . . 64
De-icing the windows . . . . . . . . . . . . . . . . . 208
Detachable towing device . . . . . . . . . . . . . . 202
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 Diesel engines
Starting engine . . . . . . . . . . . . . . . . . . . . 124
Diesel particle filter . . . . . . . . . . . . . . . . . . . . 31
Differential Lock (EDL) . . . . . . . . . . . . . . . . 187
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Direction indicators . . . . . . . . . . . . . . . . . . . . 60 Warning light . . . . . . . . . . . . . . . . . . . . . . 29
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Distance driven . . . . . . . . . . . . . . . . . . . . 16, 21
Door Child safety locks . . . . . . . . . . . . . . . . . . . 41
Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Drinks can holder at the front . . . . . . . . . . . . . . . . . . . . . . . . 97
at the rear . . . . . . . . . . . . . . . . . . . . . . . . . 97
Driving economically . . . . . . . . . . . . . . . . . . 194
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Dynamo Warning light . . . . . . . . . . . . . . . . . . . . . . 37E
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Electric sliding/tilting roof . . . . . . . . . . . . . . . . 53
Electrically adjustable rear mirror . . . . . . . . . 70
Electrically adjustable seats . . . . . . . . . . . . . 74
Electronic Differential LockWarning light . . . . . . . . . . . . . . . . . . . . . . 36
Electronic Differential Lock (EDL) . . . . . . . . 187
s3ec.book Seite 272 Montag, 2. Mai 2005 3:42 15

Index273
Electronic immobiliser
Warning light . . . . . . . . . . . . . . . . . . . . . . 36
Electronic stability programme (ESP) . . . . . 185 Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Emergency operation Fuel filler flap . . . . . . . . . . . . . . . . . . . . . 217
Engine Starting . . . . . . . . . . . . . . . . . . . . . . . . . . 123
switch off . . . . . . . . . . . . . . . . . . . . . . . . 124
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . 219
Engine electronics EPC warning light . . . . . . . . . . . . . . . . . . 31
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 changing . . . . . . . . . . . . . . . . . . . . . . . . 223
check . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
replenishing . . . . . . . . . . . . . . . . . . . . . . 223
Warning light . . . . . . . . . . . . . . . . . . . . . . 33
Engine revolutions counter . . . . . . . . . . . . . . 14
Environment . . . . . . . . . . . . . . . . . . . . . . . . 194
Environmental compatibility . . . . . . . . . 194, 198
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Exhaust gases Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . 70F
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . 245
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Warning light . . . . . . . . . . . . . . . . . . . . . . 31
folding box . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Folding down rear seats . . . . . . . . . . . . . . . . 86
For the first 1 500 kilometres . . . . . . . . . . . . 192
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 164
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . 107
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 15
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Warning light . . . . . . . . . . . . . . . . . . . . . . 33
Fuel consumption . . . . . . . . . . . . . . . . . 20, 194 Saving energy . . . . . . . . . . . . . . . . . . . . 194
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . 33
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . 249
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 Assignment . . . . . . . . . . . . . . . . . . . . . . 261
G
GearboxAutomatic . . . . . . . . . . . . . . . . . . . . . . . . 131
mechanical . . . . . . . . . . . . . . . . . . . . . . . 125
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Glow plug system . . . . . . . . . . . . . . . . . . . . . 124
Warning light . . . . . . . . . . . . . . . . . . . . . . . 32
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Hazard warning light system . . . . . . . . . . . . . 60Warning light . . . . . . . . . . . . . . . . . . . . . . . 29
Hazard warning lights system . . . . . . . . . . . . 60
Head airbags . . . . . . . . . . . . . . . . . . . . . . . . 169
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . 77
Headlight cleaning system . . . . . . . . . . . . . . . 67
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . 61
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . 58
Headlight cleaning system . . . . . . . . . . . . 67
Heated windscreen washer nozzles . . . . . . . 66
Heating Climatronic . . . . . . . . . . . . . . . . . . . . . . . 114
The air conditioning system . . . . . . . . . . 109
Heating of the external mirror . . . . . . . . . . . . 70
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 122
Information display . . . . . . . . . . . . . . . . . . . . . 22
Inspecting the engine oil level . . . . . . . . . . . 222
Instrument cluster . . . . . . . . . . . . . . . . . . . . . 13
Instrument lighting . . . . . . . . . . . . . . . . . . . . . 59
s3ec.book Seite 273 Montag, 2. Mai 2005 3:42 15

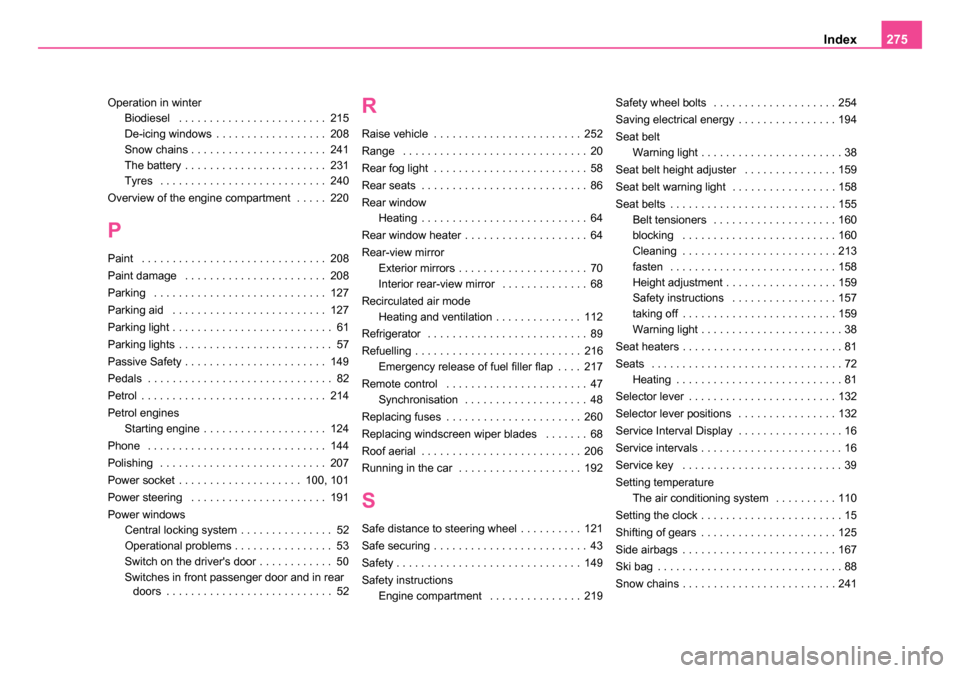

Index275
Operation in winter
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . 215
De-icing windows . . . . . . . . . . . . . . . . . . 208
Snow chains . . . . . . . . . . . . . . . . . . . . . . 241
The battery . . . . . . . . . . . . . . . . . . . . . . . 231
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Overview of the engine compartment . . . . . 220
P
Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Paint damage . . . . . . . . . . . . . . . . . . . . . . . 208
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 127
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . 57
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . 149
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Petrol engines Starting engine . . . . . . . . . . . . . . . . . . . . 124
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Power socket . . . . . . . . . . . . . . . . . . . . 100, 101
Power steering . . . . . . . . . . . . . . . . . . . . . . 191
Power windows Central locking system . . . . . . . . . . . . . . . 52
Operational problems . . . . . . . . . . . . . . . . 53
Switch on the driver's door . . . . . . . . . . . . 50
Switches in front passenger door and in rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
R
Raise vehicle . . . . . . . . . . . . . . . . . . . . . . . . 252
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . 58
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Rear window
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Rear window heater . . . . . . . . . . . . . . . . . . . . 64
Rear-view mirror Exterior mirrors . . . . . . . . . . . . . . . . . . . . . 70
Interior rear-view mirror . . . . . . . . . . . . . . 68
Recirculated air mode Heating and ventilation . . . . . . . . . . . . . . 112
Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 Emergency release of fuel filler flap . . . . 217
Remote control . . . . . . . . . . . . . . . . . . . . . . . 47 Synchronisation . . . . . . . . . . . . . . . . . . . . 48
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . 260
Replacing windscreen wiper blades . . . . . . . 68
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Running in the car . . . . . . . . . . . . . . . . . . . . 192
S
Safe distance to steering wheel . . . . . . . . . . 121
Safe securing . . . . . . . . . . . . . . . . . . . . . . . . . 43
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Safety instructions Engine compartment . . . . . . . . . . . . . . . 219 Safety wheel bolts . . . . . . . . . . . . . . . . . . . . 254
Saving electrical energy . . . . . . . . . . . . . . . . 194
Seat belt
Warning light . . . . . . . . . . . . . . . . . . . . . . . 38
Seat belt height adjuster . . . . . . . . . . . . . . . 159
Seat belt warning light . . . . . . . . . . . . . . . . . 158
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 Belt tensioners . . . . . . . . . . . . . . . . . . . . 160
blocking . . . . . . . . . . . . . . . . . . . . . . . . . 160
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 213
fasten . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Height adjustment . . . . . . . . . . . . . . . . . . 159
Safety instructions . . . . . . . . . . . . . . . . . 157
taking off . . . . . . . . . . . . . . . . . . . . . . . . . 159
Warning light . . . . . . . . . . . . . . . . . . . . . . . 38
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 132
Selector lever positions . . . . . . . . . . . . . . . . 132
Service Interval Display . . . . . . . . . . . . . . . . . 16
Service intervals . . . . . . . . . . . . . . . . . . . . . . . 16
Service key . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting temperature The air conditioning system . . . . . . . . . . 110
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . 15
Shifting of gears . . . . . . . . . . . . . . . . . . . . . . 125
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 167
Ski bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 241
s3ec.book Seite 275 Montag, 2. Mai 2005 3:42 15
