2005 SKODA OCTAVIA display

Ejecting the discEJECT
SELECT CD TO EJECT
PLEASE WAIT REMOVE CDINSERT CD
LOA D
Tip EJECT
EJECT
ALL When replacing or ejecting the disc, observe
the instructions in this manual and on the radio
display:
1. Press button .
2. After “ ” message ap- pears, press preset button corres-
ponding to the disk you want to eject.
3. “ ” message appears and the drive prepares for ejection of selected disc.
4. Disc is being ejected and “ ” message appears. You can remove the disc.
5. After removing the disc, “ ” message appears and you can insert
another disc without having to press the
button
: Press and hold button to eject all
discs from the changer. After message appears, release the button.
If you do not remove ejected disc from the unit,
it will be drawn back to the unit automatically
for safety reasons. If no CD is inserted in the
changer, the unit switches to radio mode
automatically after 10s. 13
12
17 13
Operation of the Built- In CD changer
SCAN functionSCAN
OK
Stopping playback FM AM
Press button to start searching through
the disc. A 10- second sample of the beginning
of each track is played. The sequence number
of the track on the disc is displayed at the same
time.
Press preset button to end the scan
mode. Current track will be played normally.
To stop disc playback and to switch on the
radio, press button or .
The last selectedstation will play. 5
3912
Selection of discs and tracks
CD1-
CD6 NO CD
Track select buttons
Seek buttons In CD playback mode, you can select a disc by
pressing a preset button labelled . Empty positions are labelled .
During CD playback, press button to skip
to previous track.
Press button to skip to next track. Playback
starts from the beginning of selected track.
Press and hold button or for fast rewind
or fast forward within a track of the CD. Normal
playback resumes after you release the button.




12
6
6
7
11
GB

Display indications in the CD - MP3 mode
A Number of currently played disc
B Number of currently played folder
C Area reserved for preset buttonswith the following symbols:
Previous/next folder
FILE Selection of information display for the playing track in the field F
D Number of currently played track
E Elapsed track time
F Track information. By pressing the preset you can select between
FILE / FOLDER / TITLE / ARTIST /
ALBUM. If this information has not
been entered upon disc creation,
„ “ appears on the
display.UNAVAILABLE 12
12 SCAN function
SCAN
OK
Disc Selection CD
Stopping playback FM AM
Press button to activate searching
through the disc. A 10- second sample of the
beginning of each track is played. The
sequence number of the track on the disc is
displayed at the same time. After 10s, the
beginning of next track is played. You can select
folders to be searched through by pressing the
corresponding preset buttons .
Press preset button to end the scan
mode. Current track will be played normally.
If you want to play another inserted disc, press
button for the disc selection screen to
appear.
You can select the desired disc by pressing the
appropriate preset button .
To stop disc playback and to switch on the
radio, press button or .
The last selectedstation will play. 5
2 12
12
12
39
12
INFO function INFO
MP3 INFO
Displaying additional information ID3 INFO
Press button to display information
about currently played track and about the
folder. The radio will display track
and folder names in the format in which they
are stored on the MP3 CD.
Individual MP3 files are organized in a
hierarchy commonly used on personal
computers. Due to high number of tracks,
which can besaved to a disc, we recommend
use of folders to organize tracks.
Press preset buttons to display
additional information about currently
played track (ID3 tags). 10
12
Playback of MP3 files
Operation of the Built- In CD changer
AD
F B
C
E
C

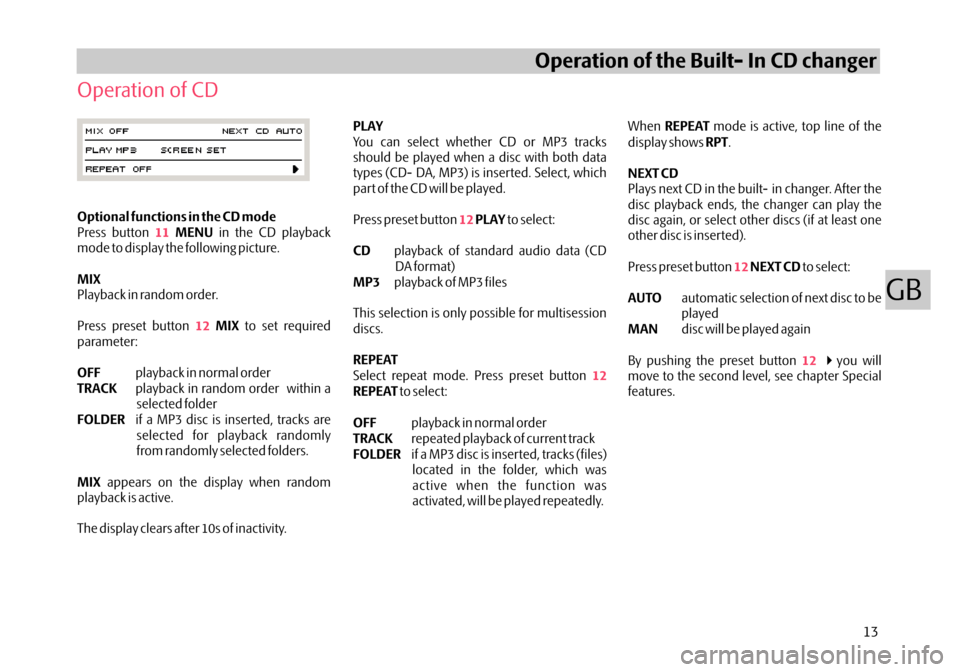

Optional functions in the CD modeMENU
MIX MIX
OFF
TRACK
FOLDER
MIX Press button in the CD playback
mode to display the following picture.
Playback in random order.
Press preset button to set required
parameter:
playback in normal order
playback in random order within aselected folder
if a MP3 disc is inserted, tracks are selected for playback randomly
from randomly selected folders.
appears on the display when random
playback is active.
The display clears after 10s of inactivity. 11
12 PLAY
PLAY
CD
MP3
REPEAT
REPEAT
OFF
TRACK
FOLDER You can select whether CD or MP3 tracks
should be played when a disc with both data
types (CD- DA, MP3) is inserted. Select, which
part of the CD will be played.
Press preset button to select: playback of standard audio data (CDDA format)
playback of MP3 files
This selection is only possible for multisession
discs.
Select repeat mode. Press preset button to select:
playback in normal order
repeated playback of current track
if a MP3 disc is inserted, tracks (files)located in the folder, which was
active when the function was
activated, will be played repeatedly. 12
12When mode is active, top line of the
display shows .
Plays next CD in the built- in changer. After the
disc playback ends, the changer can play the
disc again, or select other discs (if at least one
other disc is inserted).
Press preset button
to select:
automatic selection of next disc to be
played
disc will be played again
By pushing the preset button you will
move to the second level, see chapter Special
features. REPEAT
RPT
NEXT CD
NEXT CD
AUTO
MAN

12
12
13
Operation of CD
Operation of the Built- In CD changer
GB

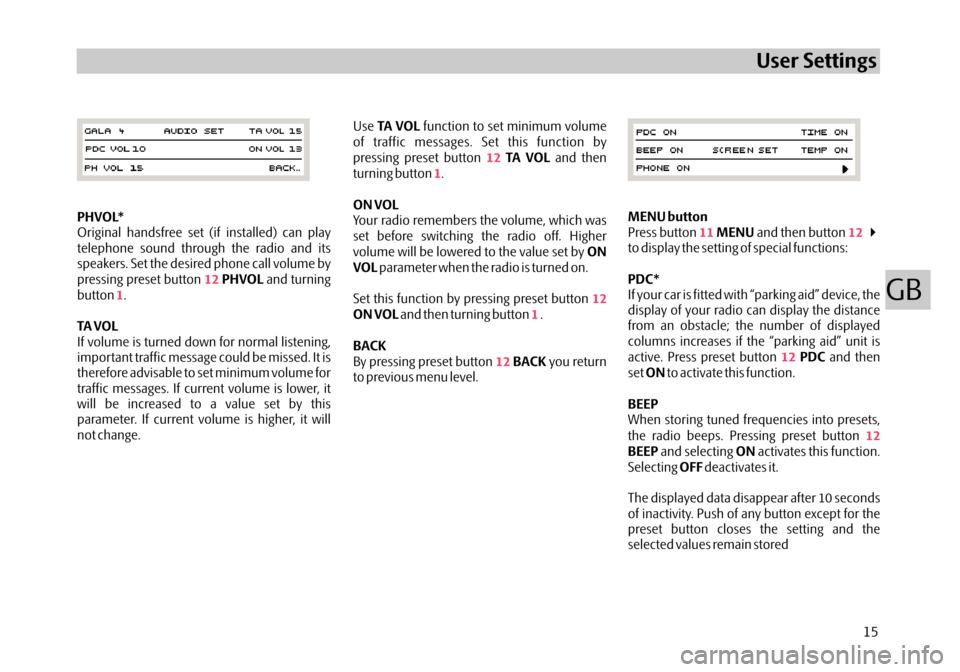

PHVOL*PHVOL
TA VOL Original handsfree set (if installed) can play
telephone sound through the radio and its
speakers. Set the desired phone call volume by
pressing preset button and turning
button .
If volume is turned down for normal listening,
important traffic message could be missed. It is
therefore advisable to set minimum volume for
traffic messages. If current volume is lower, it
will be increased to a value set by this
parameter. If current volume is higher, it will
not change. 12
1 Use function to set minimum volume
of traffic messages. Set this function by
pressing preset button and then
turning button .
Your radio remembers the volume, which was
set before switching the radio off. Higher
volume will be lowered to the value set by
parameter when the radio is turned on.
Set this function by pressing preset button and then turning button .
By pressing preset button you return
to previous menu level. TA VOL
TA VOL
ON VOL ON
VOL
ON VOL
BACK BACK
12
1
12
1
12
15
MENU button MENU
PDC*
PDC
ON
BEEP
BEEP ON OFF
Press button and then button
to display the setting of special functions:
If your car is fitted with “parking aid” device, the
display of your radio can display the distance
from an obstacle; the number of displayed
columns increases if the “parking aid” unit is
active. Press preset button and then
set to activate this function.
When storing tuned frequencies into presets,
the radio beeps. Pressing preset button
and selecting activates this function.
Selecting deactivates it.
The displayed data disappear after 10 seconds
of inactivity. Push of any button except for the
preset button closes the setting and the
selected values remain stored
11 12
12 12
User Settings
GB

ILLUMILLUM 1
2
AC*
AC
ON
AUX AUX ON AUX OFF
BACK
Press preset button to set if you
want the radio backlight switched off when the
headlights are off. If you set , the volume knob
ring will be illuminated whenever the ignition is
on.
If your car is fitted with CLIMATRONIC unit, the
display of your radio will display any manual
change of the settings. This you can check
whether the change you performed was
accepted by the unit. If you want this
confirmation, press preset button and
set to .
Note: the display is only a setting aid. The radio
has no effect on climate unit control, and the
climate unit cannot be controlled from the
radio.
Your radio has an external input allowing
playback from other audio sources. The input is
active, if . If , the input is
deactivated.
Press preset button
to return to
previous menu level.
The display clears after 10s of inactivity. 12
12
12 If you have external amplifier connected, your
radio can be used to select sound effects
suitable to particular programs you listen to.
Press button to view a display with
available sound effects. External amplifier has
6 implemented sound effect, divided into the
following menus:
Standard linear frequency response,suitable for all types of music or
speech.
A sound effect which boosts the speech and reduces other sounds,
thus improving the clarity of speech.
A sound effect most appropriate for rock music.
To move to other display with available sound effects.
LINEAR
SPEECH
ROCK

8
Ext. Amplifier control*
16
PHONE
PHONE
ON OFF
TIME TIME ON/OFF
TEMP TEMP ON/OFF
If your car is fitted with a handsfree set, the
radio can be muted automatically during
incoming or outgoing call. Activate this
function by pressing preset button
. When is set, incoming calls will have
no effect on the radio.
Press preset button to switch
on/off the time display on the display of your
radio.
Press preset button to
switch on/off the exterior temperature display
on the display of your radio.
Another push of the preset button
displays the last level of special features
settings:

12
12 12 12
User Settings

Press preset button to view the following
display:A sound effect most appropriate or
classical music.
A sound effect most appropriate for
pop music.
A sound effect most appropriate for
listening to concerts, live broadcasts
or recorded events.
To move to the sound settings
display (see chapter User Settings).
Effects are selected by pressing preset buttons . Press appropriated button and the external
amplifier will be automatically switched to the
desired mode. CLASSIC
POP
LIVE

12
12 Comfort Coding
Procedure for entering the security code:
SAFE 0000
Wrong code our radio uses special security code so called
comfort coding - which prevents theft. After
installing the radio in the car, the security code
is entered and the radio is ready for operation.
The code needs not be entered ever again.
This procedure has been performed by the
dealer before presenting your new car to you.
In case of disconnection and reconnection of
car battery, first switch on the power by the
starting key, then switch on the radio. If you
want to move the radio to other vehicle, or
when the radio requests the code, contact your
Škoda service. They will provide you with the
code.
As the radio can only be operated after having
entered the code, it is unusable when stolen.
Switch on the ignition and then switch on the
radio. The display shows and then .
Press preset buttons to enter the code.
Check the code for correctness and then press
Button .
If you make mistake when entering the code,
you can try again. Third entry of wrong code
will block the controls from operation for
1hour. In case of any problems, please contact
your Škoda service.

12
6 Care and maintenance
Information about disc playback Your radio requires no special maintenance,
but it can be damaged when foreign objects,
e.g. credit cards or coins, are inserted into the
CD slot.
For the best possible playback quality, use only
clean and undamaged discs. The drive is
designed for ordinary 12 cm discs.
Your radio can also play recordable CD- R discs
and re- recordable CD- RW discs as long as
each writing session is properly finalized. Full
compatibility with international standard for
CD- DA discs, so- called “Red Book” is
guaranteed. Some copy protected discs do not
conform to this standard and cannot be played.
Do not play irregularly shaped discs (heart-
shaped, etc.) or discs fitted with scratch
protection. Do not insert discs to which labels
are attached.
17
Cautions and Instructions
Comfort CodingInformation about disc playback
GB

19
Output power
Tuner
Display
User interface 4 x 20 W at 14.4 V; 25°C; 10% THD,
4 x 35 W peak power
Digital audio processor with equalization set
according to car type
LOUDNESS function
FM, AM (MW, LW) bands
18 FM presets, of which 6 for Autostore
function
18 AM presets, of which 6 for Autostore
function
Automatic/manual tuning
Variable bandwidth
Automatic storage
Automatic switching MONO/STEREO
SCAN function
Positive FSTN
Graphic display, 200 x 47 pixels
Green backlight
Volume knob, push to turn on/off
Independent volume setting and balance for
phone
Green backlight of buttons
Access to user settingsRDS
Built- in CD changer Station name (PS) display
Optional automatic tuning to alternative
frequency (AF)
Optional preference of local stations
Regional traffic messages
Traffic messages in the EON network
Search by program type (PTY)
Receipt of PTY31 (alarm)
Traffic program (TP)
Station names are stored to presets
Independent volume setting for traffic
messages
Update of preset in the EON network
Recording of traffic messages
Capacity: 6 CD- DA, CD- R, CD- RW,
Multisession, MP3 discs
Playback of copy- protected discs
Track repeat
Random playback within a disc
Tracks SCAN
ESP memory, 3 s minimum
Skip to next/previous track
FF/REW seek within a track (not for MP3) Car integration
Comfort coding
Diagnostics
Optional control from multi- function
steering wheel (if the car is fitted with one)
Optional use of external display
Automatic volume change according to
driving speed
Auxiliary audio inputs
Phone interface for automatic mute,
loudspeaker output
External amplifier
Parking aid” unit connection
Display of instructions provided by the
CLIMATRONIC unit
Brief Technical Description
GB
