Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
The battery is weak if the transmitter will not work at the
normal range in any location. If you have to get close to
your vehicle before the transmitter works, it is probably
time to change the battery.
The Driver Information Center (DIC) will display a
KEY FOB # BATTERY LOW message when the
transmitter battery is low. See “KEY FOB # BATTERY
LOW” underDIC Warnings and Messages on page 3-46
for additional information.
Notice:When replacing the battery, use care not
to touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery in the remote keyless entry
transmitter do the following:
1. Remove the screw from the back of the remote
keyless entry cover and gently pry the transmitter
apart.
2. Remove and replace the battery with a three-volt
CR2032 or equivalent battery.
3. Assemble the transmitter and replace the screw.
4. Check the operation of the transmitter.
2-7
2005 - Saab 97X Owner Manual
ProCarManuals.com

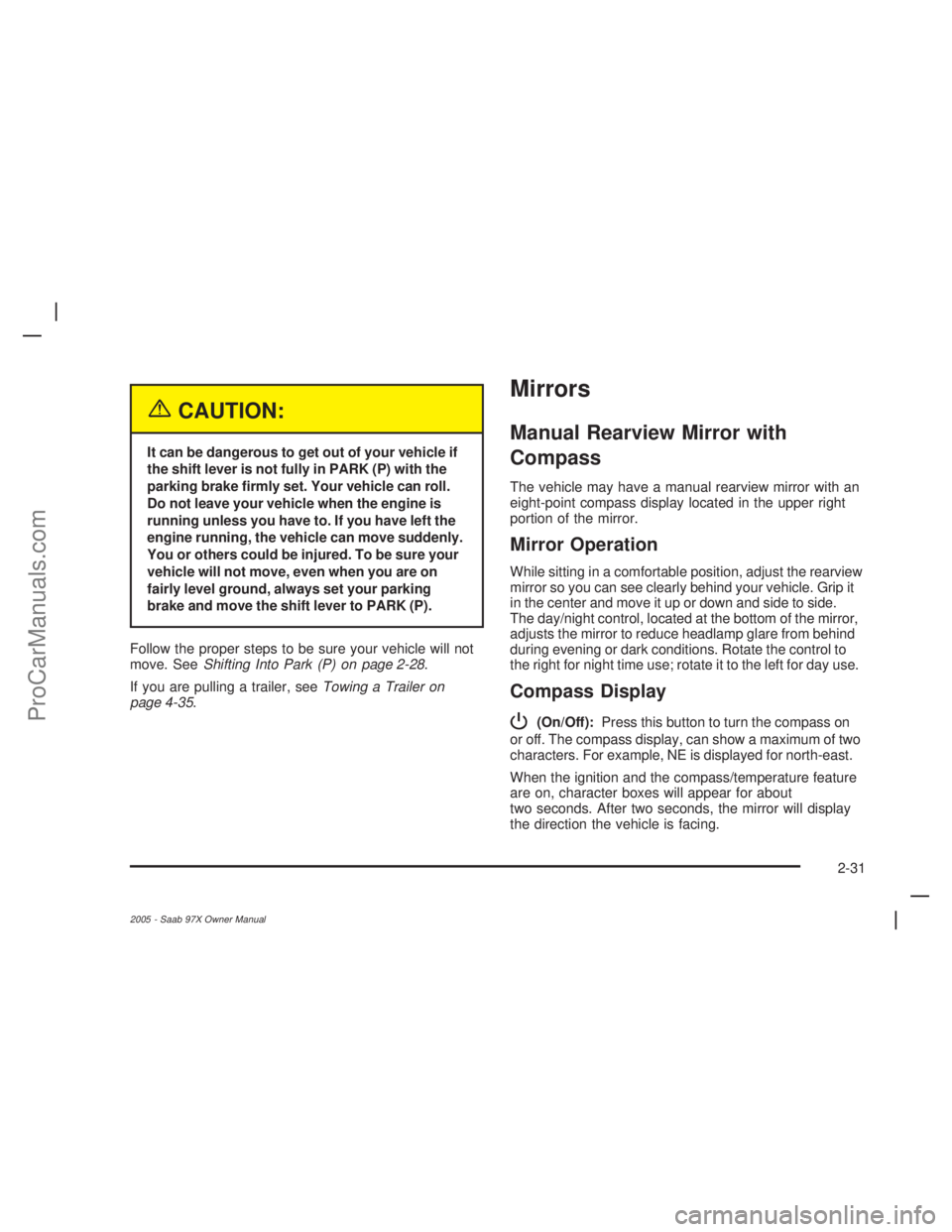

{CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake rmly set. Your vehicle can roll.
Do not leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle will not move, even when you are on
fairly level ground, always set your parking
brake and move the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle will not
move. SeeShifting Into Park (P) on page 2-28.
If you are pulling a trailer, seeTowing a Trailer on
page 4-35.
Mirrors
Manual Rearview Mirror with
Compass
The vehicle may have a manual rearview mirror with an
eight-point compass display located in the upper right
portion of the mirror.
Mirror Operation
While sitting in a comfortable position, adjust the rearview
mirror so you can see clearly behind your vehicle. Grip it
in the center and move it up or down and side to side.
The day/night control, located at the bottom of the mirror,
adjusts the mirror to reduce headlamp glare from behind
during evening or dark conditions. Rotate the control to
the right for night time use; rotate it to the left for day use.
Compass Display
P
(On/Off):Press this button to turn the compass on
or off. The compass display, can show a maximum of two
characters. For example, NE is displayed for north-east.
When the ignition and the compass/temperature feature
are on, character boxes will appear for about
two seconds. After two seconds, the mirror will display
the direction the vehicle is facing.
2-31
2005 - Saab 97X Owner Manual
ProCarManuals.com

Compass Calibration
When on, the compass automatically calibrates as the
vehicle is driven. If, after two seconds, the display does
not show a compass direction, (N for North, for example),
there may be a strong magnetic eld interfering with the
compass. Such interference may be caused by a
magnetic antenna mount, magnetic note pad holder, or a
similar magnetic item. If the letter C should ever appear in
the compass window, the compass may need calibration.
Press and hold the on/off button for nine seconds to
activate the compass calibration mode. CAL will
be displayed in the compass window on the mirror.
The mirror can be calibrated by driving the vehicle in
circles at 5 mph (8 km/h) or less until the display shows
a direction.
Compass Variance
Compass variance is the difference between earth’s
magnetic north and true geographic north. The mirror is
set to zone eight upon leaving the factory. It will be
necessary to adjust the compass to compensate for
compass variance if you live outside zone eight. Under
certain conditions, such as during a long-distance,
cross-country trip, it will be necessary to adjust for
compass variance. If not adjusted to account for compass
variance, the compass could give false readings.To adjust for compass variance do the following:
1. Find the current location and variance zone number
on the following zone map.
2. Press and hold the on/off button until a zone
number appears in the display.
3. Once a zone number appears in the display, press
the on/off button quickly until the correct zone
number appears in the display. If C appears in the
compass window, the compass may need
calibration. See “Compass Calibration” explained
previously.
2-32
2005 - Saab 97X Owner Manual
ProCarManuals.com

Check Gages Warning Light...........................3-41
Gate Ajar Light.............................................3-42
Fuel Gage...................................................3-42
Low Fuel Warning Light.................................3-43
Check Gas Cap Light....................................3-43
Driver Information Center (DIC).......................3-43
DIC Operation and Displays...........................3-44
DIC Warnings and Messages.........................3-46
DIC Vehicle Customization.............................3-50
Audio System(s).............................................3-56
Setting the Time...........................................3-56
Radio with CD..............................................3-57Radio with Six-Disc CD.................................3-69
Navigation/Radio System...............................3-81
Rear Seat Entertainment System....................3-81
Rear Seat Audio (RSA).................................3-92
Theft-Deterrent Feature..................................3-93
Audio Steering Wheel Controls.......................3-94
Radio Reception...........................................3-95
Care of Your CDs and DVDs.........................3-95
Care of the CD and DVD Player.....................3-95
Fixed Mast Antenna......................................3-96
XM™ Satellite Radio Antenna System.............3-96
Section 3 Instrument Panel
3-2
2005 - Saab 97X Owner Manual
ProCarManuals.com

Fog Lamps
Use the fog lamps for better vision in foggy or misty
conditions.
The fog lamp control is located on the turn
signal/multifunction lever.
-:The band with this symbol is used to turn the fog
lamps on and off.
When the fog lamps are turned on, the parking lamps
also turn on. A message will also display on the
DIC when the fog lamps are turned on or off. SeeDriver
Information Center (DIC) on page 3-43.
To turn the fog lamps on or off, turn the fog lamp
band on the lever up to the dot and release it.
The band will return to its original position.
If you turn on the high-beam headlamps, the fog
lamps will turn off. They will turn back on again
when you switch back to low-beam headlamps.
When the Fog Lamps are turned on or off, a message
will appear on the Driver Information Center. See
DIC Warnings and Messages on page 3-46.
Some localities have laws that require the headlamps to
be on along with the fog lamps.
Instrument Panel Brightness
Turn the knob to adjust the
instrument panel lights.
Turn the knob all the way
up to turn on the interior
lamps.
Dome Lamps
The dome lamps will come on when you open a door
unless the dome lamp override is pressed in.
3-17
2005 - Saab 97X Owner Manual
ProCarManuals.com

Climate Controls
Dual Automatic Climate Control
System
With this system you can control the heating, cooling
and ventilation for your vehicle. When your vehicle
is rst started and the climate control system is on, or if
the climate control system has been turned on, the
display will show the driver’s temperature setting for
ve seconds. Then it will show the outside temperature.
9(Off):Press this button to turn off the entire climate
control system. Outside air will still enter the vehicle,
and will be directed to the oor. Press the AUTO button,
the mode button, the fan arrows, or either temperature
knob to turn the system on.
C(Mode):Press this button to manually select the air
delivery mode to the oor, instrument panel, or
windshield outlets. The system will stay in the selected
mode until the mode button is pressed again or the
AUTO button is pressed.
Driver’s Side Temperature Knob:Turn this knob
clockwise or counterclockwise to raise or lower
the temperature on the driver’s side of the vehicle.
The display will show the temperature setting decreasing
or increasing and an arrow pointing toward the driver.
This knob can also adjust the passenger’s side
temperature setting if the two are linked.
3-20
2005 - Saab 97X Owner Manual
ProCarManuals.com

Passenger’s Side Temperature Knob:Turn this knob
clockwise or counterclockwise to manually raise or lower
the temperature on the passenger’s side of the vehicle.
The display will show the temperature setting decreasing
or increasing and an arrow pointing toward the
passenger. The passenger’s temperature setting can be
set to match and link to the driver’s temperature setting
by pressing and holding the AUTO button for three
seconds. When adjusting the driver’s side temperature
setting, the passenger’s side temperature setting will
follow and both arrows will appear on the display. The
passenger’s side temperature setting also resets and
relinks to the driver’s side temperature setting if the
vehicle has been off for more than three hours.
Outside Air Temperature Display
A new outside temperature reading will be displayed if
the vehicle has been off for more than three hours. If the
vehicle has been off for less than three hours, the old
temperature reading may be displayed because
underhood heat is affecting the true outside temperature.
Underhood heat can also affect the outside temperature
while the engine is running. It may also take several
minutes of driving before the display updates to
the actual outside temperature.
Automatic Operation
AUTO (Automatic):When automatic operation is
active, the system will control the inside temperature,
the air delivery mode, and the fan speed.
Use the steps below to place the entire system in
automatic mode:
1. Press the AUTO button.
When AUTO is selected, the air conditioning
operation and air outlet mode will be automatically
controlled. The air conditioning compressor will
run continuously when the outside temperature is
over approximately 40°F (4°C). The air inlet
will normally be set to outside air. If it’s hot outside,
the air inlet will automatically switch to recirculate
inside air to help quickly cool down your vehicle.
2. Set the driver’s and passenger’s temperature.
To nd your comfort setting, start with a 72°F (22°C)
temperature setting and allow about 20 minutes
for the system to adjust. Turn the driver’s or
passenger’s side temperature knob to adjust the
temperature setting as necessary. If you choose the
temperature setting of 60°F (15°C), the system
will remain at the maximum cooling setting. If you
choose the temperature setting of 90°F (32°C),
the system will remain at the maximum heat setting.
Choosing either maximum setting may not cause
the vehicle to heat or cool any faster.
3-21
2005 - Saab 97X Owner Manual
ProCarManuals.com

Manual Operation
To change the current setting, select one of the
following:
w9x(Fan):This button allows you to manually
adjust the fan speed. Press the up arrow to increase fan
speed and the down arrow to decrease fan speed. The
display will change to show you the selected fan speed
and the driver’s side temperature setting for ve seconds.
C(Mode):Press this button to manually change the
direction of the airow in your vehicle. Keep pressing the
button until the desired mode appears on the display.
The display will change to show you the selected
air delivery mode and the driver’s temperature setting
for ve seconds.
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs approximately half of
the air to the instrument panel outlets, then directs
the remaining air to the oor outlets. A little air is
directed toward the windshield and the side window
outlets. Cooler air is directed to the upper outlets and
warmer air to the oor outlets.
6(Floor):This mode directs most of the air to the
oor outlets. Some air also comes out of the defroster
and side window outlets. The recirculation button cannot
be selected in oor mode.
@(Recirculation):Press this button to turn
recirculation mode on or off. When this button is pressed,
an indicator light in the button will also come on to let you
know that it is activated. Recirculation mode is used to
recirculate the air inside of your vehicle. Use this mode to
help prevent outside odors and/or dust from entering your
vehicle or to help cool the air inside of your vehicle more
quickly. Recirculation mode can be used with vent and
bi-level modes, but it cannot be used with oor, defog or
defrost modes. Defog and defrost modes are described
later in this section.
If recirculation mode is selected with oor, defog, or
defrost modes, the indicator will ash three times and
then turn off indicating the selection is not available.
You may also notice that the air conditioning compressor
will run while in recirculation mode. This is normal and will
help to prevent fogging.
If the weather is cold and damp, the system may cause
the windows to fog while using recirculation mode. If the
windows do start to fog, select defog or defrost mode.
Recirculation mode, if selected, will be cleared when the
engine is turned off.
3-22
2005 - Saab 97X Owner Manual
ProCarManuals.com
