2005 SAAB 9-2X turn signal

11 -6 7
Maintenance and service
– CONTINUED –
11
18 February 2004
"HID headlight bulbs (optional on cer-
tain U.S. models)High-intensity-discharge (HID) bulbs are used
for the low beams of the headlights. These HID
bulbs use an extremely high voltage. To avoid
the risk of an electric shock and resulting seri-
ous injury, you should not attempt to replace
them. Neither should you attempt to replace the
high-beam bulbs, remove/refit the headlight as-
semblies, or remove any headlight-assembly
components. For replacement of the headlight
bulbs (low-beam and high-beam), removal and
installation of the headlight assemblies, and re-
moval of headlight-assembly components,
contact your Saab dealer.
Ask your Saab dealer to check whether your ve-hicle is equipped with HID headlights. Wattage Bulb No.
1) Low beam head light
U.S.-spec. halogen 12V-35W D2R
Others 12V-55W H1
2) High beam head light 12V-60W 9005
(HB3)
3) Front side marker light 12V-5W W5W
4) Spot light 12V-8W –
5) Room light 12V-8W –
6) Front turn signal 12V-21W WY21W
7) Parking light 12V-5W W5W
8) Front fog light 12V-57W 9006
(HB4)
9) High mount stop light 12V-1.3W LED
10) Rear turn signal light 12V-21W
(Amber)7440A
11) Cargo area light 12V-5W W5W
12) Brake/tail light 12V-5W W5W
13) Backup light 12V-16W 921
14) License plate light 12V-5W W5W
ProCarManuals.com

11 -7 5
Maintenance and service
– CONTINUED –
11
26 December 2003
"Front turn signal light and front side
marker light bulbs!Right hand side
It may be difficult to replace the bulbs. Have your Saab
dealer replace the bulbs if necessary.
!Left hand side

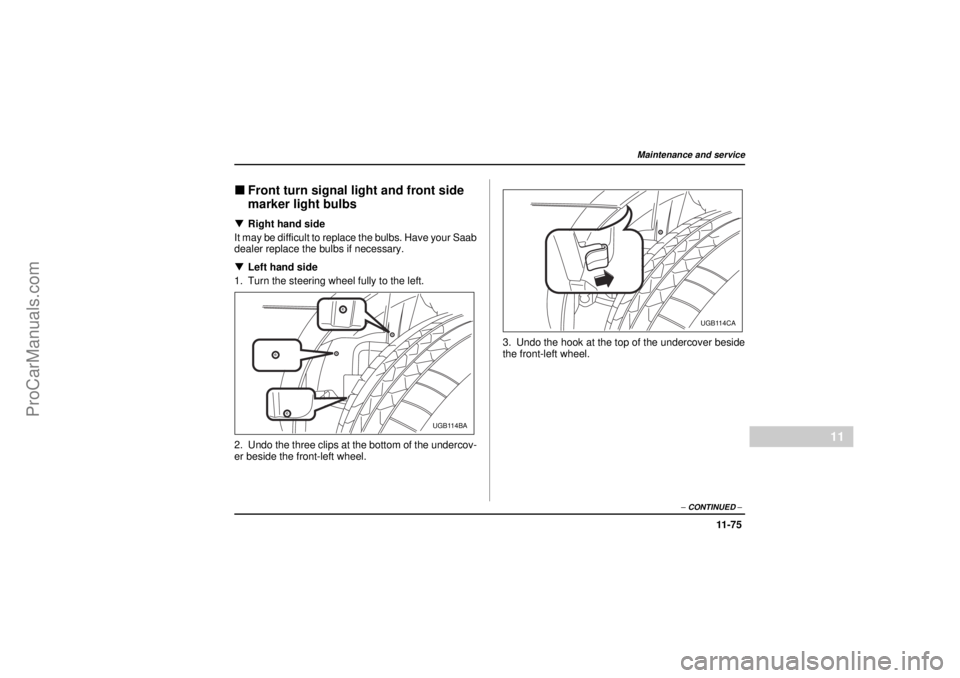

1. Turn the steering wheel fully to the left.
2. Undo the three clips at the bottom of the undercov-
er beside the front-left wheel.3. Undo the hook at the top of the undercover beside
the front-left wheel.
UGB114BA
UGB114CA
ProCarManuals.com

11 - 7 6Maintenance and service
26 December 2003
1) Front side marker light
2) Front turn signal light4. Lift the undercover. Insert your hand under the un-
dercover and feel for the front turn signal light and front
side marker light with reference to the illustration be-
low. Remove the bulb socket from the headlight as-
sembly by turning it counterclockwise.
1) Front turn signal light
2) Front side marker light5. Pull the bulb out of the socket. Install a new bulb.
1
2
UGB115BB
1
2
UGB116BB
ProCarManuals.com

11 - 7 8Maintenance and service
18 February 2004
1) Rear turn signal light
Brake/tail light
2) Backup light3. Remove the bulb holder from the rear combination
light assembly by turning it counterclockwise.
4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb.
5. Set the bulb holder into the rear combination light
assembly and turn it clockwise until it locks.
6. Close the cover and latch the lock.
7. Reinstall the rear combination light assembly and
its side cover.
"License plate light1. Remove the mounting screws using a Phillips
screwdriver.
2. Remove the cover and lens.
3. Pull the bulb out of the socket. Install a new bulb.
4. Reinstall the lens and cover.
5. Tighten the mounting screws.
1
2
3
UGB102BB
UGB103BA
