Practical Tips, Minor Repairs
297

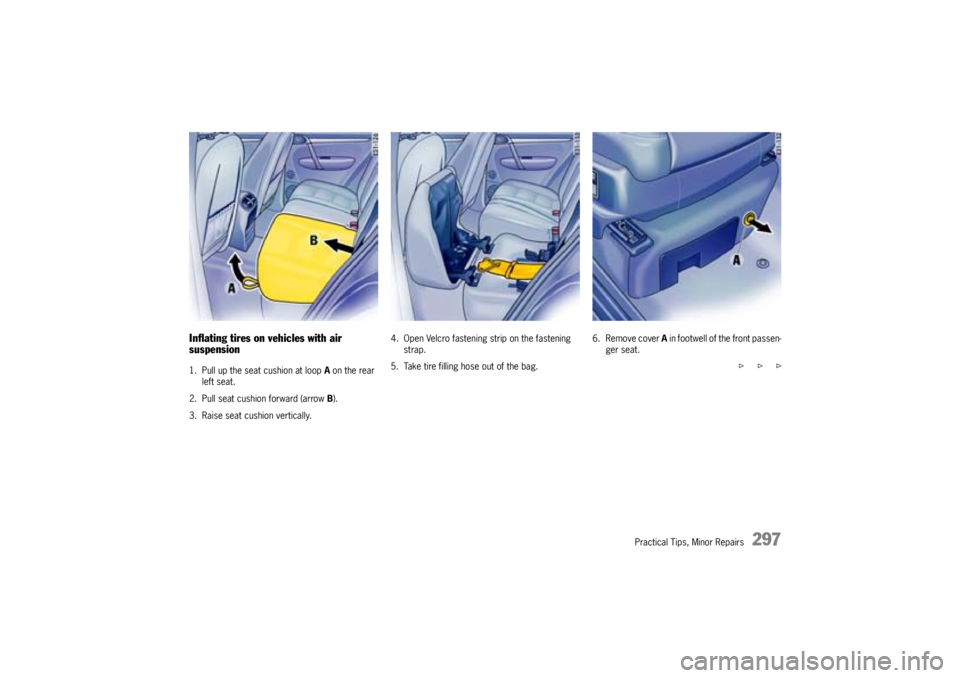

Inflating tires on vehicles with air
suspension1. Pull up the seat cushion at loop A on the rear
left seat.
2. Pull seat cushion forward (arrow B).
3. Raise seat cushion vertically.4. Open Velcro fastening strip on the fastening
strap.
5. Take tire filling hose out of the bag.6. Remove cover A in footwell of the front passen-
ger seat.
f f f
Page 298 of 369
298
Practical Tips, Minor Repairs
B- Screw coupling for compressor connection
C- Pressure tester
D- Hand valve for tire filling
E- Air bleed screw
F- Filler connection for tire valve7. Screw screw coupling B into the compressor
connection (in footwell of the front passenger
seat).
8. Screw filler connection F onto the tire valve.
Warning!
D a n g e r o f i n j u r y a n d r i s k o f d a m a g e i f t h e o p -
erating unit is used improperly.
fUse this operating unit only to inflate or to bleed air from the tires of this vehicle.
9. Switch ignition on.
10.Press hand valve Duntil the correct tire pres-
sure is achieved.
Monitor the tire pressure with pressure tester
C during the inflation process.
11.Unscrew the screw coupling from the com-
pressor connection.
12.Unscrew filler connection from the tire valve.
13.Stow tire filler hose in the bag.
14.Close bag with Velcro strip.
15.Lower the seat cushion, push it under the
backrest and press it down at the front.
Make sure that the buckles are accessible.Note on operation
The compressor features a protective function
against overheating and switches itself off auto-
matically if necessary. The compressor must cool
down for a few minutes after automatic deactiva-
tion.
Reducing tire pressure on vehicles with
air suspensionfOpen air bleed screw E until the correct tire
pressure is achieved.
Monitor the tire pressure with pressure tester
C while correcting the tire pressure.
Page 299 of 369
Practical Tips, Minor Repairs
299
Spare wheel
Warning!
Risk of accident. The wheel and tire size and
the tire quality of the spare wheel and normal
wheel may differ.
If a spare wheel that differs from the normal
tires is used, this may impair the driving be-
havior.
fThe spare wheel must be used only over short
distances in cases of emergency.
For safety reasons, replace the tires before
the wear indicators appear (webs in the tire
grooves, 1.6 mm high).
fNever deactivate the Porsche Stability
Management (PSM) system.
fIf the tire on the spare wheel is older than
4 years, the spare wheel should be used only
in the event of a flat.
fAvoid hard acceleration and high cornering
speeds.
The maximum permitted speed is 50 mph
(80 km/h) if the mounted spare wheel differs
from the other three wheels on the car. This
maximum speed must not be exceeded be-
cause of altered driving characteristics and for
reasons of wear.
fDo not use a spare wheel from a different vehi-
cle type.
fDo not mount the spare wheel from your car on a different vehicle.Removing spare wheel
Warning!
Danger of injury if the spare wheel is re-
moved improperly.
fRemove the spare wheel only when the spare
wheel bracket is locked.
fRemove the spare wheel from the spare wheel
bracket with care. The wheel is very heavy (ap-prox. 77 lbs. or 35 kg).
1. Unscrew all five wheel bolts.
2. Remove the top wheel bolt.
Remove assembly aid from the tool kit and
screw in instead of the wheel bolt.
Remove the remaining wheel bolts.
Fitting spare wheel
fInsert wheel bolts and tighten by hand. Re-
move assembly aid and screw in remaining
wheel bolt.
Initially tighten bolts in diagonally opposite se-
quence so that the wheel is centerd.
fPlease observe the chapter “TIRE PRESSU-
RES, COLD” on Page 350.
fAfter mounting the wheel, tighten all five wheel
bolts to 111 ftlb. (150 Nm).
Page 338 of 369
338
Practical Tips, Minor Repairs
Headlight AdjustmentfCheck tire pressure and adjust if necessary.
fPlease observe the chapter “TIRE PRESSU-
RES, COLD” on Page 350.
fPlease observe the chapter “REPLACING BUL-
BS” on Page 328.Adjustment
The adjustment is made with the vehicle ready to
drive and the fuel tank completely filled.
The driver's seat must be loaded by a person or a
165lbs. (75kg) weight and the tire pressures must
meet the prescribed values. After being loaded,
the car must be rolled a few meters so that the
suspension can settle.
For checking the headlight adjustment, the verti-
cal position of the cutoff of the lowbeam (see fig.)
has to be projected on a vertical screen (wall) in
distance of 24.6 ft. (7.5 m) from the front lens of
the headlamp.The correct position of the cutoff is
3.0 in. (7.5 cm) at 24.6 ft. or 7.5 m (0.4°) below
a horizontal line, x cm from ground to the center
of the headlamp lens.
Lateral adjustment of the headlights should be
carried out at a specialist workshop with an optical
adjustment unit.
Distance
Visual aim shall be performed at not less than
7.5 m (this value is a rounded down conversion
from the 25-foot distance typical of field aim using
a screen). The 24.6 ft. (7.5 m) distance is mea-
sured from the headlamp lens to the viewing
screen.
Floor
The surface upon which the vehicle rests is flat
and approximately level.
Screen
The screen upon which headlamp beams are pro-
jected is perpendicular to the floor and the vehi-
cle's longitudinal axis, flat, uniformly light in color,
unobstructed, and wide and high enough to ac-
commodate the vehicle beam patterns to be
aimed.
The screen should be wide enough to provide at
least 3.3 ft. (1 m) of space outboard of the vehi-
cle's headlamp spacing.
Page 366 of 369
366
Index Temperature
Sensor ...................................... 127
,131
Setting ...................................... 128,133
Temporary change-down.............................. 200
Terrain level................................................ 228
Te s t s t a n d s
Measurement ..................................... 219
Theft protection ............................................ 16
Through-load bag ........................................ 187
Securing load ..................................... 188
Through-load facility .................................... 187
Tie-down
Belts ......................................... 182,193
Equipment .......................................... 193
Rings ........................................ 182,185
Tiptronic ...................................... 15
,51,198
Rocker switches ................. 51
,200
,201
Tire
Care .................................................. 275
Life .................................................... 274
Traction ............................................. 272
Wear .................................................. 274
Tire and rim sizes ....................................... 348
Tire pressure ....................................... 85,194
Load .................................................. 193
Plate .................................................. 345
Reducing ................................... 296,298
Specifications ....................................... 98
Tables................................................ 350
Warning light .......... 68
,70,87,97,108
Warning message ................................. 93
Tire pressure monitoring system .................... 85
Monitoring ............................................ 92
System learning process ....................... 87Tire sealant ........................... 90
,91,96,288
Warning light....................................... 108
Tires .......................................................... 269
Changing ............................................ 170
Damage ............................................. 275
Flat .................................................... 287
Inflating ..................................... 295,297
Inscription .......................................... 281
Replacing ........................................... 276
Sidewall.............................................. 281
Size ................................................... 281
Tracks ............................................... 348
Type .................................................... 89
Valves ................................................ 276
Tool kit ....................................................... 269
Screewdriver ...................................... 283
Tools.......................................................... 269
Screwdriver ........................................ 283
Towing .............................................. 205,340
Capacity ............................................. 191
Hook .................................................. 340
Tow-starting ................................................ 205
Tracks........................................................ 348
Traction...................................................... 222
Management....................................... 212
Traction systems......................................... 211
Trailer
Coupling ............................................. 190
Hitch .................................................. 190
Hitching.............................................. 190
Unhitching .......................................... 190
Transmission .............................................. 347
Transport ............................................ 28,230Turn signal light...........................................334
Indicator light .................................68
,70
Rear ...................................................336
Switch ................................................117
Turn signal pilot light
Indicator light .................................68,70
Turn signal/high beam/
headlight flasher stalk..................................117
Tyre pressure
Warning message..................................93
UUltrasonic measurement ..............................160
Ultrasound sensors, ParkAssist ....................158
Ultrasound sources .....................................160
Undercoating ..............................................261
Unlocking, keyless ........................................24
Immobilizer ...........................................25
Uphill driving ...............................................222
Traction..............................................222VVehicle
Battery .............................170
,312
,325
Care...................................................256
Data bank ...........................................344
Identification number ...........................344
Keys ...........................................17,326
Laying up............................................265
Lowering ............................................230
Putting into operation ..........................313
Raising ......................................229,230
Recovery ............................................341
Page 369 of 369
369
Air Cleaner ................................................. 245
Particle Filter .............................................. 245
Automatic Transmission Fluid....................... 245
Wiper Blades .............................................. 246
Fuel Economy ............................................. 249
Operating Your Porsche in other Countries ... 249
Fuel ........................................................... 250
Fuel Recommendations ............................... 252
Portable Fuel Containers ............................. 253
Fuel Evaporation Control ............................. 253
Emission Control System............................. 254
Car Care Instructions .................................. 256
Exercise Extreme Caution when Working on your
Vehicle ....................................................... 268
Notes on Minor Repairs ............................... 269
Tires/Wheels .............................................. 269
Jack .......................................................... 283
Tool Kit ...................................................... 283
Lifting the Vehicle with a Lifting Platform or Garage
lift.............................................................. 284
Compressor ............................................... 285
Wheel Bolts ................................................ 285
Changing Wheels ........................................ 286
Flat Tire ..................................................... 287
Electrical System ........................................ 302
Battery....................................................... 312
Emergency Starting with Jumper Cables ....... 323
Replacing the remote control battery............ 326
Bulb Chart .................................................. 327
Replacing Bulbs .......................................... 328
Headlights .................................................. 329
Tail Light .................................................... 335
License Plate Lights .................................... 337
Headlight Adjustment .................................. 338
Changing Headlights from Left to Right-Hand Traf-fic ..............................................................339
Towing .......................................................340
Vehicle Identification....................................344
Engine Data ................................................346
Transmission ..............................................347
Tires, Rims, Tracks .....................................348
................................... Tire Pressures, Cold350
Capacities ..................................................351
Weights ......................................................352
Driving Performance....................................353
Dimensions.................................................354
Ground Clearance .......................................355
