2005 NISSAN 350Z brakes

or
Anti-lock brake warning light
Low washer fluid warning light
Malfunction indicator lamp (MIL)
Automatic transmission check warning
light (A/T models)
Seat belt warning light
Slip indicator light
or
Brake warning light
Supplemental air bag warning light
Traction control system (TCS) off indica-
tor light (if so equipped)
Charge warning light
Automatic transmission position indicator
light (A/T models)
Vehicle dynamic control (VDC) off indica-
tor light (if so equipped)
Door open warning light
Cruise main switch indicator light
(if so equipped)
Soft top indicator light (Roadster models)
Engine oil pressure warning light
Cruise set switch indicator light
(if so equipped)
Turn signal/hazard indicator lights
Low tire pressure warning light
High beam indicator light (Blue)
CHECKING BULBSApplythe parking brake and turn the ignition key
to ON without starting the engine. The following
lights will come on:
,
or
,
,
The following lights come on brieflyand then go
off:
,
or
,
,
,
,
,
If anylight fails to come on, it mayindicate a
burned-out bulb or an open circuit in the elec-trical system. Have the system repaired
promptly.
WARNING LIGHTS
or
Anti-lock brake
warning light
When the ignition switch is turned to the ON
position, the anti-lock brake warning light will
illuminate and then turn off. This indicates the
anti-lock brake system (ABS) is operational.
If the light comes on while the engine is running,it mayindicate the anti-lock brake system is not
functioning properly. Have the system checked
bya NISSAN dealer.
If a malfunction occurs in the system, the anti-
lock function of the brake will cease operation
but the ordinarybrakes will continue to operate.
See “Anti-lock brake system (ABS)” in the “5.
Starting and driving” section for further details.
If the light comes on while you are driving,
contact a NISSAN dealer for repair.
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS2-12
Instruments and controls


04.10.8/Z33-D/V5.0


operating switch only under all of the following
conditions:

When the vehicle is stopped.

When the foot brake pedal is depressed.

When the ignition switch is ON.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is in motion, and any of the
above conditions are discontinued or the pas-
senger power seat switches (on the cushion or
the seatback) are operated, the top will stop
moving. Remove your hand from the operating
switch, and press it again under the above
conditions until the top is fully opened or closed.
The indicator light will go off when the top
open/close operation is completely finished.
If the soft top indicator light flashes with the
ignition switch ON (whether the top is operated
or not), it may indicate the electric soft top
control unit is not functioning properly. Have
your vehicle checked by a NISSAN dealer as
soon as possible.
For more details about the electric soft topoperation, see “Soft top” in the “3. Pre-driving
checks and adjustments” section.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.AUDIBLE REMINDERS
Key reminder chimeThe chime will sound if the driver’s side door is
opened while the key is left in the ignition switch
(ignition switch is turned off). Remove the key
and take it with you when leaving the vehicle.Light reminder chimeThe chime will sound when the driver’s door is
opened with the headlight switch on unless the
key is in the ignition switch. Make sure to turn the
light switch off when you leave the vehicle.Seat belt warning chimeThe chime will sound for about 6 seconds unless
the driver’s seat belt is securely fastened.Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound whenthe vehicle is in motion. Have the brakes
checked as soon as possible if the warning
sound is heard.
2-18
Instruments and controls


04.8.23/Z33-D/V5.0


BRAKING PRECAUTIONSThe brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.Vacuum assisted brakesThe brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.Using the brakesAvoid resting your foot on the brake pedal while
driving. This overheats the brakes, increases
wear on the brakes and pads, and reduces gas
mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
WARNING

While driving on a slippery surface,
be careful when braking, accelerat-
ing or downshifting. Abrupt braking
or accelerating could cause the
wheels to skid and result in an acci-
dent.

If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.Wet brakesWhen the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly pressing the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.ANTI-LOCK BRAKE SYSTEM (ABS)The anti-lock brake system controls the brakesso the wheels will not lock when braking abruptly
or when braking on slippery surfaces. The sys-
tem detects the rotation speed at each wheel
and varies the brake fluid pressure to prevent
each wheel from locking and sliding. By prevent-
ing wheel lockup, the system helps the driver
maintain steering control and helps to minimize
swerving and spinning on slippery surfaces.
Using the systemDepress the brake pedal and hold it down.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.Normal operationThe anti-lock brake system will not operate at
speeds below 3 to 6 MPH (5 to 10 km/h) to
completely stop the vehicle. (The speeds will
vary according to road conditions.) When the
anti-lock system senses that one or more wheels
are close to locking up, the actuator (under the
hood) rapidly applies and releases hydraulic
pressure (like pumping the brakes very quickly).
While the actuator is working, you may feel a
BRAKE SYSTEM5-20
Starting and driving


04.8.23/Z33-D/V5.0


The ABLS system works when one of the driving
wheels is spinning on a slippery surface. The
ABLS system brakes the spinning wheel, which
distributes the driving power to the other driving
wheel. If the vehicle is operated with the VDC
system turned off, all VDC system functions and
TCS functions will be turned off. The ABLS
system and ABS will still operate with the VDC
system off. When the ABLS system is activated,
the “SLIP” indicator light will blink and you may
hear a clunk noise and/or feel a pulsation in the
brake pedal. This is normal and is not an indica-
tion of a malfunction.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
feel a vibration from under the hood. This is
normal and indicates that the VDC system is
working properly.
The VDC system computer has a built-in diag-
nostic feature that tests the system each time
you start the engine and move the vehicle for-
ward or backward. When the self-test occurs,
you may hear a clunk noise and/or feel a pulsa-
tion in the brake pedal. This is normal and is not
an indication of a malfunction.
WARNING

The VDC system is designed to help
improve driving stability but does not
prevent accidents due to abrupt
steering operation at high speeds or
due to careless or dangerous driving
techniques. Reduce vehicle speed
and be especially careful when driv-
ing and cornering on slippery sur-
faces and always drive carefully.

If engine related parts such as a muf-
fler are not standard equipment or
are extremely deteriorated, the “VDC
OFF” indicator or “SLIP” indicator or
both indicator lights may illuminate.

Do not modify the vehicle’s suspen-
sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars and bushings are not
NISSAN-approved or are extremely
deteriorated the VDC system may not
operate properly. This could ad-
versely affect vehicle handling per-
formance, and the “VDC OFF” indica-tor or “SLIP” indicator or both indica-
tor lights may illuminate.

If brake related parts such as brake
pads, rotors and calipers are not
standard equipment or are extremely
deteriorated, the “VDC OFF” indica-
tor or “SLIP” indicator or both indica-
tor lights may illuminate.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the VDC system may not oper-
ate properly and the “VDC OFF” indi-
cator or “SLIP” indicator or both
indicator lights may illuminate. Do
not drive on these types of roads.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the “VDC OFF” indicator or
“SLIP” indicator or both indicator
lights may illuminate. This is not a
malfunction. Restart the engine after
driving onto a stable surface.

If wheels or tires other than those
recommended are used, the VDC sys-
Starting and driving
5-23


04.8.23/Z33-D/V5.0


corrosive materials, check lubrication frequently.
Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*:When checking
the tires, make sure no nuts are missing, and
check for any loose nuts. Tighten if necessary.
Tire rotation*:Tires cannot be rotated in this
vehicle.
Tire, wheel alignment and balance:If the
vehicle pulls to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information Booklet.
Tires*:Check the pressure with a gauge often
and always prior to long distance trips. Adjust
the pressure in all tires, including the spare, to
the pressure specified. Check carefully for dam-age, cuts or excessive wear.
Windshield:Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified re-
pair facility.
Windshield wiper blades*:Check for cracks
or wear if they do not wipe properly.
Inside the vehicleThe maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Automatic transmission P (Park) position
mechanism:On a fairly steep hill check that the
vehicle is held securely with the selector lever in
the P (Park) position without applying any
brakes.
Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal does
not catch or require uneven effort. Keep the floor
mat away from the pedal.
Brakes:Check that the brakes do not pull the
vehicle to one side when applied.
Brake pedal and booster*:Check the pedal
for smooth operation and make sure it has the
proper distance under it when depressed fully.Check the brake booster function. Be sure to
keep floor mat away from the pedal.
Clutch pedal*:Make sure the pedal operates
smoothly and check that it has the proper free
play.
Parking brake*:Check that the lever has the
proper travel and make sure that the vehicle is
held securely on a fairly steep hill when only the
parking brake is applied.
Seats:Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if equipped) hold securely in all
latched positions.
Seat belts:Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Steering wheel:Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes:Make sure that all
warning lights and chimes are operating prop-
erly.
Maintenance and do-it-yourself
8-3


04.8.23/Z33-D/V5.0

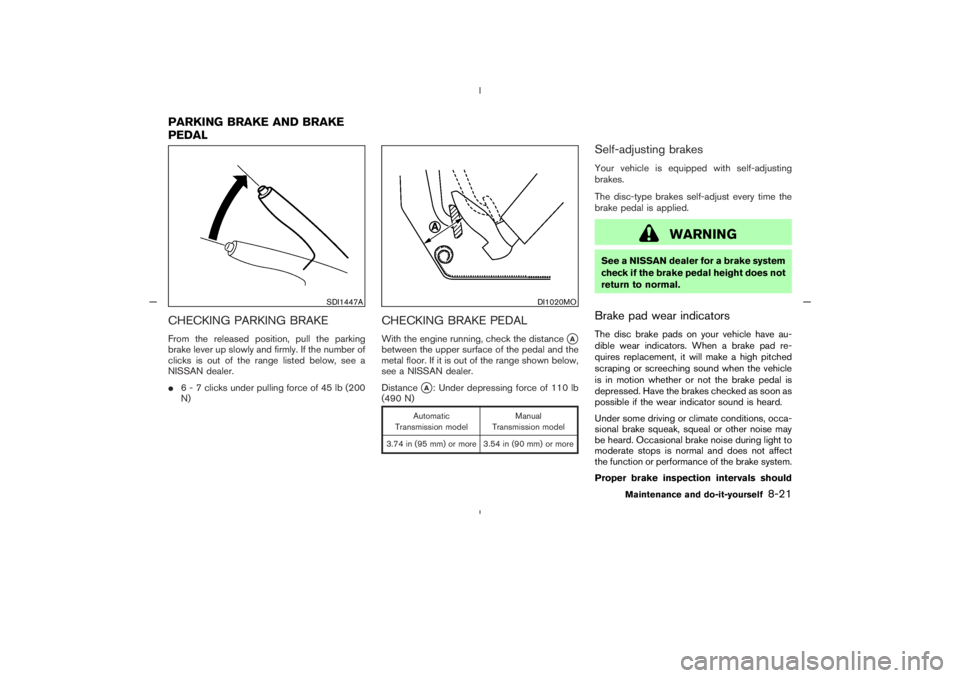

CHECKING PARKING BRAKEFrom the released position, pull the parking
brake lever up slowly and firmly. If the number of
clicks is out of the range listed below, see a
NISSAN dealer.

6 - 7 clicks under pulling force of 45 lb(200
N)
CHECKING BRAKE PEDALWith the engine running, check the distance
A
between the upper surface of the pedal and the
metal floor. If it is out of the range shown below,
see a NISSAN dealer.
Distance
A: Under depressing force of 110 lb
(490 N)
Automatic
Transmission modelManual
Transmission model
3.74 in (95 mm) or more 3.54 in (90 mm) or more
Self-adjusting brakesYour vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer for a brake system
check if the brake pedal height does not
return to normal.Brake pad wear indicatorsThe disc brake pads on your vehicle have au-
dible wear indicators. When a brake pad re-
quires replacement, it will make a high pitched
scraping or screeching sound when the vehicle
is in motion whether or not the brake pedal is
depressed. Have the brakes checked as soon as
possible if the wear indicator sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake system.
Proper brake inspection intervals should
SDI1447A
DI1020MO
PARKING BRAKE AND BRAKE
PEDAL
Maintenance and do-it-yourself
8-21


04.8.23/Z33-D/V5.0


be followed.For additional information, see the
appropriate maintenance log shown in the

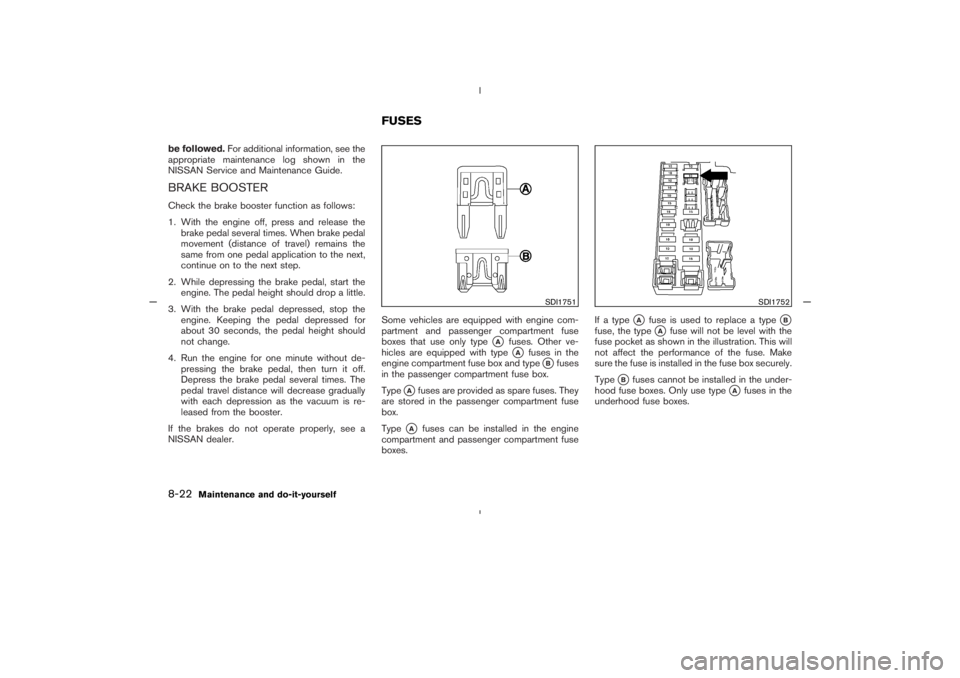

NISSAN Service and Maintenance Guide.BRAKE BOOSTERCheck the brake booster function as follows:
1. With the engine off, press and release the
brake pedal several times. When brake pedal
movement (distance of travel) remains the
same from one pedal application to the next,
continue on to the next step.
2. While depressing the brake pedal, start the
engine. The pedal height should drop a little.
3. With the brake pedal depressed, stop the
engine. Keeping the pedal depressed for
about 30 seconds, the pedal height should
not change.
4. Run the engine for one minute without de-
pressing the brake pedal, then turn it off.
Depress the brake pedal several times. The
pedal travel distance will decrease gradually
with each depression as the vacuum is re-
leased from the booster.
If the brakes do not operate properly, see a
NISSAN dealer.Some vehicles are equipped with engine com-
partment and passenger compartment fuse
boxes that use only type
A
fuses. Other ve-
hicles are equipped with typeA
fuses in the
engine compartment fuse box and type
Bfuses
in the passenger compartment fuse box.
Type
Afuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type
A
fuses can be installed in the engine
compartment and passenger compartment fuse
boxes.If a type
A
fuse is used to replace a type
B
fuse, the type
A
fuse will not be level with the
fuse pocket as shown in the illustration. This will
not affect the performance of the fuse. Make
sure the fuse is installed in the fuse box securely.
Type
B
fuses cannot be installed in the under-
hood fuse boxes. Only use type
A
fuses in the
underhood fuse boxes.
SDI1751
SDI1752
FUSES
8-22
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0


the proper equipment and to have it
installed.
Trailer lights should comply with federal and/or
local regulations. When wiring the vehicle for
towing, connect the stop and tail light pickup
into the vehicle electrical circuit at a point be-
tween the sensor and stop light or light switch.Trailer brakesIf your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system
directly to the vehicle brake system.Pre-towing tips
Be certain a vehicle maintains a level position
when a loaded and/or unloaded trailer is
hitched. Do not drive the vehicle if it has an
unusual nose-up or nose-down condition;
check for improper tongue load, overload,
worn suspension or other possible causes of
these conditions.
Always secure items in the trailer to prevent
load shifts while driving.

Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half.

Check your hitch, trailer tire pressure, vehicle
tire pressure, trailer light operation, and trailer
wheel lug nuts every time you attach a trailer
to the vehicle.

Be certain your rear view mirrors conform to
all federal, state and/or local regulations. If
not, install any mirrors required for towing
before driving the vehicle.
Trailer towing tipsIn order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability, and braking per-
formance will be somewhat different than under
normal driving conditions.

Always secure items in the trailer to prevent
load shift while driving.

Avoid abrupt starts, acceleration or stops.

Avoid sharp turns or lane changes.

Always drive a vehicle at a moderate speed.
Some states or provinces have specificspeed limits for vehicles that are towing
trailers. Obey the local speed limits.

When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and back
up slowly. If possible, have someone guide
you when you are backing up.

Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so,
and if a vehicle is equipped with automatic
transmission, first apply the parking brake
and block the wheels, and then move the
transmission selector lever into the P (Park)
position. If you move the selector lever to the
P (Park) position before blocking the wheels
and applying the parking brake, the transmis-
sion may get damaged.

When going down a hill, shift into a lower
gear and use the engine braking effect.
When going up a long grade, downshift the
transmission to a lower gear and reduce
speed to reduce chances of engine overload-
ing and/or overheating.

If the engine coolant rises to an extremely
high temperature when the air conditioning
system is on, turn off the air conditioner.
Coolant heat can be additionally vented by
Technical and consumer information
9-19


04.8.23/Z33-D/V5.0
