2005 NISSAN 350Z ECO mode

Tire and loading information label
1Seating capacity: The maximum number of
occupants that can be seated in the vehicle.
2Vehicle load limit: See loading information in
the “9. Technical and consumer information”
section.
3Original tire size: The size of the tires origi-
nally installed on the vehicle at the factory.
4Recommended cold tire inflation pressure:
Inflate the tires to this pressure when the tires
are cold. Tires are considered COLD after
the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds. The recommended cold
tire inflation is set by the manufacturer to
provide the best balance of tire wear, vehicle
handling characteristics, driveability, tire
noise, etc., based on the vehicle’s GVWR.
5Tire size — refer to “Tire labeling” later in this
section.
6and
7
Spare tire size or compact spare tire
size (if so equipped)
Checking the tire pressure1. Remove the valve stem cap from the tire.
2. Press the pressure gauge squarely onto the
valve stem. Do not press too hard or force the
valve stem sideways, or air will escape. If the
hissing sound of air escaping from the tire is
heard while checking the pressure, reposition
the gauge to eliminate this leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem
and compare it to the specification shown on
the Tire and Loading Information label.
5. Add air to the tire as needed. If too much air
SDI1574
8-32
Maintenance and do-it-yourself


04.8.23/Z33-D/V5.0

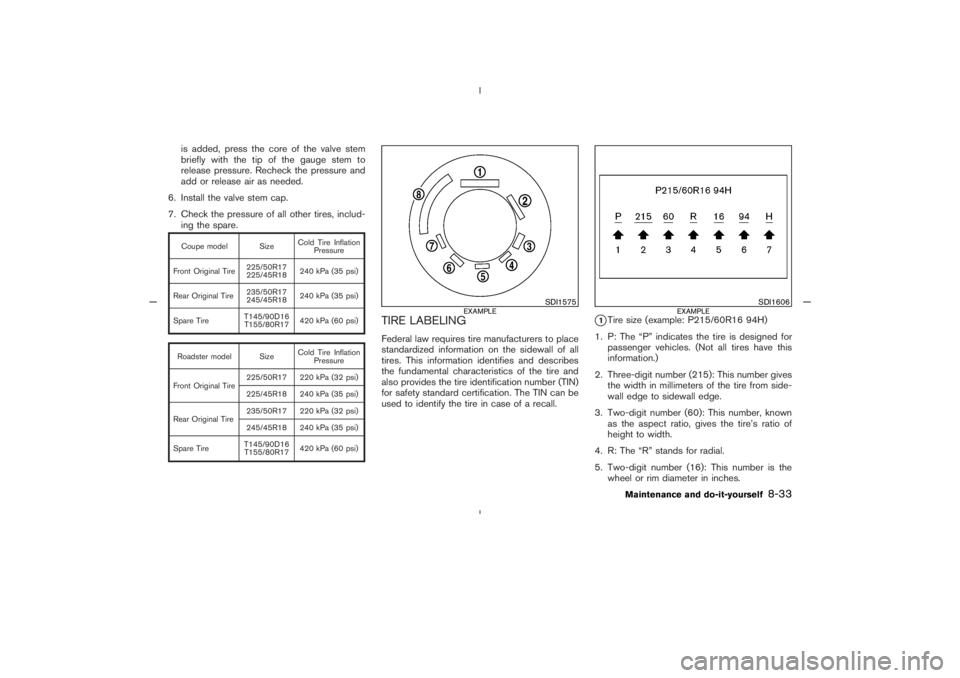

is added, press the core of the valve stem
briefly with the tip of the gauge stem to
release pressure. Recheck the pressure and
add or release air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, includ-
ing the spare.Coupe model SizeCold Tire Inflation
Pressure
Front Original Tire225/50R17
225/45R18240 kPa (35 psi)
Rear Original Tire235/50R17
245/45R18240 kPa (35 psi)
Spare TireT145/90D16
T155/80R17420 kPa (60 psi)Roadster model SizeCold Tire Inflation
Pressure
Front Original Tire225/50R17 220 kPa (32 psi)
225/45R18 240 kPa (35 psi)
Rear Original Tire235/50R17 220 kPa (32 psi)
245/45R18 240 kPa (35 psi)
Spare TireT145/90D16
T155/80R17420 kPa (60 psi)
TIRE LABELINGFederal law requires tire manufacturers to place
standardized information on the sidewall of all
tires. This information identifies and describes
the fundamental characteristics of the tire and
also provides the tire identification number (TIN)
for safety standard certification. The TIN can be
used to identify the tire in case of a recall.
1Tire size (example: P215/60R16 94H)
1. P: The “P” indicates the tire is designed for
passenger vehicles. (Not all tires have this
information.)
2. Three-digit number (215): This number gives
the width in millimeters of the tire from side-
wall edge to sidewall edge.
3. Two-digit number (60): This number, known
as the aspect ratio, gives the tire’s ratio of
height to width.
4. R: The “R” stands for radial.
5. Two-digit number (16): This number is the
wheel or rim diameter in inches.
SDI1575
EXAMPLE
SDI1606
EXAMPLE
Maintenance and do-it-yourself
8-33


04.8.23/Z33-D/V5.0

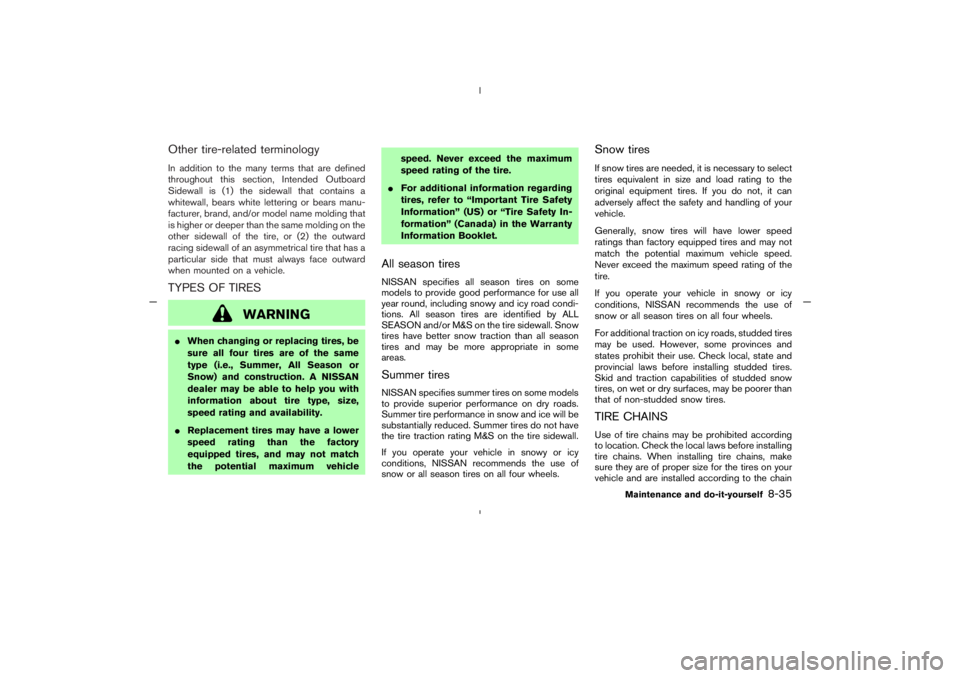

Other tire-related terminologyIn addition to the many terms that are defined
throughout this section, Intended Outboard
Sidewall is (1) the sidewall that contains a
whitewall, bears white lettering or bears manu-
facturer, brand, and/or model name molding that
is higher or deeper than the same molding on the
other sidewall of the tire, or (2) the outward
racing sidewall of an asymmetrical tire that has a
particular side that must always face outward
when mounted on a vehicle.TYPES OF TIRES
WARNING

When changing or replacing tires, be
sure all four tires are of the same
type (i.e., Summer, All Season or
Snow) and construction. A NISSAN
dealer may be able to help you with
information about tire type, size,
speed rating and availability.

Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehiclespeed. Never exceed the maximum
speed rating of the tire.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
All season tiresNISSAN specifies all season tires on some
models to provide good performance for use all
year round, including snowy and icy road condi-
tions. All season tires are identified by ALL
SEASON and/or M&S on the tire sidewall. Snow
tires have better snow traction than all season
tires and may be more appropriate in some
areas.Summer tiresNISSAN specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance in snow and ice will be
substantially reduced. Summer tires do not have
the tire traction rating M&S on the tire sidewall.
If you operate your vehicle in snowy or icy
conditions, NISSAN recommends the use of
snow or all season tires on all four wheels.
Snow tiresIf snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you operate your vehicle in snowy or icy
conditions, NISSAN recommends the use of
snow or all season tires on all four wheels.
For additional traction on icy roads, studded tires
may be used. However, some provinces and
states prohibit their use. Check local, state and
provincial laws before installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.TIRE CHAINSUse of tire chains may be prohibited according
to location. Check the local laws before installing
tire chains. When installing tire chains, make
sure they are of proper size for the tires on your
vehicle and are installed according to the chain
Maintenance and do-it-yourself
8-35


04.8.23/Z33-D/V5.0


The original tires have built-in tread
wear indicators. When the wear indi-
cators are visible, the tire(s) should
be replaced.

Improper service of the spare tire
may result in serious personal injury.
If it is necessary to repair the spare
tire, contact a NISSAN dealer.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.Replacing wheels and tiresWhen replacing a tire, use the same size, speed
rating and load carrying capacity as originally
equipped. See “Specifications” in the “9. Tech-
nical and consumer information” section for rec-
ommended types and sizes of tires and wheels.
WARNING

The use of tires other than those
recommended or the mixed use oftires of different brands, construction
(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, ground clearance,
body-to-tire clearance, tire chain
clearance, speedometer calibration,
headlight aim and bumper height.
Some of these effects may lead to
accidents and could result in serious
personal injury.

If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
possibly degraded vehicle handling
characteristics and/or interference
with the brake discs/drums. Such in-
terference can lead to decreased
braking efficiency and/or early brake
pad/shoe wear.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated and the low tire
pressure warning system will notfunction. Contact a NISSAN dealer as
soon as possible for tire replacement
and/or system resetting. (For models
with the low tire pressure warning
system)

Do not install a deformed wheel or
tire even if it has been repaired. Such
wheels or tires could have structural
damage and could fail without warn-
ing.

The use of retread tire is not recom-
mended.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
Maintenance and do-it-yourself
8-37


04.8.23/Z33-D/V5.0


WHEELS AND TIRES
Road wheelModel Type Position SizeOffset
in (mm)
Coupe AluminumFront17 x 7-1/2JJ 1.18 (30)
18 x 8JJ* 1.18 (30)
Rear17 x 8JJ 1.30 (33)
18 x 8JJ* 1.18 (30)
18 x 8-1/2JJ* 1.30 (33)
Roadster AluminumFront17 x 7-1/2JJ 1.18 (30)
18 x 8JJ* 1.18 (30)
Rear17 x 8JJ 1.30 (33)
18 x 8JJ* 1.18 (30)TireModel Type Position Size Pressure (Cold)
CoupeConventionalFront 225/50R17 94W 240 kPa (35 psi)
Rear 235/50R17 96W 240 kPa (35 psi)
Front 225/45R18 91W* 240 kPa (35 psi)
Rear 245/45R18 96W* 240 kPa (35 psi)
Spare —T145/90D16 420 kPa (60 psi)
T155/80R17* 420 kPa (60 psi)
Road-
sterConventionalFront 225/50R17 94W 220 kPa (32 psi)
Rear 235/50R17 96W 220 kPa (32 psi)
Front 225/45R18 91W* 240 kPa (35 psi)
Rear 245/45R18 96W* 240 kPa (35 psi)
Spare —T145/90D16 420 kPa (60 psi)
T155/80R17* 420 kPa (60 psi)
*: For option
DIMENSIONS AND WEIGHTS
Coupe Roadster
Overall length in (mm) 169.4 (4,304) 169.4 (4,304)
Overall width in (mm) 71.5 (1,815) 71.5 (1,815)
Overall height in (mm) 51.9 (1,319) 52.3 (1,328)
Front tread in (mm) 60.4 (1,535) 60.4 (1,535)
Rear tread in (mm)60.6 (1,539)*1
60.8 (1,545)*260.6 (1,539)*1
60.8 (1,545)*2
Wheelbase in (mm) 104.3 (2,650) 104.3 (2,650)
Gross vehicle weight rating
(GVWR)lb(kg)
See the F.M.V.S.S. or C.M.V.S.S. cer-
tification label on the driver’s side
lock pillar. Gross axle weight rating
(GAWR)
Front lb(kg)
Rear lb(kg)
*1: The wheel offset is 1.30 in (33 mm).
*2: The wheel offset is 1.18 in (30 mm).
Technical and consumer information
9-9


04.8.23/Z33-D/V5.0


the proper equipment and to have it
installed.
Trailer lights should comply with federal and/or
local regulations. When wiring the vehicle for
towing, connect the stop and tail light pickup
into the vehicle electrical circuit at a point be-
tween the sensor and stop light or light switch.Trailer brakesIf your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system
directly to the vehicle brake system.Pre-towing tips
Be certain a vehicle maintains a level position
when a loaded and/or unloaded trailer is
hitched. Do not drive the vehicle if it has an
unusual nose-up or nose-down condition;
check for improper tongue load, overload,
worn suspension or other possible causes of
these conditions.
Always secure items in the trailer to prevent
load shifts while driving.

Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half.

Check your hitch, trailer tire pressure, vehicle
tire pressure, trailer light operation, and trailer
wheel lug nuts every time you attach a trailer
to the vehicle.

Be certain your rear view mirrors conform to
all federal, state and/or local regulations. If
not, install any mirrors required for towing
before driving the vehicle.
Trailer towing tipsIn order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability, and braking per-
formance will be somewhat different than under
normal driving conditions.

Always secure items in the trailer to prevent
load shift while driving.

Avoid abrupt starts, acceleration or stops.

Avoid sharp turns or lane changes.

Always drive a vehicle at a moderate speed.
Some states or provinces have specificspeed limits for vehicles that are towing
trailers. Obey the local speed limits.

When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and back
up slowly. If possible, have someone guide
you when you are backing up.

Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so,
and if a vehicle is equipped with automatic
transmission, first apply the parking brake
and block the wheels, and then move the
transmission selector lever into the P (Park)
position. If you move the selector lever to the
P (Park) position before blocking the wheels
and applying the parking brake, the transmis-
sion may get damaged.

When going down a hill, shift into a lower
gear and use the engine braking effect.
When going up a long grade, downshift the
transmission to a lower gear and reduce
speed to reduce chances of engine overload-
ing and/or overheating.

If the engine coolant rises to an extremely
high temperature when the air conditioning
system is on, turn off the air conditioner.
Coolant heat can be additionally vented by
Technical and consumer information
9-19


04.8.23/Z33-D/V5.0


Due to legal requirements in some states/
areas, your vehicle may be required to be in what
is called the “ready condition” for an Inspection/
Maintenance (I/M) test of the emission control
system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a not “ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Turn the
ignition switch ON without starting the engine. If
the Malfunction Indicator Lamp (MIL) comes on
steady for 20 seconds and then blinks for 10
seconds, the I/M test condition is “not ready”. If
the MIL does not blink after 20 seconds, the I/M
test condition is “ready”.
If the MIL indicates the vehicle is in a “not ready”
condition, drive the vehicle through the following
pattern to set the vehicle to the ready condition.
If you cannot or do not want to perform the
driving pattern, a NISSAN dealer can conduct it
for you.
WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic
conditions and obey all traffic laws.
1. Start the engine. Allow the engine to idle until
the engine coolant temperature gauge needle
points between the C and H (normal operat-
ing temperature).
2. Accelerate the vehicle to 55 MPH (88 km/h),
then quickly release the accelerator pedal
completely and keep it released for at least
10 seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
53 to 60 MPH (86 to 96 km/h) for at least 9
minutes.
4. Stop the vehicle. Leave the engine running.
5. Accelerate the vehicle to 35 MPH (55 km/h)
and maintain the speed for 20 seconds.
6. Repeat steps 4 and 5 at least 10 times.
7. Accelerate the vehicle to 55 MPH (88 km/h)
and maintain the speed for at least 3 minutes.
8. Stop the vehicle. Place the automatic trans-mission gear selector lever in the P (Park) or
N (Neutral) position or the manual transmis-
sion shift lever in the N position.
9. Turn the engine off.
10. Repeat steps 1 through 8 at least one more
time.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US
only)
Technical and consumer information
9-23


04.8.23/Z33-D/V5.0


Compact Disc (CD) changer operation .............. 4-24
Compact Disc (CD) player (See audio
system) ......................................................................... 4-17
Compact spare tire ................................................... 8-38
Console box................................................................ 2-34
Control panel buttons (models with navigation
system) ........................................................................... 4-2
Controls
Control panel buttons (display with navigation
system)..................................................................... 4-2
Heater and air conditioner controls
(automatic) .............................................................. 4-8
Coolant
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Checking engine coolant level........................... 8-8
Corrosion protection ................................................... 7-5
Cruise control............................................................. 5-15
Cup holders ................................................................ 2-33
Curtain side-impact air bag system (See
supplemental side air bag and curtain air bag
system) ......................................................................... 1-37
D
Daytime running light system ................................. 2-25
Defroster switch, Rear window and
outside mirror defroster switch.............................. 2-23
Dimensions and weights ............................................ 9-9
Display controls (See control panel buttons),
With navigation system .............................................. 4-2
Door open warning light .......................................... 2-13
Drive belts ................................................................... 8-17Driving
Cold weather driving ......................................... 5-24
Driving with automatic transmission........ 5-6, 5-9
Driving with manual transmission .......... 5-7, 5-12
Precautions when starting and driving ............ 5-2
E
Economy, Fuel............................................................ 5-17
Elapsed time ............................................................... 2-10
Emission control information label ........................ 9-11
Emission control system warranty......................... 9-22
Engine
Before starting the engine .................................. 5-8
Break-in schedule............................................... 5-17
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Changing engine oil and filter ......................... 8-10
Checking engine coolant level........................... 8-8
Checking engine oil level ................................. 8-10
Coolant temperature gauge ............................... 2-6
Engine block heater ........................................... 5-25
Engine compartment check locations.............. 8-7
Engine cooling system ......................................... 8-8
Engine oil .............................................................. 8-10
Engine oil and oil filter recommendation......... 9-5
Engine oil viscosity ............................................... 9-5
Engine serial number ......................................... 9-11
Engine specifications ........................................... 9-8
If your vehicle overheats ...................................... 6-9
Oil pressure gauge ............................................... 2-7
Starting the engine ............................................... 5-8
Event data recorders ................................................ 9-24Exhaust gas (Carbon monoxide).............................. 5-2
F
Filter
Air cleaner housing filter ................................... 8-18
Changing engine oil and filter ......................... 8-10
Flashers (See hazard warning flasher switch) ... 2-27
Flat tire............................................................................ 6-2
Flat tire, Low tire pressure warning system .......... 5-3
Flat towing .................................................................. 9-20
Floor mat cleaning ....................................................... 7-4
Fluid
Automatic transmission fluid (ATF) ................ 8-12
Brake and clutch fluid ....................................... 8-13
Brake fluid............................................................. 8-14
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Engine coolant ....................................................... 8-8
Engine oil .............................................................. 8-10
Power steering fluid ........................................... 8-13
Window washer fluid ......................................... 8-14
FM-AM radio with Compact Disc (CD)
player ............................................................................ 4-15
FM-AM-SAT radio with cassette player and
Compact Disc (CD) changer ................................. 4-19
Front manual seat adjustment .................................. 1-3
Front power seat adjustment........................... 1-4, 1-5
Fuel
Average fuel consumption ................................ 2-10
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Distance to empty ................................................. 2-9
Filler cap ............................................................... 3-13


04.8.23/Z33-D/V5.0

10-2
