9. Your new unprogrammed key is now programmed.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out. If the key was not successfully programmed, it will not start
your vehicle’s engine and the theft indicator light will flash on and off
rapidly. If failure repeats, bring your vehicle to your dealer to have the
new key(s) programmed.
To program additional new unprogrammed key(s), repeat this procedure
from Step 1 for each additional key.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
headlamps and/or parking lamps and will sound the horn.
The system is ready to arm whenever key is removed from the ignition.
Either of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Press the 7•8 and the 9•0 on the keyless entry keypad (if
equipped) at the same time.
•Open a door and press the power door lock control to lock all the
doors.
Note:The hood, each door and the liftgate (wagon) arm individually,
and if any of them are open, they must be closed in order to be armed.
When you press the
control on the remote entry transmitter twice
within three seconds:
•the horn will chirp once to indicate the hood, each door and the
liftgate (wagon) are closed.
•the horn will chirp twice to indicate that either the hood, a door or
the liftgate (wagon) is still open.
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
85

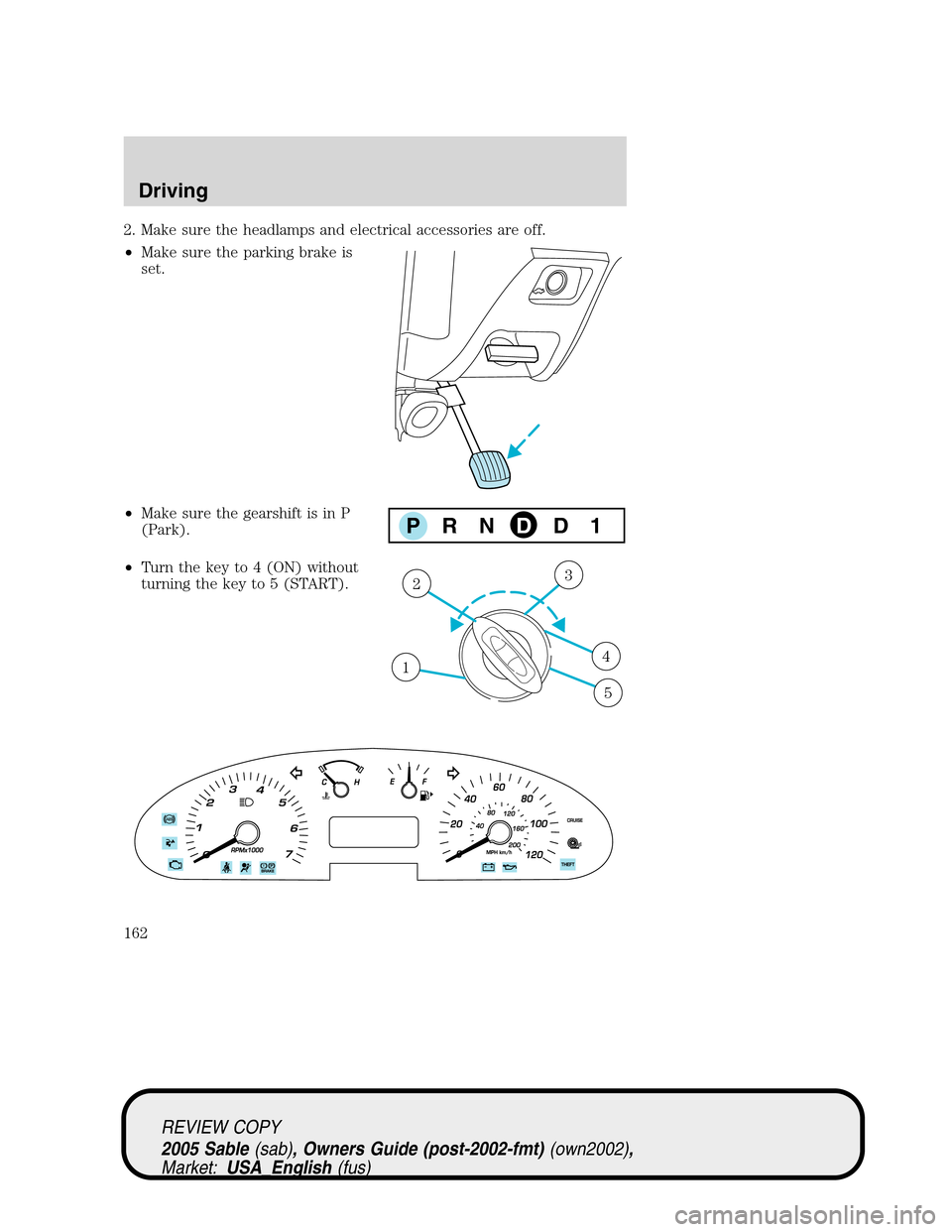

2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
•Turn the key to 4 (ON) without
turning the key to 5 (START).
PRNDD1
1
23
4
5
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driving
162

To remove a fuse use the fuse puller tool provided on the fuse panel cover.
The fuses are coded as follows.
Fuse/relay
locationFuse amp
ratingPassenger compartment fuse panel
description
1—Accessory delay relay
2—Driver one touch down relay
3—Blower motor relay
4—Flasher relay
5—Not used
6—Not used
7 20A Rear defrost grid feed (wagon only)/Rear
defrost relay coil feed (sedan only)
8 40A Blower motor
9—Rear defrost relay
10 30A CB Power seats, Delayed accessory
11 10A Right headlamp
12 15A Highbeam headlamps
13—Not used
14—Not used
15 10A Left headlamp
16 10A Foglamps
17 15A Stop lamp, Speed control deactivation switch
18 15A Parklamps, PWM (backlighting), Autolamps
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
177

Fuse/relay
locationFuse amp
ratingPassenger compartment fuse panel
description
37 25A Autolamp, Daytime Running Lamps (DRL),
Flash-to-pass, Headlamp switch
38 15A Horn, Diagnostic connector (OBD II)
39—Not used
40—Not used
41—Not used
42—Not used
CB - Circuit Breaker
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
179

Engine oil ..................................208
checking and adding ..............208
dipstick ....................................208
filter, specifications ........211, 234
recommendations ...................211
refill capacities ........................235
specifications ..................236–237
Exhaust fumes ..........................164
F
Flexible Fuel Vehicle (FFV) ....219
Floor mats ...................................68
Fluid capacities .........................235
Foglamps .....................................29
Fuel ............................................219
calculating fuel
economy ............................59, 225
cap ...........................................221
capacity ...................................235
choosing the right fuel ...........222
comparisons with EPA fuel
economy estimates .................227
detergent in fuel .....................224
filling your vehicle with
fuel ...........................219, 221, 225
filter, specifications ........224, 234
fuel pump shut-off switch .....174
improving fuel economy ........225
octane rating ...................222, 237
quality ......................................223
running out of fuel .................224
safety information relating to
automotive fuels .....................219
Fuel - flex fuel vehicle
(FFV) .................................219, 222
Fuses ..........................................176G
Garage Door Opener (see
Homelink wireless control
system) ........................................53
Gas cap (see Fuel cap) ............221
Gas mileage
(see Fuel economy) .................225
Gauges .........................................13
H
Hazard flashers .........................174
Headlamps ...................................29
aiming ........................................31
autolamp system .......................29
bulb specifications ....................35
daytime running lights .............30
flash to pass ..............................30
high beam .................................30
replacing bulbs .........................36
turning on and off ....................29
Heating
heating and air conditioning
system .................................23, 25
Homelink wireless control
system ..........................................53
Hood ..........................................204
I
Ignition ...............................160, 237
Infant seats (see Safety seats)..121
Inspection/maintenance (I/M)
testing ........................................229
Instrument panel
cleaning ...................................200
cluster ........................................10
lighting up panel and interior...31
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
245

J
Jack ............................................135
positioning ...............................135
storage .....................................135
Jump-starting your vehicle ......182
K
Keyless entry system .................80
Keys
positions of the ignition .........160
L
Lamps
autolamp system .......................29
bulb replacement
specifications chart ..................35
daytime running light ...............30
fog lamps ...................................29
headlamps .................................29
headlamps, flash to pass ..........30
instrument panel, dimming .....31
interior lamps .....................33–34
replacing bulbs..34, 36, 38–41, 43
Lane change indicator
(see Turn signal) ........................32
Liftgate ........................................68
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........166
Load limits .................................150
Locks
childproof ..................................73
doors ..........................................72
Lubricant specifications ...236–237
Lug nuts ....................................140
Luggage rack ...............................71Lumbar support, seats ...............88
M
Message center ...........................57
english/metric button ...............63
system check button ................63
warning messages .....................63
Mirrors ...................................47, 49
automatic dimming rearview
mirror ........................................49
heated ........................................50
side view mirrors (power) .......49
Moon roof ....................................53
Motorcraft parts ................224, 234
O
Octane rating ............................222
Oil (see Engine oil) ..................208
Overdrive ...................................169
P
Parking brake ............................166
Parts (see Motorcraft parts) ....234
Passenger Occupant
Classification Sensor ...................93
Power distribution box
(see Fuses) ...............................179
Power door locks ........................72
Power mirrors .............................49
Power point .................................47
Power steering ..........................168
fluid, checking and adding ....230
fluid, refill capacity ................235
fluid, specifications .........236–237
Power Windows ...........................48
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
246
