supplement to the safety belts. Air bags alone cannot protect as well as
air bags plus safety belts in impacts for which the air bags are designed
to deploy, and air bags do not offer any protection in crashes for which
they do not deploy.
The air bag supplemental restraint system consists of:
•driver and passenger dual stage air bag modules (which include the
inflators and air bags).
•side air bags (if equipped). Refer toSide air bag systemlater in this
chapter.
•one or more impact and safing sensors.
•the same indicator light, RCM (restraints control module) and
diagnostic unit used for the Personal safety system.
•Occupant Classification Sensor (OCS)
•Passenger air bag off indicator light.
The air bag supplemental restraints are an integral part of the Personal
Safety System. They are designed to be deployed in cases where the
Personal Safety System has determined the occupant conditions and
crash severity are appropriate to activate these devices. Refer to the
Personal Safety Systemsection in this chapter.
Important supplemental restraint system precautions
Air bags DO NOT inflate slowly or
gently and the risk of injury from a
deploying air bag is greatest close to
the trim covering the air bag
module.
All occupants of the vehicle, including the driver, should always
properly wear their safety belts, even when an air bag
supplemental restraint system (SRS) is provided.
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
109

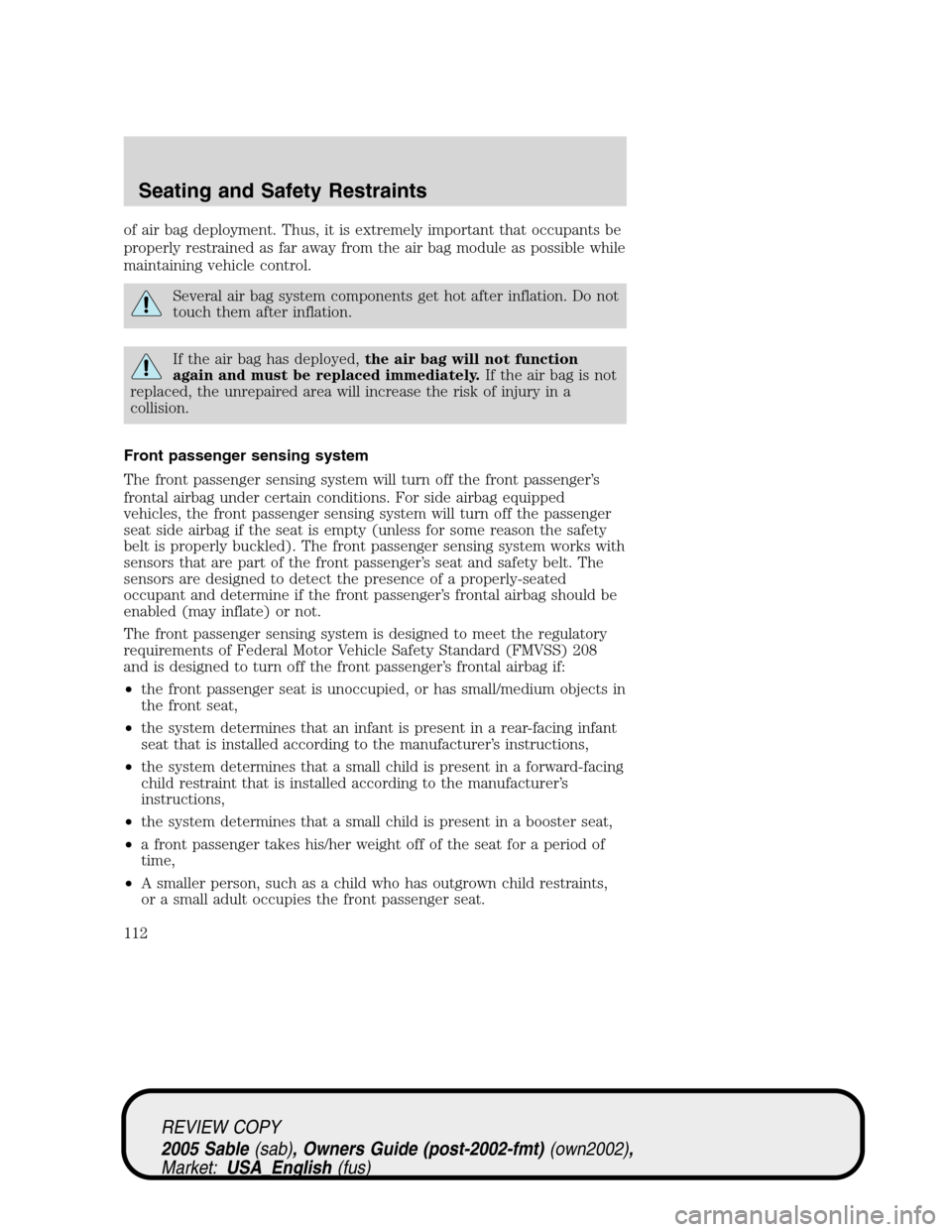

of air bag deployment. Thus, it is extremely important that occupants be
properly restrained as far away from the air bag module as possible while
maintaining vehicle control.
Several air bag system components get hot after inflation. Do not
touch them after inflation.
If the air bag has deployed,the air bag will not function
again and must be replaced immediately.If the air bag is not
replaced, the unrepaired area will increase the risk of injury in a
collision.
Front passenger sensing system
The front passenger sensing system will turn off the front passenger’s
frontal airbag under certain conditions. For side airbag equipped
vehicles, the front passenger sensing system will turn off the passenger
seat side airbag if the seat is empty (unless for some reason the safety
belt is properly buckled). The front passenger sensing system works with
sensors that are part of the front passenger’s seat and safety belt. The
sensors are designed to detect the presence of a properly-seated
occupant and determine if the front passenger’s frontal airbag should be
enabled (may inflate) or not.
The front passenger sensing system is designed to meet the regulatory
requirements of Federal Motor Vehicle Safety Standard (FMVSS) 208
and is designed to turn off the front passenger’s frontal airbag if:
•the front passenger seat is unoccupied, or has small/medium objects in
the front seat,
•the system determines that an infant is present in a rear-facing infant
seat that is installed according to the manufacturer’s instructions,
•the system determines that a small child is present in a forward-facing
child restraint that is installed according to the manufacturer’s
instructions,
•the system determines that a small child is present in a booster seat,
•a front passenger takes his/her weight off of the seat for a period of
time,
•A smaller person, such as a child who has outgrown child restraints,
or a small adult occupies the front passenger seat.
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
112

Do not use accessory seat covers. The use of accessory seat
covers may prevent the deployment of the side air bags and
increase the risk of injury in an accident.
Do not lean your head on the door. The side air bag could injure
you as it deploys from the side of the seatback.
Do not attempt to service, repair, or modify the air bag SRS, its
fuses or the seat cover on a seat containing an air bag. See your
Ford or Lincoln Mercury dealer.
All occupants of the vehicle should always wear their safety belts
even when an air bag SRS is provided.
How does the side air bag system work?
The side air bag system consists of
the following:
• An inflatable nylon bag (air bag)
with a gas generator concealed
behind the outboard bolster of
the driver and front passenger
seatbacks.
• A special seat cover designed to
allow air bag deployment.
• The same warning light,
electronic control and diagnostic unit as used for the front air bags.
• Two crash sensors located on the pillars between the front and rear
doors (one on each side of the vehicle).
Side air bags, in combination with seat belts, can help reduce the risk of
severe injuries in the event of a significant side impact collision.
The side air bags are fitted on the outboard side of the seatbacks of the
front seats. In certain lateral collisions, the air bag on the side affected
by the collision will be inflated, even if the respective seat is not
occupied. The air bag was designed to inflate between the door panel
and occupant to further enhance the protection provided occupants in
side impact collisions.
REVIEW COPY
2005 Sable (sab), Owners Guide (post-2002-fmt) (own2002),
Market: USA_English (fus)
Seating and Safety Restraints
116

The air bag SRS is designed to activate when the vehicle sustains lateral
deceleration sufficient to cause the sensors to close an electrical circuit
that initiates air bag inflation.
The fact that the air bags did not inflate in a collision does not mean that
something is wrong with the system. Rather, it means the forces were
not of the type sufficient to cause activation. Side air bags are designed
to inflate in side-impact collisions, not roll-over, rear-impact, frontal or
near-frontal collisions, unless the collision causes sufficient lateral
deceleration.
Several air bag system components get hot after inflation. Do not
touch them after inflation.
If the side air bag has
deployed,the air bag will
not function again. The side
air bag system (including the
seat) must be inspected and
serviced by a qualified
technician in accordance with
the vehicle service manual.If
the air bag is not replaced, the
unrepaired area will increase the
risk of injury in a collision.
Disposal of air bags and air bag equipped vehicles
For disposal of air bags or air bag equipped vehicles, see your local
dealership or qualified technician. Air bags MUST BE disposed of by
qualified personnel.
SAFETY RESTRAINTS FOR CHILDREN
See the following sections for directions on how to properly use safety
restraints for children. Also seeAir bag supplemental restraint system
(SRS)in this chapter for special instructions about using air bags.
Important child restraint precautions
You are required by law to use safety restraints for children in the U.S.
and Canada. If small children (generally children who are four years old
or younger and who weigh 40 lb. [18 kg] or less) ride in your vehicle, you
must put them in safety seats made especially for children. Many states
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
117

Fuse/relay
locationFuse amp
ratingPassenger compartment fuse panel
description
19 10A Heated mirrors, Rear defrost switch indicator
20 10A Restraints (air bag module/OCS module)
21 15A Transmission range sensor (transmission
position switch)
22 15A Front washer pump, Electrochromatic
mirror, Compass, Cluster (RUN/ACC),
Integrated Control Panel (ICP) logic, Rear
wiper (wagon only), Rear washer (wagon
only)
23 30A Front wiper motor
24—Not used
25 20A Power point
26 20A Power locks, Liftgate (wagon)/Trunk (sedan)
release
27 10A Anti-lock Brake System (ABS), Speed
control, Traction control, Brake-shift
interlock, A/C function switch (manual A/C
only), Temperature blend door (manual A/C
only), Defrost coil
28 15A Turn signals, Back-up lamps
29 20A Cigar lighter
30 10A Courtesy lighting, Battery saver, Power
mirrors, Decklid lamp, Power antenna
(wagon only), Pulse stretching module
(wagon only), Glove box lamp
31 10A Blower motor relay coil, Puddle lamp relay
coil, Electronic Automatic Temperature
Control (EATC) logic
32 10A Cluster, Flex fuel module, ICP logic, Passive
anti-theft module (GEM power)
33 15A Hazard flasher, Cluster power, ICP power,
EATC
34 5A GEM logic
35 10A Backlighting, Ashtray light
36 2A Powertrain Control Module (PCM) relay,
Fuel pump relay, A/C clutch
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
178

Fuse/relay
locationFuse amp
ratingPower distribution box description
18 10A* (Vulcan
engine only)A/C clutch relay, PCM keep alive power
—(Duratec
engine only)Not used
19—Not used
20—Not used
21—Not used
22 5A* (Vulcan
engine only)Heated PCV valve
10A*
(Duratec
engine only)A/C clutch relay, PCM keep alive power
23—Starter motor relay
24—Fan relay
25—Wiper speed relay
26 10A* Alternator
27 5A* Rear control unit, Antenna
28 15A* HEGO sensor, Transmission shift solenoid,
Canister vent, A/C clutch relay
29—Wiper park relay
30—Fuel pump relay
31—PCM power relay
32—Fan relay
33—A/C clutch relay
* - Mini Fuses ** - Maxi Fuses CB - Circuit breaker
Relays
Relays are located in the power distribution box and should be replaced
by qualified technicians.
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
181

J
Jack ............................................135
positioning ...............................135
storage .....................................135
Jump-starting your vehicle ......182
K
Keyless entry system .................80
Keys
positions of the ignition .........160
L
Lamps
autolamp system .......................29
bulb replacement
specifications chart ..................35
daytime running light ...............30
fog lamps ...................................29
headlamps .................................29
headlamps, flash to pass ..........30
instrument panel, dimming .....31
interior lamps .....................33–34
replacing bulbs..34, 36, 38–41, 43
Lane change indicator
(see Turn signal) ........................32
Liftgate ........................................68
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........166
Load limits .................................150
Locks
childproof ..................................73
doors ..........................................72
Lubricant specifications ...236–237
Lug nuts ....................................140
Luggage rack ...............................71Lumbar support, seats ...............88
M
Message center ...........................57
english/metric button ...............63
system check button ................63
warning messages .....................63
Mirrors ...................................47, 49
automatic dimming rearview
mirror ........................................49
heated ........................................50
side view mirrors (power) .......49
Moon roof ....................................53
Motorcraft parts ................224, 234
O
Octane rating ............................222
Oil (see Engine oil) ..................208
Overdrive ...................................169
P
Parking brake ............................166
Parts (see Motorcraft parts) ....234
Passenger Occupant
Classification Sensor ...................93
Power distribution box
(see Fuses) ...............................179
Power door locks ........................72
Power mirrors .............................49
Power point .................................47
Power steering ..........................168
fluid, checking and adding ....230
fluid, refill capacity ................235
fluid, specifications .........236–237
Power Windows ...........................48
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
246

R
Radio ......................................15, 18
Rear window defroster ...............28
Relays ........................................181
Remote entry system
illuminated entry ......................78
locking/unlocking doors ...........72
opening the trunk .....................76
Roadside assistance ..................173
Roof rack .....................................71
S
Safety Belt Maintenance ..........108
Safety belts (see Safety
restraints) ................92, 95–98, 100
Safety defects, reporting ..........196
Safety restraints ............92, 95–101
belt minder .............................103
extension assembly ................107
for adults .............................96–98
for children .....................117–118
lap belt ....................................100
Occupant Classification
Sensor ........................................93
safety belt maintenance .........108
warning light and
chime ...............................102–103
Safety seats for children ..........121
Seat belts
(see Safety restraints) ...............92
Seats ............................................87
child safety seats ....................121
front seats .................................88
Servicing your vehicle ..............203
Setting the clock
AM/FM/CD .................................18AM/FM/Tape ..............................15
Spare tire
(see Changing the Tire) ...........135
Spark plugs, specifications ......234,
237
Specification chart,
lubricants ...........................236–237
Speed control ..............................50
Starting a flex fuel vehicle .......163
Starting your
vehicle ........................160–161, 163
jump starting ..........................182
Steering wheel
tilting .........................................47
T
Tilt steering wheel ......................47
Tires ...........................130–131, 135
alignment ................................147
care ..........................................146
changing ..........................135, 137
checking the pressure ............133
inspecting and inflating .........132
label .........................................145
replacing ..................................135
rotating ....................................148
safety practices .......................147
sidewall information ...............141
snow tires and chains ............150
spare tire .................................136
terminology .............................131
tire grades ...............................131
treadwear ........................130, 146
Towing .......................................156
recreational towing .................159
trailer towing ..........................156
wrecker ....................................187
Traction control ........................167
REVIEW COPY
2005 Sable(sab), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
247
