Audio Features
2
3
4
5
67
8
10 9
AUDIOPHILE SATELLITE READY
IN DASH SIX CD RADIO
(IF EQUIPPED)
If your Mountaineer came equipped
with another audio system, please see
your Owner’s Guide.
1. SCAN FUNCTIONIn radio mode, press to hear a sampling of
all listenable stations. In CD mode, press to hear a brief sampling of all selections on
the current CD.
2. CD/AUXPress to select CD/AUX modes. No CD will display
if there is not a CD in the audio system. If a disc is
loaded, there will be a number (1 6) inside the
circle on the display. When in radio mode, press
CD/AUX to play a loaded CD.
3. LOADING CDPress LOAD and then a preset number to select a
slot. Press and hold LOAD to activate autoload.
4. VOLUME/POWER CONTROLPress the control to turn the audio system on or
off. Turn the control to raise or lower volume. The
speed sensitive volume feature automatically
adjusts radio volume in accordance with vehicle
speed to compensate for road and wind noise. To
engage, press and hold the volume control for five
seconds (with the radio on), then simultaneously
press SEL to choose the compensation level.
5. AM/FM SELECTIn radio mode, press AM/FM to select AM, FM1, or
FM2 frequency bands. In CD mode, press AM/FM
to stop play and begin radio play. Press and hold
AM/FM to activate autoset.
6. SATELLITE Your Audiophile radio comes equipped with
satellite ready capability. The kit to enable
satellite reception is available through your
Mercury dealer. Detailed satellite instructions are
included with the dealer installed kit.
7. DISC/TUNE CATIn radio mode, press to move to the next
frequency up or down the band. In CD mode,
press to select a disc in the CD player. CAT is only
available when equipped with satellite radio.
8. DIGITAL SIGNAL PROCESSINGPress DSP to access the ambiance menu.
Ambiance gives the feeling of “being there” to
your music. Press SEL to engage/disengage.
9. SEEK FUNCTION In radio mode, press to move to the next
listenable station up or down the band. In CD
mode, press to select the next/previous track on
the current disc.
10.SETTING THE CLOCKPress MENU until SELECT HOUR or SELECT MINS
is displayed. Press SEL to set the time. Press
MENU again to disengage the clock mode.
11. SETTING MEMORY PRESET STATIONSSelect AM, FM1, or FM2 band, then select a
station. Next, press and hold a numbered control
until the sound returns.
1
11
CAUTION: DO NOT USE CDs WITH ADHESIVE LABEL*
* CDs with adhesive labels and irregularly shaped CDs may get stuck in the CD player. Homemade CDs
should be identified with permanent felt tip marker rather than adhesive labels.

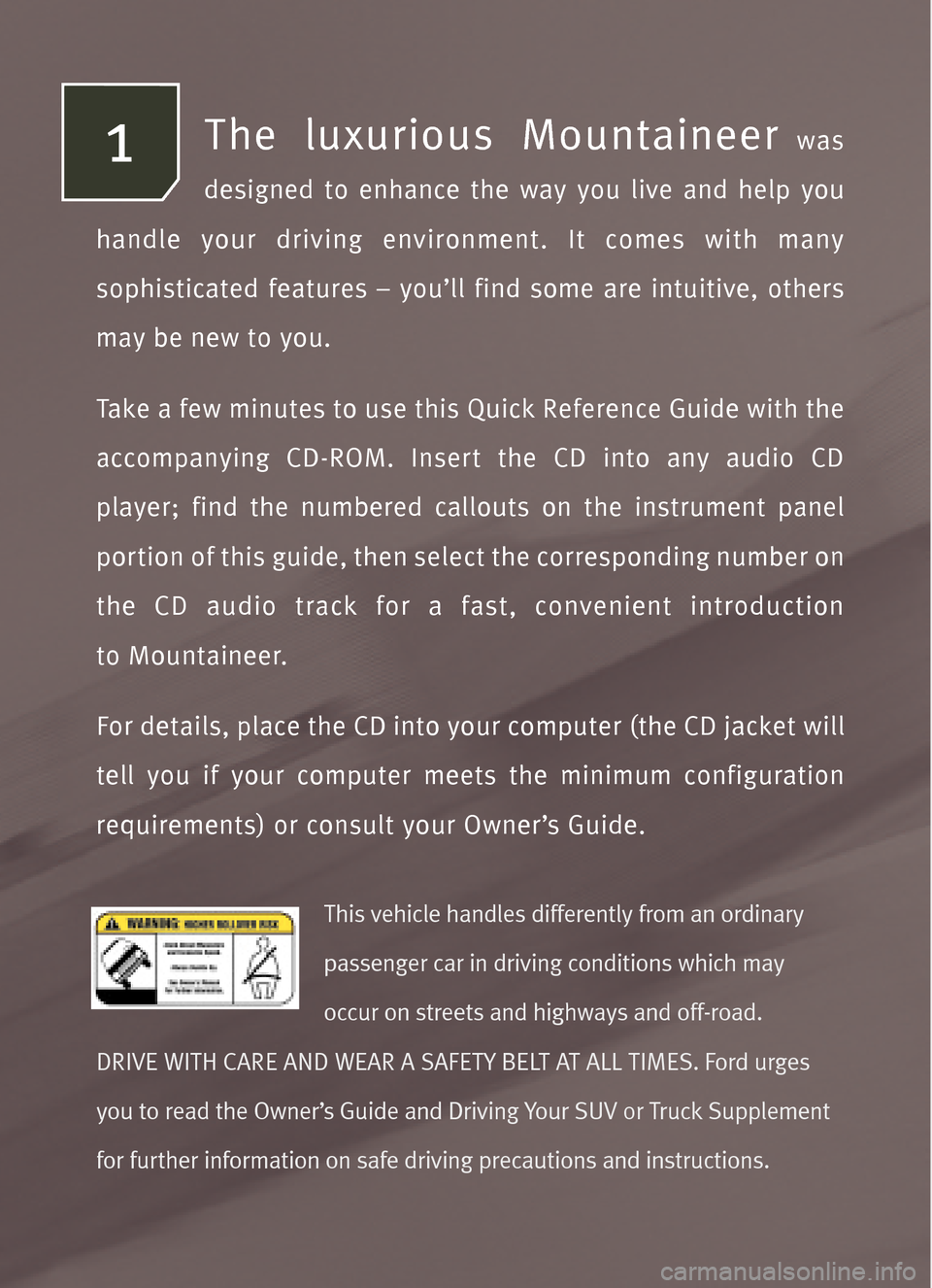

The luxurious Mountaineerwas
designed to enhance the way you live and help you
handle your driving environment. It comes with many
sophisticated features – you’ll find some are intuitive, others
may be new to you.
Take a few minutes to use this Quick Reference Guide with the
accompanying CD ROM. Insert the CD into any audio CD
player; find the numbered callouts on the instrument panel
portion of this guide, then select the corresponding number on
the CD audio track for a fast, convenient introduction
to Mountaineer.
For details, place the CD into your computer (the CD jacket will
tell you if your computer meets the minimum configuration
requirements) or consult your Owner’s Guide.
This vehicle handles differently from an ordinary
passenger car in driving conditions which may
occur on streets and highways and off road.
DRIVE WITH CARE AND WEAR A SAFETY BELT AT ALL TIMES. Ford urges
you to read the Owner’s Guide and Driving Your SUV or Truck Supplement
for further information on safe driving precautions and instructions.
1
