If there is a discrepancy between the rear seat controls and the front
audio controls (such as both trying to listen to the same playing media),
the front audio system will receive the desired selection.
To activate Dual Play mode (rear seat passengers listen to a different
playing media than the front seat passengers):
•Press the speaker/headphone control.
•Press MEDIA to change audio sources (for headphone mode only).
•Use the SEEK, VOLUME and MEMORY controls to make adjustments
to the playing media.
PARENTAL CONTROL
Simultaneously press the radio
preset controls 3 and 5 to
enable/disable the rear seat audio
controls as well as the Family Entertainment DVD system (if equipped).
DUAL PLAY MODE
Press
/on the rear seat audio
controls or simultaneously press the
radio preset controls 2 and 4 to
enable/disable dual play.
During dual play, the rear vehicle speakers will be deactivated and the
wired headphones (if equipped) will become active. Two different medias
can be played in the vehicle simultaneously:
•The driver can select a media from the main radio face (radio, tape,
CD or DVD if equipped) and listen using the front speakers.
•Rear seat passengers may listen to a different media source than the
front passengers (radio, tape, CD or DVD if equipped) using 3.5 mm
wired headphones (not included) that shall be plugged into the
headphone icon jacks on the rear audio control face. Infrared
headphones are included in vehicles equipped with the Family
Entertainment System and shall only be used to listed to the media
(DVD or CD) that is playing in the Family Entertainment System.
Wireless headphoneswill not playaudio from any other sources
(AM, FM, tape, or Radio CD).
The front and rear seat passengers cannot listen to two different radio
stations at the same time.
COMPRESS
COMPRESS
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Entertainment Systems
27

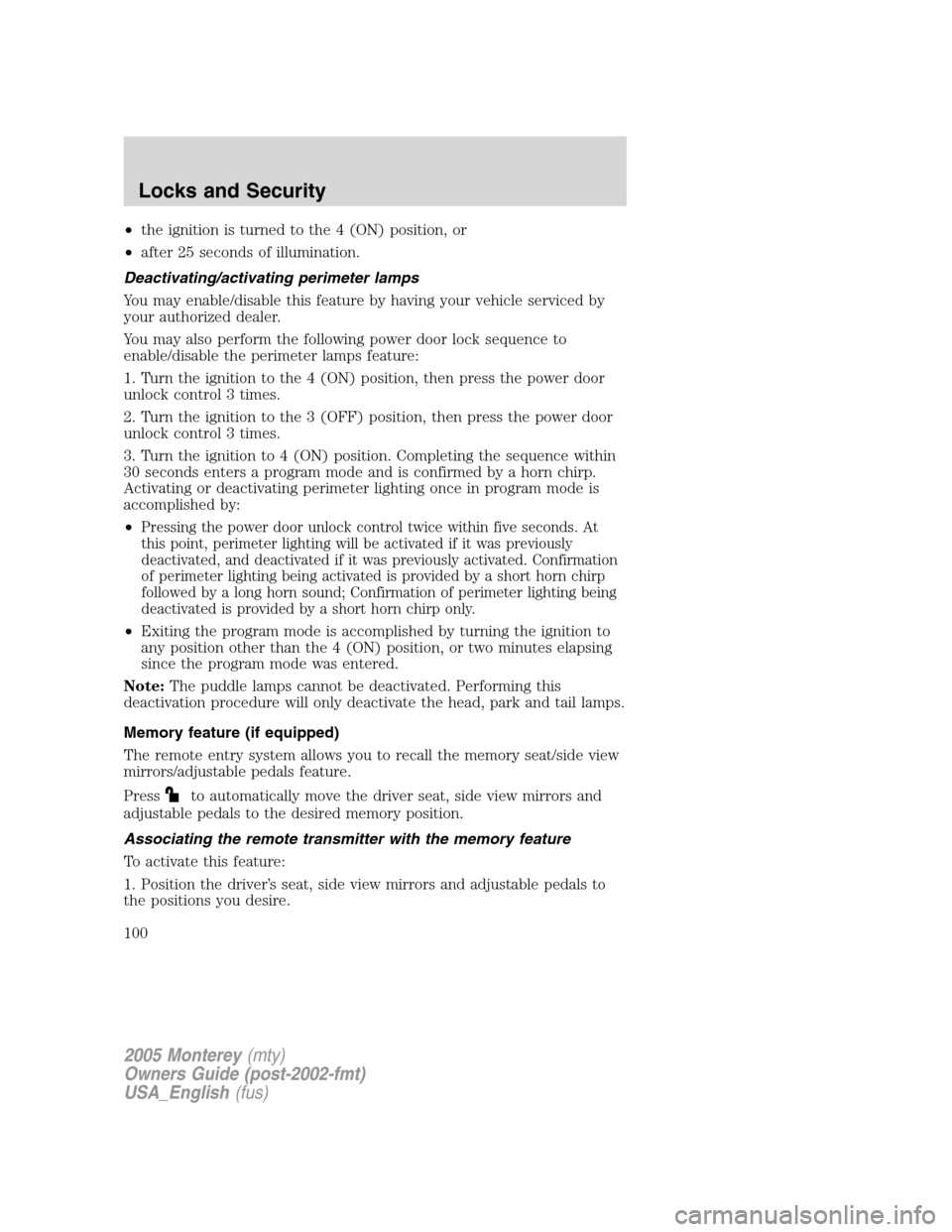

•the ignition is turned to the 4 (ON) position, or
•after 25 seconds of illumination.
Deactivating/activating perimeter lamps
You may enable/disable this feature by having your vehicle serviced by
your authorized dealer.
You may also perform the following power door lock sequence to
enable/disable the perimeter lamps feature:
1. Turn the ignition to the 4 (ON) position, then press the power door
unlock control 3 times.
2. Turn the ignition to the 3 (OFF) position, then press the power door
unlock control 3 times.
3. Turn the ignition to 4 (ON) position. Completing the sequence within
30 seconds enters a program mode and is confirmed by a horn chirp.
Activating or deactivating perimeter lighting once in program mode is
accomplished by:
•
Pressing the power door unlock control twice within five seconds. At
this point, perimeter lighting will be activated if it was previously
deactivated, and deactivated if it was previously activated. Confirmation
of perimeter lighting being activated is provided by a short horn chirp
followed by a long horn sound; Confirmation of perimeter lighting being
deactivated is provided by a short horn chirp only.
•Exiting the program mode is accomplished by turning the ignition to
any position other than the 4 (ON) position, or two minutes elapsing
since the program mode was entered.
Note:The puddle lamps cannot be deactivated. Performing this
deactivation procedure will only deactivate the head, park and tail lamps.
Memory feature (if equipped)
The remote entry system allows you to recall the memory seat/side view
mirrors/adjustable pedals feature.
Press
to automatically move the driver seat, side view mirrors and
adjustable pedals to the desired memory position.
Associating the remote transmitter with the memory feature
To activate this feature:
1. Position the driver’s seat, side view mirrors and adjustable pedals to
the positions you desire.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
100

2. Press the SET control on the
door next to the window inside from
the mirror.
3. Within 5 five seconds, press any
control on the remote transmitter
and then press the 1 or 2 control on
the driver’s door panel to associate
with the Driver 1 or Driver 2
positions.
4. Repeat this procedure for another
remote transmitter if desired.
Disassociating the memory feature from the remote transmitter
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver’s door panel again.
3. Repeat this procedure for another remote transmitter if desired.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•activate or deactivate the autolock feature.
•open and close the right and left power sliding doors (if equipped).
•recall memory seat/side view mirrors/adjustable pedals position Driver
1 or Driver 2 (if equipped).
The keypad can be operated with the factory set 5–digit entry code; this
code is located:
•on the owner’s wallet card in the glove box,
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
101

•marked on the passenger compartment fuse panel (located below and
to the left of the steering, near the brake pedal),
•and is available from your
authorized dealer.
You can also create your own 5–digit
personal entry code.
When pressing the controls on the
keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code
To create your own personal entry code(s):
1. Enter the factory set code.Note:The driver’s door will unlock.
2. Within five seconds press and release the 1•2 on the keypad.Note:
The lock motors will cycle, locked then unlocked.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Enter a sixth digit if you wish to have the personal entry code recall
memory position Driver 1 or Driver 2 (if equipped with the memory
seat/side view mirrors/adjustable pedals feature).Note:The lock motors
will cycle, locked then unlocked.
•Press 1•2 to recall the Driver 1 position.
•Press 3•4 to recall the Driver 2 position.
5. After five seconds of keypad inactivity, programming mode is exited.
All of the vehicle doors will lock and unlock to confirm the code has
been stored. Each memory feature driver position (Driver 1 or Driver 2)
can be associated with only one personal code. The factory-set code
cannot be associated with a memory recall position.
You can program up to three personal codes; these codes do not replace
the factory-set code.
Tips for setting codes:
•The factory set code cannot be erased or changed.
•The factory code will work even after you have set your own personal
codes.
•Do not set a code that uses five of the same number.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
102

•Push again to operate the heated/cooled system at a lower level.
•Push again to deactivate.
The climate controlled seat system
includes an air filter that has to be
replaced periodically. Refer to the
Schedule Maintenance Guidefor
more information.
Do not run heated/cooled system
with the filter removed.
Using the manual lumbar support (if equipped)
The lumbar control is located on the
inboard side of the seat under the
armrest.
Rotate the control to change the
firmness of the lumbar support.
Memory seats/sideview mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat,
outside rearview mirrors, and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the door next to the window
inside from the mirror.
•To program position one, move
the driver seat to the desired
position using the seat controls. Press the SET control. The SET
control indicator light will briefly illuminate. While the light is
illuminated, press control 1.
•To program position two, repeat the previous procedure using control
2.
SE T
12
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Seating and Safety Restraints
112

A position can only be recalled when the transmission gearshift is in
Park. A memory seat position may be programmed at any time.
The memory positions are also recalled when you press your remote
entry transmitter UNLOCK control if the transmitter is programmed to a
memory position or when you enter a valid personal entry code that is
programmed to a memory position.
To program the memory feature to a remote entry transmitter and for
more information on how to use the keypad, refer toRemote entry
systemin theLocks and securitychapter.
REAR SEATS
Head restraints
Lift the head restraint so that it is located directly or as close as possible
behind your head.
The head restraints can be moved
up and down by pulling up on the
head restraint.
Push button to lower head restraint.
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Seating and Safety Restraints
113

bulb replacement
specifications chart ..................48
daytime running light ...............42
fog lamps ...................................41
headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ...................48–52
Lane change indicator
(see Turn signal) ........................46
Liftgate ............................85, 89, 96
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........210
Load limits .................................194
Locks
autolock ...................................103
childproof ..................................92
doors ..........................................91
Low tire warning .................15, 191
Lubricant specifications ...287, 289
Lug nuts ....................................182
Luggage rack ...............................89
Lumbar support, seats .............112
M
Message center ...........................76
english/metric button ...............79
system check button ................79
warning messages .....................80
Mirrors ...................................55, 66
automatic dimming rearview
mirror ........................................66
fold away ...................................67
heated ........................................67
programmable memory ..........100
side view mirrors (power) .......66signal .........................................67
Motorcraft parts ................272, 285
O
Octane rating ............................271
Oil (see Engine oil) ..................257
Overdrive ...................................215
P
Park Assist ................................218
Parking brake ............................211
Parts (see Motorcraft parts) ....285
Passenger Occupant
Classification Sensor .................129
Pedals (see Power adjustable
foot pedals) .................................68
Power adjustable foot pedals .....68
Power distribution box
(see Fuses) ...............................228
Power door locks ................91, 103
Power liftgate ........................85, 96
Power mirrors .............................66
Power point .................................63
Power steering ..........................214
fluid, checking and adding ....278
fluid, refill capacity ................286
fluid, specifications .........287, 289
Power Windows ...........................65
R
Radio ................................17, 20, 23
Relays ........................................224
Remote entry system .................95
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
298

illuminated entry ................43, 99
locking/unlocking doors .....91, 95
Roadside assistance ..................222
Roof rack .....................................89
S
Safety Belt Maintenance ..........141
Safety belts (see Safety
restraints) ..................128, 131–135
Safety Canopy ...........................152
Safety defects, reporting ..........247
Safety restraints ........128, 131–135
belt minder .............................137
extension assembly ................141
for adults .........................132–134
for children .............................155
Occupant Classification
Sensor ......................................129
safety belt maintenance .........141
warning light and
chime ...............................136–137
Safety seats for children ..........158
Seat belts (see Safety
restraints) ..................................128
Seats ..........................................109
child safety seats ....................158
front seats ...............109, 111–112
memory seat ...................100, 112
second row seats ....................115
third row
seats .................115, 121, 125–126
SecuriLock passive anti-theft
system ........................................106
Servicing your vehicle ..............254
Spare tire (see Changing
the Tire) ............................173, 175Spark plugs,
specifications .....................285, 289
Specification chart,
lubricants ...........................287, 289
Speed control ..............................68
Starting your vehicle ........206–208
jump starting ..........................232
Steering wheel
controls ......................................71
tilting .........................................54
T
Tilt steering wheel ......................54
Tire warning ..............................191
Tires ...........................167–168, 191
alignment ................................189
care ..........................................188
changing ..................173, 175, 177
checking the pressure ............170
inspecting and inflating .........169
label .........................................187
replacing ..................................172
rotating ....................................190
safety practices .......................189
sidewall information ...............182
snow tires and chains ............193
spare tire .................................174
terminology .............................168
tire grades ...............................168
treadwear ........................167, 188
Towing .......................................201
recreational towing .................205
trailer towing ..........................201
wrecker ....................................238
Transaxle
automatic operation ...............214
fluid, refill capacities ..............286
lubricant specifications ..........289
2005 Monterey(mty)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
299
