2005 MERCEDES-BENZ SLR CLASS reset

ContentsSafety and Security........................... 60
Occupant safety................................... 62
Airbags ........................................... 63
Seat belts ....................................... 69
Children in the vehicle .................... 72
Panic alarm .......................................... 78
Activating ....................................... 78
Deactivating ................................... 78
Driving safety systems ......................... 79
ABS ................................................ 79
BAS ................................................ 81
ESP ................................................. 81
SBC brake system .......................... 84
Performance enhancement system ..... 87
Airbrake.......................................... 87
Anti-theft systems................................ 90
Immobilizer..................................... 90
Anti-theft alarm system .................. 90
Tow-away alarm ............................. 91
Controls in detail............................... 94
Locking and unlocking ......................... 96
SmartKey ....................................... 96
Opening the doors ....................... 100
Opening the trunk ........................ 101
Closing the trunk lid ..................... 102
Trunk lid emergency release ........ 102
Automatic locking ........................ 103
Locking and unlocking from
the inside ..................................... 103
Lighting.............................................. 105
Exterior lamp switch..................... 105
Combination switch ..................... 109
Hazard warning flasher ................ 110
Interior lighting............................. 111
Trunk lamp ................................... 112
Courtesy lighting .......................... 112
Instrument cluster ............................. 113
Instrument cluster illumination .... 113
Coolant temperature gauge ......... 114
Resetting the trip odometer ......... 115
Tachometer .................................. 115
Outside temperature indicator ..... 115Control system .................................. 117
Multifunction display.................... 117
Multifunction steering wheel........ 118
Menus .......................................... 120
Standard display menu ................ 122
AUDIO menu ................................ 122
Vehicle status message memory . 124
Settings menu .............................. 125
Trip computer menu..................... 136
TEL menu ..................................... 138
Audio system ..................................... 143
Audio and telephone, operation ... 143
Operating safety .......................... 143
Location of the audio system ....... 143
Operating and display elements... 144
Button and soft key operation...... 146
Operation ..................................... 146
Radio operation ........................... 149
Cassette operation ...................... 152
CD changer operation .................. 156
Telephone operation .................... 160

ContentsAt the gas station............................... 240
Refueling ...................................... 240
Check regularly and before
a long trip ..................................... 241
Engine compartment.......................... 243
Hood ............................................ 243
Engine oil...................................... 246
Transmission fluid level ................ 248
Coolant......................................... 249
Trunk ................................................. 250
Batteries....................................... 250
Windshield washer system and
headlamp cleaning system ........... 251
Tires and wheels ................................ 253
Important guidelines .................... 253
Tire care and maintenance ........... 254
Direction of rotation ..................... 256
Loading the vehicle ...................... 256
Recommended tire inflation
pressure ....................................... 262
Checking tire inflation pressure ... 264
Tire labeling .................................. 268
Load identification........................ 272
DOT, Tire Identification Number
(TIN) ............................................. 273Maximum tire load ....................... 274
Maximum tire inflation pressure .. 275
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 276
Tire ply material ........................... 278
Tire and loading terminology ........ 278
Rotating tires ............................... 281
Anti-theft wheel nuts .................... 282
Winter driving .................................... 284
Winter tires* ................................ 284
Snow chains ................................. 285
Maintenance ...................................... 286
Clearing the maintenance
service indicator........................... 286
Maintenance service term
exceeded ..................................... 287
Calling up the service due date .... 287
Resetting the maintenance
service indicator........................... 288
Vehicle care ....................................... 289
Cleaning and care of the vehicle .. 289
Vehicle washing ........................... 290
Practical hints................................. 294
What to do if ... .................................. 296
Lamps in instrument cluster ........ 296
Lamp in center console................ 303
Vehicle status messages in the
multifunction display.................... 304
Symbol messages ........................ 309
Where will I find ...? ........................... 340
First aid kit ................................... 340
TIREFIT kit, electric air pump,
towing eye bolt and vehicle
literature portfolio ........................ 340
Locking/unlocking in an emergency . 342
Unlocking the vehicle................... 342
Replacing SmartKey batteries ........... 344
SmartKey ..................................... 345
Replacing bulbs ................................. 346
Front lamps.................................. 347
Rear lamps ................................... 347
Replacing the wiper blades................ 348
Removing wiper blades ................ 348
Installing wiper blades ................. 348

29 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
withDCoolant temperature
warning lamp
300
2
Speedometer with;Brake warning lamp,
USA only
298
3Brake warning lamp,
Canada only
298
vABS/ESP warning
lamp
296
>Gearshift indicator
lamp
301
301
LLeft turn signal indica-
tor lampKTurn signal indicator
lamp, right
Item
Page
3
Left multifunction display
with

Trip odometer
117


Main odometer
117
4
Reset button
113
5
Tachometer with
115
AHigh beam headlamp
indicator
109
?Engine malfunction in-
dicator lamp, USA only
299
±Engine malfunction in-
dicator lamp, Canada
only
299
-Antilock Brake System
(ABS) indicator lamp
297
Item
Page
1Supplemental restraint
system indicator lamp
302
302
6
Right multifunction display

Current gear selector lever
position/gear range
117,
170,
171


Outside temperature
115


Automatic transmission
shift program mode
117,
173


Clock
129
=Engine oil temperature
symbol
301
7
Fuel gauge withAFuel reserve warning
lamp
301

66 Safety and SecurityOccupant safety
iAirbags are designed to activate only in
certain frontal impacts (front airbags,
knee airbags) and side impacts
(head-thorax airbags) which exceed
preset thresholds. Only during these
types of impacts, if of sufficient severi-
ty to meet the deployment threshold,
will they provide their supplemental
protection.
The driver and passengers should al-
ways wear their seat belts. Otherwise it
is not possible for the airbags to pro-
vide their intended supplemental pro-
tection.
In cases of other frontal impacts, an-
gled impacts, roll-overs, other side im-
pacts, rear collisions, or other
accidents and impacts below airbag
deployment thresholds, the airbags will
not be activated. The driver and pas-
senger will then be protected to the ex-
tent possible by a properly fastened
seat belt.
We caution you not to rely on the pres-
ence of the airbags in order to avoid
wearing your seat belt.
Your vehicle was originally equipped
with airbags which are designed to ac-
tivate in certain impacts exceeding a
preset threshold to reduce the poten-
tial and severity of injury. It is important
to your safety and that of your passen-
ger that you replace deployed airbags
and repair any malfunctioning airbags
to ensure that the vehicle will continue
to provide supplemental crash protec-
tion for occupants.

68 Safety and SecurityOccupant safetyFront airbags
Driver and passenger airbags are de-
ployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the head-thorax air-
bags
The airbags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
The passenger airbag will only be deployed
if:


the passenger seat is occupied


the PASSENGER AIRBAG OFF warning
lamp in the lower part of the center
console is not lit (
page 75)


the impact exceeds a preset deploy-
ment threshold1Driver airbag
2Passenger airbagKnee airbags
1Knee airbag, driver’s side
2Knee airbag, passenger side
The kneebag airbags are located on the
lower instrument panel. They are designed
to operate together with the front airbags
in certain frontal impacts exceeding a
preset threshold. The knee airbags operate
best in conjunction with a properly
positioned and fastened seat belts and
when the footwell is kept clear of objects.
!Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front airbag,
the knee airbag or the head-thorax air-
bag on the front passenger side to
deploy in a crash which exceeds the
system’s deployment threshold.

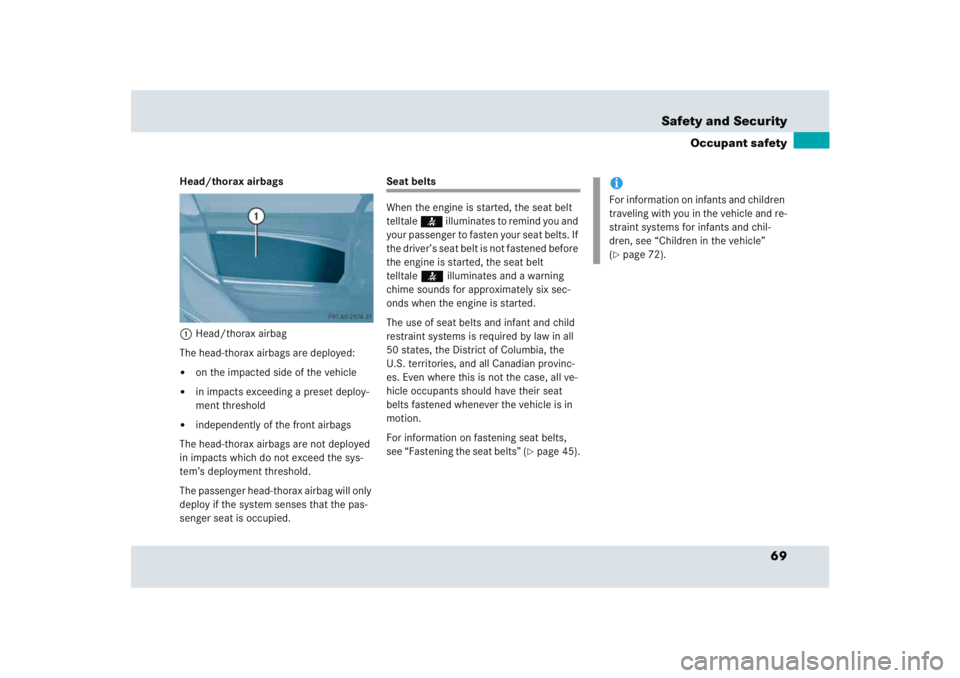

69 Safety and Security
Occupant safety
Head/thorax airbags
1Head/thorax airbag
The head-thorax airbags are deployed:

on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front airbags
The head-thorax airbags are not deployed
in impacts which do not exceed the sys-
tem’s deployment threshold.
The passenger head-thorax airbag will only
deploy if the system senses that the pas-
senger seat is occupied.
Seat belts
When the engine is started, the seat belt
telltale < illuminates to remind you and
your passenger to fasten your seat belts. If
the driver’s seat belt is not fastened before
the engine is started, the seat belt
telltale< illuminates and a warning
chime sounds for approximately six sec-
onds when the engine is started.
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories, and all Canadian provinc-
es. Even where this is not the case, all ve-
hicle occupants should have their seat
belts fastened whenever the vehicle is in
motion.
For information on fastening seat belts,
see “Fastening the seat belts” (
page 45).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 72).

71 Safety and Security
Occupant safety
Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver airbag, pas-
senger airbag, knee airbags, head-tho-
rax airbags) and ETD (seat belt
emergency tensioning device). The sys-
tem is designed to enhance the protec-
tion offered to properly belted
occupants in certain frontal (front air-
bags, knee airbags and ETD) and side
(head-thorax airbags and ETD) impacts
which exceed preset deployment
thresholds.


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to manage impact forces. The
twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.

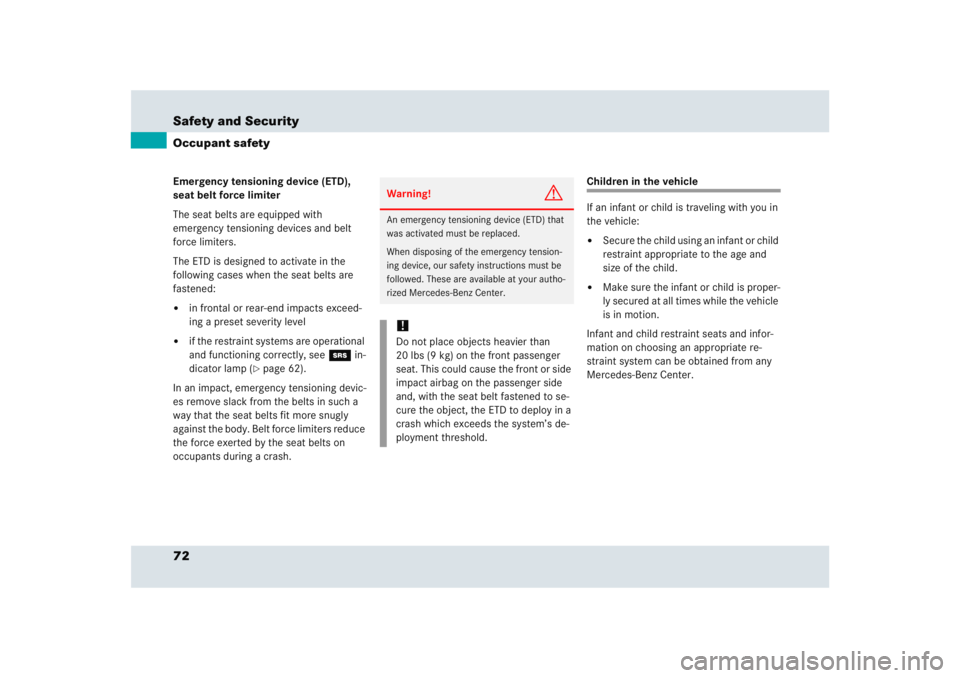

72 Safety and SecurityOccupant safetyEmergency tensioning device (ETD),
seat belt force limiter
The seat belts are equipped with
emergency tensioning devices and belt
force limiters.
The ETD is designed to activate in the
following cases when the seat belts are
fastened:

in frontal or rear-end impacts exceed-
ing a preset severity level


if the restraint systems are operational
and functioning correctly, see 1 in-
dicator lamp (
page 62).
In an impact, emergency tensioning devic-
es remove slack from the belts in such a
way that the seat belts fit more snugly
against the body. Belt force limiters reduce
the force exerted by the seat belts on
occupants during a crash.
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child.


Make sure the infant or child is proper-
ly secured at all times while the vehicle
is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
Mercedes-Benz Center.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When disposing of the emergency tension-
ing device, our safety instructions must be
followed. These are available at your autho-
rized Mercedes-Benz Center.!Do not place objects heavier than
20 lbs (9 kg) on the front passenger
seat. This could cause the front or side
impact airbag on the passenger side
and, with the seat belt fastened to se-
cure the object, the ETD to deploy in a
crash which exceeds the system’s de-
ployment threshold.
