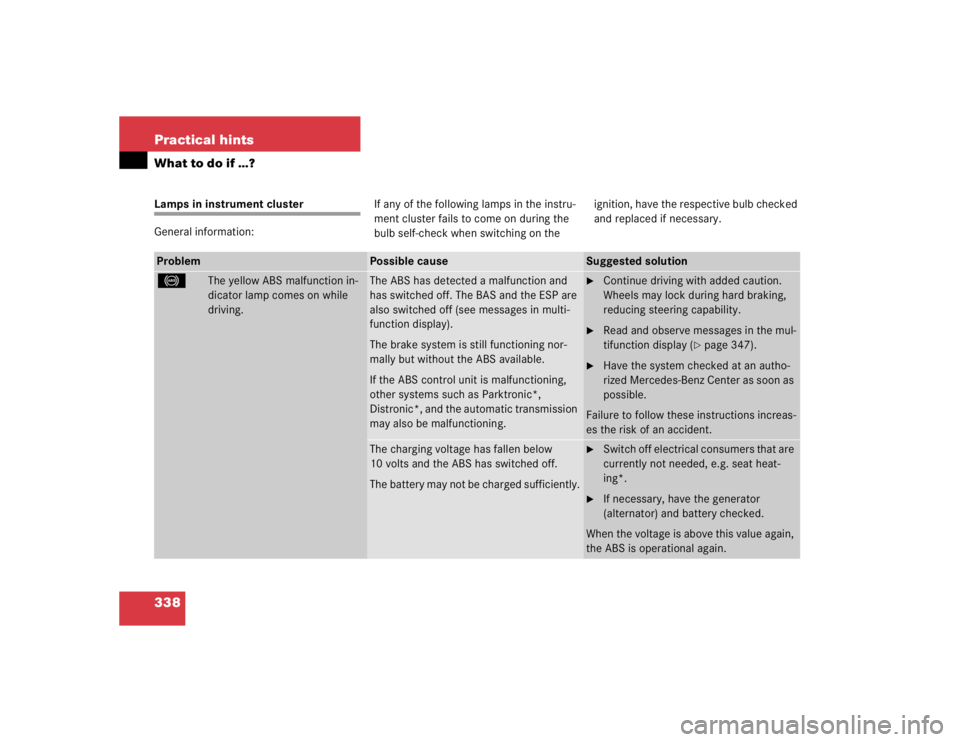

338 Practical hintsWhat to do if …?Lamps in instrument cluster
General information:If any of the following lamps in the instru-
ment cluster fails to come on during the
bulb self-check when switching on theignition, have the respective bulb checked
and replaced if necessary.Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction in-
dicator lamp comes on while
driving.
The ABS has detected a malfunction and
has switched off. The BAS and the ESP are
also switched off (see messages in multi-
function display).
The brake system is still functioning nor-
mally but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as Parktronic*,
Distronic*, and the automatic transmission
may also be malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 347).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS has switched off.
The battery may not be charged sufficiently.

Switch off electrical consumers that are
currently not needed, e.g. seat heat-
ing*.

If necessary, have the generator
(alternator) and battery checked.
When the voltage is above this value again,
the ABS is operational again.

356 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
#
BATTERY CHARGE
VISIT WORKSHOP
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be oper-
ating with restricted capability.
Considerably greater brake pedal force is
required and the stopping distance is
longer.

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Notify an authorized
Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest autho-
rized Mercedes-Benz Center. Adjust driv-
ing to be consistent with reduced braking
responsiveness.
;(USA only)!(Canada only)
RELEASE
PARKING BRAKE
You are driving with the parking brake en-
gaged.

Release the parking brake (
page 48).

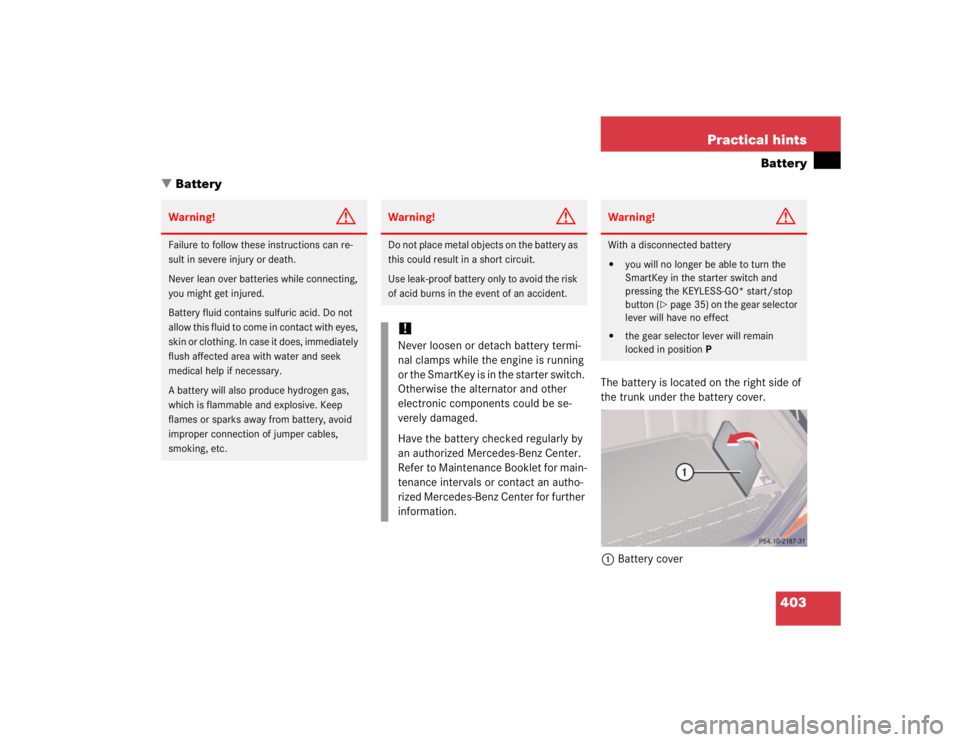

403 Practical hints
Battery
Battery
The battery is located on the right side of
the trunk under the battery cover.
1Battery cover
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Maintenance Booklet for main-
tenance intervals or contact an autho-
rized Mercedes-Benz Center for further
information.
Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button (
page 35) on the gear selector
lever will have no effect


the gear selector lever will remain
locked in positionP

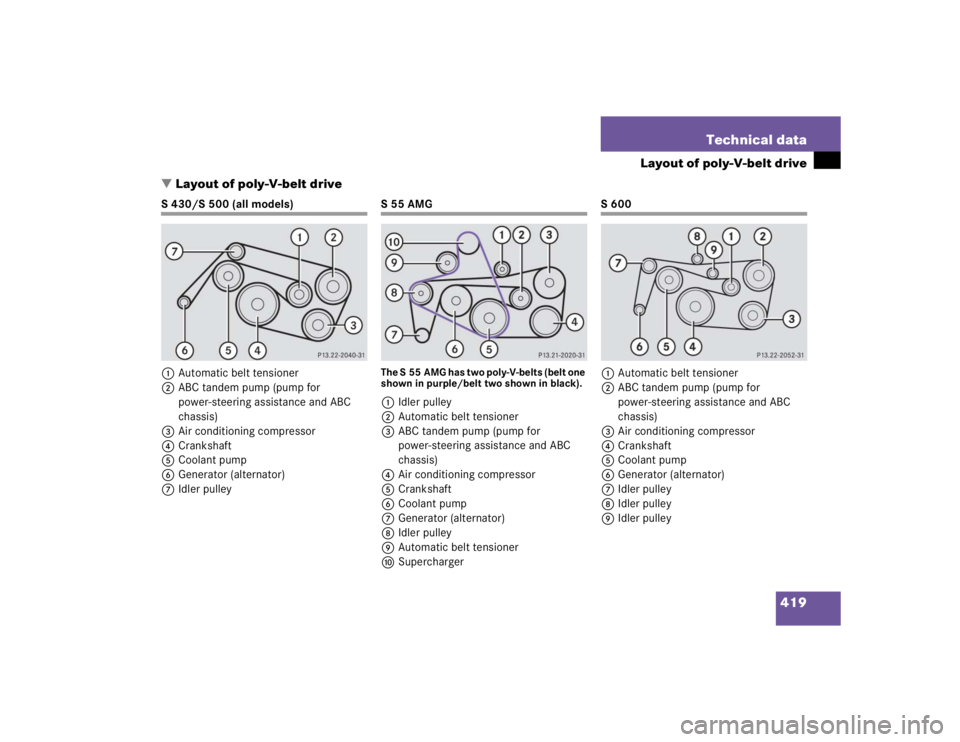

419 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
S 430/S 500 (all models)
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
S55AMGThe S 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black). 1Idler pulley
2Automatic belt tensioner
3ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSupercharger
S600
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley

427 Technical data
Electrical system
Electrical system
Model
S 430, S 500
S 55 AMG
S 600
Generator (alternator)
14 V/150 A
14 V/180 A
14 V/220 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/95 Ah
12 V/95 Ah
12 V/95 Ah
Spark plugs
Bosch F 8 DPP 332
NGK PFR 5 R-11
NGK IL FR 6 A
NGK IFR 6Q-G
Electrode gap
0.039 in (1.0 mm)
0.031 in (0.8 mm)
0.028 in (0.7 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
18 – 22 lb-ft (25 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

440 Technical termsLine of fall
The direct line that an object moves
downhill when influenced by the force
of gravity alone.
Lock button
Button on the door which indicates
whether the door is locked or un-
locked. Pushing the lock button down
on an individual door from inside will
lock that door.
Maintenance System (U.S. vehicles)
Maintenance service indicator in the
multifunction display that informs the
driver when the next vehicle mainte-
nance service is due. The Maintenance
System in your vehicle tracks distance
driven and the time elapsed since your
last maintenance service, and calls for
the next maintenance service accord-
ingly.
Memory function
Used to store three individual seat,
steering wheel and exterior mirror posi-
tions for each SmartKey or SmartKey
with KEYLESS-GO*.MON
(M
otor O
ctane N
umber)
The Motor Octane Number for gasoline
as determined by a standardized meth-
od. It is an indication of a gasoline's
ability to resist undesired detonation
(knocking). The average of both the
MON (Motor Octane Number) and
->RON (Research Octane Number) is
posted at the pump, also known as
ANTI-KNOCK INDEX.
Multifunction display
Display field in the speedometer used
to present information provided by the
control system.
Multifunction steering wheel
Steering wheel with buttons for operat-
ing the control system.Overspeed range
Engine speeds within the red marking
of the tachometer dial. Avoid this en-
gine sp ee d ra nge , a s i t m ay re sul t in s e-
rious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
Parktronic system (Parking assist)*
System which uses visual and acoustic
signals to assist the driver during park-
ing maneuvers.
Poly-V-belt drive
Drives engine components (alternator,
AC compressor, etc.) from the engine.
