At a glance.......................................... 21
Cockpit ................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 26
Center console ..................................... 27
Upper part ...................................... 27
Lower Part ...................................... 28
Overhead control panel ........................ 29
Door control panel................................ 30
Getting started................................... 31
Unlocking ............................................. 32
Unlocking with the SmartKey ......... 32
Starter switch positions .................. 33
Adjusting .............................................. 35
Seats .............................................. 35
Steering wheel ................................ 39
Mirrors ............................................ 41
Driving .................................................. 43
Fastening the seat belt ................... 43
Starting the engine ......................... 46
Switching on headlamps ................. 49
Turn signals .................................... 50
Windshield wipers ........................... 50
Rear window wiper ......................... 53
Problems while driving.................... 54
Parking and locking .............................. 55
Parking brake ................................. 55
Switching off headlamps................. 56
Turning off engine ........................... 57

ContentsSafety and Security........................... 59
Occupant safety................................... 60
Air bags .......................................... 61
Seat belts ....................................... 66
Children in the vehicle .................... 69
Blocking of rear door window
operation ........................................ 77
Panic alarm* ........................................ 78
Activating ....................................... 78
Deactivating ................................... 78
Driving safety systems ......................... 79
ABS ................................................ 79
BAS ................................................ 80
ESP ................................................. 81
Four wheel electronic traction
system (4MATIC) with the ESP ....... 84
Anti-theft systems................................ 85
Immobilizer..................................... 85
Anti-theft alarm system* ................ 85
Tow-away alarm* ........................... 87
Controls in detail............................... 89
Locking and unlocking ......................... 90
SmartKey ....................................... 90
Opening the doors from
the inside ....................................... 93
Opening the tailgate ....................... 94
Closing the tailgate ........................ 94
Automatic central locking .............. 95
Locking and unlocking from
the inside ....................................... 96
Seats ................................................... 97
Easy-entry/exit feature* ................ 97
Removing and installing front
seat head restraints ....................... 99
Rear seat head restraints ............. 100
Multicontour seats* ..................... 103
Seat heating* ............................... 104
Memory function* ............................. 105
Storing positions into memory ..... 106
Recalling positions from memory . 106
Storing exterior rear view mirror
parking position ........................... 107Lighting ............................................. 108
Exterior lamp switch .................... 108
Combination switch ..................... 112
Hazard warning flasher ................ 113
Interior lighting ............................ 114
Door entry lamps ......................... 115
Instrument cluster ............................. 116
Instrument cluster illumination .... 116
Coolant temperature gauge ......... 117
Trip odometer .............................. 117
Tachometer .................................. 118
Outside temperature indicator ..... 118
Control system .................................. 119
Multifunction display.................... 119
Multifunction steering wheel........ 120
Menus .......................................... 122
Standard display menu ................ 124
AUDIO menu ................................ 125
NAV* menu .................................. 128
Vehicle status message memory
menu............................................ 128
Settings menu .............................. 130
Trip computer menu..................... 146
TEL menu* ................................... 148

Contents
Practical hints................................. 293
What to do if … .................................. 294
Lamps in instrument cluster ........ 294
Lamp in center console................ 300
Vehicle status messages in the
multifunction display .................... 301
Where will I find ...? ........................... 321
First aid kit ................................... 321
Vehicle tool kit ............................. 321
Minispare wheel ........................... 324
Unlocking/locking in an emergency .. 326
Unlocking the vehicle ................... 326
Locking the vehicle ...................... 327
Fuel filler flap ............................... 328
Manually unlocking the
transmission gear selector lever .. 328
Opening/closing in an emergency..... 329
Power tilt/sliding sunroof* .......... 329Replacing SmartKey batteries ............ 330
SmartKey ...................................... 331
Replacing bulbs .................................. 332
Bulbs ............................................. 332
Replacing bulbs for front lamps .... 335
Replacing bulbs for rear lamps ..... 339
Replacing wiper blades....................... 341
Removing wiper blades ................. 341
Installing wiper blades .................. 341
Flat tire ............................................... 342
Preparing the vehicle .................... 342
Mounting the Minispare wheel...... 342
Battery................................................ 347
Disconnecting the battery............. 348
Removing the battery.................... 348
Charging and reinstalling
the battery .................................... 348
Reconnecting the battery.............. 349Jump starting...................................... 350
Towing the vehicle.............................. 352
Installing towing eye bolt .............. 355
Fuses.................................................. 356
Aids for changing fuses ................ 357
Main fuse box in passenger
compartment ................................ 357
Fuse box in engine
compartment ................................ 358
Fuse box in cargo
compartment ................................ 359

21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

23 At a glance
Cockpit
Item
Page
1
Cruise control lever
223
2
Multifunction steering
wheel
26,
120
3
Horn
4
Instrument cluster
24,
116
5
Lever for voice control
system*
1, see separate
operating instructions
1Feature description is based on preliminary infor-
mation at time of printing. At time of printing, no
date for availability of voice control had been set.
Contact an authorized Mercedes-Benz Center for
details and availability for your vehicle model. 6
Overhead control panel
29
7
Glove box lid release
234
8
Glove box lock
234
Item
Page
9
Center console
27
a
Starter switch
33
b
Hood lock release
270
c
Steering wheel adjustment
handle (manual)
40
d
Steering wheel adjustment
stalk (electrical)*
40
e
Parking brake pedal
47, 55
f
Door control panel
30
g
Parking brake release
47
Item
Page
h
Combination switch

Turn signals
50


Windshield wipers
50


Rear window wiper
53


High beam
49
j
Exterior lamp switch
49,
108
k
Exterior rear view mirror
adjustment
41,
107
l
Headlamp washer switch*
161

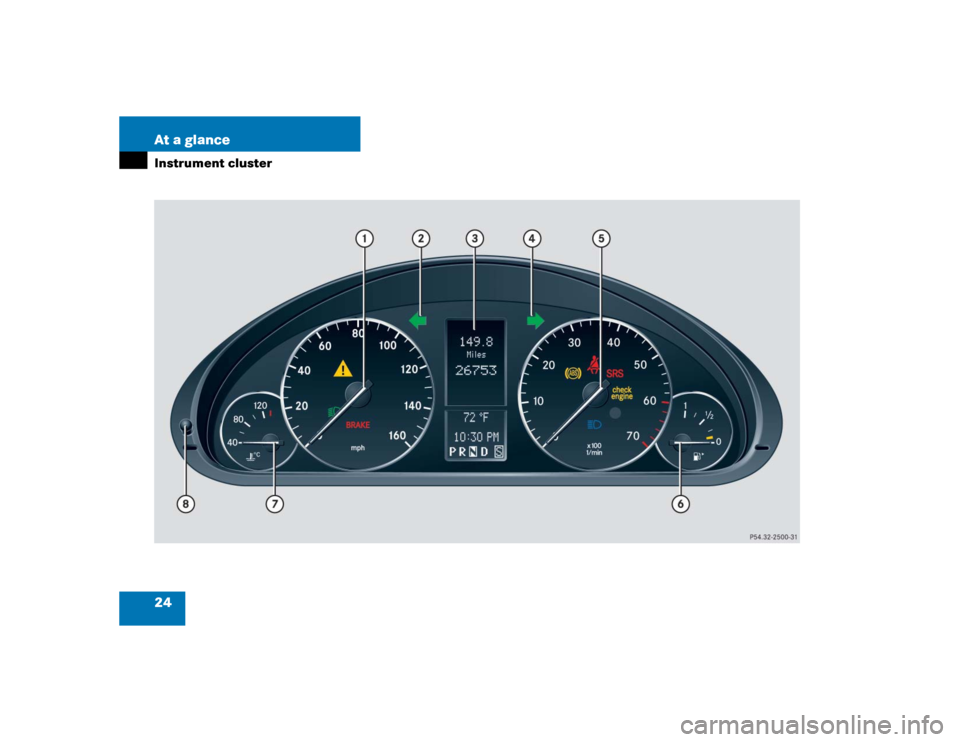

24 At a glanceInstrument cluster

25 At a glance
Instrument cluster
Item
Page
1
Speedometer with:vElectronic Stability
Program (ESP)
warning lamp
81,
298
;Brake warning
lamp, USA only
47,
55,
295
3Brake warning
lamp, Canada only
47,
55,
295
BLow beam head-
lamp indicator lamp
49,
108
2
LLeft turn signal
indicator lamp
50
3
Multifunction display
with:
119
Trip odometer
117
Main odometer
119
Gear selector lever
position
46,
156
Item
Page
Program mode
158
Status indicator (outside
temperature/digital
speedometer
118,
134
Digital clock
119,
135
4
KRight turn signal
indicator lamp
50
5
Tachometer with:
118
-Antilock Brake
System (ABS)
indicator lamp
79,
294
úEngine malfunction
indicator lamp,
USA only
296,
297
±Engine malfunction
indicator lamp,
Canada only
296,
297
1Supplemental
restraint system
indicator lamp
60,
299
Item
Page
66,
299
AHigh beam head-
lamp indicator lamp
49,
112
6
Fuel gauge with:Fuel reserve warning lamp
299
4Fuel filler cap
location indicator:
The fuel filler cap is
on the rear
right-hand side.
7
Coolant temperature
gauge
117
8
Reset button for:

Resetting trip
odometer
117


Resetting individual
settings
130


Instrument cluster
illumination
116

33 Getting started
Unlocking
Starter switch positions SmartKey
Starter switch0For removing SmartKey
The steering is locked when the
SmartKey is removed from the starter
switch. If necessary, move steering
wheel slightly to allow the locking
mechanism to engage.
1Power supply to some electrical
consumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps in the instrument cluster
come on. If a lamp in the instrument
cluster fails to come on when the
ignition is switched on, have it checked
and replaced if necessary. If a lamp in
the instrument cluster remains on after
starting the engine or comes on while
driving, refer to “Lamps in instrument
cluster” (
page 294).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of vehicle
equipment may cause an accident and/or
serious personal injury.
